China lab dissolution tester machinery

1.Feature and Description

It has three vessels and three poles arranged on one line.
The head part of the instrument can be artificially turned over smoothly and flexibly.
The basket units and paddle units are made of imported stainless steel (SUS316L).
The magnetism-pumped circular water current can heat the system evenly, and the bath liquid can achieve an equal temperature.
A MPU is used in dissolution tester to automatically control the temperature, rotational speed and time, and the parameters can be preset at any time.
It can be operated conveniently by keystroke. The measurement result is displayed by LED. The preset and real data can be displayed alternately in time.
Automation: auto-test, auto-diagnose, auto-alarm.

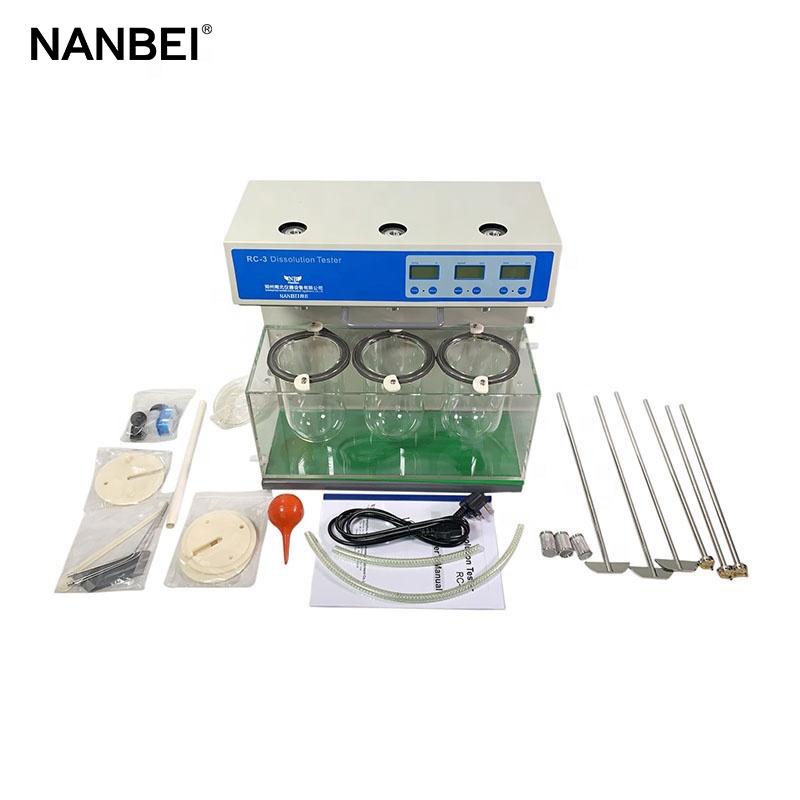

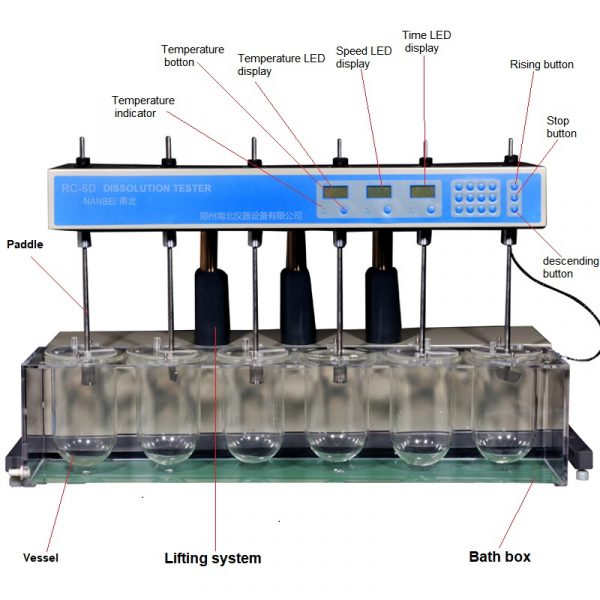

2.Picture for our product

3.Technical data

Speed range (20~200)rpm
Speed accuracy ±2rpm
Temperature range ambient to +45.0℃
Temperature Stability ±0.3℃
Preset timing nine points (5~900)min
Time accuracy ±0.5mm
Paddle radial run-out ±0.5mm
Basket radial run-out ±1.0mm
Power 220V/50Hz/600W or 110V/60Hz/600W
Dimension (510*300*480)mm3

4.Packing and Shipping

5.Related Product

Disintegration tester	Tablet hardness tester
Friability tester	Tablet four-usage tester

1 Does the machine comes with PQ/OQ/IQ ?
Yes.
2 Which Pharmacopoeia it could meet?
It could meet USP  JP EU standard.

1.Company show

2.Factory show

1.CE certification

2.Warranty and After-sale service

*We supply 1 year warranty and lifelong free technical guiding and training.

Please feel free contact for more details .Thanks
