Products Description

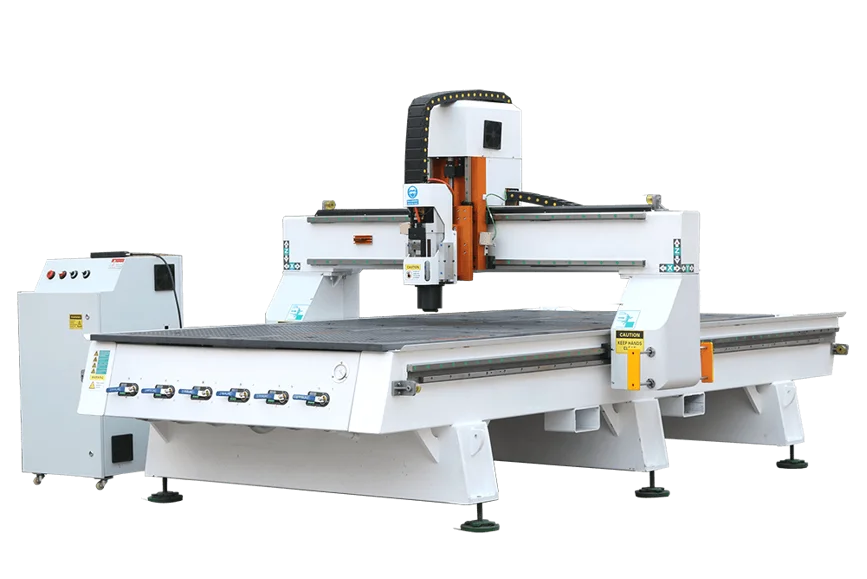

A low cost, entry level CNC Router
High-quality components
Ideal for small shops or first-time CNC users
Primary Applications: Sign making, General Wood working, Exhibition Stands, Point of Purchase, Scenery & Sets, Solid Surface, Interiors, Foam Packaging
1.Industry ERP Warehouse Management system 2.Marble of 0.0001mm Accuracy checking X/Y/Z axis install accuracy 3.Senior electrician assembles electric box, safe, attentive 4. Germany CNC milling machine making parts of cnc router with Highest accuracy 5. 5 axis cnc milling making the Frame of machine , milling , drilling and Tapping
Product Parameters
|
Parameters
|
Details
|
|
X,Y,Z Working Area
|
1300*2500*200mm|4*8ft
|
|
Optional Working Area
|
1300*1300*200mm|4*4ft
|
|
1300*2500*200mm|4*8ft
|
|
|
1500*3000*200mm|5*10ft
|
|
|
2000*3000*200mm|6*10ft
|
|
|
2000*4000*200mm|6*13ft
|
|
|
2000*5000*200mm|6*16ft
|
|
|
2000*6000*200mm|6*20ft
|
|
|
could be customed for X,Y and Z axis
|
|
|
Size
|
3280*2150*2400mm
|
|
Weight
|
1500kgs
|
|
Spindle Power
|
3kw (Option:4.5kw, 5.5kw 6.0kw ,9.0kw)
|
|
Spindle Speed
|
24000r/min
|
|
X,Y,Z Traveling Positioning Accuracy
|
±0.03/2000mm
|
|
Max. Rapid Travel Rate
|
80m/min
|
|
Max. Working Speed
|
60m/min
|
|
Working Voltage
|
AC380v/50HZ/3 phase
(optional ) |
|
Command Language
|
G Code
|
|
Interface
|
USB,NETWORK
|
|
Software Compatibility
|
Option:Alpacam,Carbinets Version ,BCAMNESTTING, solidworks,etc.
|
|
Running Environment
|
Temperature: -20℃~45℃ Relative Humidity: 5%~75%
|
Detail pictures
Active safety system (our patent)
This is our patent ,fixed on both sides of wood router ,It has beed applied on A plus/S/C/D/E series .When the cnc router is working ,if the yellow part touch the workers ,the machine will stop instantly to protect the workers .

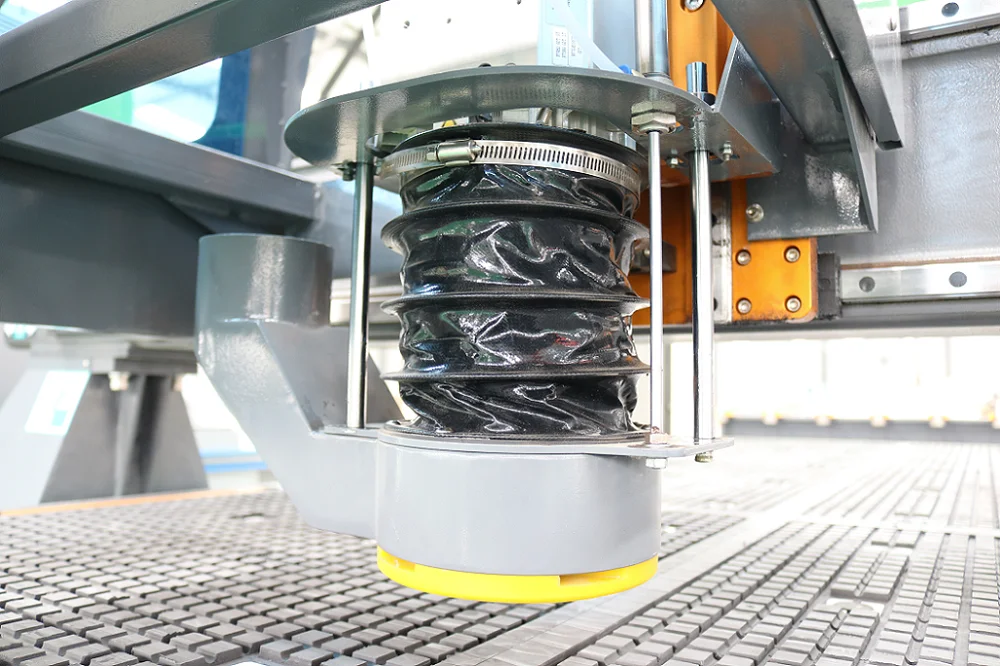

Airtech Pro (our patent)
This is another patent of our cnc router,it has been applied on S/C/D/E series cnc router .Not like the normal hairbrush ,the air flew caused by the dust collector in the Airtech Pro could work together with the dust collector and therefore achieve better dust
collect effect .
collect effect .

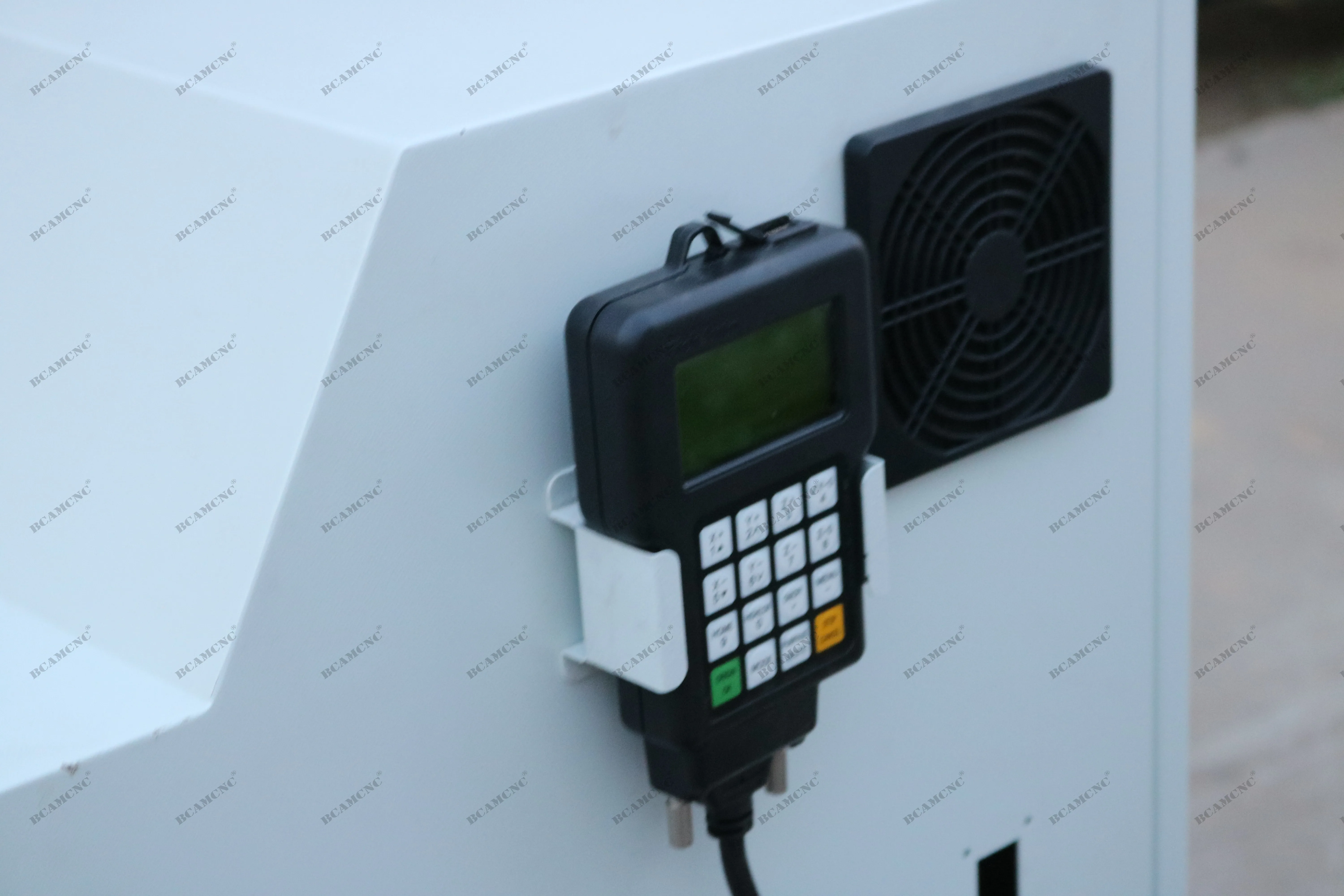

DSP A11 control system
BCM1325A-Plus router control system is famous DSP A11 which is simple and easy to operate, the system has a wide range of support documents, power-off continuous carving, 2D 3D relief and other functions, easy to operate, widely used.

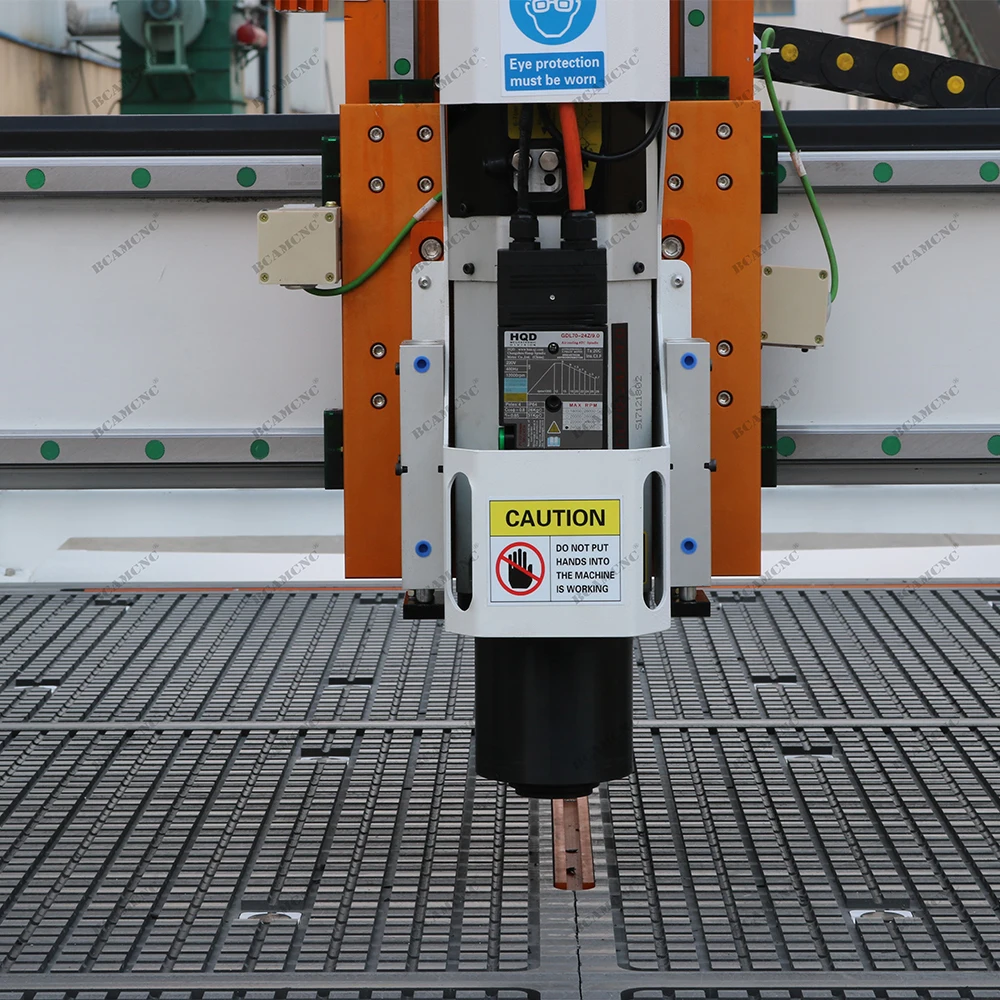

Air Cooling spindle
6,000 – 24,000 RPM Spindle
Primary Applications: Sign making, General Wood working, Exhibition Stands, Point of Purchase, Scenery & Sets, Solid Surface, Interiors, Foam Packaging

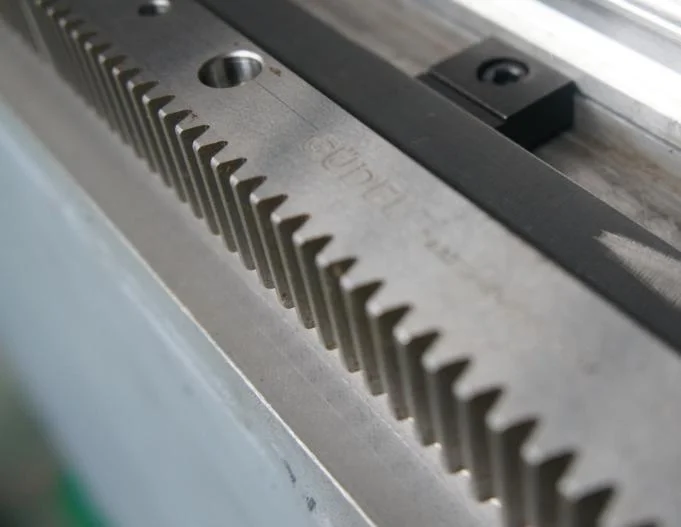

High quality gear
Choose from standard or helical racks for your choice of productivity and precision.

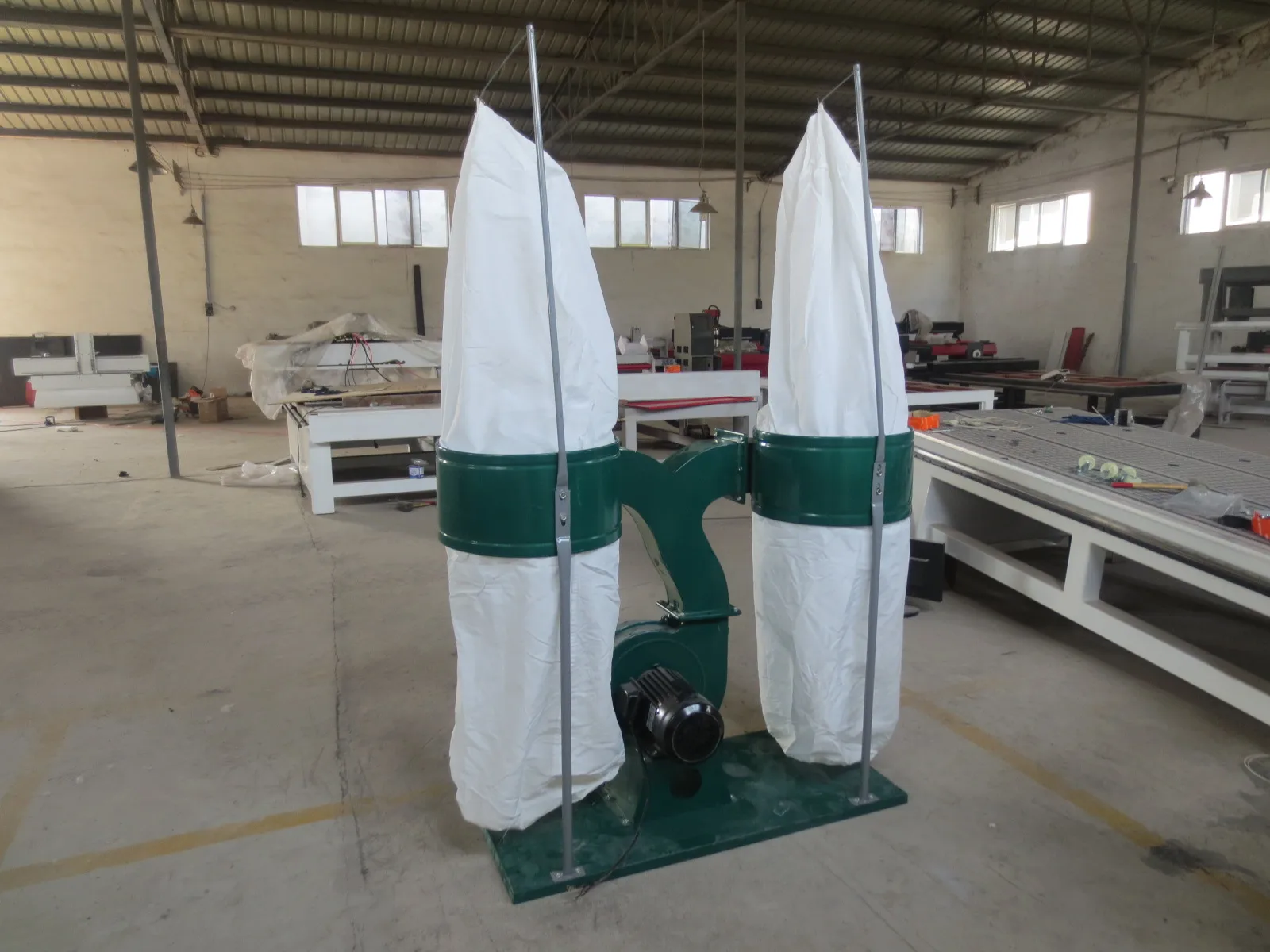

Dust collection system
Double dust collector +Dust collector pipe+Dust collector support

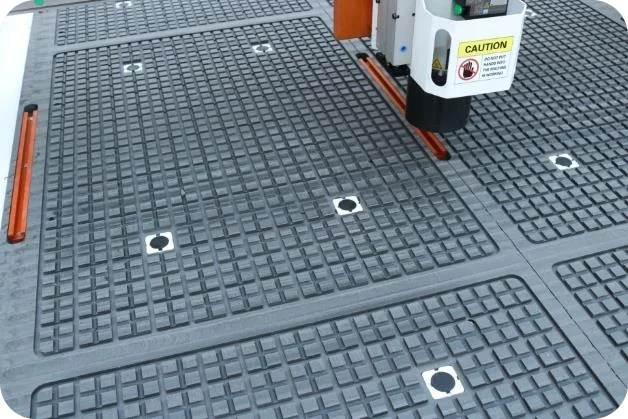

working table
Vacuum table+T-solt

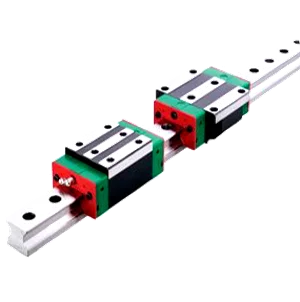

HIWIN Precision-Ground Bearings
HIWIN Precision-Ground Bearings, Linear Guides and Helical Rack-and-Pinion for precision and longevity
