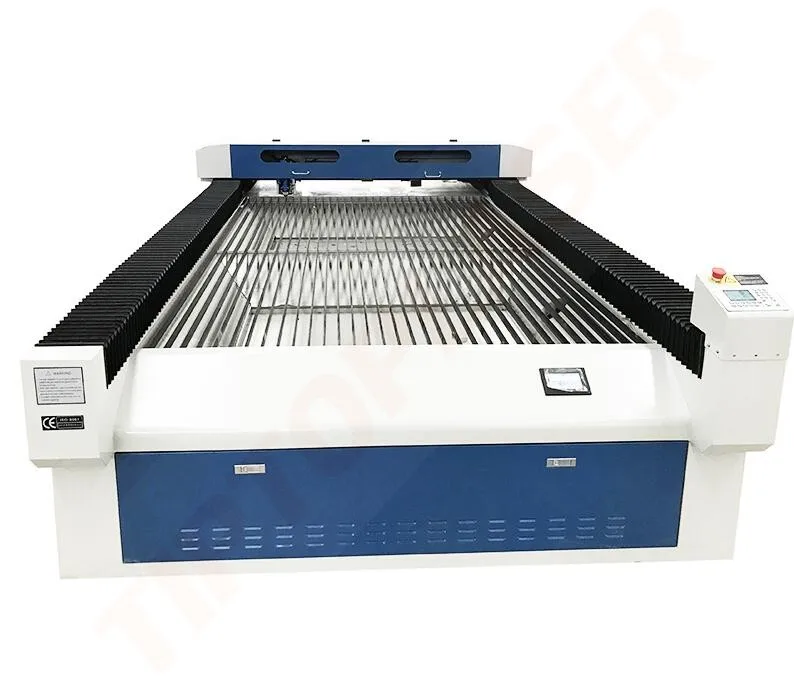

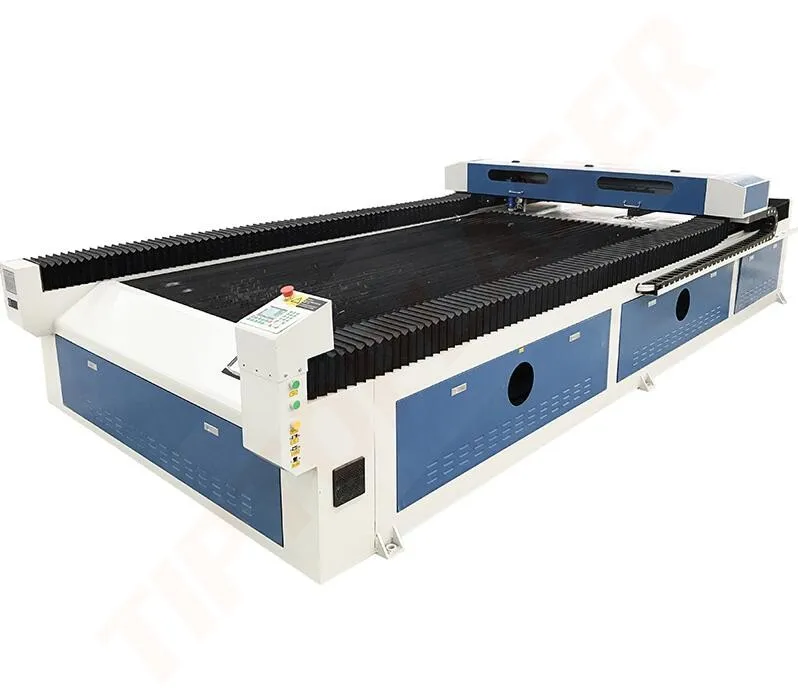

China Factory Price 1325 Co2 Laser Engraving Cutting Machine Laser Cutter

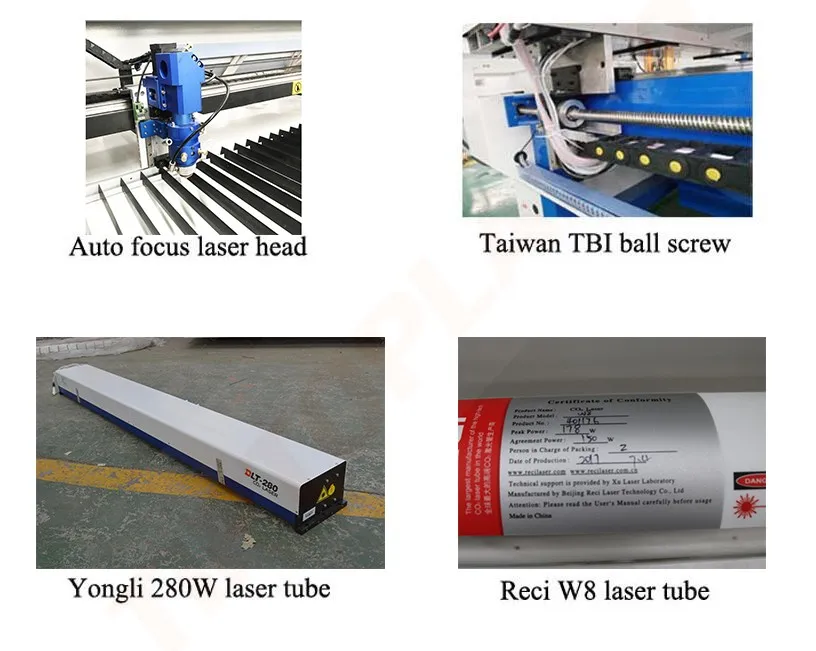

Our TPL-1325 laser cutter machine is the latest design with 180W-400W laser tube, it can cut metals such as stainless steel, carbon steel, also can cut non-metal such as acrylic, wood/MDF, leather, foam, plastic and etc. It is equipped with advanced laser controller with autofocus system, if the metal sheet is not flat, the system can sense the distance from the nozzle to the material surface and follow the surface up and down to automatically adjust the certain focus distance to keep the highest precision cutting quality.

Equipped with an electric lifting table and rotary device can make you cut round tube, such as a steel tube and etc.

The CCD can automatically locate the picture edge, to make the automatic cutting.

2.High precision: Imported servo motor with imported ball screw transmission greatly improve the response speed and cutting precision of equipment, extend the time of using.

3.Constant light system: The machine uses the constant light, achieving high precision cutting of the whole area.

4.High precision and Good stability: With precision ball screw transmission mechanism and optimized the NC system control, it can meet the precision parts processing, stable dynamic performance, also can work for long hours.

5. The cutting section with good quality: Mechanical follow-up cutting head system,
cutting head always follows the material to keep the cutting point location unchanged, which insures a smooth cutting section without processing again. It can adapt to flat or curved surface sheet cutting.

6. Adopt sealed co2 laser tube, main consumable items are electric energy, water cooling, auxiliary gas, and laser light

7.Simple structure, easy operation, stable laser device, and low maintenance cost.

Machine model

TPL-1325

Laser type

Sealed CO2 laser tube

Control system

Ruida 6332M control system

Laser power

Reci 150W/180W /Yongli 280W

Cooling mode

Circulating water cooling

Laser power control

0-100% software control

Max. engraving speed

60000 mm/min

Max cutting speed

50000 mm/min

Repetition accuracy

≤±0.01mm

Table size

1300mm*2500mm

Working voltage

AC220V/110V/50hz/60hz

Working conditions

temperature:0-45℃, humidity:5%-95%

File formats

PLT,*.dst,*.dxf,*.bmp,*.dwg,*.ai,*.las

Worktable

Blade Table

Applicable Material

Carbon Steel, Stainless steel, Wood, Acrylic, etc
