Product Description

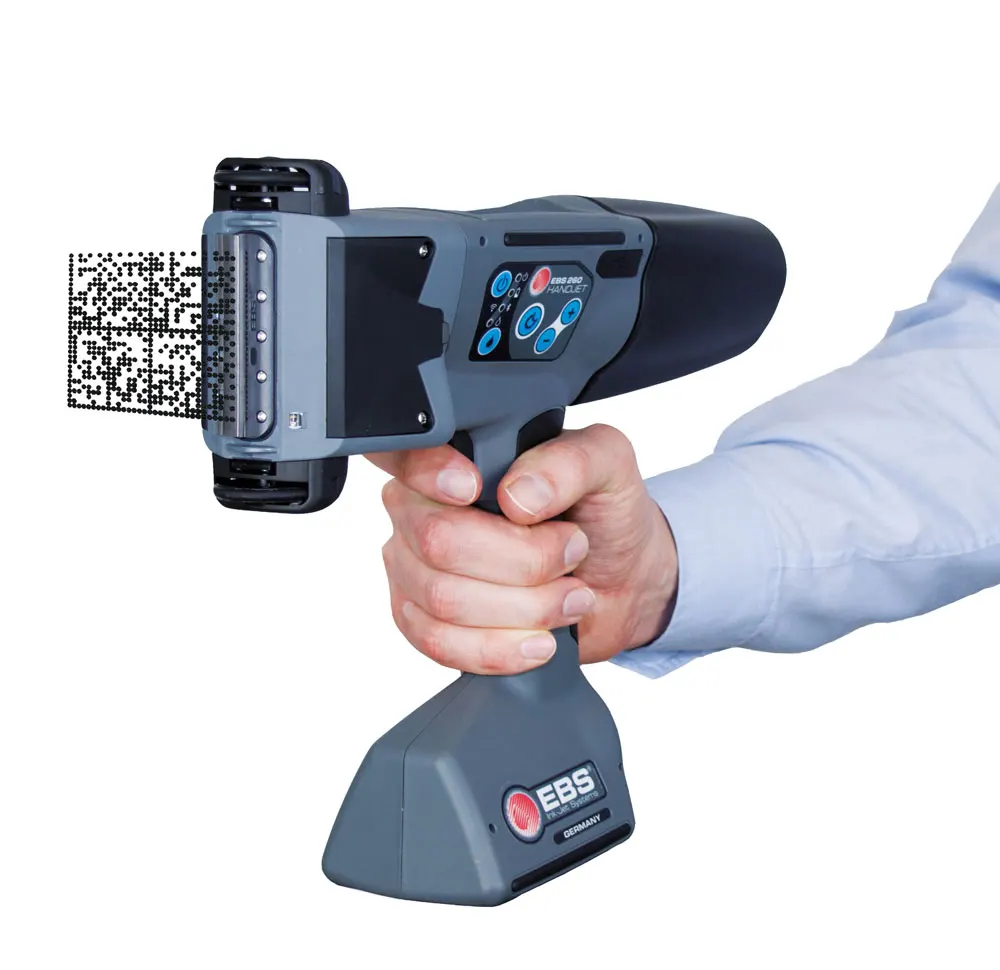

EBS260 Hand-Jet printer
EBS260 Hand-Jet printer’s
print height has been doubled to 32 dots with print heights up to 2.2″ and will provide one to four separate lines of code. We’ve increased the capacity of the ink cartridge to up to 200,000 characters in a 7×5 matrix. Single- or multi-line messages from .276″to 2.2″ high can be printed on both porous and non-porous substrates. It’s ideal for imprinting corrugated, paper, film, foil, glass, metal, lumber, concrete, and many other surfaces.
print height has been doubled to 32 dots with print heights up to 2.2″ and will provide one to four separate lines of code. We’ve increased the capacity of the ink cartridge to up to 200,000 characters in a 7×5 matrix. Single- or multi-line messages from .276″to 2.2″ high can be printed on both porous and non-porous substrates. It’s ideal for imprinting corrugated, paper, film, foil, glass, metal, lumber, concrete, and many other surfaces.
New on-board, color touch-screen controller simplifies on-the-fly adjustments. The over 3.5″-diagonal, hardened screen enables the user to view the message being printed and various operational parameters. The large, highly-readable screen makes it easy to adjust print parameters at the touch of a finger, ensuring optimum printing results without interrupting work flow.
The HandJet EBS-260 uses a simple Microsoft TM Windows-based program to format and transmit messages that are easily created on a personal computer. Messages can consist of logos from Windows fonts and symbols, as well as diacritical characters.
The hand-held system minimizes energy consumption to print for up to 50 continuous hours thanks to its rechargeable Li-ion battery– and recharging takes only two and a half hours.
Specification
|
Nozzles
|
32 nozzles
|
|
Nozzle diameter
|
150μm
|
|
Print height
|
10mm-57mm
|
|
Print memory
|
2 Gigabyte
|
|
Special characters
|
National (diacritical) characters and graphics
|
|
Variable fields
|
Date, time, ascending/descending sequential numbers, universal counter
|
|
Power supply
|
External power supply; 24V, 1.25A
|
|
Operating time with full battery
|
up to 16 hours
|
|
Recharging
|
Uses an external 24V, 1.25A DC power pack
|
|
Ink
|
Cartridges; ethanol-, acetone-, water-based, or MEK, in various colors
|
|
Cartridge capacity
|
200ml
|
|
Weight
|
1.65KG with ink cartridge
|
|
Storage temp
|
34°F to 113°F (1°C to 45°C) – water-based ink; 14°F to 113°F (-10°C to 45°C) – ethanol- or acetone-based ink
|
|
Humidity
|
Up to 95% non-condensing; printer operates in rain on dry surface
|
Application

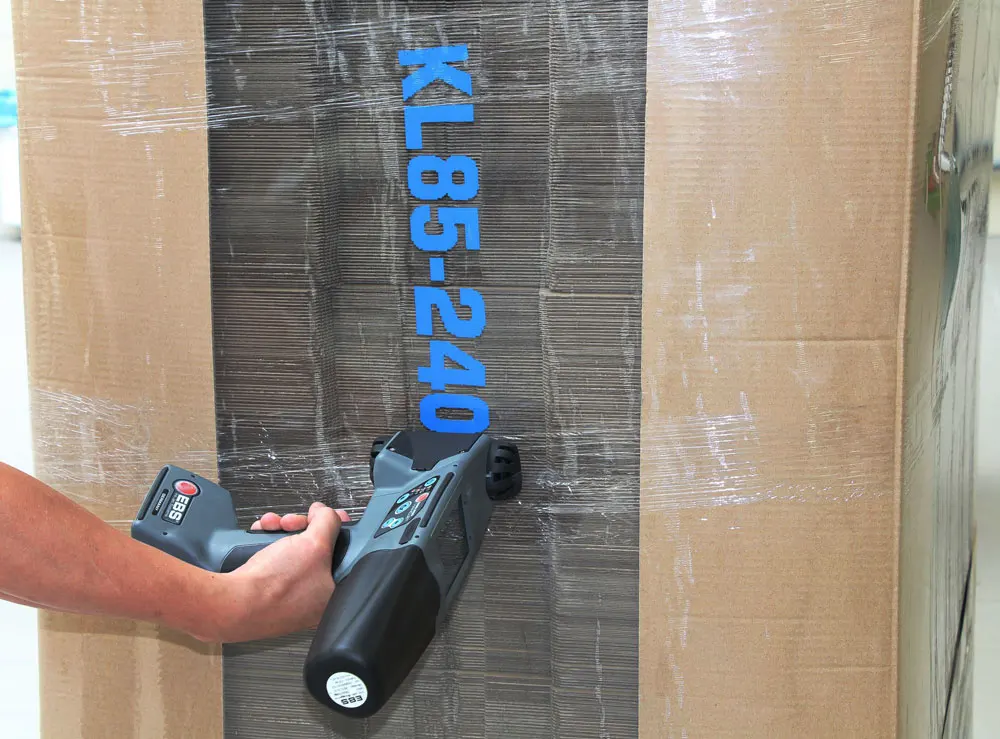

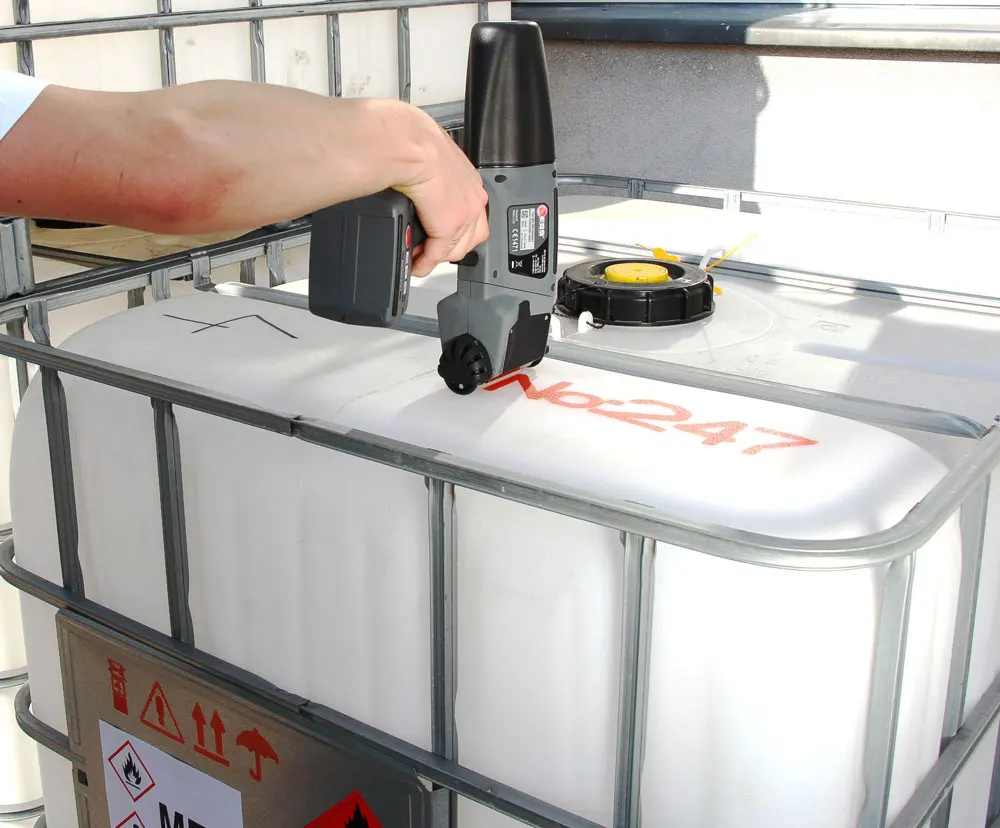

EBS260 printing technology clearly prints on a variety of material and surface types —even coarse or porous surfaces or those containing depressions or protrusions:
* Paper
* Fabric
* Natural Materials

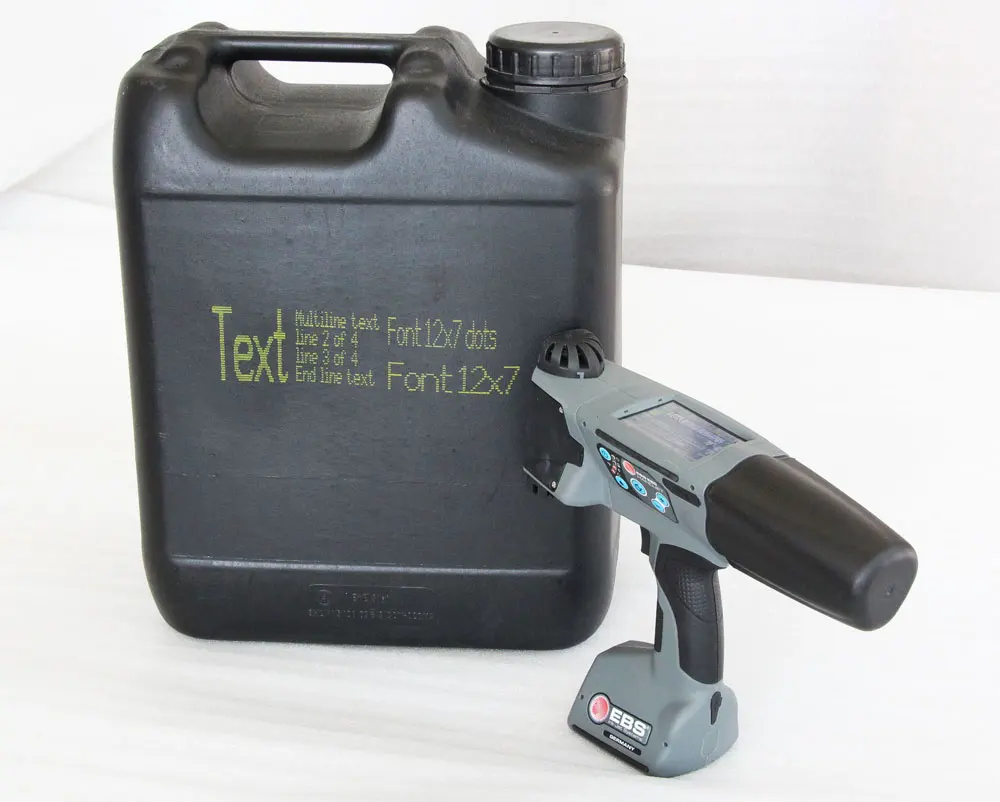

* Plastics
* Metals
* Glass and Ceramic Ware
* Wood and Wood-Like Products
* Fabric
* Natural Materials
* Plastics
* Metals
* Glass and Ceramic Ware
* Wood and Wood-Like Products
* Leather and Leather-Like Goods

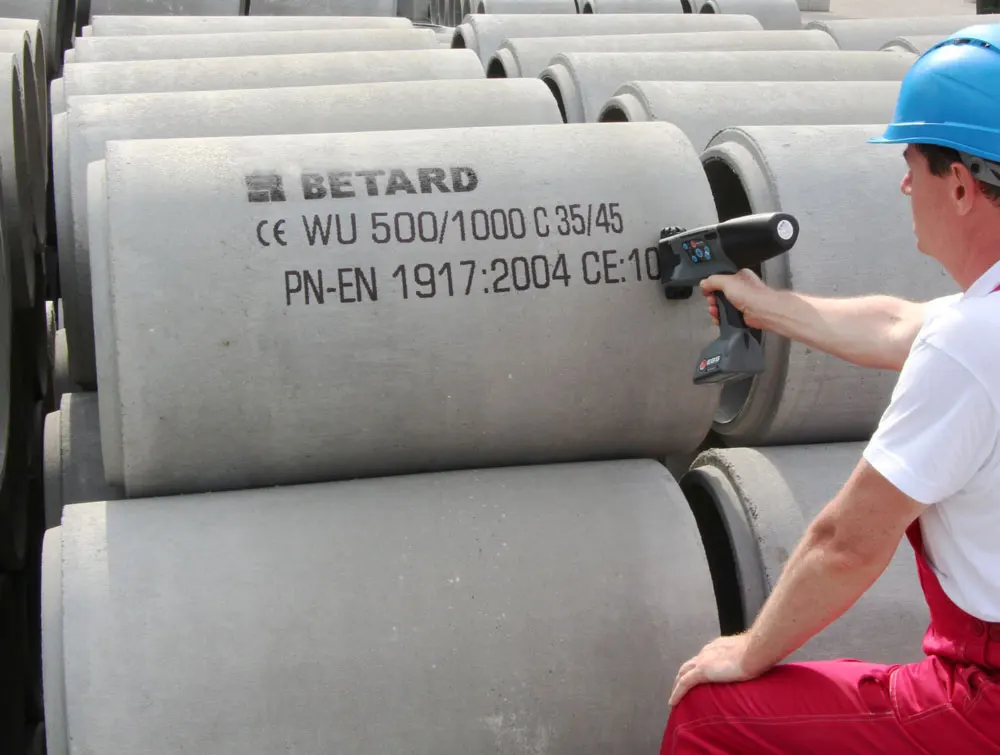

* Construction Materials and a variety of derived products
* Food Products
* Pharmaceutical Agents
* Raw Materials: Prefabricated, Intermediate Work-In-Progress and Finished Goods
* Construction Materials and a variety of derived products
* Food Products
* Pharmaceutical Agents
* Raw Materials: Prefabricated, Intermediate Work-In-Progress and Finished Goods
Printing Height is up to 57mm
Standard Accessories:
1.
Spray bottle
Spray bottle
2. 24-volt, 1.25-amp power pack, cable
3. CD w/utility software and user-support file
3. CD w/utility software and user-support file
–
Ink of various colors: black, red, green, yellow, blue, etc.;
-water-absorbent materials, semi-absorbent materials and non-absorbent materials;
