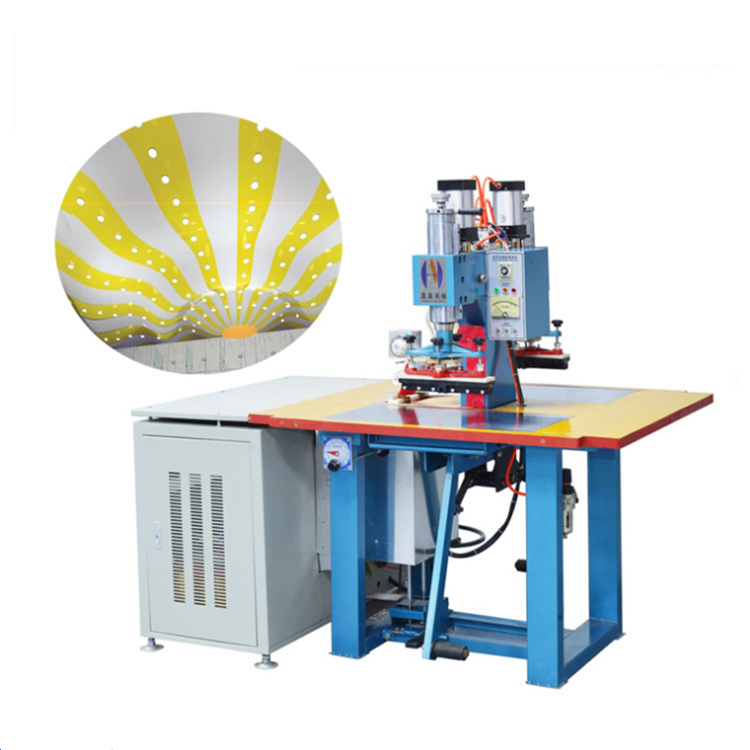

NL-5557 Anti-Spark System
Using high sensitivity America-Impoted anti-spark thyratron tube, which is useful for protect mould and work-piece once machine over curent. More suitable for complex products welding protection.
TOSHIBA Oscillation Tube
Using TOSHIBA original imported oscillation tube, more powerful output power and durable than other brand.
AirTac Air System
Adopting famous brand AirTac air system, greatly make the machine pressure working precisely.
1. Safety device
When the current exceeds its limit, the overload relay functions automatically to protect oscillation tubes and rectifier. Frequency deviation caused by misoperation is also prevented.
2. Strong Foot Pedal
Machine using a special designed mechanism, the maximum pressure of foot pedal can reach up to 400KGS so as to meet most operating conditions. The high quality components make these machines work very smoothly and precisely.
3. Easily Adjustable Tuner
Machine output power can be adjusted at the tuner according to electrode size and material thickness. In addition, other control devices and special electrical circuits have cut down required welding time considerably to raise the machine productivity.
4. Jamming Prevention Device
High frequency welding machine equipped with frequency stabilizer and high frequency magnetic leakage suppressor, this device provide leakage of electron magnetic radiation to avoid jamming other electrical instruments such as television and radios etc.
|
Model
|
CH-5KW-STQY
|
CH-8KW-STQY
|
|
Output Power
|
5000W
|
8000W
|
|
Voltage
|
380V 3P 50/60Hz
|
380V 3P 50/60Hz
|
|
Input Power
|
8KVA
|
15KVA
|
|
Frequency
|
27.12Mhz
|
27.12Mhz
|
|
Oscillation Tube
|
TOSHIBA 7T85RB
|
TOSHIBA 7T69RB
|
|
Anti-Spark System
|
NL-5557
|
NL-5557
|
|
Max Pressure
|
800KG
|
800KG
|
|
Gap of Eletrode
|
160MM
|
160MM
|
|
Size of Mould Holder
|
160*310MM
|
160*310MM
|
|
Working Table Size
|
350*700MM
|
350*700MM
|
|
Machine Dimension
|
1850*1220*1550MM
|
1850*1220*1550MM
|
|
Machine Net Weight
|
450KG
|
550KG
|
Final products done with HF welding

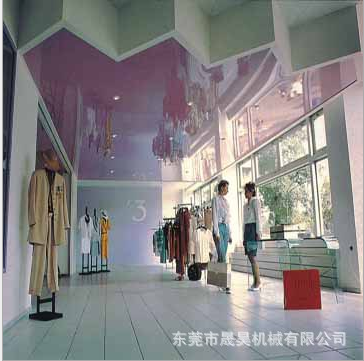

Common products manufactured with HF welding method are tarpaulins, tents, ceilings, advertising outdoor banners, waterbeds, inflatable boats, drip and blood bags, tensile structures, conveyor belts, rain clothing, etc.
What materials can be HF welded
The material most common in high frequency welding in PVC (something called simply vinyl) and PU (polyurethane). The material can be thick or thin, reinforced or coated. It cab also be plain, coloured or structure/patterned.
Polyvinylchlorde (PVC) and polyurethanes (PU) are the most common thermoplastics that are weldabele by HF also it is possbile to perform HF welding on other types of materia inculding naylon, PA, ABS, modified TOP, PETG, but particular attention should be pay on working parameters. HF welding is not suitable for PTFE, polycarbonte, polystyrne, polyethylene or polypropylene. Howeve, a special type of mixed fabrics have been produced recently, which have the capability to be HF welded.
Q: Are you trading company or manufacturer ?
A:Yes, We are factory, all machine is made by ourself and we can provide customize service according to your requirement.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q:What about your warranty?
A:Our warranty is 1 year, all machine part can be replaced for free within 1year if broken(not including man made).
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
