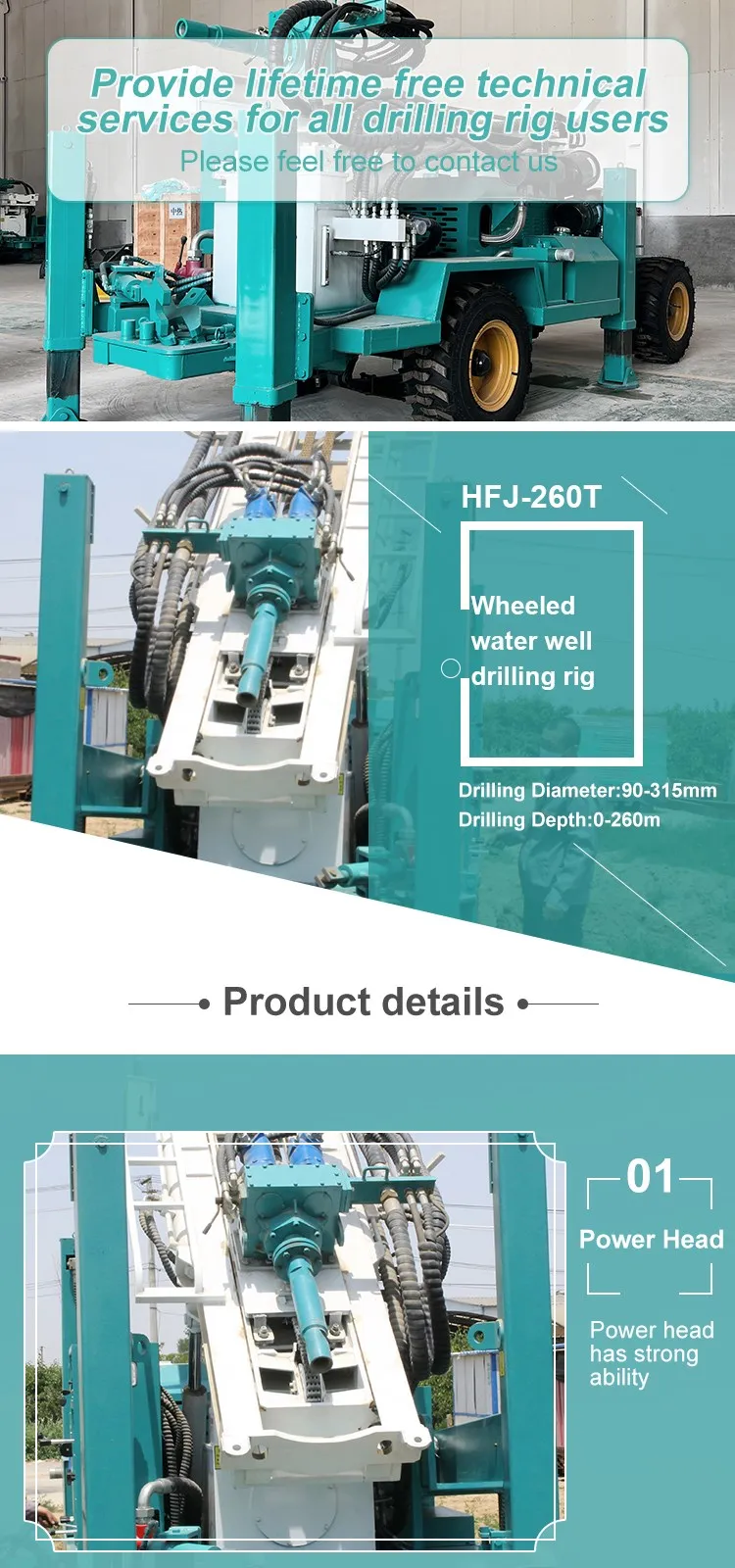

Romania buyers praise the HF260T can drill well very fast
Kindly let us know your project demands, like drilling depth, depth or more information. We will provide the complete solution for you. Click here to quickly communicate with us!!
WhatsApp：+8617739786040
E-mail：info@hanfagroup.com
phone：0086-371-55019599
|
The price of water well drilling rig upgrade remains unchanged
Drilling depth increase |
||||||||||
|
Model（NEW）
|
HFJ220T
|
HFJ260T
|
HFJ360T
|
HFJ460T
|
HFJ560T
|
|||||
|
Max. Drilling depth
|
220m
|
260m
|
360m
|
460m
|
560m
|
|||||
|
Drilling diameter
|
90-254mm
|
90-315mm
|
105-325mm
|
105-350mm
|
105-350mm
|
|||||
|
Working air pressure
|
1.05-2.46Mpa
|
1.7-3.0Mpa
|
1.05-3.45Mpa
|
1.05-3.45Mpa
|
1.05-4.5Mpa
|
|||||
|
Air consumption
|
16-30m³/min
|
17-35m3/min
|
16-55m3/min
|
16-55m3/min
|
16-60m3/min
|
|||||
|
Drilling rod length
|
3m
|
3m
|
3m/4.5m/6m
|
3m/4.5m/6m
|
3m/4.5m/6m
|
|||||
|
Drilling rod diameter
|
76/89mm
|
76/89mm
|
89/102mm
|
89/102mm
|
89/102/114mm
|
|||||
|
Axle pressure
|
5T
|
5T
|
5T
|
10T
|
12T
|
|||||
|
Lifting force
|
12T
|
14T
|
20T
|
24T
|
28T
|
|||||
|
Lifting speed
|
2.5m/min
|
2.5m/min
|
3.0m/min
|
3.0m/min
|
3.0m/min
|
|||||
|
Pulling speed
|
0.5-5m/min
|
0.5-5m/min
|
0.5-5m/min
|
0.5-5m/min
|
0.5-5m/min
|
|||||
|
Fast lifting speed
|
18m/min
|
18m/min
|
30m/min
|
25m/min
|
25m/min
|
|||||
|
Fast pulling speed
|
35m/min
|
35m/min
|
50m/min
|
40m/min
|
40m/min
|
|||||
|
Max. rotation torque
|
4200-5600Nm
|
4500-6500Nm
|
6500-8500Nm
|
7500-9500Nm
|
8500-11000Nm
|
|||||
|
Rotation speed
|
48-70r/min
|
50-70r/min
|
60-100r/min
|
45-120r/min
|
75-150r/min
|
|||||
|
Mud pump flow
|
20L/min(optional)
|
20L/min(optional)
|
20L/min(optional)
|
20L/min(optional)
|
20L/min(optional)
|
|||||
|
High hydraulic leg stroke
|
1.5m
|
1.5m
|
1.5m
|
1.5m
|
1.5m
|
|||||
|
Walking speed
|
2.5Km/h
|
2Km/h
|
3.5Km/h
|
3.5Km/h
|
3.5Km/h
|
|||||
|
Climbing capacity
|
30°
|
30°
|
30°
|
30°
|
30°
|
|||||
|
Weight
|
4.7t
|
5.4t
|
8.5T
|
10.5t
|
11.5T
|
|||||
|
Dimension
|
3600*1700*2150mm
|
3900*1700*2150mm
|
4800*2000*2450mm
|
5700*2000*2550mm
|
5800*2250*2550mm
|
|||||
|
Power
|
55kw
|
77.4kw
|
93KW
|
94KW(6 cylinder)
|
153kw
|
|||||
