Cheap Portable 180 To 800 Meter Water Well Drilling Rig For Sale


Product Description

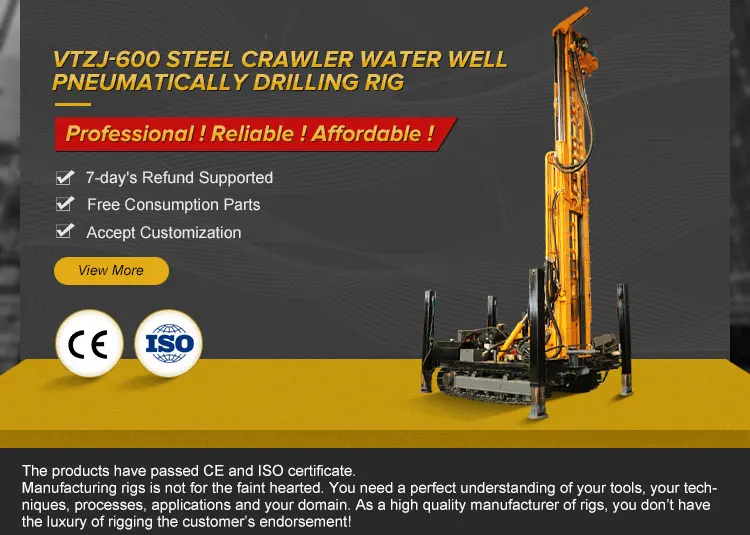

The VTZJ-600 pneumatic DTH drilling rig is capable of drilling upto 350mm diameter holes for pore-forming purposes to a depth of 600 meters.

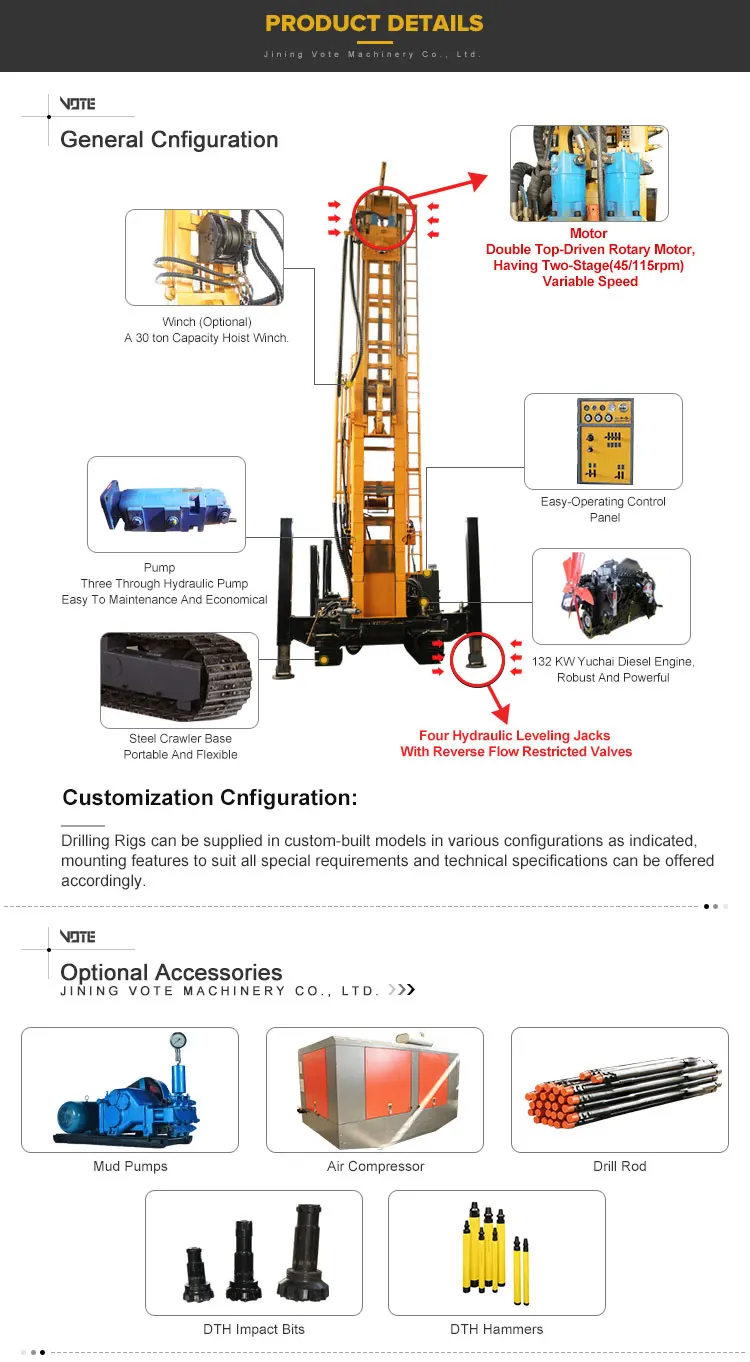

VTZJ-600 new generation multi-purpose DTH deep water well drilling rig is our independent research and development products. These new generation DTH are coupled to higher air power, and thus play a significant role in leading to faster drilling rates.

Adopting newest model & advanced hydro technology, our water well drilling machine are mainly used for well drilling in resource exploration and hydrology wells, civil use water well,  agriculture irrigation project, and can also be used for coal-mine gas exploitation, coalbed methane, shallow layer of shale gas, terrestrial heat, or salvage work.

Made from high quality materials, with fashion and compact design, that keeps our drilling rigs more efficiency and with low failure rate, more economic and durable, and with a high comprehensive cost performance. Our water drilling rigs have received the real market validation as the majority of our customers’ positive feedback.

 The Main Parameters

Model

VTZJ-600

 Weight

12T

 Bore diameter

140-350mm

 Drilling depth

600m

 Stroke

6.6m

 Travelling speed

2.5km/h

 Gradeability

30%

 Power

132KW

 Rated pressure

1.7-3.5mpa

 Air consumption

17-35m³/min

 Drill rod diameter

Φ102, Φ108 , Φ114

 Drill rod length

1.5m 2.0m 3.0m 6.0m

 Elevating capacity

28T

 Swing speed

45115rpm

 Swing torque

850011000N.M

 Dimensions

6000*2200*2850mm
