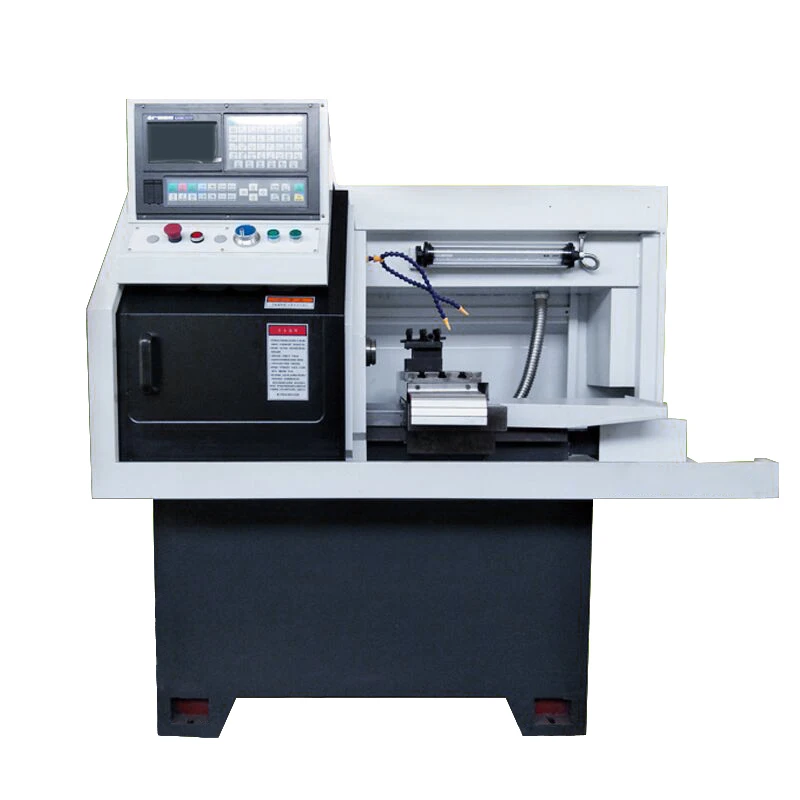

Standard configuration of the host
1. Guangzhou Keyuan control system (system can be customized, additional money)
2. Spindle speed 3,000RPM, spindle motor 3-4KW
3. High frequency super hard track
4. The foot of the bed is 1100MM long and 500MM wide, and the bed is cast iron 260 * 840MM
5. Automatic intermittent lubrication system (gear)
6. USB interface
7. Fully sealed protective cover (also semi-protective)
8. Guide rail full protective cover
9. Adjust the pads and bolts
| Project | 0640 regular version | |||||||||
| Table | Table size | 500 mm | ||||||||
| weight capacity | ||||||||||
| Main shaft | Spindle speed | 100-3,000 RPM | ||||||||
| Spindle power | 3-4kw | |||||||||
| Spindle taper | BT 22 | |||||||||
| Feed | Fast-moving | X axis m/min | 12 | |||||||
| Y axis m/min | 12 | |||||||||
| Z axis m/min | ||||||||||
| journey | X axis mm | 310 | ||||||||
| Y axis mm | 220 | |||||||||
| Z axis mm | ||||||||||
| Cutting feed rate m/min | 10000 | |||||||||
| ATC | Maximum processing length mm | 200 | ||||||||
| Maximum machining diameter mm | Φ200 | |||||||||
| Boring accuracy mm | ±0.01 | |||||||||
| Maximum turning diameter of bed mm | Φ230 | |||||||||
| Spindle bore mm | 40 | |||||||||
| Air pressure kgf/cm2 | 4 | |||||||||
| power supply | 380V | |||||||||
| Machine size | 1720 *1180 *1650MM | |||||||||
| Machine weight | 750Kg | |||||||||
