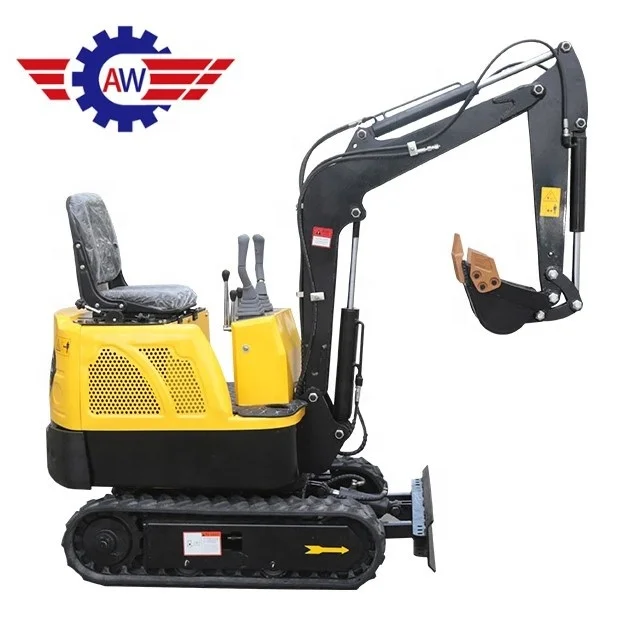

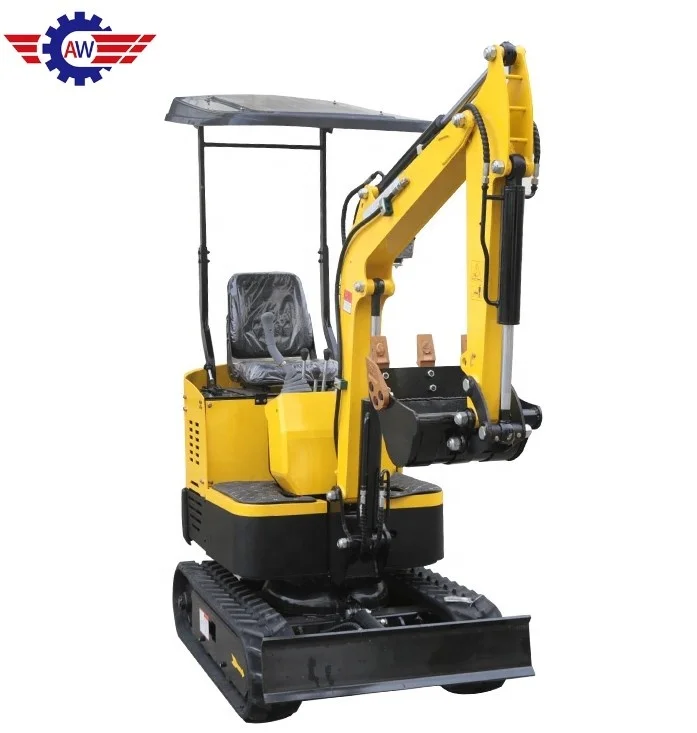

AW-10 1000kg excavator 1 ton 11.7 HP Aowei Mini Hydraulic Crawler mini Excavator machine excavators price manufacturers
Product Description
AW excavator is small and flexible,easy to operate and transport.(Ordinary farm car can carry on it). Above all,it can work in a small space,and can quickly replace the accessories and the utilization rate is greatly improved.
Product Details
|
Operating weight
|
1000kg
|
|
|
Digging bucket capacity
|
0.025cbm/100kg
|
|
|
Bucket width
|
340mm
|
|
|
Engine
|
KOOP/CHANGCHAI
|
|
|
Rated power
|
8.6kw/1800r/min
|
|
|
Displacement
|
0.499L
|
|
|
Bore stroke
|
70×55
|
|
|
Main pump
|
CBK-F6.8
|
|
|
Displacement
|
6.8ml/r
|
|
|
Swing motor
|
SJ-TECH(MP-1-160)
|
|
|
Traveling motor
|
KERSEN 310
|
|
|
Travel speed
|
1.5km/h
|
|
|
MAIN DEMENSIONS
|
||
|
Overall dimension(LxWxH)
|
1877x896x1990 mm
|
|
|
Wheelbase
|
770 mm
|
|
|
Total length of track
|
960 mm
|
|
|
Platform ground clearance
|
376 mm
|
|
|
Platform back turning radius
|
664 mm
|
|
|
Chassis width
|
896 mm
|
|
|
Track width
|
180 mm
|
|
|
Chassis ground clearance
|
132 mm
|
|
|
Track height
|
320 mm
|
|
|
OPERATING RANGE
|
||
|
Max.Digging depth
|
1650 mm
|
|
|
Max.Vertical digging depth
|
1376 mm
|
|
|
Max.Digging height
|
2365 mm
|
|
|
Max.Dumping height
|
1655 mm
|
|
|
Max.Digging radius on ground
|
2560 mm
|
|
|
Min.Rotation radius
|
1200 mm
|
|
|
Max.Upgrade height of bulldozer blade
|
165 mm
|
|
|
Max.Digging depth of bulldozer blade
|
170 mm
|
|
