Equipment for testing the performance of materials in various environments and testing various materials for heat resistance, cold resistance, dry resistance, and humidity resistance. It is suitable for testing the quality of products such as electronics, electrical appliances, mobile phones, communications, meters, vehicles, plastic products, metals, food, chemicals, building materials, medical care, aerospace, etc.
Specification
| Model | TH-80(A-F) | TH-150(A-F) | TH-225(A-F) | TH-408(A-F) | TH-800(A-F) | TH-1000(A~F) |
| Internal size WxHxD(cm) | 40x50x40 | 50x60x50 | 60x75x50 | 60x85x80 | 100x100x80 | 100x100x100 |
| External size WxHxD(cm) | 120x165x115 | 130x170x125 | 140x185x130 | 165x195x155 | 185x200x175 | 190x210x185 |
| Weight (about) | 150KG | 180KG | 250KG | 350KG | 500KG | 520KG |
Technical parameter of temperature humidity climatic aging test chamber
| Temperature range | Low temperature: A: +25 °C B:0°C C:-20°C D:-40°C E:-60°C F:-ZO°C) High temperature: 100°C(150°C) | |||||
| Humidity range | 20%~98% R.H. (10%~98%R.H); (5%~98% R.H is a special selection condition) | |||||
| Distribution accuracy | 0.1P 0.1%R.H./±2.0P ±3.0%R.H. | |||||
| Temp and humi control accuracy | ±0.5t) ±2.5%R.H. | |||||
| Heating/cooling time | Heating about: 3°C/min Cooling: 1°C /min | |||||
| Internal and external materials | The inner and outer boxes are made of SUS304# stainless steel plate | |||||
| Insulation material | High temperature resistant high density ethyl chloroformate foam insulation material | |||||
| cooling system | Air-cooled / single-stage compressor (-20°C); two-stage compressor (-40°C – 70 °C) | |||||
| Safety device | No fuse switch, compressor overload protection, super humidity over temperature protection, water shortage alarm protection | |||||
| power supply | AC220V 50/60Hz & 1 # AC380V 50/60Hz3§ | |||||
Test Standard:
GB/T2423/5170/10586, JIS C60068, ASTM D4714, CNS3625/12565/12566
Characteristics:
1.temperature humidity climatic aging test chamber Use the high precision microcomputer touch temperature and humidity controller with high stability of platinum resistance to temperature and wind speed in the circulatory system of temperature and humidity test.
2.High and Low temperature chamber test machinecontrol temperature&humidity well-distributed, precisely and steady.
3.High and Low temperature chamber test machine Completely independent system separate for testing in high temperature, low temperature and constant temperature&humidity environment.

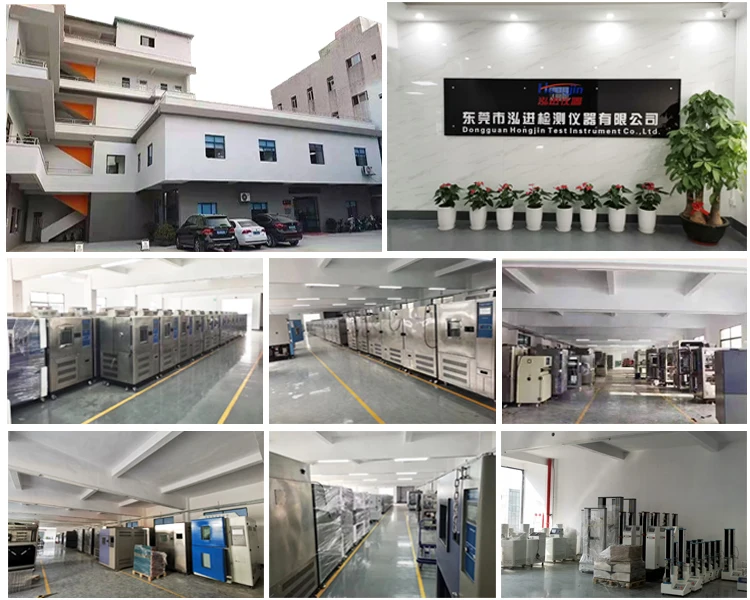

Company detail
