Cardboard Carton Edge Crush Strength Tester,Edge Crush Test
Introduction

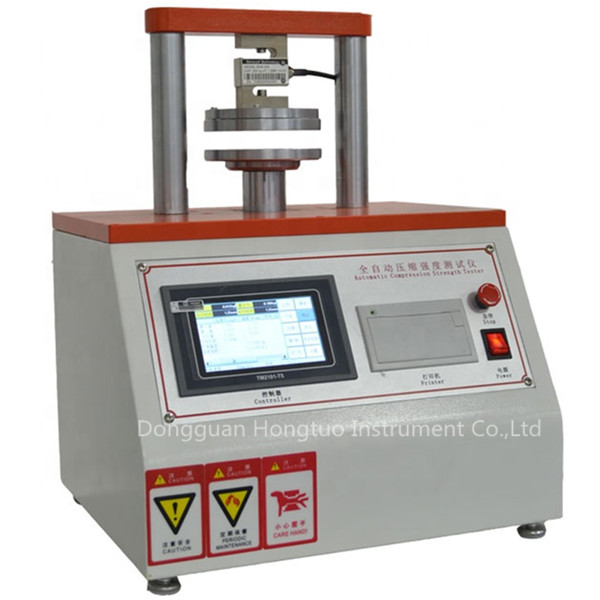

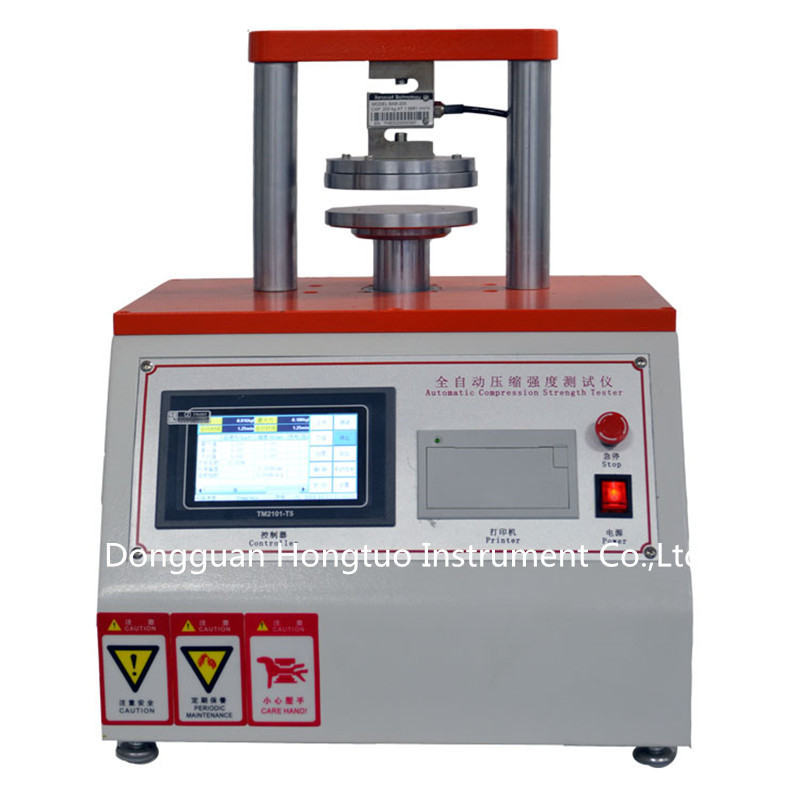

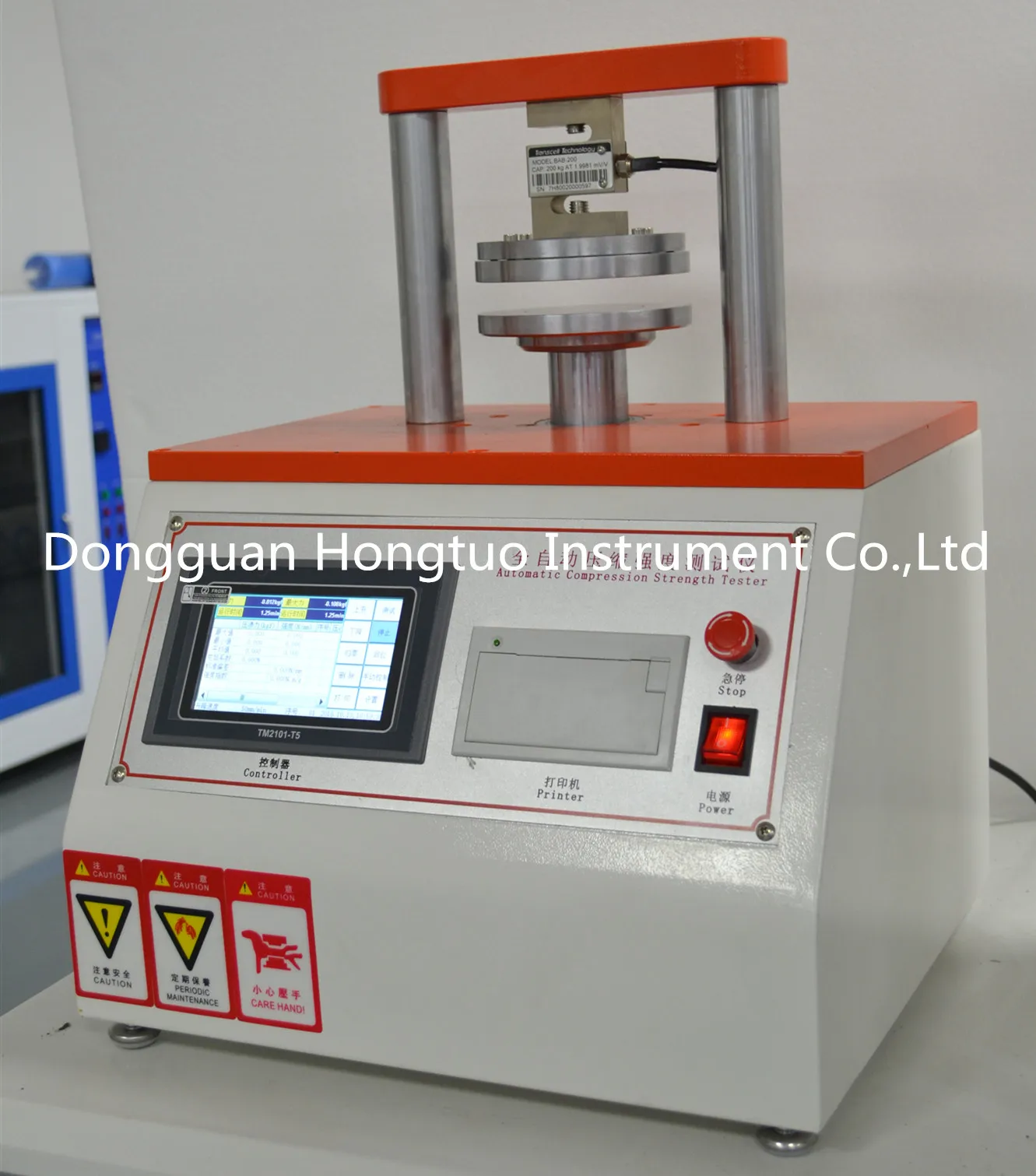

The automatic intelligent computer monitoring and controlling paperboard compression strength tester is an efficient and easy-to-use instrument.Mainly used to test the corrugated paper, cardboard (kraft liner), corrugated cardboard.It is improved on the basis of the ordinary compressing tester,can test the RCT,ECT,PAT,FCT,CCT and CMT .It is a high-precision compression tester.The instrument adopts the mechanical and electrical integration structure, uses the modern mechanical design and computer processing technology, Instruments use the fixed platen,which make it has high precision and powerful data processing capabilities Besides the data can be directly obtained and can automatically reset.Equipped with the following accessories can test other parameter.
(1) With the Compression plate and compression special sampler, can test the RCT

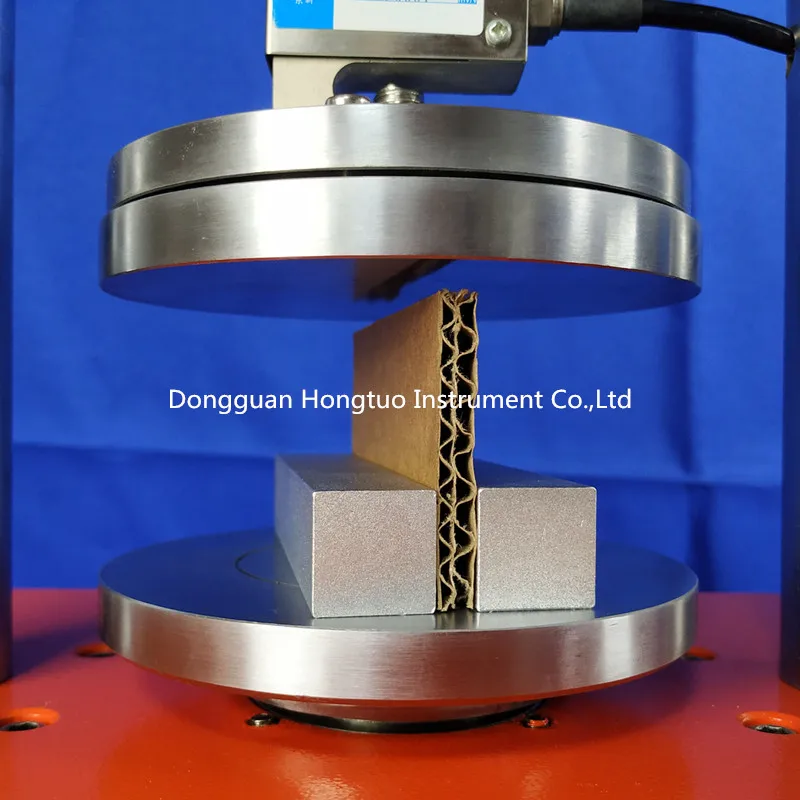

(2) With the adhesive sampler and auxiliary guide can have Edge Crush Test(ECT)
(3) With the peel tester frame to test the peel strength (PAT) (4)Equipped with flat compression sampler to test the strength of flat compression (FCT)
(5)With groove and auxiliary appliance to test CCT and CMT
Standards
ISO 12192 ISO 12192 ISO 7263 ISO 3035 ISO 12048 GB/T 2679.8 GB/T 6546
GB/T 6548 GB/T 2679.6 GB/T 2679.6 GB/T 4857.3 GB/T 4857.4
Main Characters
1. Instrument function host ,the user can order separately according to actual conditions corresponding accessories, to achieve a variety of base paper and corrugated board strength test
2. Statistical processing with test data can be printed out 3.Mechatronics design, compact structure, nice appearance, easy maintenance
Technical Specifications:
|
Parameter item |
Technical index |
|
Measuring range |
(0~3000N)(0-30000N/M) |
|
Resolution |
1N |
|
Accuracy of the indicating value |
Error of indication±1%,variation of indication≤1% |
|
Test speed |
(12.5±2.5)mm/min |
|
Degree of parallelism for the upper and lower pressure plates |
<0.05mm |
|
The standard pressure plate |
100mm |
|
The maximum distance between upper and lower pressure plates. |
about 70mm |
|
Displaying mode |

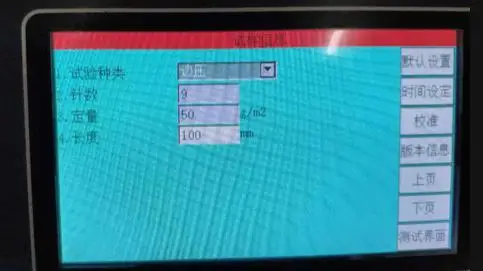

LCD display in English |
|
Printing function |
High-speed thermal printer(printing content: serial |
|
|
number,the maximum value,the minimum value,peak value ,average value,etc) |
|
Working power supply |
AC220V 50Hz |
|
Machine weight |
Around 45kg |
|
Size |
360mm × 330mm × 550mm |
|
Design standards |
CNS2956,JISP8126,TAPPIT472, GB/T2679.6-1996,GB/T6548-1998,GB/T6544-2008 |
Standard configuration: a piece of clamp
Optional configuration: edge pressure sampler; ring pressure sampler, ring pressure center plate; flat pressure fixture; bonding strength fixture (optional)
Edge pressure test sampler: mainly used for the sampling of edge pressure test and peel test
The technical parameters of the edge pressure test sampler:
The maximum thickness of sample:18mm Standard length of sample: 100(80)mm±0.5 mm Standard width of sample: (25±0.5)mm
Outline dimension: 390mm(length)×350mm(width) Product net weight: ≤9.0kg
Product gross weight: ≤13.0kg
Ring pressure test sampler: The ring pressure special sampler is suitable for cutting the sample required for the paper ring pressure strength and the flat pressure strength test of corrugated core paper, conforms to the relevant provisions of the QB/T1671 standard, and is a necessary and dedicated sampler for paper ring pressure strength testing (RCT).The dedicated sampler is an ideal assistance tool for paper making, packaging, scientific research, and quality inspection,etc.
The main technical parameters of the ring pressure test sampler:
The sampling size: 152mmX12.7 mm The sampling thickness: (0.1~1.0)mm
Outline dimensions (length X width X height),mm:380*120*250 Weight: about 10kg
Feature: Punching sampling, high sampling accuracy
