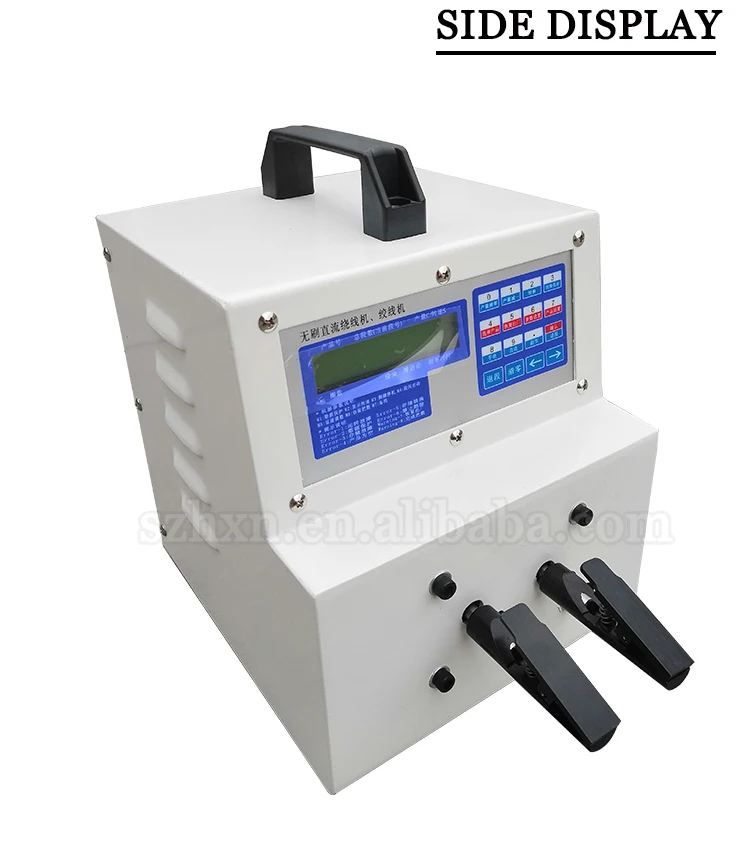

Cable Twisting Machine(wire stranding machine )

ر.س2,503.26

Qty:


Cable Twisting Machine(wire stranding machine )

 FEATURE:



1. Mainly used for wire stranding and can choose the direction of rotation.

2. The automatic twisting machine has large torque,strong finished products and stable quality.

3. Using electronic control,easy to operate,can set the number of twisted turns,accurate and stable.

4. This machine has twisted wire and stranded wire function.The twisting wire strength can be customized from the governor.

    The speed can be adjusted,the output of the twisted wire is even,and the speed of the twisted wire can be customized from the adjuster.

    The direction of the strand can be selected(including the terminal is well or the contacts are worn)

5.Can be customized as two,three axes and five axes.


Product Description
Model YH-2Z
Usage Stranding and twisting
Main shaft direction

Positive and negative reversible

Spindle speed 300-7500 adjustment
Strand length 50-80mm

Number of storage

99kinds
Speed rate 1500pcs/H
Maximum winding diameter 1.2mm (Φ20 skeleton)
Number of windings 0.5-9999.9 laps/circles
weight 10KG
Size 280*200*200mm
Supply power 220V/50HZ
Rated power 90W

21_01.jpg21_03.jpg2
