Product Description
RB-10075 large size uv flatbed printer can print on roraty and flat material by one printer,It can print colors , white and varnish at same time.It also support on mirror printing and back printing which means it can work on all kinds of industry production.The Max printing size is 100*75cm.
|
Printhead number
|
3* TX800 printheads/ 4720 printheads
|
|
Max printing height
|
3mm to 8cm adjustable
|
|
Optional printing color
|
4 color+ white+varnish
4 color+ varnish
4 color+ white 4color
|
|
Production mode speed
|
15m2/h
|
|
Precision mode speed
|
10m2/h
|
|
High quality speed
|
7m2/h
|
|
Printing material
|
Glass, Tile, Acrylic, PP, Metal, Wood, Stone, Rotary material and so on.
|
|
Maximum Resolution
|
720*4320 DPI
|
|
Max Printing Size
|
100*75cm
|
|
Environment
|
25-30℃, 40-60% humidity, clean
|
|
Computer system
|
Window 8/ Windows 7/ Window 10
|
|
Machine size
|
2120mm*1500mm*1220mm
|
|
Machine weight
|
Net.380KG/Gross.430KG
|
The RB-10075 A1 size UV Flatbed phone case printing
1. Three heads can print white, color and vanish together, with high speed and high precision.

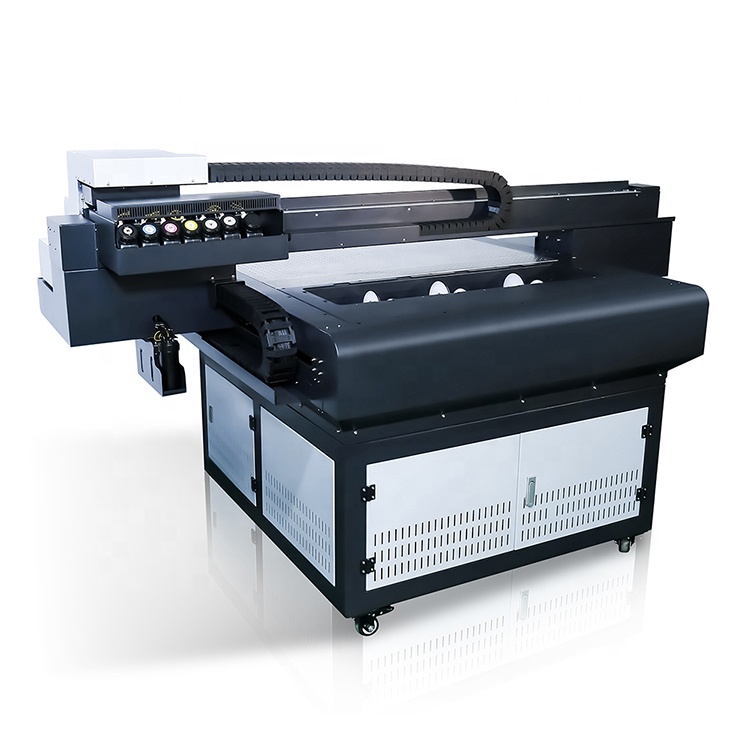

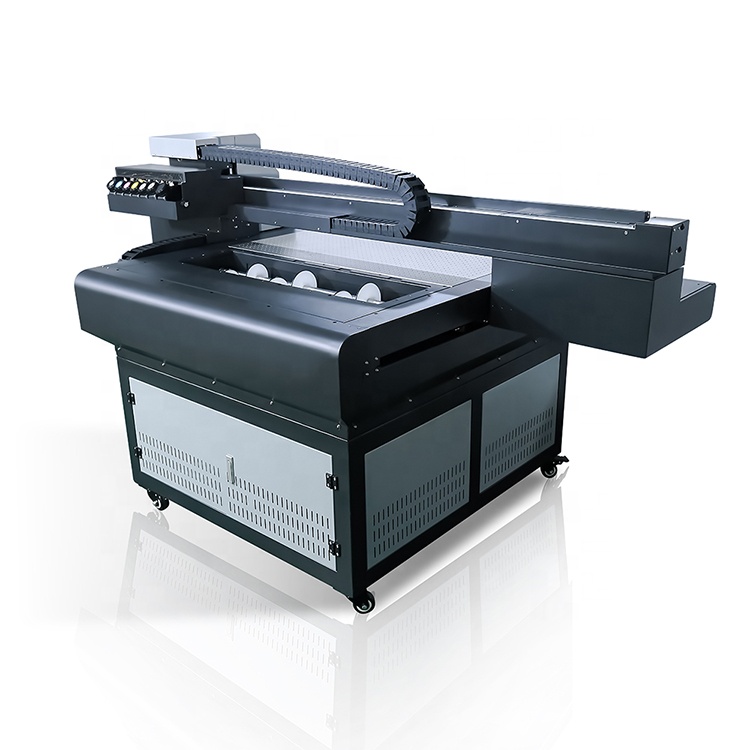

The Rainbow RB-10075 UV flatbed printing machine
2. Free vacuum adsorption platform is ready to print as soon as it opens, to print the material in roll.
The A1 UV flatbed printer is far more powerful
3. Metal trolley slider, low noise, ensuring the smooth running of the carriage.
UV ink-deficient alarm system
7. Each cartridge is equipped with an ink-deficient alarm system to ensure continuous ink supply.
RB-10075 UV Control Buttons
5. Control button: emergency stop button + suction fan button + cylinder switch, very easy operation
RB-10075 UV German imported belt
6.German Igus belt, high precision and anti-friction.Well protect lines and water pipes,no deformation for decades using

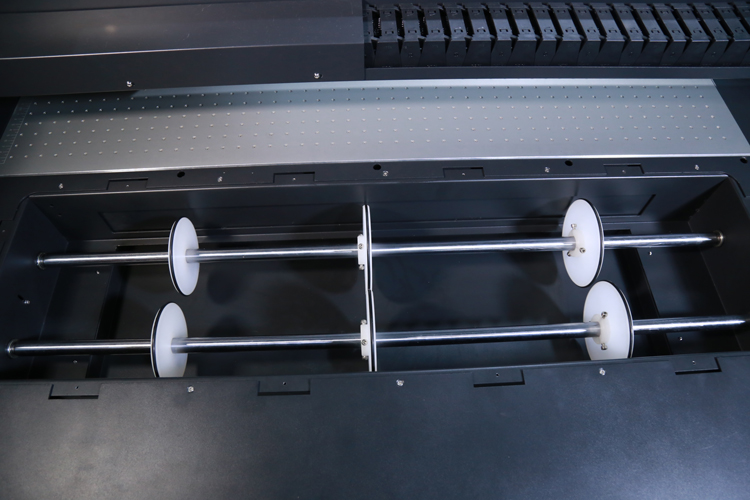

Rotary printing device for mug and bottle
8. The rotary printing device driven by the motor realizes accurate printing; it is directly installed inside the machine, does not take up space, ready to print as soon as it opens; it can be printed flat without covering the cover.
RB-10075 UV Flatbed Printer equipped with firm ball screw
9. The carriage lifting replaces the platform lifting, the printing process is more stable, avoiding the platform shaking when printing; the rail system uses the ball screw , which is high-mute, accurate and long-lived.
Waste Ink collection Switch, can open and close.
10. Waste ink switch to prevent the waste ink from flowing back when the machine is not in use.
Water Cooling Circulation System
11. The water cooling circulation system ensures that the LED lamp maintains a constant temperature, and extends the LED lamp lifetime to 50,000 hours while avoiding high-temperature blocking of the nozzle.
Applications
Customer Feedback
Our Company
Packing & Delivery
|
Model
|
RB-10075 UV printer
|
|
Printer size
|
212*150*122cm
|
|
Shipping size
|
227*150*148cm
|
|
Net weight
|
380kg
|
|
Gross weight
|
430kg
|
|
Packing
|
International Wooden Case
|
|
Shipping Methods
|
Express,Sea,Air,Land shipping
|
FAQ
Q1:What materials can UV printer print?
A:UV printer can print almost all kinds materials, such as phone case, leather, wood, plastic, acrylic, pen, golf ball, metal, ceramic, glass, textile and fabrics etc.
Q2:Can UV printer print embossing 3D effect?
A:Yes, it can print embossing 3D effect, contact us for more information and printing videos
Q3:Can A3 uv flatbed printer do rotary bottle and mug printing?
A:Yes, both bottle and mug with handle can be printed with the help of rotary printing device.
Q4:Does printing materials must be sprayed a pre-coating?
A:Some material need pre-coating, such as metal, glass, acrylic for make the color anti-scratch.
Q5:How can we start to use the printer?
A:We will send the detailed manual and teaching videos with the package of the printer before use the machine, please read the manual and watch the teaching video and operate strictly as the instructions, and if any question unclarified, our technical support online by teamviewer and video call will be help.
Q6:What about the warranty?
A:We have 13 months warranty and lifelong technical support, not include consumables like print head and ink dampers.
Q7:What's the printing cost?
A:Usually,1 square meter need cost about $1 printing cost with our good quality ink.
Q8:Where can I buy the spare parts and inks?
A:All spare parts and ink will be available from us during the whole lifespan of printer, or you can buy at local.
Q9:What about maintenance of the printer?
A:The printer has auto-cleaning and auto keep wet system, each time before power off machine, please do a normal cleaning so that keep print head wet.
If you don't use the printer more than 1 week, it’s better to power on machine 3 days later to do a test and auto clean.
A:UV printer can print almost all kinds materials, such as phone case, leather, wood, plastic, acrylic, pen, golf ball, metal, ceramic, glass, textile and fabrics etc.
Q2:Can UV printer print embossing 3D effect?
A:Yes, it can print embossing 3D effect, contact us for more information and printing videos
Q3:Can A3 uv flatbed printer do rotary bottle and mug printing?
A:Yes, both bottle and mug with handle can be printed with the help of rotary printing device.
Q4:Does printing materials must be sprayed a pre-coating?
A:Some material need pre-coating, such as metal, glass, acrylic for make the color anti-scratch.
Q5:How can we start to use the printer?
A:We will send the detailed manual and teaching videos with the package of the printer before use the machine, please read the manual and watch the teaching video and operate strictly as the instructions, and if any question unclarified, our technical support online by teamviewer and video call will be help.
Q6:What about the warranty?
A:We have 13 months warranty and lifelong technical support, not include consumables like print head and ink dampers.
Q7:What's the printing cost?
A:Usually,1 square meter need cost about $1 printing cost with our good quality ink.
Q8:Where can I buy the spare parts and inks?
A:All spare parts and ink will be available from us during the whole lifespan of printer, or you can buy at local.
Q9:What about maintenance of the printer?
A:The printer has auto-cleaning and auto keep wet system, each time before power off machine, please do a normal cleaning so that keep print head wet.
If you don't use the printer more than 1 week, it’s better to power on machine 3 days later to do a test and auto clean.
