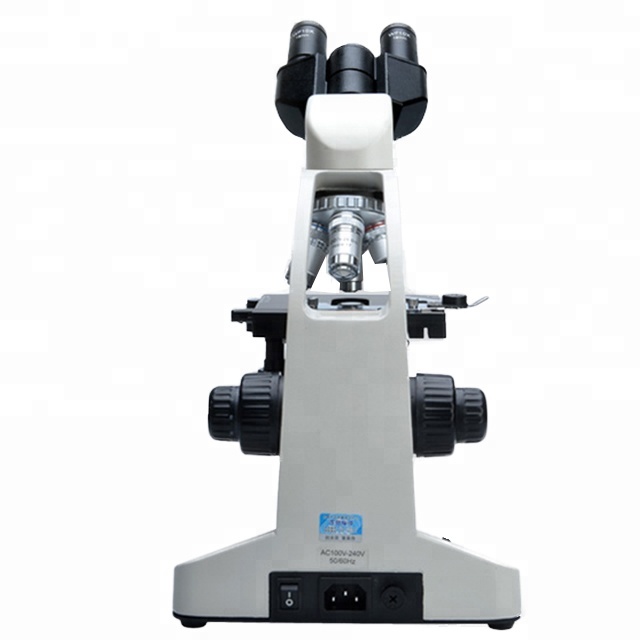

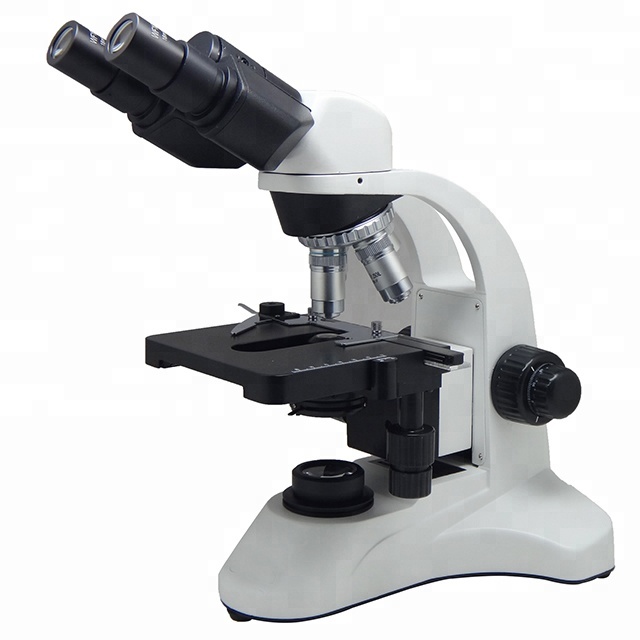

Biological Binocular Electronic digital microscope 10000x

ر.س1,431.82

Clear
Qty:
Compare

Request quotation for: Biological Binocular Electronic digital microscope 10000x

Product Display
Parameter
Specification
Binocular biological microscope SG=50 (NEW)
Optical System
finite Optical System
magnification
40x-1000x.(40x-1600x optional)
Head
Trinocular Head, 30° Inclined, 360° Rotatable
Nosepiece
Backward quadruple nosepiece
Stage
Double Layers Mechanical Stage 126×115mm, Moving Range 76×50mm, Fine Division0.1mm
Focusing System
Coaxial Coarse And Fine Adjustment, Fine Division0.002mm, Coarse Stroke 37.7mm/Rotation, Moving Range 28mm,With Safty Stop
Illumination
3W LED lighting, predetermined center, continuous brightness adjustable.
Condenser
Abbe Condenser NA1.25 with Aperture Diaphragm
Power Supply
External Power Adaptor, Wide Voltage AC 100~240V, DC 5V/2A
Filter
Blue filter Φ 38
Package Size
 Packing Box240*214*365mm
gross  weight
4.3KG
Eyepiece
 large field of viewBinocular,Interpupillary Distance 50-75mm
Field
WF10X/18mm
objective lens
finite Plan Achromatic Objective
Magnification
4X
10X
40X
100X(oil)
Condenser NA
0.1
0.25
0.65
1.25
Distance(mm)
18.3
11
3.8
1.35
Product Details
Product Application

Biological microscope is widely used in medical and health institutions, laboratories, NongKeSuo units, research institutes and institutions of higher learning for biology, bacteriology and pathology observation, teaching and professional study, clinical experiment and routine medical inspection, the product modelling is novel, structure and uses a variety of advanced technology, make the instrument easy to use, safe and reliable...

Our advantages

Services

1,Our microscopes is free 3 years warranty.


2,All lifelong technical support and part cost supply.


3,feedback within 8 hours

Technology

1,Dovoll has the technology of instrument manufacturing, customization, instrument maintenance and maintenance services.

2,Set design, research and development, manufacture, sales in one integrated enterprise, provide complete optical imaging system solution!

Scales

1,Unlike the general microscope manufacturer, Dovoll has had 50 years of experience in manufacturing microscopes.


2,The company has more than 500 researchers.

Packaging & Shipping
NO.
Name
Number
Note
1
Microscope host
1
2
Binocular tube
1
3
Double Layers Mechanical Stage
1
4
Eyepiece(10X/16X)
4
5
Objective(4X.10X.40X/100X)
4
6
Power line
1
7
Warranty card
1
8
Certification
1
9
Specifications
1
10
Cedar oil
1
11
Filter
1
Blue filter Φ 38
12
Packaging
1
polyfoam protection and strong carton
13
Shipping time
5-15 days after receive the deposit
Company Information

     Qingdao Dovoll Technology Co., Ltd.Integrates the design, development, manufacture and sales of integrated enterprises, and provides a complete set of optical imaging system solutions! Years of study and hard-working have developed a series of classical optical products, and promote the development of the national optical industry, the optical products laid a solid foundation for the long-term development. Products are widely used in agriculture, industry, electronics, metallurgy, medical, chemical, aviation, astronomy and other industries and scientific research, education, defense and other departments. Filled a number of gaps for the optical industry.
    Qingdao DE shimmer, science and technology in order to "pioneering and innovative, realistic, good faith" for the spirit, for the purpose of "high quality, high-tech" committed to the development of the national optical electric industry, to give back to society, and the love of old and new customers to the enterprise product.

Transaction more than 100 countries
