Product Description
Product Application

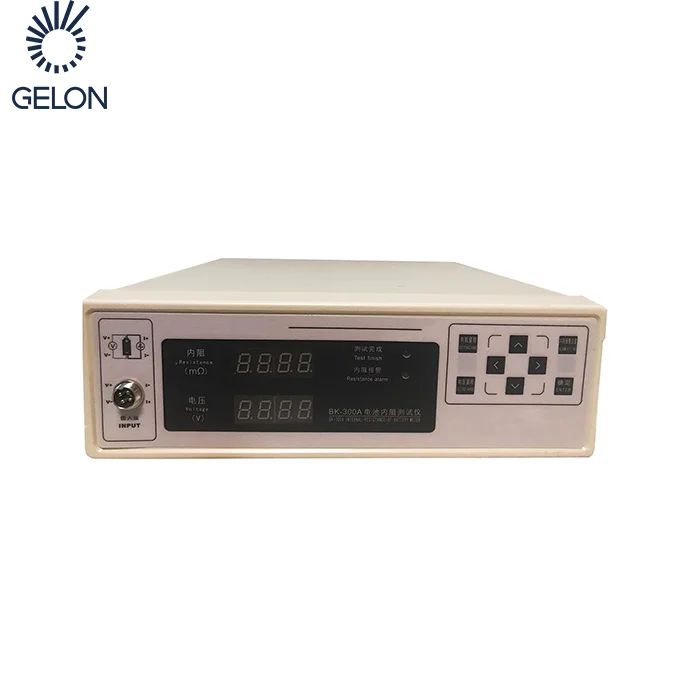

BK-300A is a precision internal resistance meter for R&D or quality control of all rechargeable battery, which has accuracy up to
1milli-ohm and can measure any battery from 0-19.99V. One battery holder and cable are included and allow you measure cylinder
cell and battery pack at easy.
|
BK-300A
|
Type of tester
|
Ac internal resistance tester
|
Working temperature: 20℃±5℃
|
|
Way of tester
|
four-line measuremen
|
Holder:Air plug,can holder box or testing line
|
|
|
Ac current frequency
|
1KHZ±0.1KHZ
|
Calibration:Potentiometer calibration
|
|
|
Voltage
|
Voltage: Two selectable ranges
|
||
|
DC0~5.000V
|
resolution 1 mV
|
Accuracy±(0.2%rdg+5dgt).
|
|
|
DC5.00v~20.00V
|
resolution 10mV
|
Accuracy±(0.2%rdg+5dgt)
|
|
|
Internal resistance
|
Battery internal resistance
|
Two selectable ranges
|
|
|
Low range: 3mΩ~300.0mΩ
|
Current 10mA
|
±0.3%rdg+5dgt.
|
|
|
High range: 300mΩ~3000mΩ
|
Current 1mA
|
±0.3%rdg+5dgt.
|
Certifications
Our Service
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
Packing & Delivery
|
Packaging
|
||
|
Size
|
210 (L) * 170(W) *110(D)
|
|
|
Weight
|
2kg
|
|
|
Packaging Details
|
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
|
