Automatic vertical injection molding machine for micro usb and type C usb vertical plastic injection machine

ر.س24,564.85

Clear
Qty:
Compare

Request quotation for: Automatic vertical injection molding machine for micro usb and type C usb vertical plastic injection machine

Features:

The technology of usb cable making machine series can be matched precisely to your specific usb cable manufacturing,like micro usb cable,type c usb cable etc, while still maintaining maximum ergonomic efficiency.

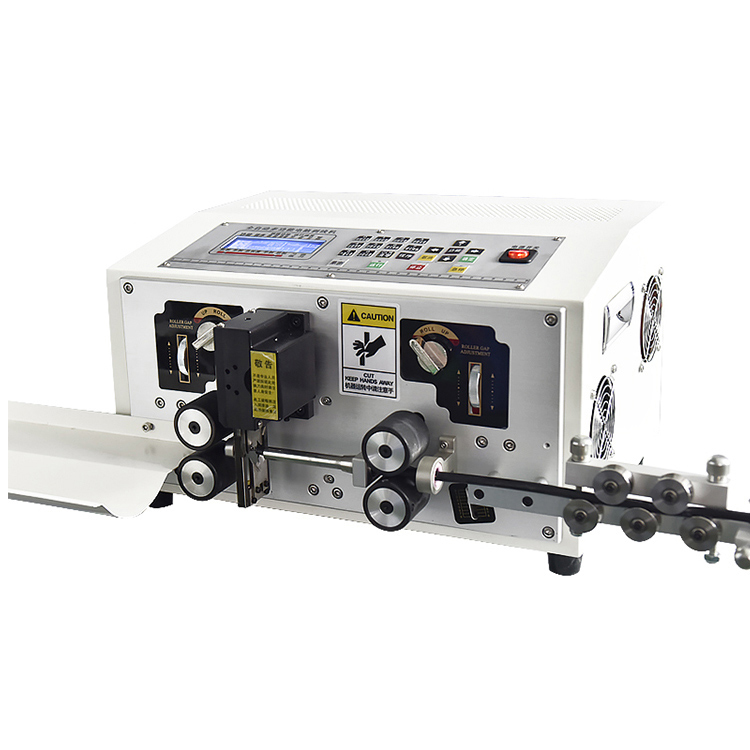

Cutting and stripping machine

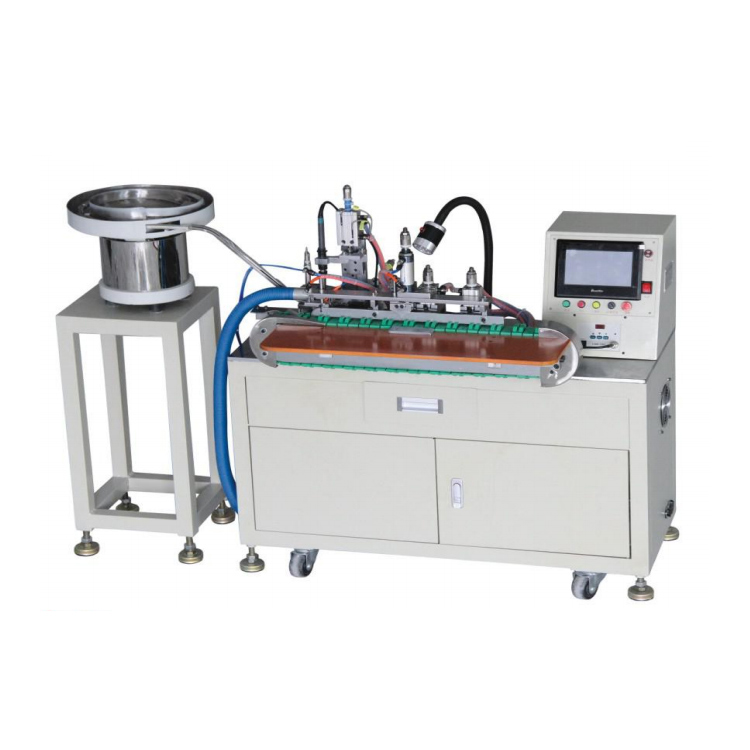

Soldering machine

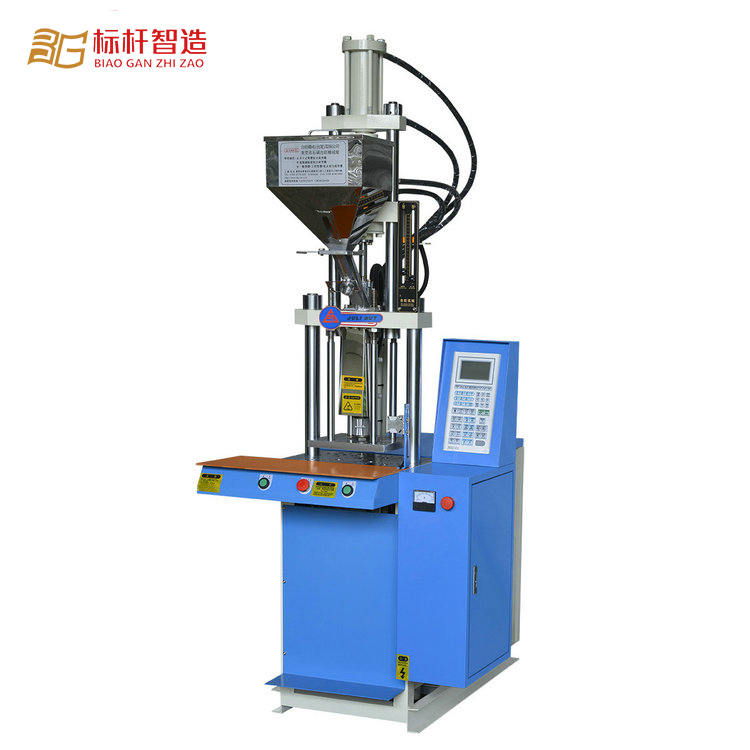

Vertical injection machine
Testing machine

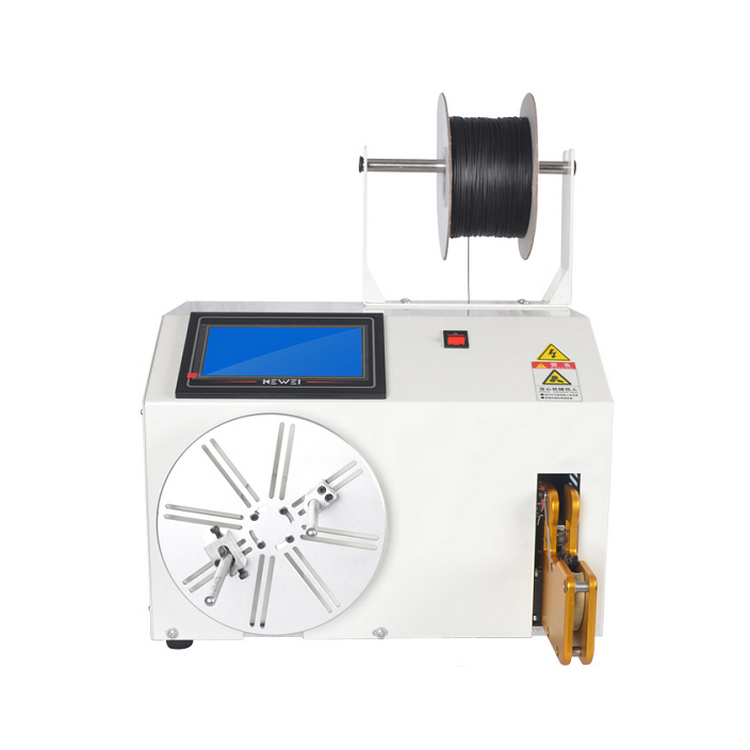

Winding and tying machine
6000-7000pcs per day production capacity. Usb cable making machine suitable for making Micro,type c,iphone usb cable.
Parameter
Model
UNIT
BG-150-ST
Injection unit
Screw Diameter
mm
22
26
Iniection Pressure
kg/cm2
2100
1800
(PS)Max.Shot Weight(PS)
g
40
51
Injection Rate
mm
120
Screw Speed Max.
Turn
0-230
Nozzle Retraction
mm
Number of temperature Control
Snt
2
Clamping unit
Clamping Force
Tons
15
Platen Size
mm
470*285
Distance Between Tie Bere
mm
290
Min.Mold Height
mm
40/100
Openging Stroke
mm
200
Max. Open daylight
mm
240/300
Ejetor Force
Tons
1.5
PowerHeading unit
Max. Hydaulic Pressure
kg/cm2
140
Pump Outpet
1/min
23
Pump Motor power
kw/HP
2.2/3.0HP
Berrel Heating Power
kw
2
Total Weight
kw
4.2
Other
Machine Weight
kg
820
Machine Dimensions(L*W*H)
m
1.3*0.9*2.3
Company Information
Our Services
Certifications
FAQ

1. Why choose us?

We provide overall solutions for processing equipment. Our standard equipment is very complete, all are in stock and can be shipped quickly. We have our own equipment factory, which can lightly customize equipment according to customer requirements, such as ordering different appearances and brands for agents, and non-standard equipment according to customer requirements.

2. Should I worry about the quality?

Before delivery, we do test the machine working condition for you.
Take a video of the normal operation of the machine to you, and then confirm the delivery

3.How can I know your machine is designed for my product?

You tell us the specific parameters of your product, or you can send us samples of your product and we test it on machine.
Video for you to make samples

4. How to operate the equipment?

My friend, don’t worry about it, we have made vedio for you, it will show you how to do it step by step. Contact our engineers at any time when you don’t understand, support video and telephone communication

5.When the machine can’t work well,What should I do?

The Engineer is online for 24-hours, they can check the problems and then give you solution way very soon. Please rest assured that manual will be offered along with machine,ensuring you can operate the machine easily.
