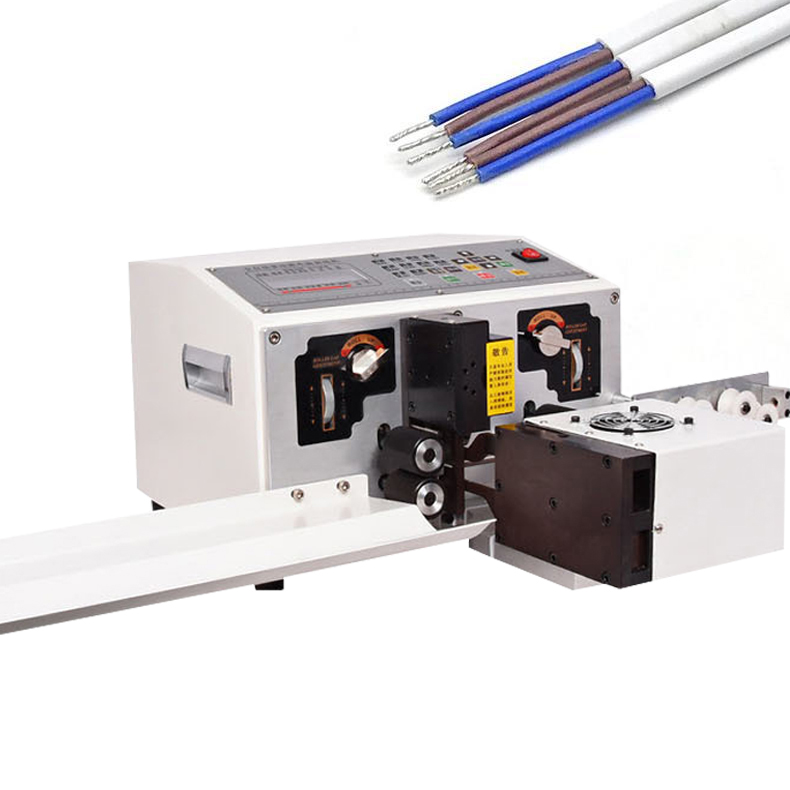

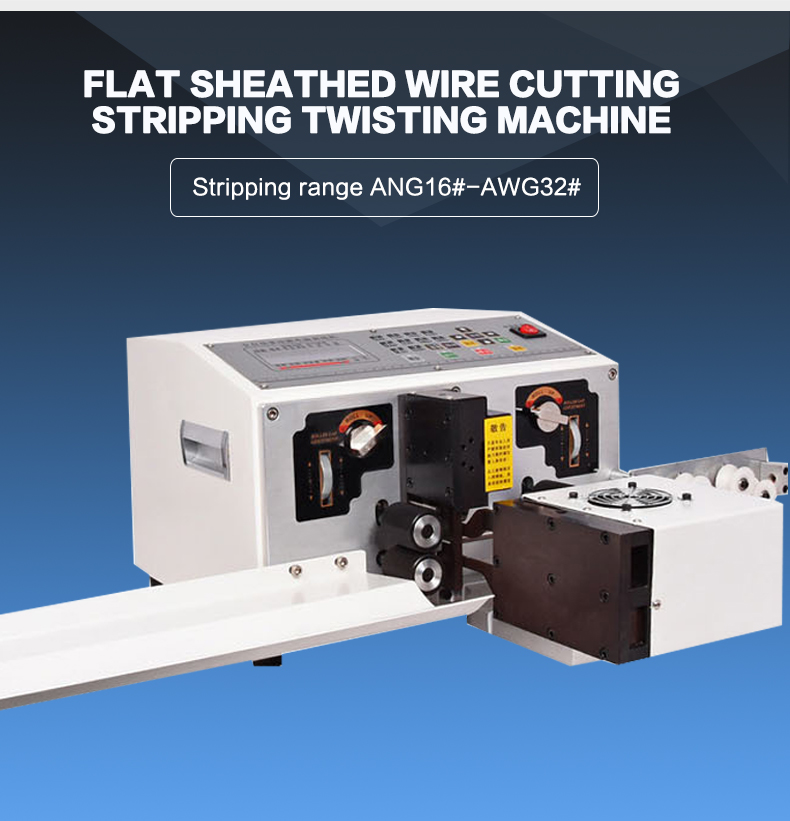

Automatic two core flat wire cutting stripping twisting machine cable both ends inner and outer skin peeling twisted machine

ر.س9,815.32

Clear
Qty:
Compare

Request quotation for: Automatic two core flat wire cutting stripping twisting machine cable both ends inner and outer skin peeling twisted machine

Products Description
Description
It is used for flat sheathed wire automatic inner and outer skin cutting, stripping and twisting at both ends at one time. 100 memory programs can be saved, saving time and convenient operation. At the same time, the machine single wire processing, suitable for sheath wire diameter less than 6 mm wire processing requirements.
Parameter
Model
800-N flat sheathed wire outer and inner skin stripping machine
Display
English and Chinese LCD screen
Function
Suitable for flat sheathed wire with the diameter width less than 6mm
Wire type

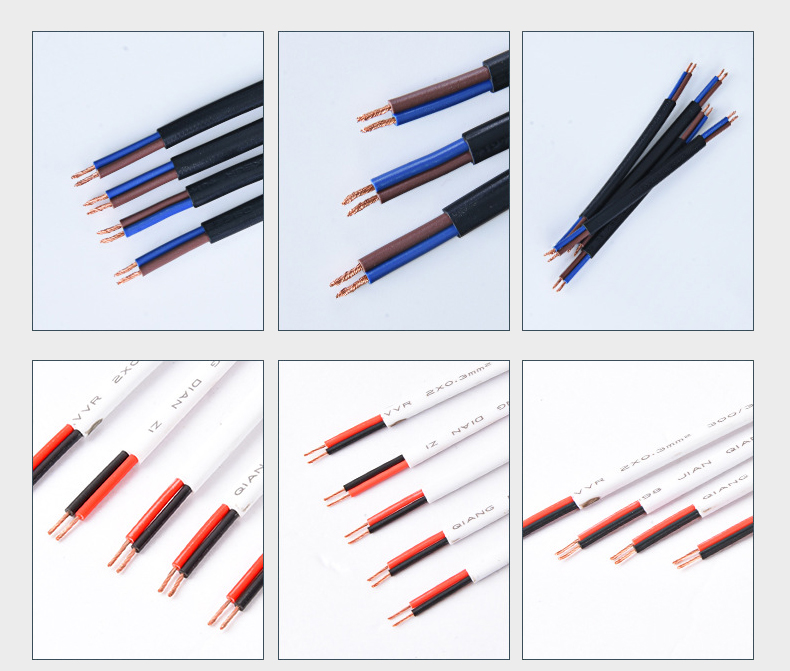

2 cores ,3 cores flat sheathed wire
Stripping range
Width 6mm,thickness less than 4mm,core wire 0.2mm²-1.5mm²
Cutting length
10mm-99999.99mm
Cutting tolerance
Within 0.002*L(L=cutting length)
Stripping length
Front end :30mm back end:30mm core wire:3mm
The maximum width of the conduit
10mm
Blade material
Tungsten steel or white steel ,customize special toothed blade
Working efficiency
Blow 3000 per hour(depending on the length of the wire)
Drive
Four wheel drive
Feeding wire method
Rubber wheel feeding , replaceable feeding wheel
Size
L610mm*W420mm *H280mm
Weight
39KG
Production capacity
100/500/1000mm (1300/1100/900pieces/hour)
Product Details
Contact us
Certifications
FAQ

1. Why choose us?

We provide overall solutions for processing equipment. Our standard equipment is very complete, all are in stock and can be shipped quickly. We have our own equipment factory, which can lightly customize equipment according to customer requirements, such as ordering different appearances and brands for agents, and non-standard equipment according to customer requirements.

2. Should I worry about the quality?

Before delivery, we do test the machine working condition for you.
Take a video of the normal operation of the machine to you, and then confirm the delivery

3.How can I know your machine is designed for my product?

You tell us the specific parameters of your product, or you can send us samples of your product and we test it on machine.
Video for you to make samples

4. How to operate the equipment?

My friend, don’t worry about it, we have made vedio for you, it will show you how to do it step by step. Contact our engineers at any time when you don’t understand, support video and telephone communication

5.When the machine can’t work well,What should I do?

The Engineer is online for 24-hours, they can check the problems and then give you solution way very soon. Please rest assured that manual will be offered along with machine,ensuring you can operate the machine easily.
