Desktop soldering machine PCB board automatic three-axis soldering machine
|
Parameter: |
||||
|
Model |
BG-H331 |
|||
|
Number of controlled axes |
Triaxial |
|||
|
Effective travel |
X axis |
Y axis |
Z axis |
|
|
|
300mm |
300mm |
100mm |
|
|
Transmission mode |
Double-track timing belt |
|||
|
Power source |
Stepper motor |
|||
|
Top speed |
X, Y axis 500mm / sec, Z axis 300mm / sec |
|||
|
Repeat accuracy |
±0.05mm |
|||
|
Maximum load |
X/Y/Z-5kg/5kg/3kg |
|||
|
Control System |
Three-axis control system |
|||
|
File storage space |
A single processing file takes up to 3M storage space (5000 processing points) |
|||
|
Supporting Documents |
CAD,CorelDRAW |
|||
|
Machine power |
AC110-250V 50-60HZ 350W |
|||
|
Heating power |
150W |
|||
|
Temperature range |
50-500 degrees |
|||
|
Tin feeder |
Standard tin broken tin feeder |
|||
|
Cleaning box |
Air blow cleaning box |
|||
|
Main accessories: |
||||
|
|
Product name |
Brand |
||
|
1 |
Stepper motor |
Shinano (Japan) |
||
|
2 |
Linear Guides |
Shangyin (Taiwan) X / Y dual rail, Z single rail |
||
|
3 |
Control System |
Quanzhi (China) |
||
|
4 |
Power supply |
Ming Wei (China) |
||
|
5 |
Stepper motor driver |
YAKO (China) |
||
1. Why choose us?

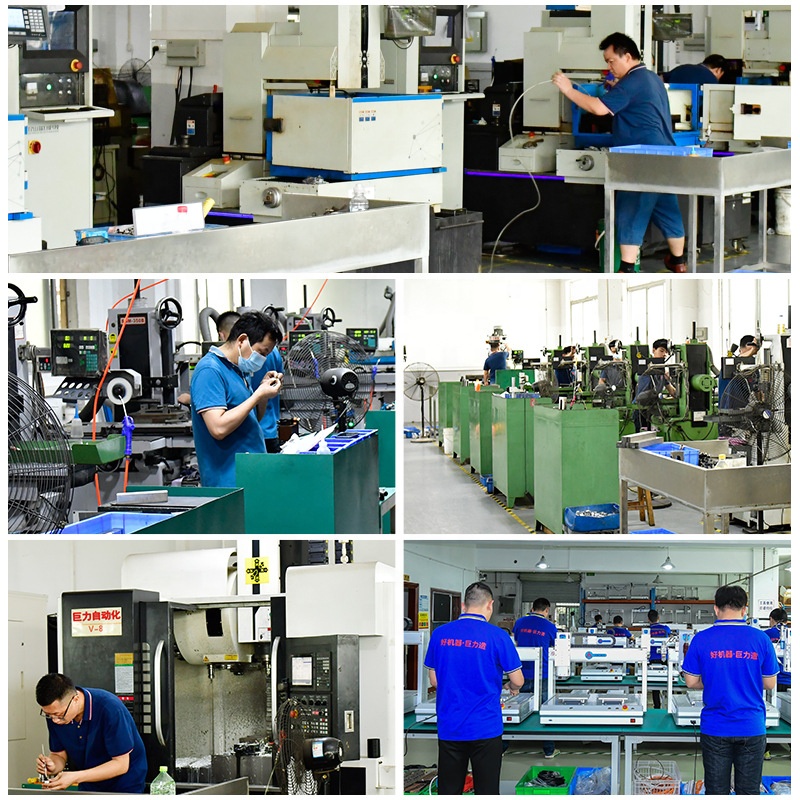

We provide overall solutions for processing equipment. Our standard equipment is very complete, all are in stock and can be shipped quickly. We have our own equipment factory, which can lightly customize equipment according to customer requirements, such as ordering different appearances and brands for agents, and non-standard equipment according to customer requirements.
2. Should I worry about the quality?

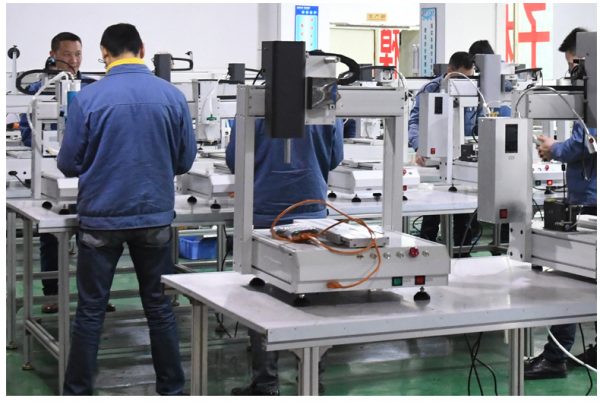

Before delivery, we do test the machine working condition for you.
Take a video of the normal operation of the machine to you, and then confirm the delivery
3.How can I know your machine is designed for my product?

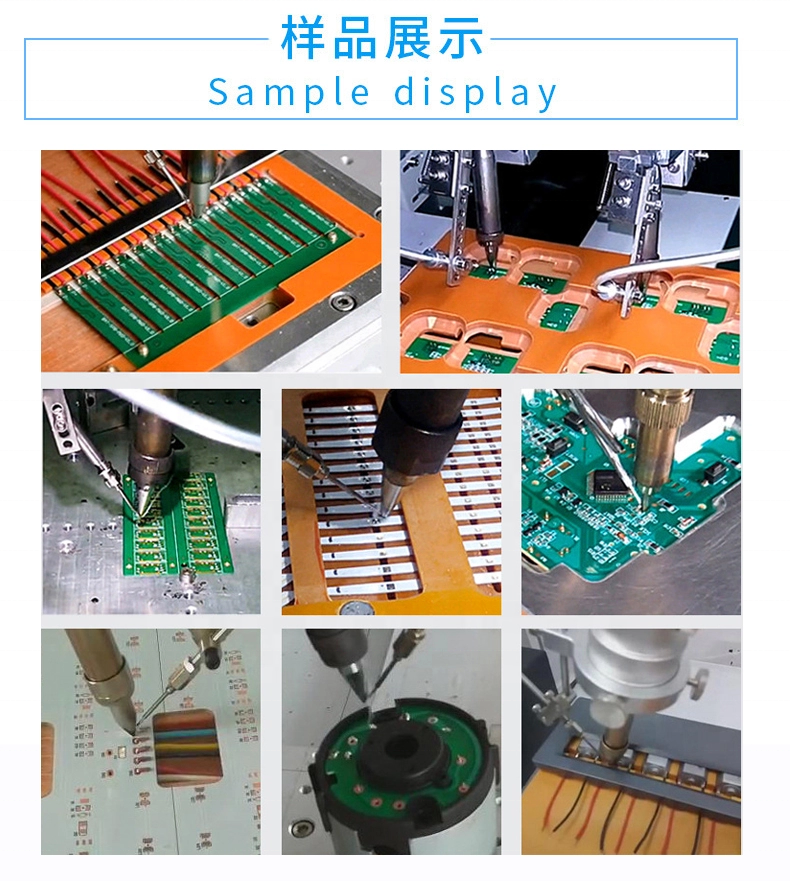

You tell us the specific parameters of your product, or you can send us samples of your product and we test it on machine.
Video for you to make samples
4. How to operate the equipment?
My friend, don’t worry about it, we have made vedio for you, it will show you how to do it step by step. Contact our engineers at any time when you don’t understand, support video and telephone communication
5.When the machine can’t work well,What should I do?
The Engineer is online for 24-hours, they can check the problems and then give you solution way very soon. Please rest assured that manual will be offered along with machine,ensuring you can operate the machine easily.
