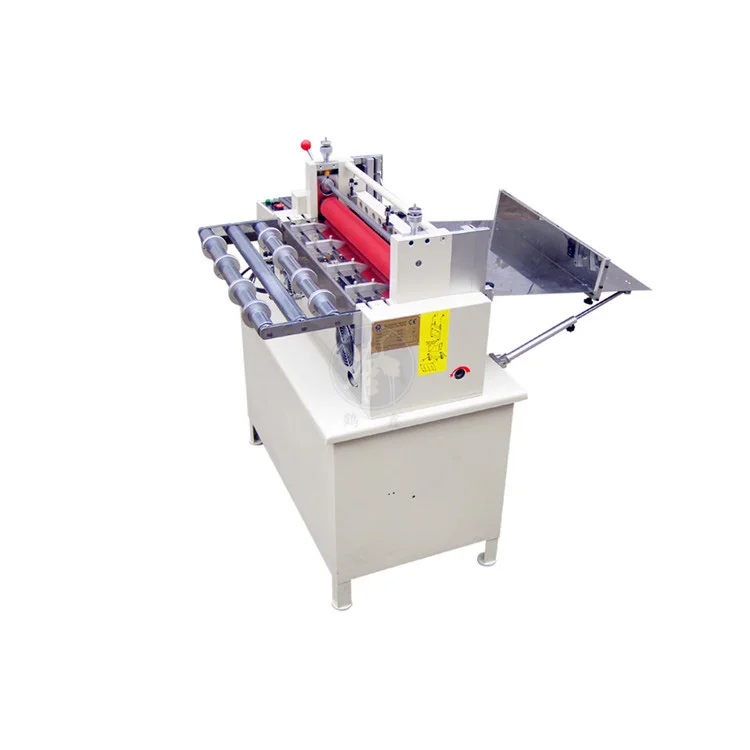

Automatic Paper Roll to Sheet Cutting Machine

 20,616.15

Saudi riyal (ر.س) - SAR
  • Saudi riyal (ر.س) - SAR
  • United States dollar ($) - USD
  • United Arab Emirates dirham (د.إ) - AED
Qty:
Compare

Automatic non woven fabric roll to sheet cutting machine

 360B500B-3

360B500B-2

360B500B-7

360B500B-5

360B500B-4

360B500B-6

360B500B-8



Product Description

.jpg

360B-500B-2 - .jpg

.jpg

TOUCH SCREEN.jpgCUTTING KNIFE.jpg

Touch screen                                      Cutting knife

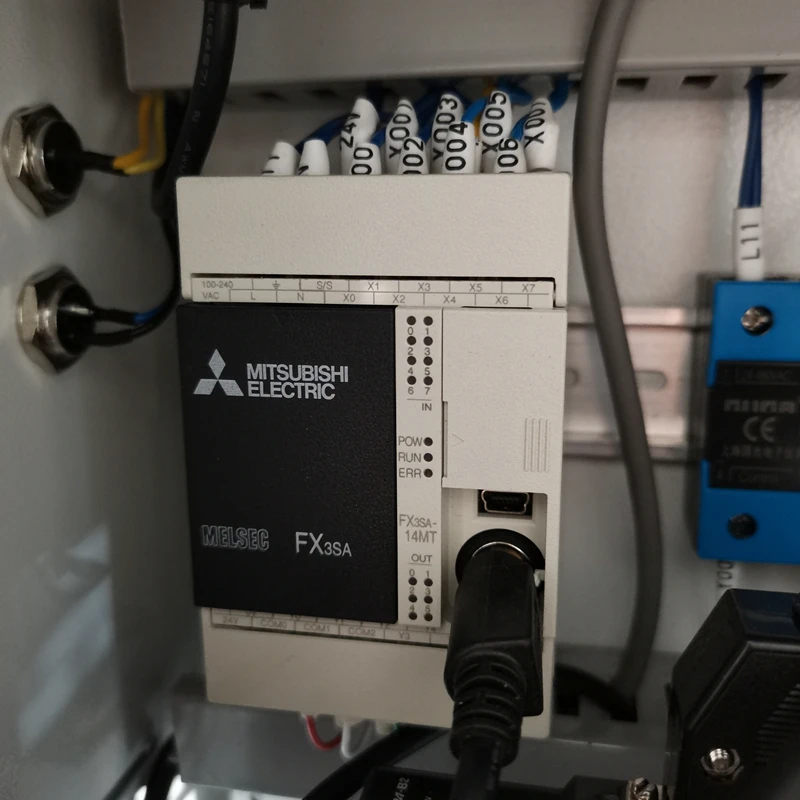

PLC

mitsubishi plc

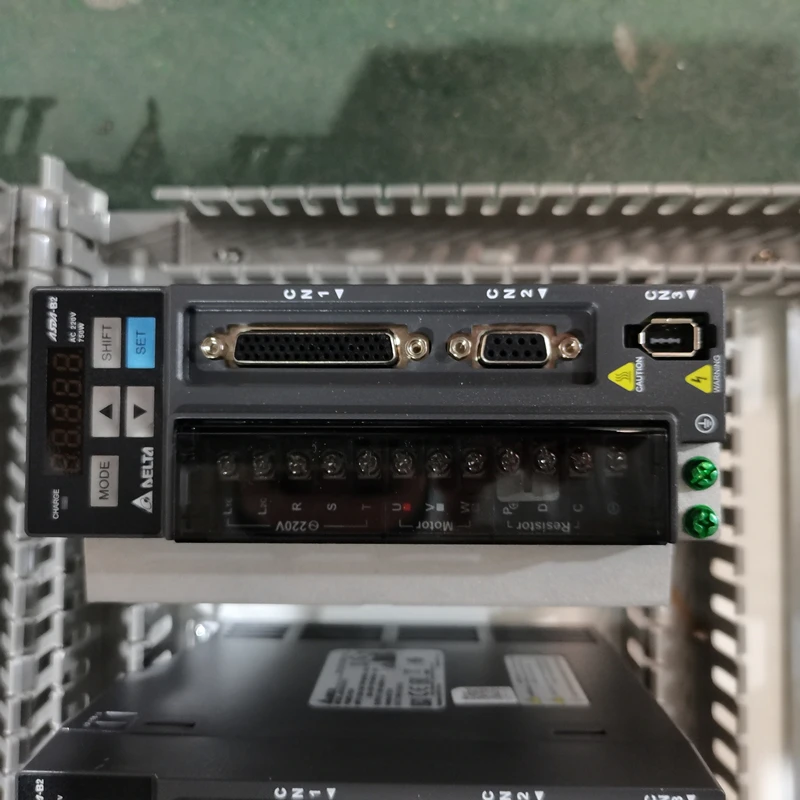

Delta Server

 SAM_4634_ .jpg






specifications:





Model

HX-360B

HX-500B

Voltage

380V

380V

Total Power

1.3KW

1.3KW

N.W.

220kg

240kg

GW.

240kg

260kg

Cutting Width

1-360mm

1-500mm

Cutting Length

0.1-9999.9mm

0.1-9999.9mm

Packing Size

780x920x1300mm

980x1450x1070mm



Featuress :

Taiwan Brand Servo motor & Japan brand PLC applied

Multi-cutting models can be set according to your needs

5 different lengths can be set in a cutting circle, cycling times can also be set

Cutting length and cutting speed adjustable.

Optional kiss-cut (several times kiss-cut)+full-cut (one time full-cut) available

Application:

Sizing cutting for conductive fabric, foam, reflector film, double-sided adhesive tape,

nickel plate, PET,PC,PE insulation paper, copper /aluminum foil and all kinds of adhesive tapes.
