Product Overview
Hydraulic press oil
Hydraulic oil press is also known as universal oil press. It is suitable for all materials and is not limited by starch content, fiber content and fat content of raw materials. And it can preserve the unsaturated fatty acids and other nutrients in raw materials.
The oil pressed by hydraulic is of good quality, fragrant flavor, and the output is satisfying.Customers can choose cold pressing or hot pressing,according to their needs.
Nowadays, many regions have invested in the purchases of hydraulic oil extractor, which are profitable and helped a lot in the expansion of business.

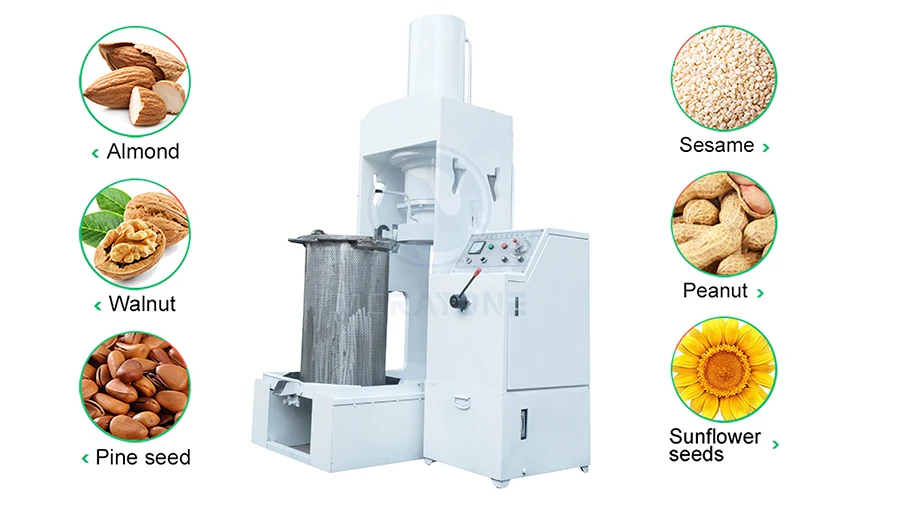

Hydraulic oil press is basically a multi-purpose machine, for good , expensive raw materials, and the production capacity is relatively small, hydraulic oil presses is your good choice. For example, walnuts, sesame, almonds, pine nuts, especially for extra virgin olive oil,avocado,shea butter oil.The operation is simple and convenient,using this equipment in production, the oil output is higher compared to the old style.

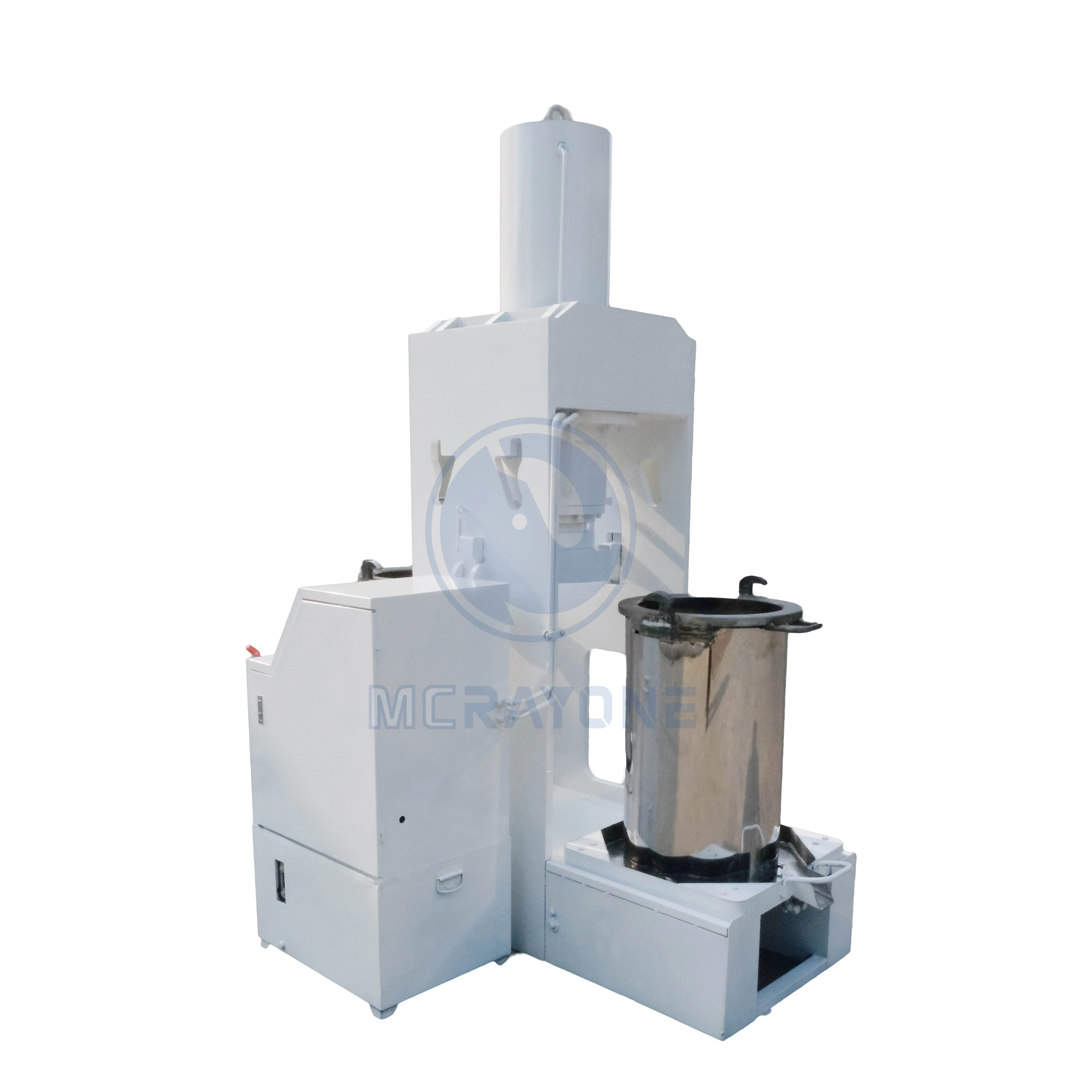

side
back
Front

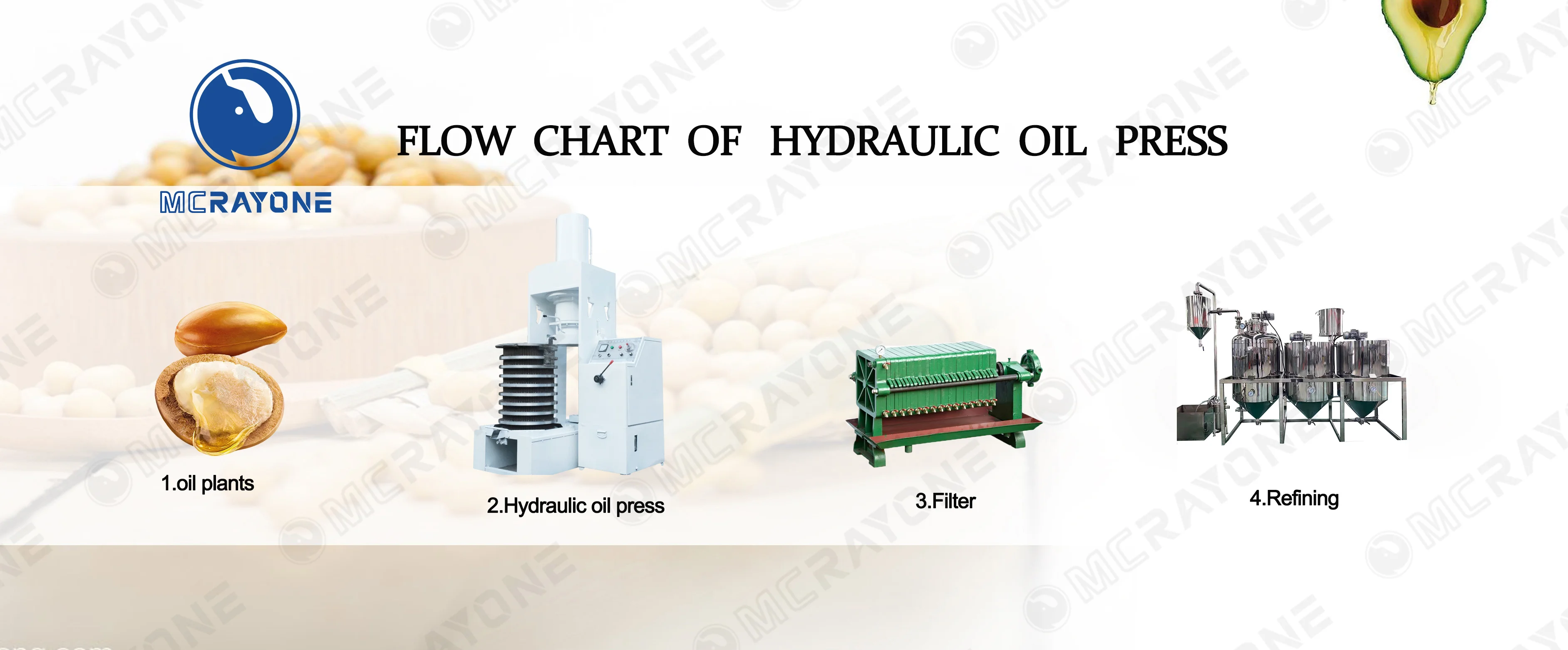

Production Line
PRODUCT SPECIFICATIONS
|
Model
|
6YY-250D-SS
|
6YY-250D-DS
|
6YY-250D-SP
|
6YY-250D-DP
|
||
|
Bucket type
|
Single barrel / strip
|
Double barrel / strip
|
Single barrel / punch |
Double barrel / punch |
||
|
Barrel capacity
|
75KG
|
95KG
|
75KG |
|
||
|
Equipped with power
|
3KW
|
3KW
|
3KW |
|
||
|
Barrel height
|
700mm
|
800mm
|
700mm |
|
||
|
Press stroke
|
700mm
|
800mm
|
700mm |
|
||
|
Voltage
|
380V
|
380V
|
380V |
|
||
|
Piston diameter
|
250mm
|
250mm
|
250mm |
|
||
|
Barrel diameter
|
400mm
|
420mm
|
400mm |
|
||
|
working pressure
|
40MPa
|
50KPa
|
40MPa |
|
||
|
Working thrust
|
200Ton
|
250Ton
|
200Ton |
|
||
|
weight
|
1400KG
|
1600KG
|
1350KG
|
1550KG
|
||
|
Dimensions
|
1400*1300*2300mm
|
2050*1300*2300mm
|
1400*1300*2300mm
|
2050*1300*2300mm
|
||
|
Model
|
6YY-280D-SS
|
6YY-280D-DS
|
6YY-280D-SP
|
6YY-280D-DP
|
||
|
Bucket type
|
Single barrel / strip
|
Double barrel / strip
|
Single barrel / punch |
Double barrel / punch |
||
|
Barrel capacity
|
100KG
|
95KG
|
100KG |
|
||
|
Equipped with power
|
3KW
|
3KW
|
3KW |
|
||
|
Barrel height
|
800mm
|
800mm
|
800mm |
|
||
|
Press stroke
|
800mm
|
800mm
|
800mm |
|
||
|
Voltage
|
380V
|
380V
|
380V |
|
||
|
Piston diameter
|
280mm
|
250mm
|
280mm |
|
||
|
Barrel diameter
|
420mm
|
420mm
|
420mm |
|
||
|
working pressure
|
60MPa
|
50KPa
|
60MPa |
|
||
|
Working thrust
|
308Ton
|
250Ton
|
308Ton |
|
||
|
weight
|
2450KG
|
2750KG
|
2350KG
|
2550KG
|
||
|
Dimensions
|
1400*1300*2550mm
|
2020*1300*2550mm
|
1400*1300*2550mm
|
2020*1300*2550mm
|
||
1.Double barrel type: there are two pressing barrels to save labor and time cost. It is suitable for customers with high demand for production
2.Single barrel type: economical type, only one press barrel. Used for small volume customers
