Products Description
Features:
The Fully Automatic terminal Double crimping machine is a fully Automatic machine for stripping cutting and crimping wires from AWG#30-AWG#16 in one operation. The highly flexible and electronically controlled benchtop unit accepts most universal or mini-style applicators for crimping both side-feed and rear-feed open barrel terminals.
Fully Automatic
Fully Automatic
High quality stripping cutting & crimping
Easy to Switch System and replace material
All-digital debugging
|
Model
|
BG-101X
|
|
Power
|
AC 220V 50/60Hz
|
|
Automatic Detection
|
wire detection, front/end terminal crimping check, conduit check, air pressure check
|
|
Production
|
4000-6000pcs/hour accordingly
|
|
Wire diameter
|
AWG#14 – AWG#30
|
|
Cutting length
|
32mm-9999mm
|
|
Cutting tolerance
|
±0.02mm
|
|
Stripping length
|
0.1mm -0.9mm
|
|
Crimping power
|
2.0 T
|
|
Twisting length
|
3mm-12mm (AWG#32 – AWG#18)
|
|
Blade material
|
Tungsten steel/HHS
|
|
Weight
|
400KG
|
|
Dimensions
|
L980 x W700 x H1310(mm)
|
|
Power Motor
|
Stepper motor
|
Product Details

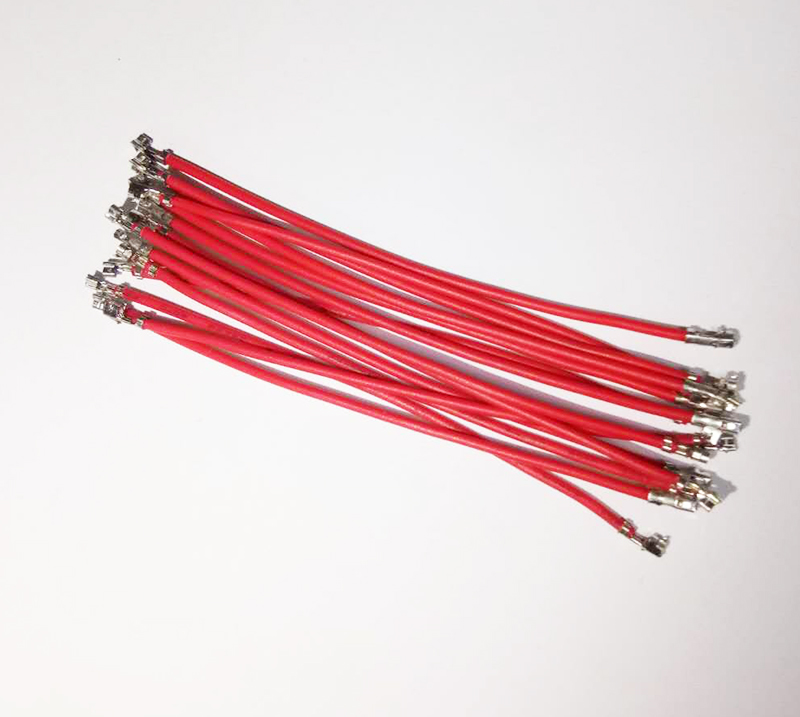

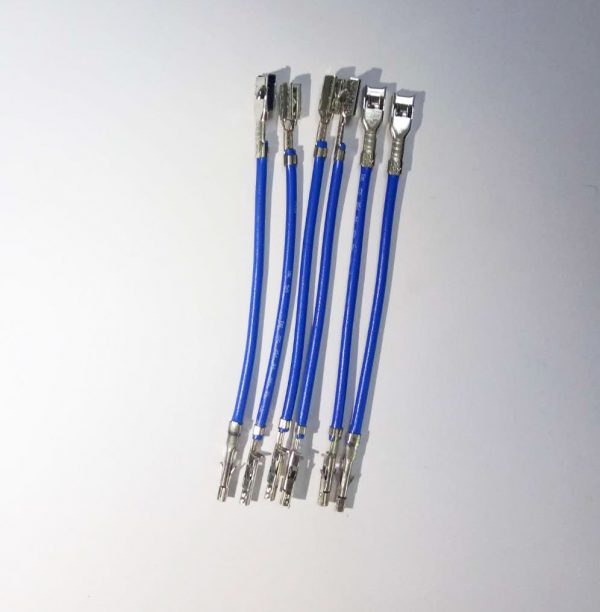

Sample show
Packaging & Shipping
|
Packaging
|
||
|
Size
|
560mm(L) * 415mm(W) *400mm（H)
|
|
|
Weight
|
35KG
|
|
|
Packaging Details |
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is
too tigher,we will use pe film for packing or pack it according to customers special request. |
|

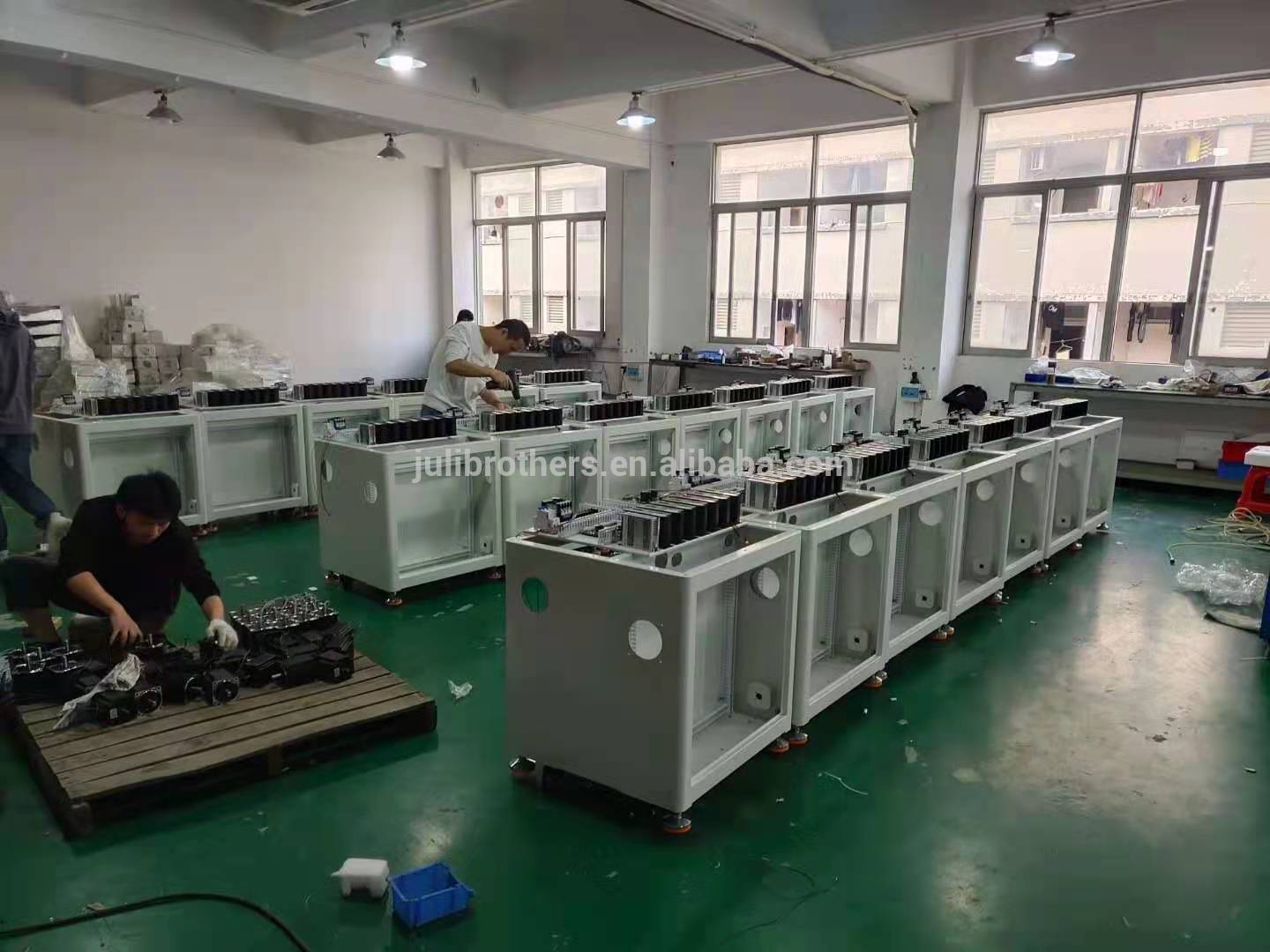

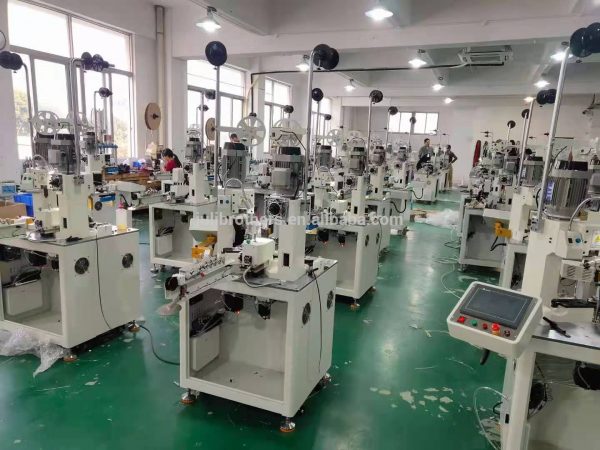

Company Information
Certifications
FAQ
1. Why choose us?
We provide overall solutions for processing equipment. Our standard equipment is very complete, all are in stock and can be shipped quickly. We have our own equipment factory, which can lightly customize equipment according to customer requirements, such as ordering different appearances and brands for agents, and non-standard equipment according to customer requirements.
2. Should I worry about the quality?
Before delivery, we do test the machine working condition for you.
Take a video of the normal operation of the machine to you, and then confirm the delivery
Take a video of the normal operation of the machine to you, and then confirm the delivery
3.How can I know your machine is designed for my product?
You tell us the specific parameters of your product, or you can send us samples of your product and we test it on machine.
Video for you to make samples
Video for you to make samples
4. How to operate the equipment?
My friend, don’t worry about it, we have made vedio for you, it will show you how to do it step by step. Contact our engineers at any time when you don’t understand, support video and telephone communication
5.When the machine can’t work well,What should I do?
The Engineer is online for 24-hours, they can check the problems and then give you solution way very soon. Please rest assured that manual will be offered along with machine,ensuring you can operate the machine easily.
