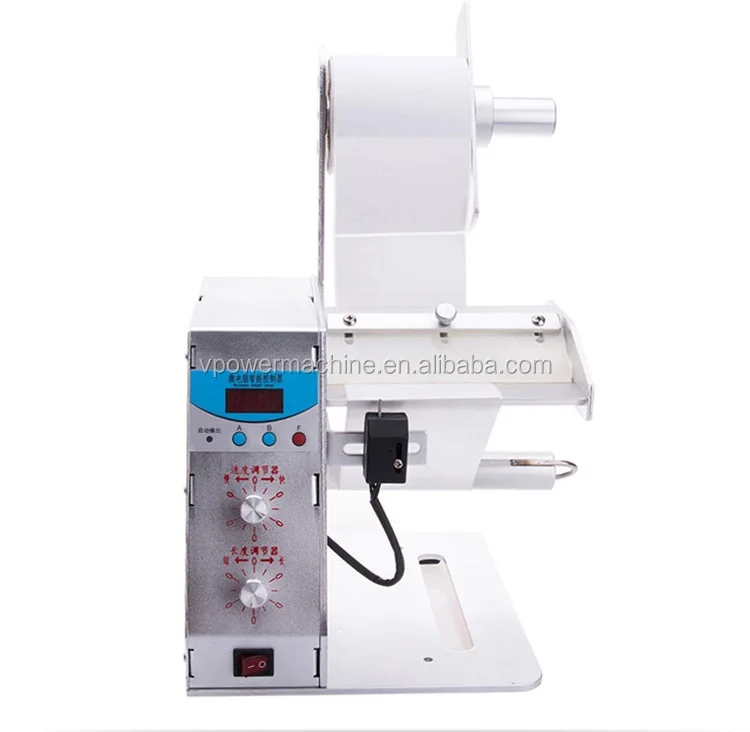

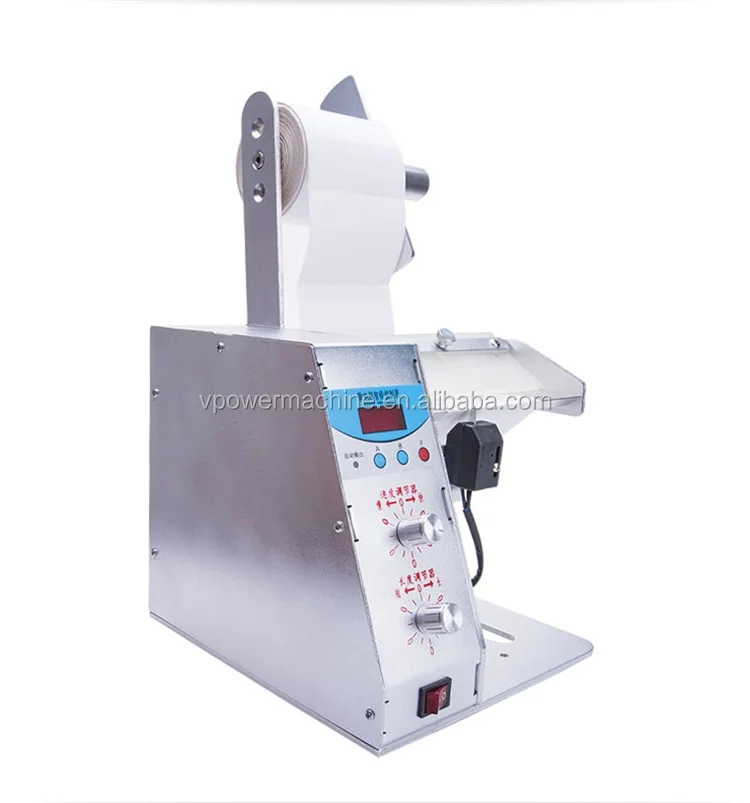

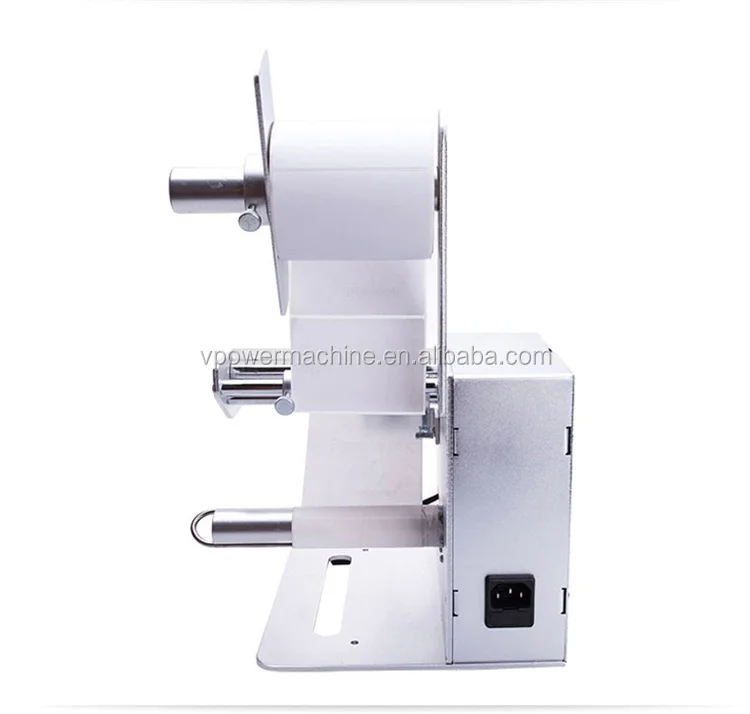

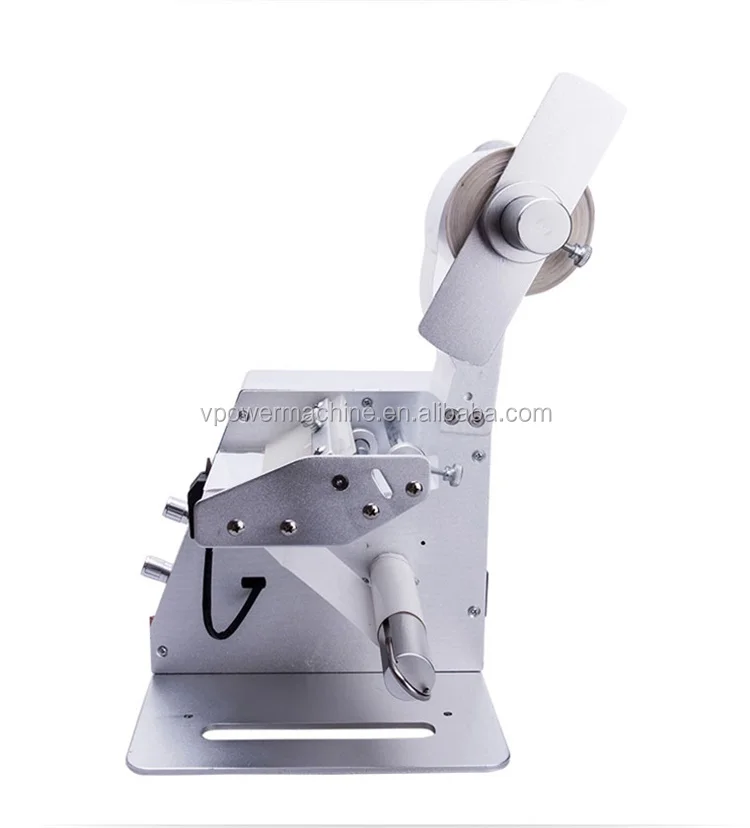

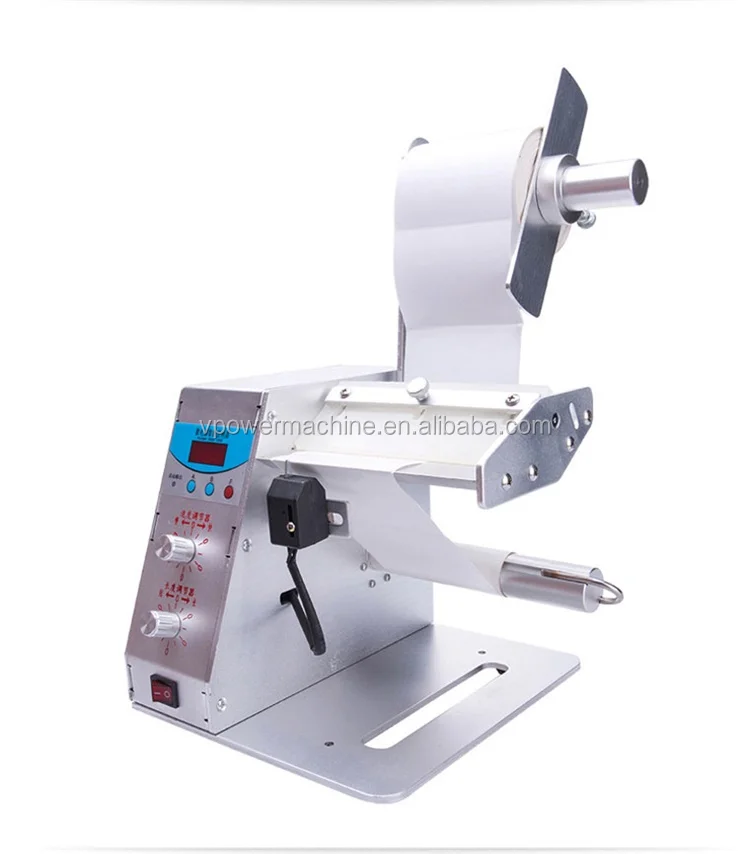

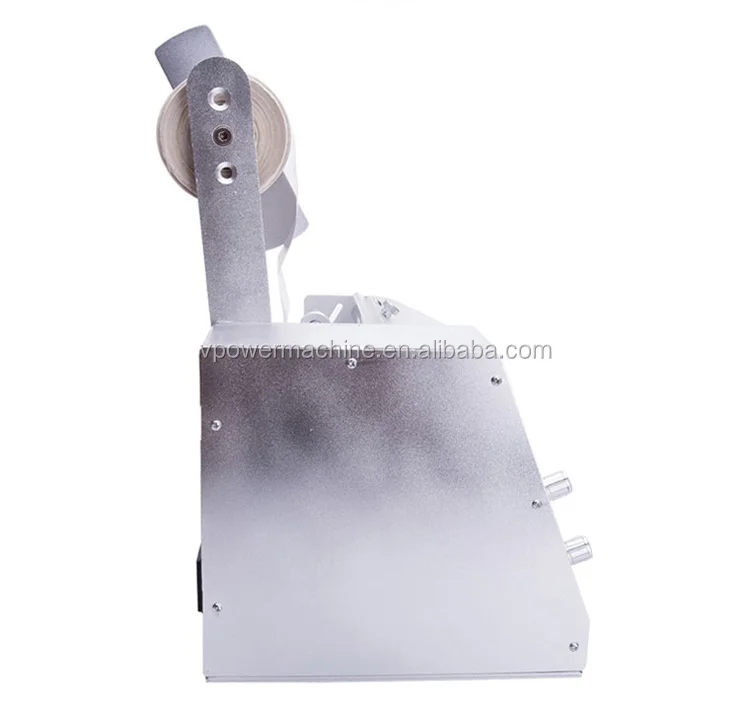

Automatic Desktop Thermal Bar Code Sticker Label Peeling Machine,Label Separator, Label Rewinder

Automatic Label peeling machine, factory production, quality assurance! Use it to automatically peel barcode printed labels, effort and time, it is definitely a good helper for your work! For enterprises to solve the troubles manual removal of the label, saving labor costs thousands of dollars per month. Small investment big return!

The basic purposes:
Automatic release of the label, after peeling labels are drawn, the next label is automatically peeled, increase worker efficiency label access, one-time release multi-row tabs.

Scope:
Applicable Label: Label, sticker film, electronic monitoring code, barcode and so on;
Applicable products: all require a label or film products;
By Industry: Widely used in food, toys, daily chemical, electronics, pharmaceutical, metal, plastic, printing and other industries;
Application examples: toy line labeling, labeling on food packaging lines, electronic products pipeline labeling.

Features:
1, independent traction mechanism to reduce direct traction motor vibration, extending motor life
2, labeling peel smooth, stripped tag flat, do not wrinkle, workers take standard convenient;
3, easy to use, easy maintenance, control instructions, can operate independently;
4, the traction force sufficient to release one or more rows disposable tag;
5, with tag count function, a standard length adjustment function;
6, transmission parts parcels, solid and reliable electrical installation, less an exception occurs, use, safer operation, simple maintenance;
7, compact, small footprint, easy movement, and placement of the device can be inserted in a pipeline or a flexible station place;
8, equipment main material of stainless steel and aluminum paint, the overall structure of a solid, nice;

Instructions:

1, the label material mounted on the shaft and the winding according to the instructions Legend;
2. Pull the backing paper is wound on the reel, with the pressure paper clip caught;
3. Adjust the paper stop ring so that the label fixed position;
4, the length of the knob and speed knob are adjusted to zero;
5, open at the beginning of the power, speed adjustment knob until the target speed appropriate;
6, adjust the length knob until the label stripping out the appropriate length;
7, it can start work on the counter is cleared.
8, the core works: sensors to detect labels, control traction motor is stopped; when the label is removed, the label is not detected, the control traction motor is rotated until the next label is peeled to a predetermined position after stopping, so the cycle; Artificial take Tag -> next label is automatically peeled to a predetermined position (the device automatically).

Advantages:
1, the electronic control system: automatic peeling labels smooth, wrinkle;
2, remove the first label, the second label is automatically fed, small labels can be multi-row side by side, once stripped carry out.
3, simple operation, more than one machine can use, efficiency doubled, the entire interval or continuous roll or bar code can be applied;
4, automatic counting 0-999999, convenience yield management automation;
5. Label Type: Self-adhesive labels, barcodes, security, laser, packaging labels;
6. Applicable industries: electronics manufacturing industry, chemical industry, food processing industry, the logistics industries.

Parameters:
