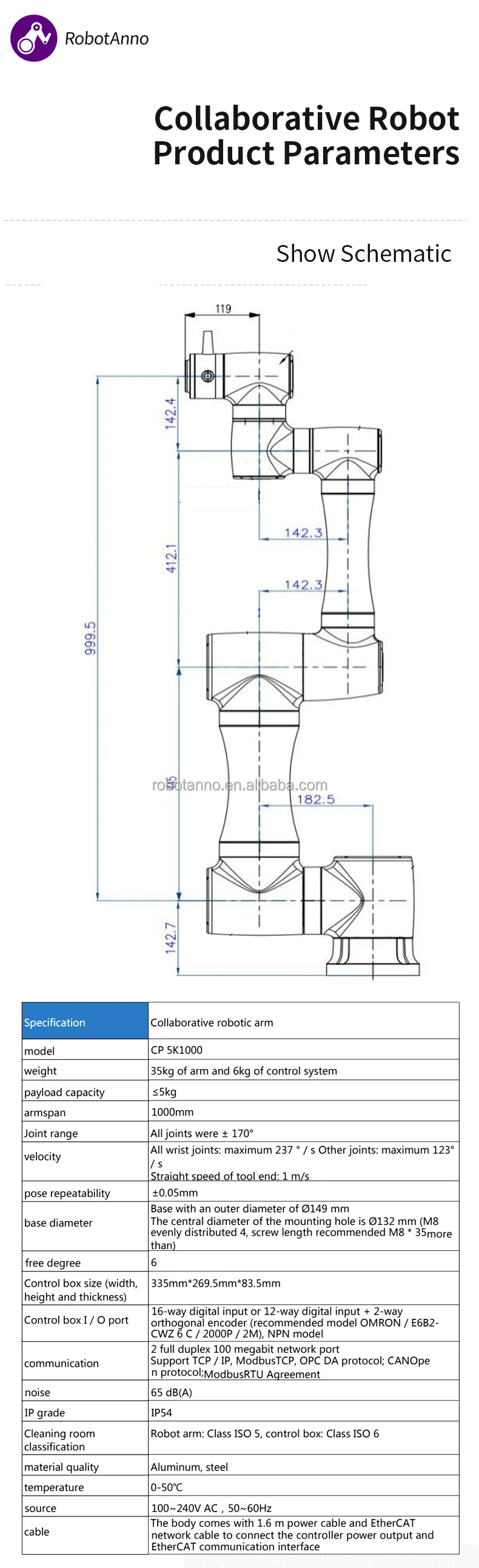

Products Description
|
Model
|

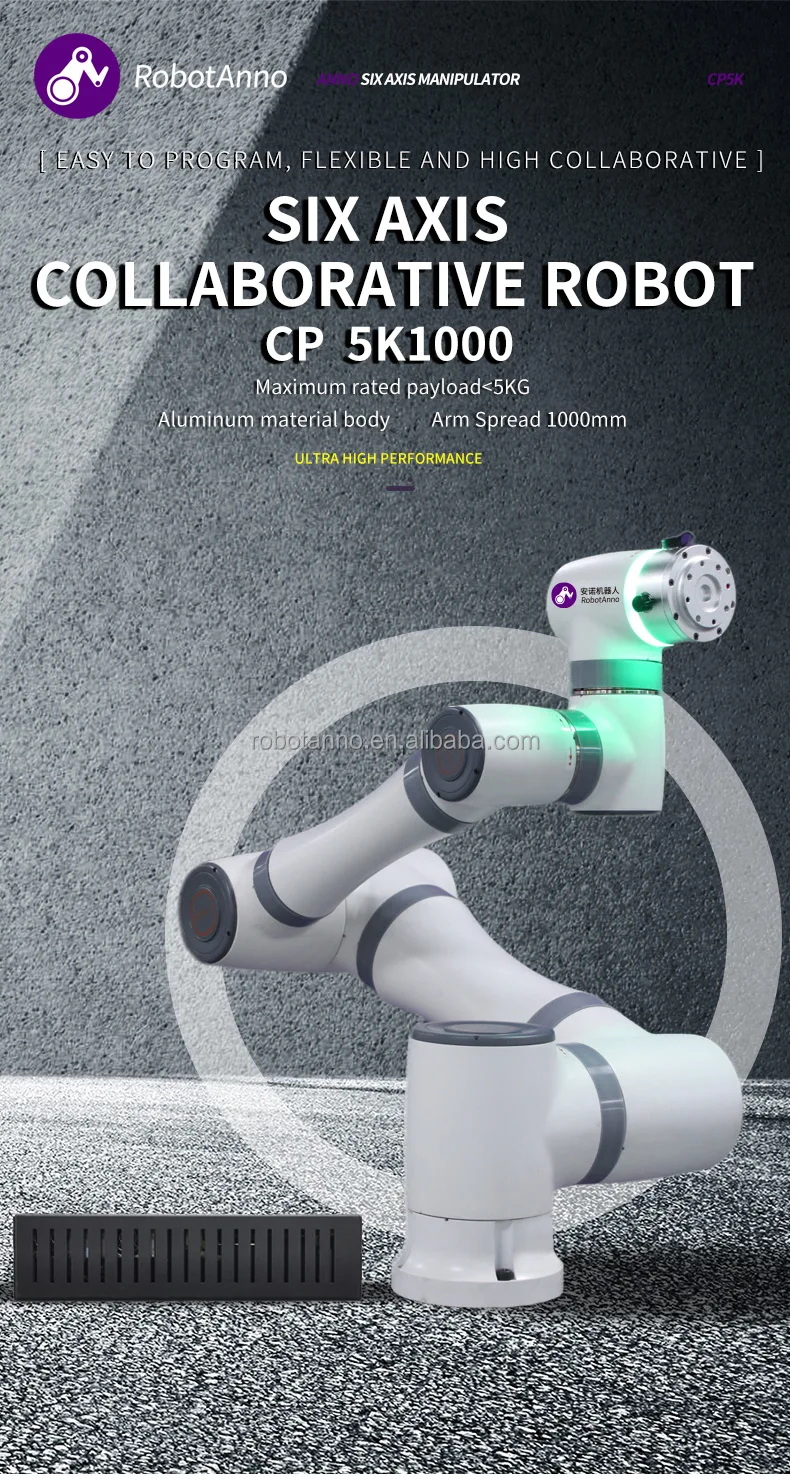

CP 5K1000
|
||
|
Dof
|
6
|
||
|
Payload
|
5kg
|
||
|
Working Radius
|
1000mm
|
||
|
Repeatability
|
±0.05mm
|
||
|
Working Range
|
All joints were ±170°
|
||
|
Maximum Speed
|
Base
|
123°/s
|
|
|
Shoulder
|
123°/s
|
||
|
Elbow
|
123°/s
|
||
|
Joint 1
|
237 °/s
|
||
|
Joint 2
|
237 °/s
|
||
|
Joint 3
|
237 °/s
|
||
|
Body Weight
|
35kg
|
||
|
IP grade
|
IP54
|
||
|
Cleaning Room Classification
|
Class ISO 5
|
||
|
Material Quality
|
Aluminum, Steel
|
||
|
Noise
|
65 dB(A)
|
||
|
Temperature
|
0-50℃
|
||
|
Power Supply
|
AC100~240V ，50~60Hz
|
||
|
Control Box Size (width, height and thickness)
|
335mm*269.5mm*83.5mm
|
||
|
Control Box Weight
|
6kg
|
||
|
Control box I / O port
|
16-way digital input or 12-way digital input + 2-way orthogonal encoder (recommended model OMRON / E6B2- CWZ 6 C / 2000P / 2M),
NPN model |
||
|
Communication
|
2 full duplex 100 megabit network port Support TCP / IP, ModbusTCP, OPC DA protocol; CANOpe n protocol;ModbusRTU Agreement
|
||
|
Cable
|
The body comes with 1.6 m power cable and EtherCAT network cable to connect the controller power output and EtherCAT communication
interface |
||
Main Applications
