Automatic 10ml 15ml 30ml High Speed Small Glass Dropper Bottle 30-50 Bottles/min Glass Bottle Dropper Filling Machines

ر.س41,438.22

Qty:
Print Send to a friend
SKU: 211853272019181 Categories: , ,
Product Description

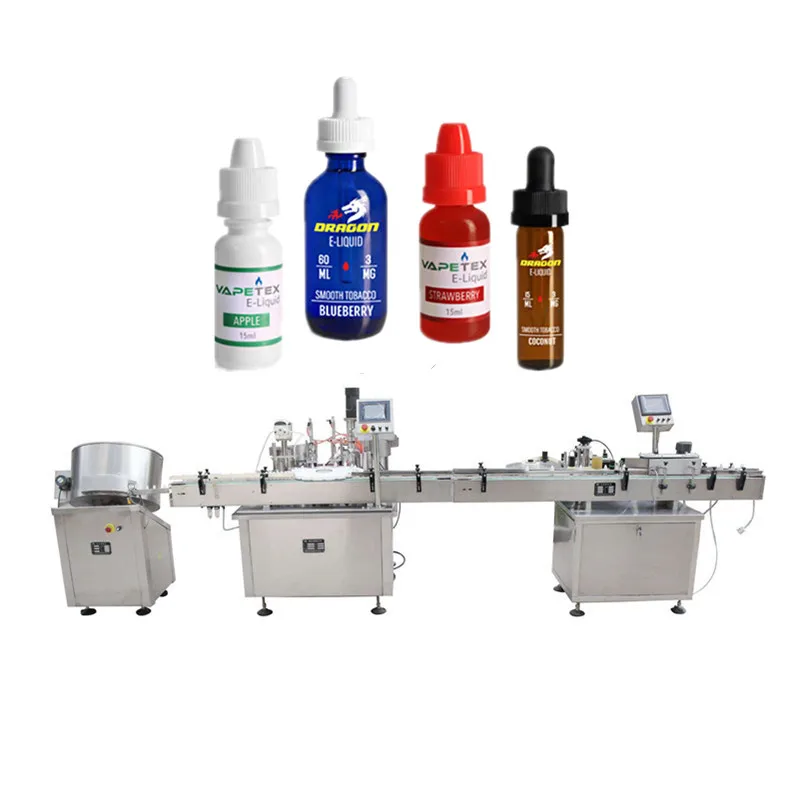

Automatic Bottle Filling and Capping Machine can automatically finish the bottle filling, bottle capping. With the no bottle no filling feature. The machine with scientific structure can be single used, and also can be used with  production line .It is the ideal liquid filling production equipment, completely meet with GMP requirements.

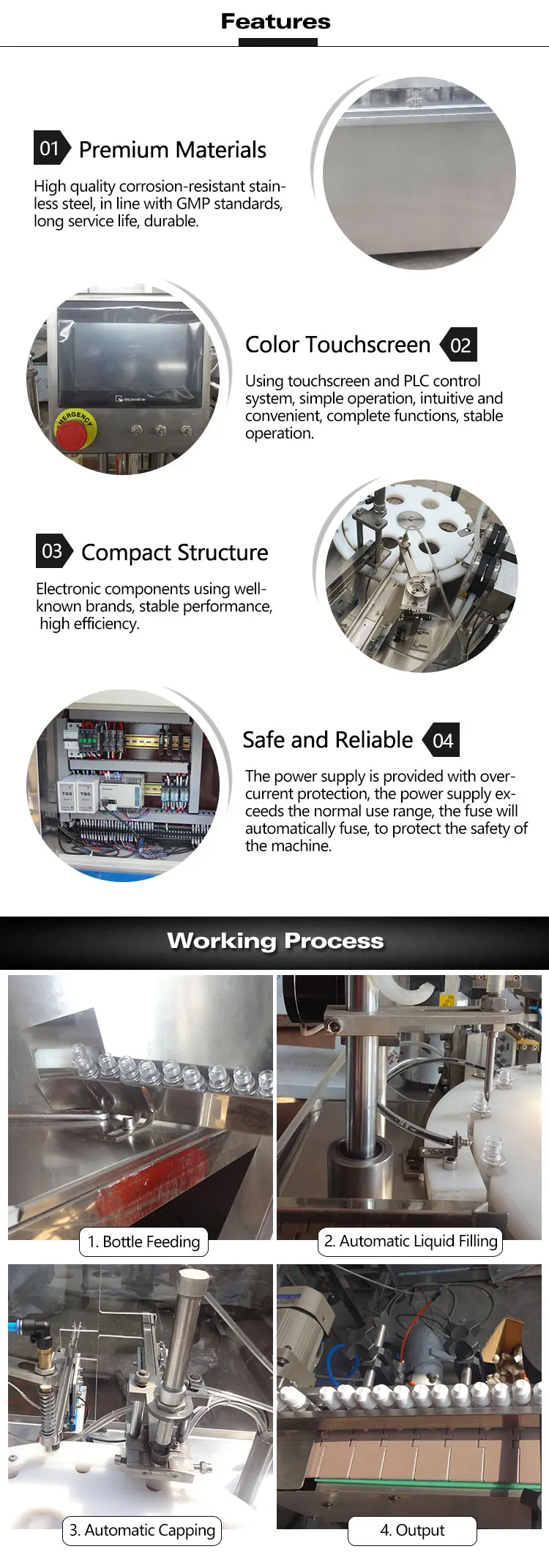

Features:

    • Adopt human-computer interface,PLC controller,easy to operate
    • Use frequency converting control,easy to adjust the filling speed,automatic count
    • Automatic stop,no bottle no filling
    • Round turn table for positioning filling,stable and reliable
    • High precision CAM indexing gage control



Technical Paremeter



Item Automatic bottle filling capping machine
Production Capacity 30-80 bottles/min or customized
Filling Volume 5-200ml or customized
Filling Accuracy ± 1%
Filling Head 1/2/4heads
Qualified Rate ≥99%
Capping Head Single Heads or Customized
Filling Head Single Heads or Customized
Voltage 220V 50Hz
Power 2 KW
Dimension 1450*500*800 mm
Weight 500 KG
Machine Features
  • The machine is special purpose for liquid filling and capping.

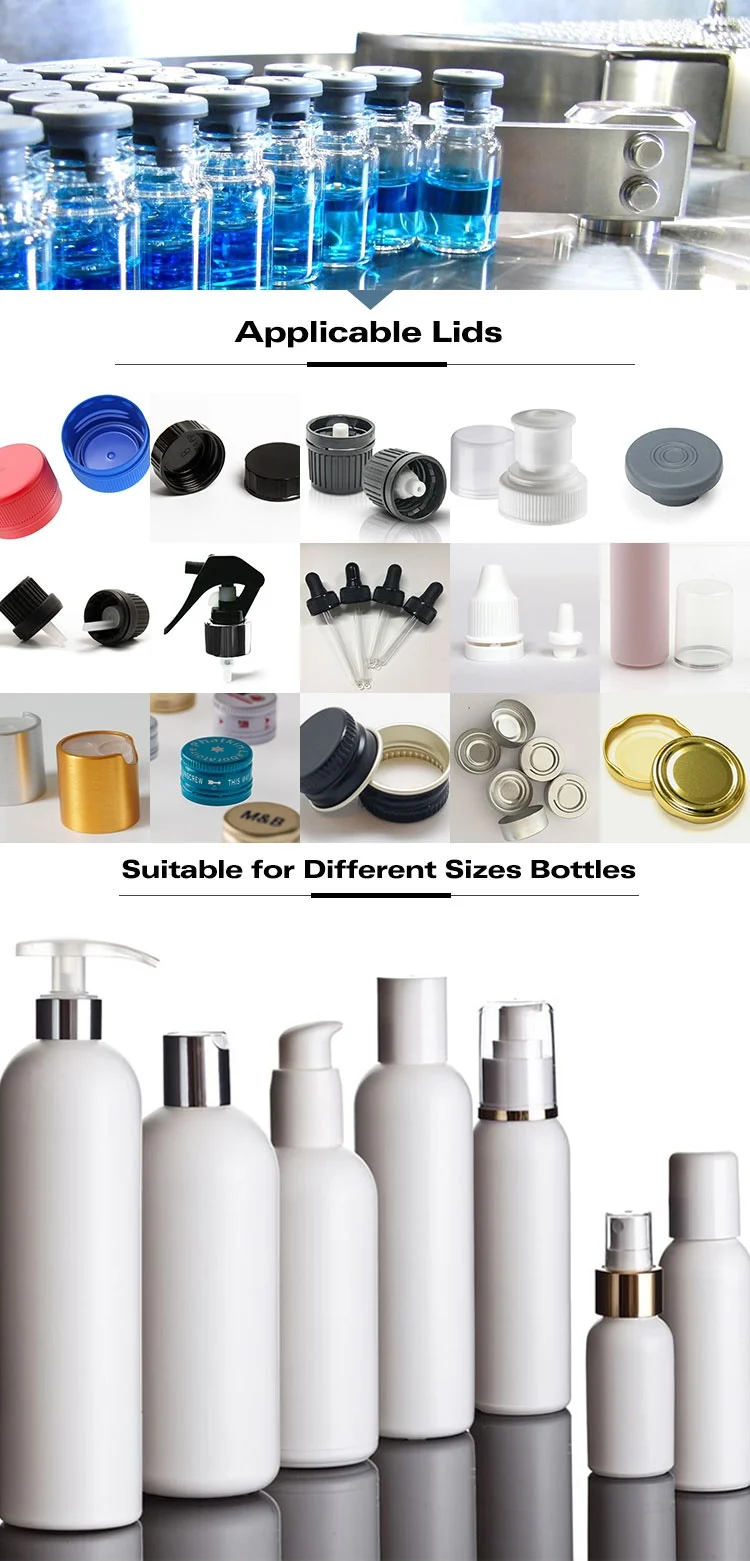

  • It’s fit for all kinds of bottles of materials and shapes, such as round and flat bottle.
  • This machine adopts stainless piston measuring pump for filling, pneumatic capping, and rising-and-falling screwing.
  • Has advantages of accurate measurement, stable screwing and easy operation.
Product Details

5.jpgHTGX-50 (5).jpg
