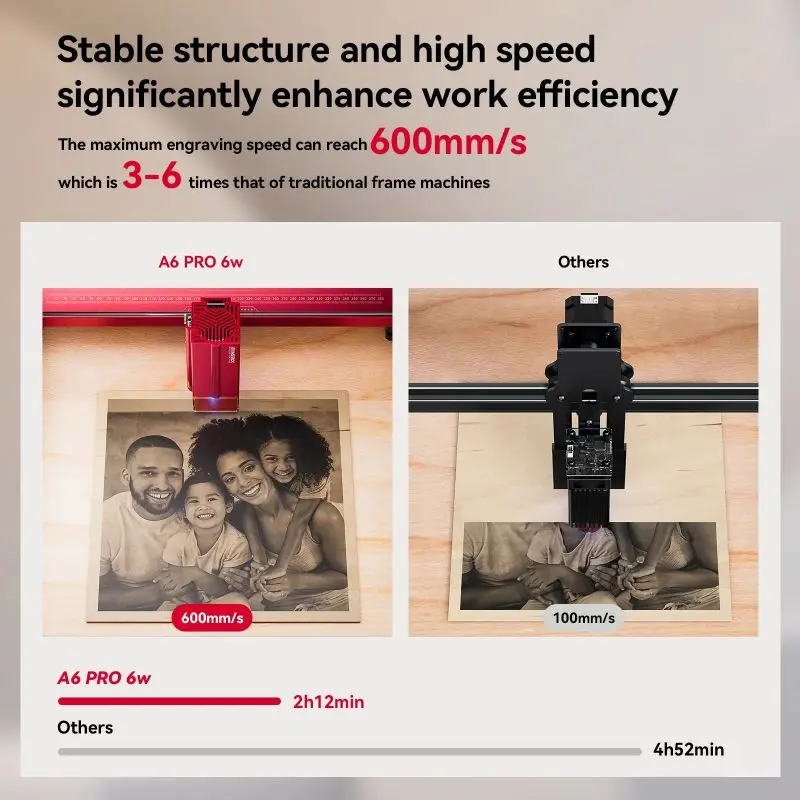

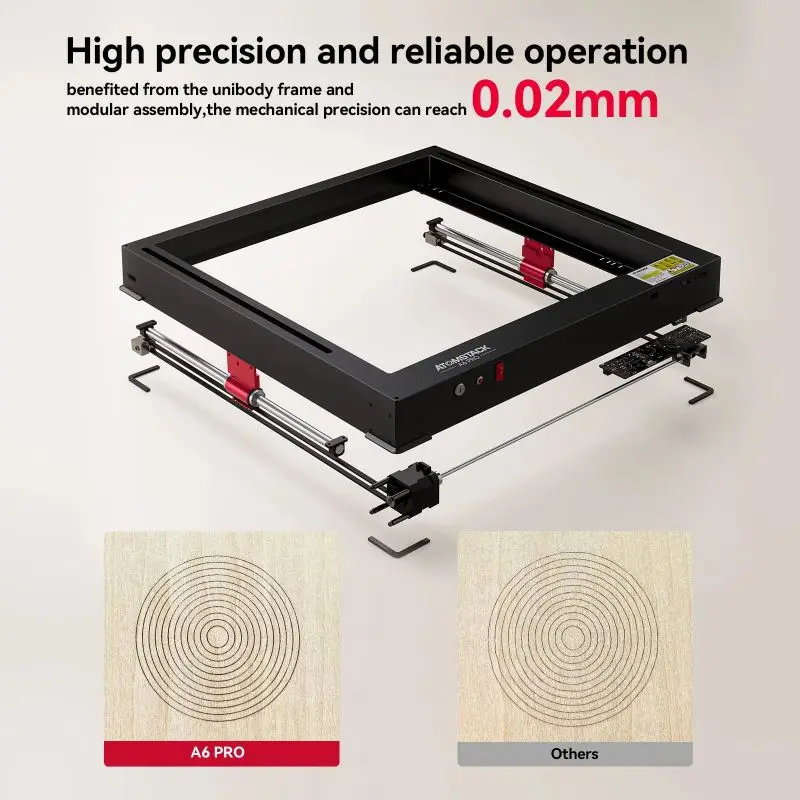

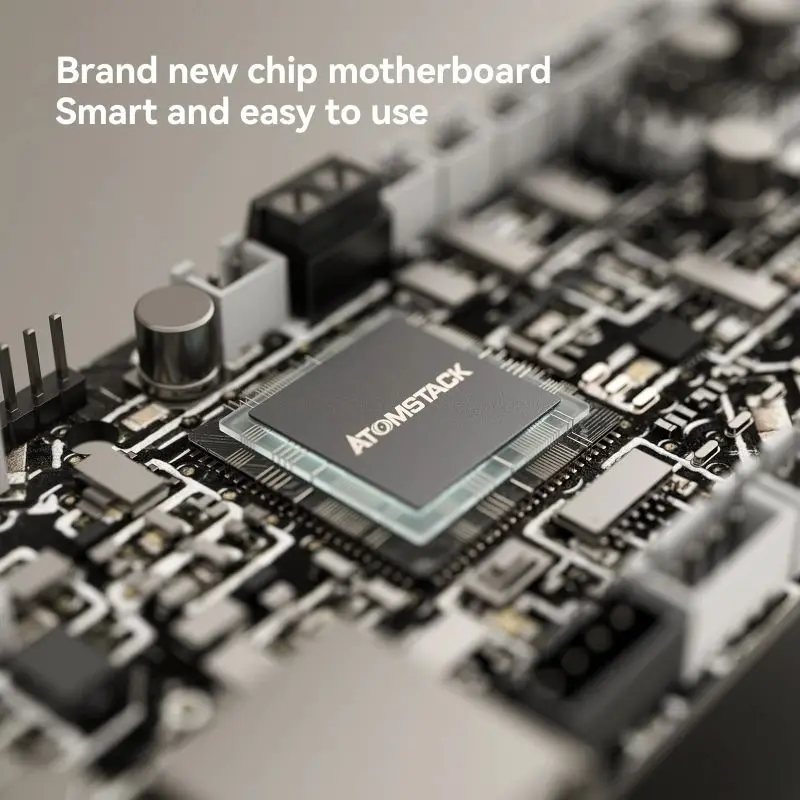

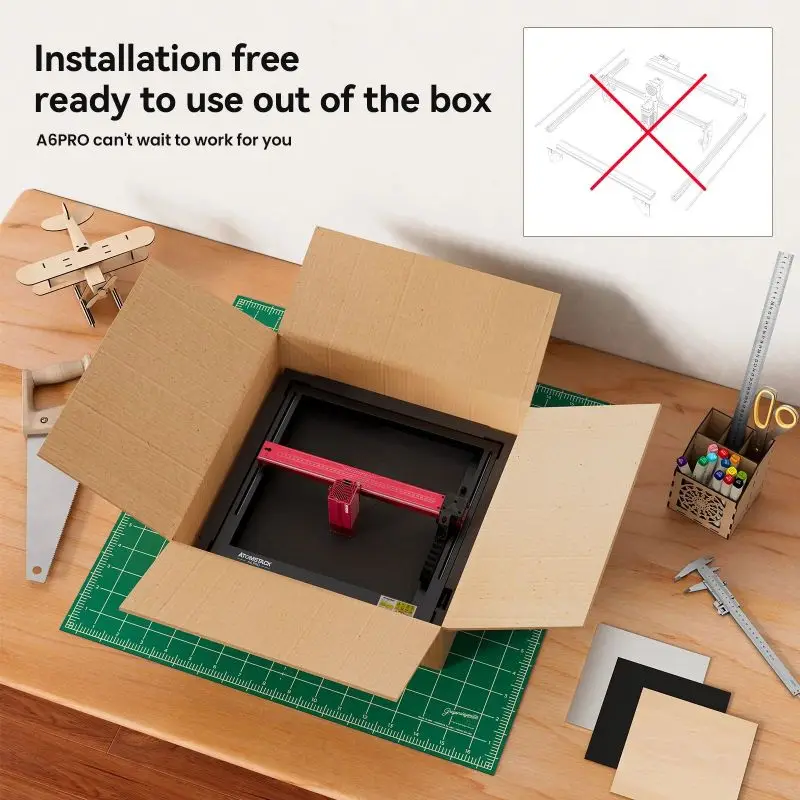

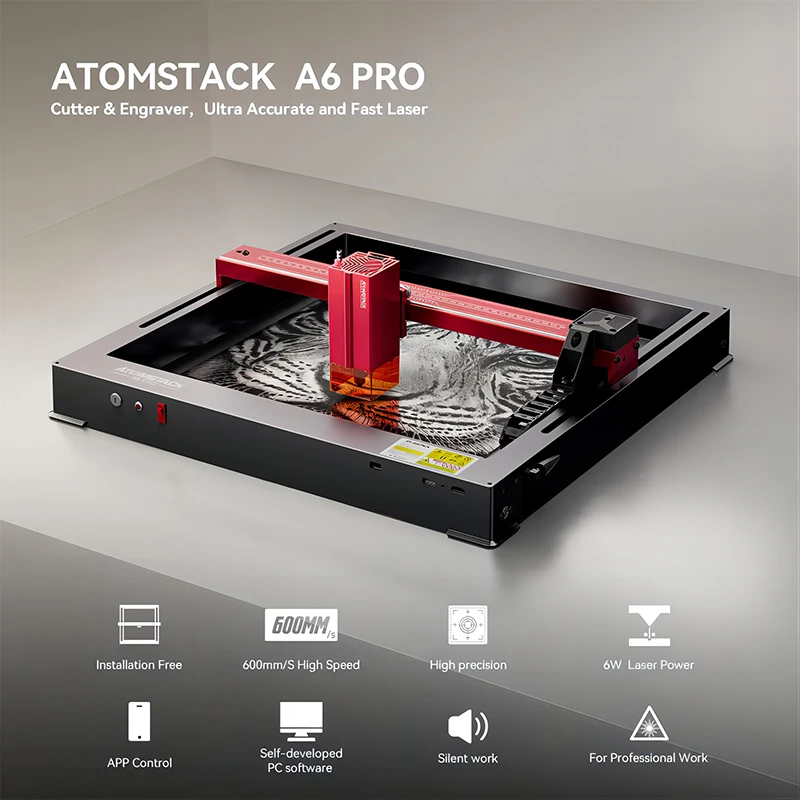

1. Unprecedented Power: The world’s first laser engraver boasting a 6W optical power. 2. Sturdy and No Setup Required: Crafted from anodized full aluminum alloy, this design ensures durability and engraving precision. Plus, it’s one-piece frame design, calibrated with precision before shipping, allowing you to use the perfect machine right out of the box. 3. Enhanced Motion Structure: The AtomStack A6/X6/S6 PRO sets a new standard with its superior structural stability, employing a linear guide for the X-axis. This ensures smooth operation at high speeds of up to 600mm/s, yielding perfect engraving and cutting lines without any shaking. 4. Cross Laser Positioning: Newly added cross laser positioning feature for clear visibility of the laser’s location, perfect alignment for engraving, and easy horizontal adjustment. 5. Advanced 32-bit Motherboard: Our latest AtomStack innovation features a 256-bit color scale, delivering unparalleled engraving clarity and contrast. Now, vibrant projects aren’t just a dream! 6. AtomStack Mobile App: Available on major Android and Apple stores, our custom-designed app provides a unique, seamless control experience. All in the palm of your hand! 7. Eye-Protection Redefined: Our panoramic filter glass cover shields eyes effectively, blocking 97% of UV light. No more goggles; observe your engraving in real-time, safely. 8. State-of-the-Art Fixed-Focus Laser: No more pre-engraving adjustments. This laser’s focal spot is notably smaller and more precise, marrying detailed engraving with powerful cutting. 9. Wide compatibility: the machine is compatible with various mature engraving software such as LaserGRBL LightBurn supports Win XP / Win 7 / Win 8 / XP / Win 10 and also supports for MAC system (LightBurn) engraving file format supports NC BMP JPG PNG DXF etc. 10. Detailed Axis Scale Lines: Precise scales on the X and Y axes enable swift measurements. With a generous 365*305mm engraving area, all your project needs are covered. 11. Superior Compression Technology: An ultra-fine laser focus of 0.05*0.05mm high-density laser black acrylic; it can directly engrave smooth stainless steel metal and ceramics. 12. Integrated Screw Rod: An all-in-one design for the stepper motor and screw rod ensures pinpoint laser accuracy and enhanced durability. 13. Convenient Laser Adjustment: Newly incorporated knob facilitates easy height adjustments. 14. Side-Over Warning: Built-in gyroscope detection, when the tilt angle of the machine is greater than 15°, an alarm will be triggered, making engraving safer. 15. Emergency Control: An incorporated stop button ensures immediate response during unexpected situations, enhancing safety. 16. Built-In Limiter: Included for added safety and precision. 17. Reset Capability: Built-in for user convenience.
|
Brand
|
AtomStack
|
|
Model
|
A6 Pro
|
|
Engraving Size
|
365*305mm
|
|
Overall Machine Power
|
50W
|
|

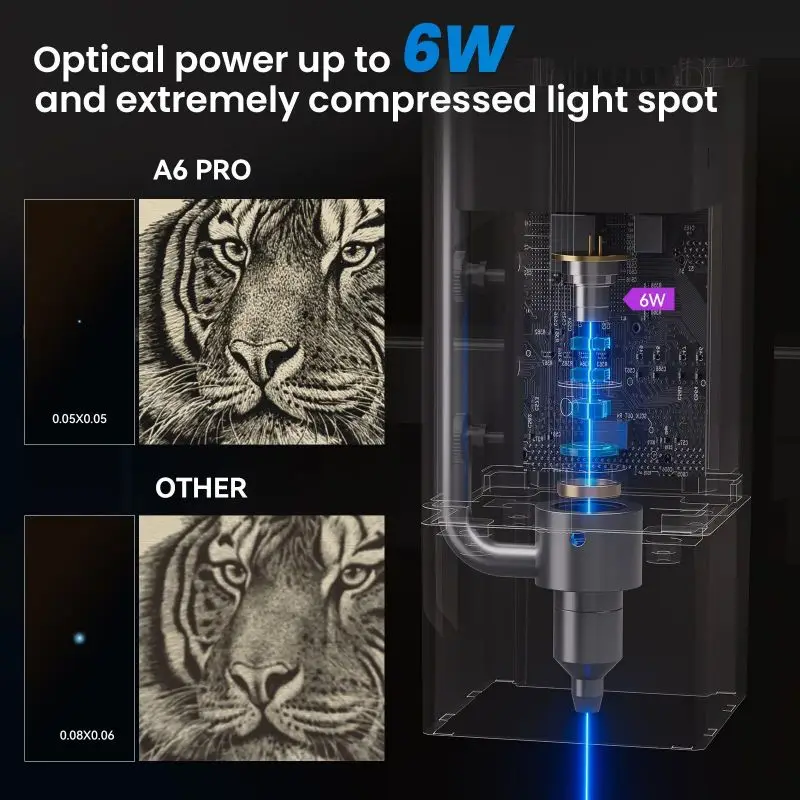

Laser Output Optical Power
|
5-6W
|
|
Laser Wavelength
|
455±5nm
|
|
Laser Spot
|
0.05*0.05 mm
|
|
Focusing Mode
|
fixed focus laser, no focus
|
|
Laser shield
|
There is a protective shield on the laser that protects the user’s eyes, no need to wear additional goggles.
|
|
Operating Software
|
LaserGRBL, LightBurn, Supports Windows/Linux/macOS
|
|
Supported File Formats
|
JPG, JPEG, SVG, PNG, BMP, PDF, G-Code, DXF.
|
|
Data Transfer Method
|
USB, APP
|
|
Power Supply
|
International standard power
|
|
Input
|
100-240V AC, 50/60HZ
|
|
Output
|
24V 5A
|
*When the laser engraver is working, the operator should not leave it alone, just in case the materials being carved catch fire。
*Please set up laser engraver in the fireproofing area, with good ventilation。
*Please keep minors (especially kids younger than 14 yours old) away from this laser engraver. Minors of any age should not use
this laser without direct Adult supervision and proper eye protection。
*Please do not touch the laser beam with your hands or any other objects you do not wish to engrave/burn/cut. Serious physical
harm is possible if used improperly。
*Please avoid strongly impact on the machine。
*Use the laser engraver in a room that can be closed by a door and ensure that neither laser beams nor stray light can penetrate
through the windows。
*While using the laser engraver, use door signs or a warning light on the door that indicates the laser engraver is in operation。
*Please do not touch the heat sink, when the laser engraver just stop working, it may scald your hands。
