Product Certifications:
1 x X-axis assembly
2×Section 57CM
2×Section 48CM
1 x control box
3 x support legs
1×Goggles
1 x laser
1×24V2A power adapter
1 x power cord
1 x USB cable
1×M5 wrench
10×rolled belt
3 x small wood
1×focal length film
1×M3 wrench
1 x marker
1 x brush
3×small acrylic

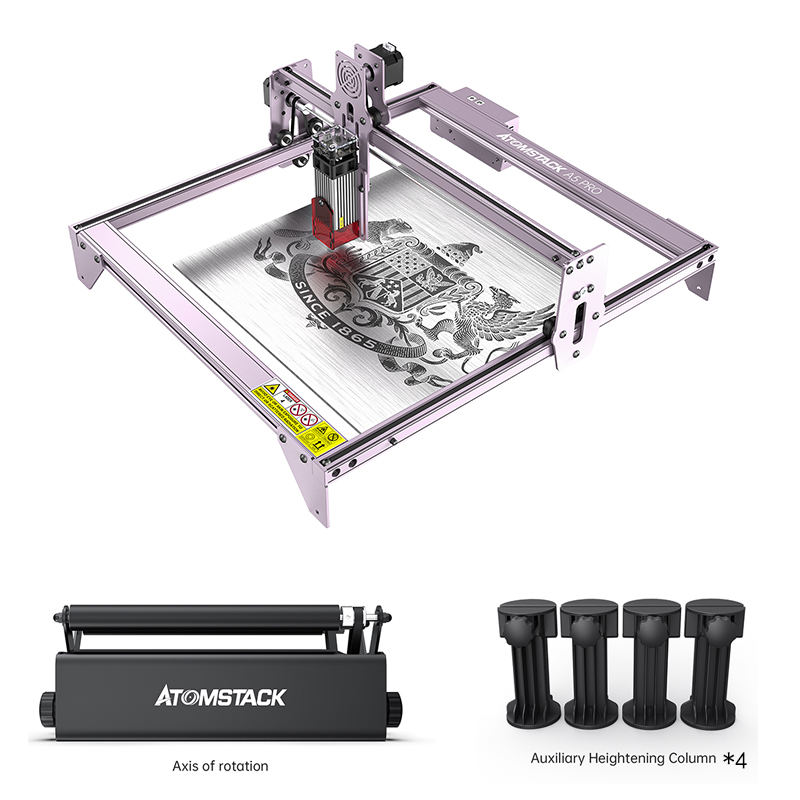

B : 1 x Rotary Roller
4 x heightening column
* Fixed-focus Laser Cutting Machine: No need to adjust the focus before engraving,the focal length of the laser is a fixed value,move the lens up and down close to the surface of the fixed-focus plate, to start carving. Traditional lasers are zoom lasers and require to look directly at the laser spot to find a proper size by experience.The laser power of the upgraded high quality fixed-focus laser engraver is more stable than the zoom laser engraver.
* Wide compatibility Laser Engraver CNC: The machine can be compatible with LaserGRBL, LightBurn. LaserGRBL (free software) supports Windows XP, 7, 8, 10.LightBurn (paid software) supports Windows, Mac OS, and Linux.If the computer cannot respond to Lightburn,Please install the driver we provide on the TF card.
* Upgraded Eye Protection Design: No need wear goggles,filter UV light for 97%, the laser protective cover perfectly protect your
eyes and prevent your pets from grabbing the laser spot.410×400 mm large area engraving interval can meet your various engraving needs.* Solid & Easy Installation: The full-metal structure and easy to install design. There are precise scale lines on the X-axis and Y-axis to facilitate quick length measurement. high-density laser can easily cut 5mm thick wood, can directly engrave smooth stainless steel, ceramics, bamboo wood, leather, plastic acrylic, paper stock, cobblestone.Polished mirror metal must be painted black first, it can be wiped clean after engraving.Laser engraver can’t cut metal
Item model number
|
ATOMSTACK A5 40W
|
Print Size
|
Recommend Print Size 410*400mm
|
Carving Objects
|
All wood, bamboo, paper, plastic, leather, PCB board, aluminum oxide, non-reflective plating and lacquered metal
|
Cutting Objects
|
Cardboard, non-woven fabric, light wood, Acrylic material, thin plastic board.
|
Laser power
|
40W
|
Laser output power
|
5.3W
|
Wave Length
|
445 ± 5nm
|
Engraving accuracy
|

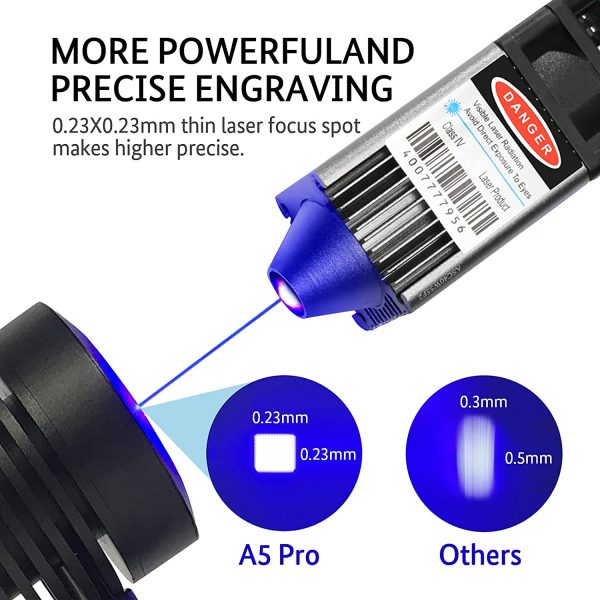

0.01mm
|
Focusing method
|
fixed focus laser, no need to focus
|
Laser protective cover
|
Protect the user’s eyes and prevent pets from grabbing the laser spot.
|
Operating software
|
LaserGRBL, LightBurn,
|
Support system
|
support Win XP / Win 7 / Win 8 / XP / Win 10 system
|
Input Format
|
NC, BMP, JPG, PNG, DXF, etc.
|
Data transmission method
|
USB connection
|
Input Voltage
|
AC100-240V, 50/60Hz
|
Output Voltage
|
DC12V, 5A
|
Equipment net weight
|
4.0kg
|
Package weight
|
5.6kg
|
Equipment size
|
570*600*270mm
|
Packing size
|
618*342*129mm
|
Certification
|
CE FCC RoHS
|
Shipping Ways:
By Express—Door to Door
For small orders or samples, air express couriers are adopted. The choice of courier will vary from country to country. DHL,UPS,FedEx, Aramex are available for most countries, while China EMS is only available for certain countries. Delivery time is usually around 3-8 days by DHL, UPS, FedEx, Aramex and 7-15 days by EMS.
Air Shipment—Door to Airport
By Sea—Warehouse to Seaport
For large order, we recommend sea shipping. Although it takes longer time usually 15-35 days to your local customs, it is the most economical way to reduce shipping cost.
A: This machine comes as a kit. You need to assemble it yourself. All tools and part are included in the kit.
Q: Are there software and instructions can I get it?
A:Hello, if your computer is a Windows system, can install lasergrbl software. The link to download lasergrbl software is
https://lasergrbl.com/download/ , MAC system can install lightburn software, lightburn software download link is
https://lightburnsoftware.com/pages/trial-version-try-before-you-buy ;
Q: What’s the laser’s lifetime?
A: The laser module have over 10000 hours lifetime.
Q:what is the maximum thickness it can cut?
A : Can cut 8mm wood, 12mm black plastic, 8mm black acrylic, 3mm leather etc
Q:New ATOMSTACK A5 PRO 40W Laser in the description informs 5 to 5.3W, wouldn’t it be 40W?
A :The total power of the machine is 20W, and the laser power is 4.5-5W
Q: When I receive it, how to let it work?
A: Fist of all, you need to plug the stepper motor power cable to the controller board, then installl the software and the driver,power supply the machine,that’s all.
Q: How long can i get it after payment done ?
A: usually within 48 hours sent out after receive the payment, weekend and holiday will be a little delay .we provide free DHL Fedex etc fast shipping,about 5-10 working days to door .
Q: How long time for warranty ?
A: We promise you 13 months warranty , kindly contact us if any quality problem when you receive the parcel, we will refund or resend you a new replacement.
Q: What is the speed of the machine?
A:Max Speed is 1000mm/min
Q:How much is the working area of the machine?
A:working area is 410*400mm big area
