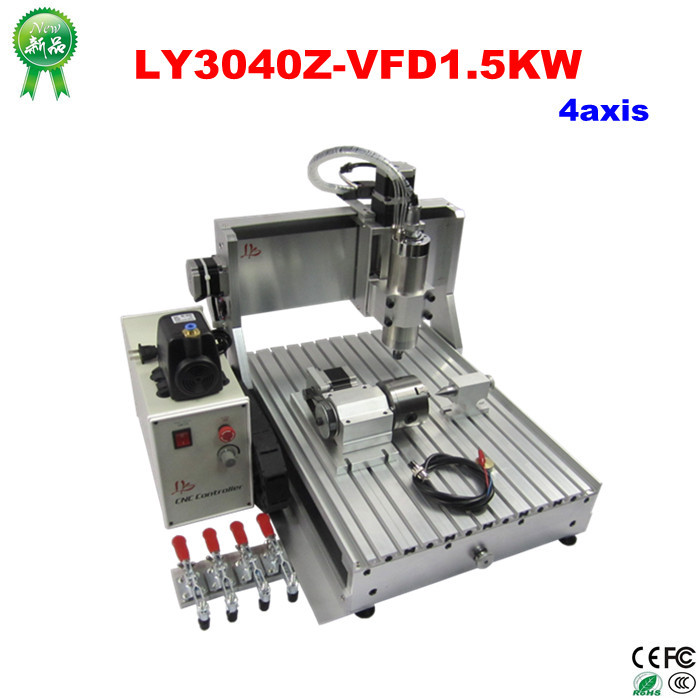

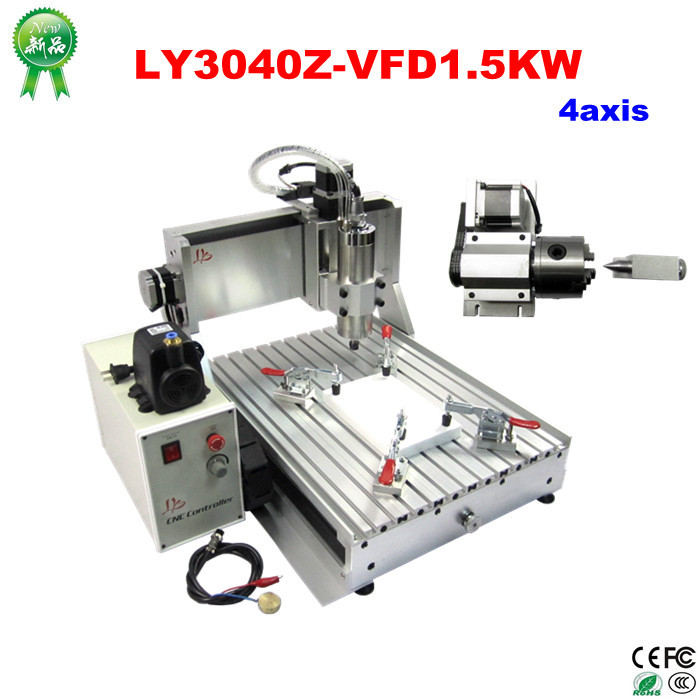

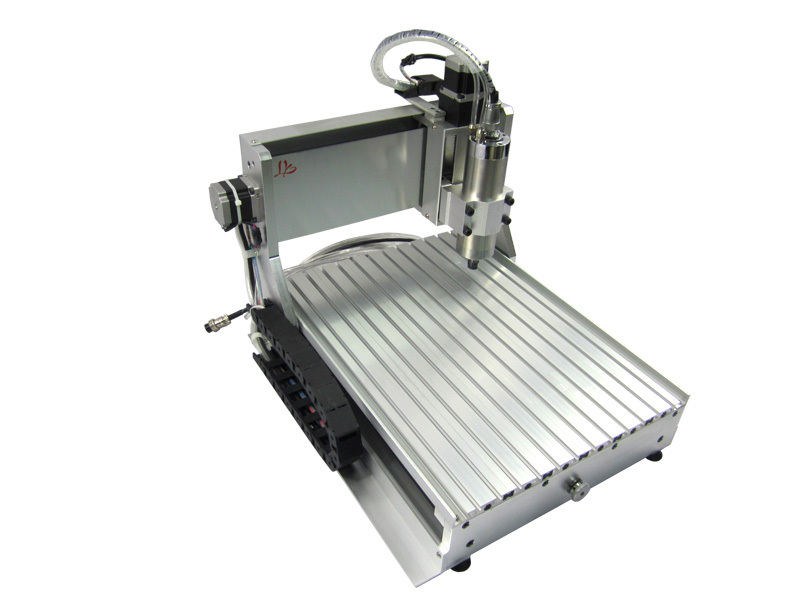

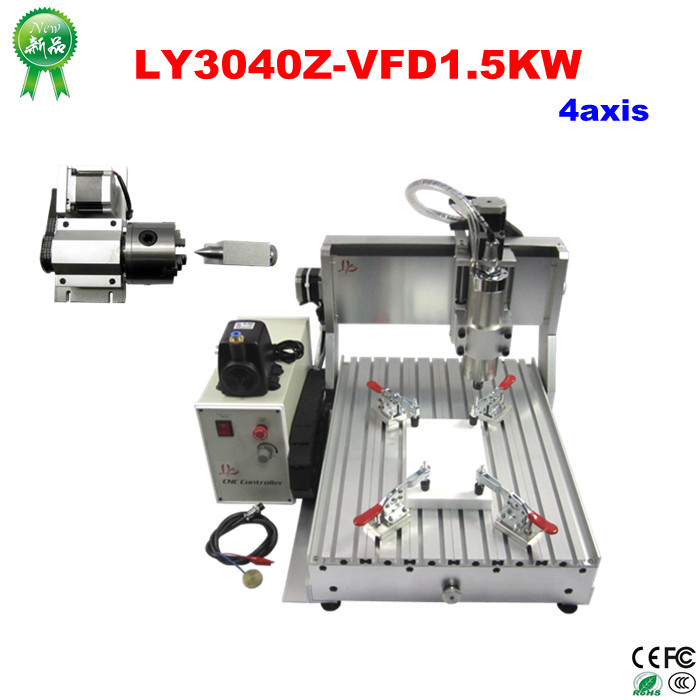

Assembled Well 3D CNC 3040 CNC Router CNC Engraving Machine 1500w Spindle Motor +1.5kw VFD Milling Machine

ر.س133,629.55

Qty:

Product Description



Assembled&Test well 3D CNC 3040 CNC Router cnc Engraving Machine, 1500w Spindle Motor +1.5kw VFD, HOT Sale Model







Introduction

The CNC router is suitble for Industry, Technology Research, Advertising Design, Arts Creation, Teaching, Student Project and Hobby Purposes.

The cnc router is designed for large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making, PCB, Advertising Signs, Artwork, Crafts, Aircraft Models, RC Model parts, etc. So, you can do engraving work at office or home.

In addition, it can be upgraded to be installed a rotational axis.

LY3040Z-VFD1.5KW  3.jpg





More Precise Stepping Motor



The engraving process is visible as controlled by computer



Simple operation and installation



1 year machine part and 6 months electrical parts,stepping motor,spindle Free Warranty



 Shipping by DHL FEDEX UPS with tracking number





Technical Parameters

LYCNC3040Z-VFD1.5KW 4axis engraving machine parameters:

Machine Dimensions:

600X510X480mm

Rack material:

6061 and 6063 Hard aluminum alloy
(The unique and dedicated mold extrusion profiles, Let counterfeiters dwarfs.)

Engraving area:

400X300mm

Z-Axis Stroke:

80mm, Engraving depth depends on the length of the tool edge

Acceptable material thickness:

≤80mm

Rail type:

Chromeplate shaft + Linear Bearings, Surface hardening 61HRC

Type of screw:

Ball screw 1605, Pitch 4mm

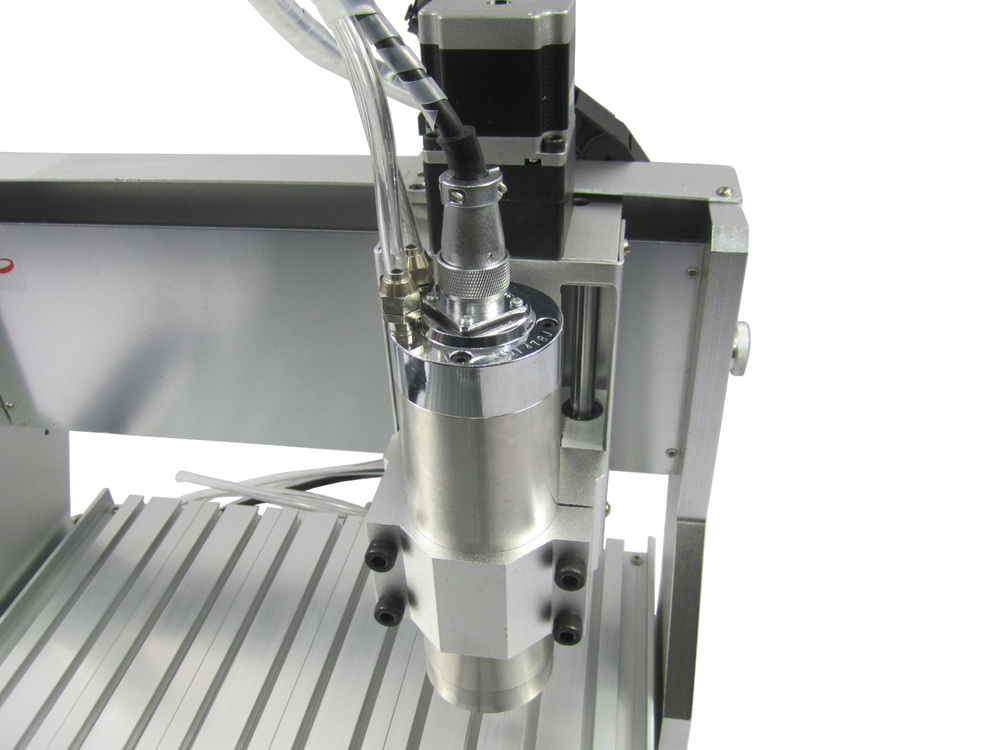

Spindle motor:

1.5KW VFD water cooling spindle , 0-24000r/min

Collet type:

ER11,1/8″(3.175mm) Collet

Stepper motor and drive:

two-phase hybrid stepping motor 57BYGH56-4011YD, 8 segments drive.

Maximum operating speed:

4000mm/min (Engraving speed : 300-3000mm/min)

Repeat positioning Accuracy:

0.03mm

Communication interface:

Parallel port

Software Compatability:

Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam)

Command code:

G code/.nc/.ncc/.tab/.txt

Machine weight:

50kg

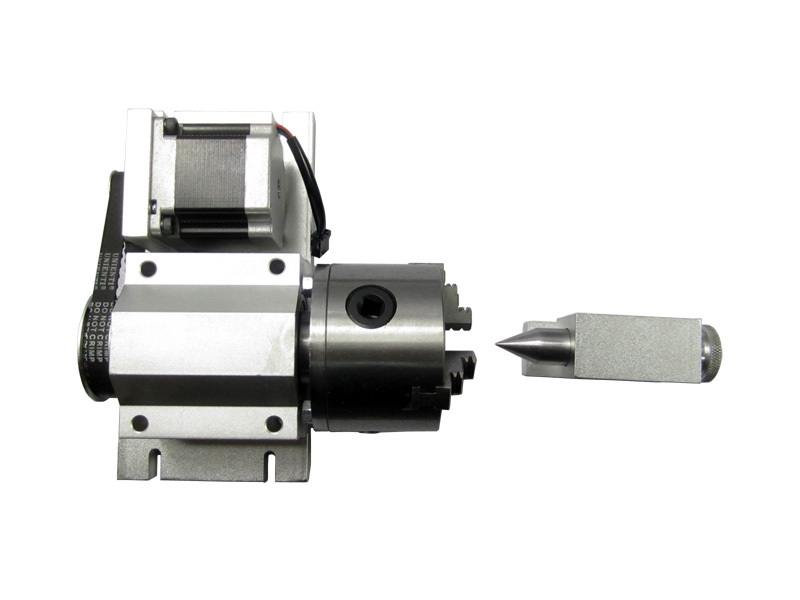

Rotation Axis (4th Axis)

Description:



Chuck Size: 80mm self-centering chuck

Center height: H = 49mm

Clamping diameter: 80mm or less

Deceleration mode: synchronous wheel / belt

Deceleration ratio: 3:1

Stepper motor: 57 type / 2A  two phase 4 line

Positioning accuracy: 0.075 °

 The machine already assembled & tested well,

can directly use after take them out from package

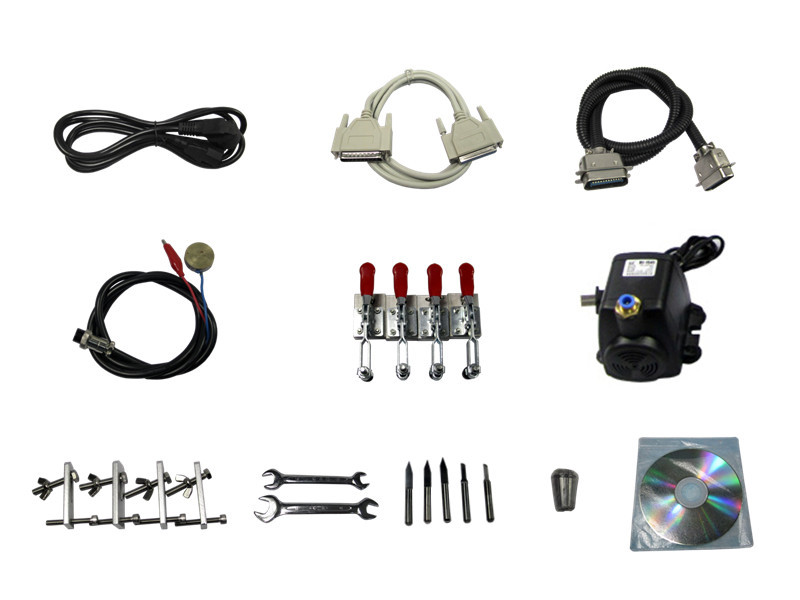

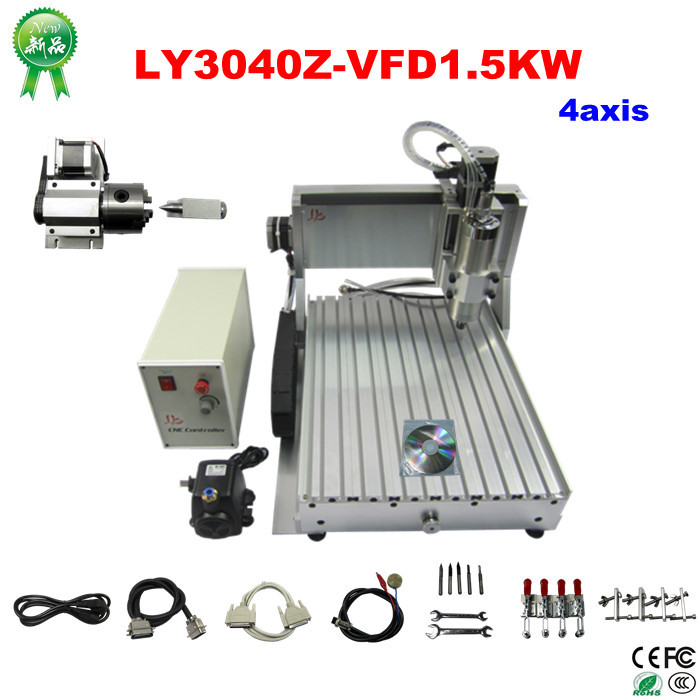

Packing list:

1× Engraving machine

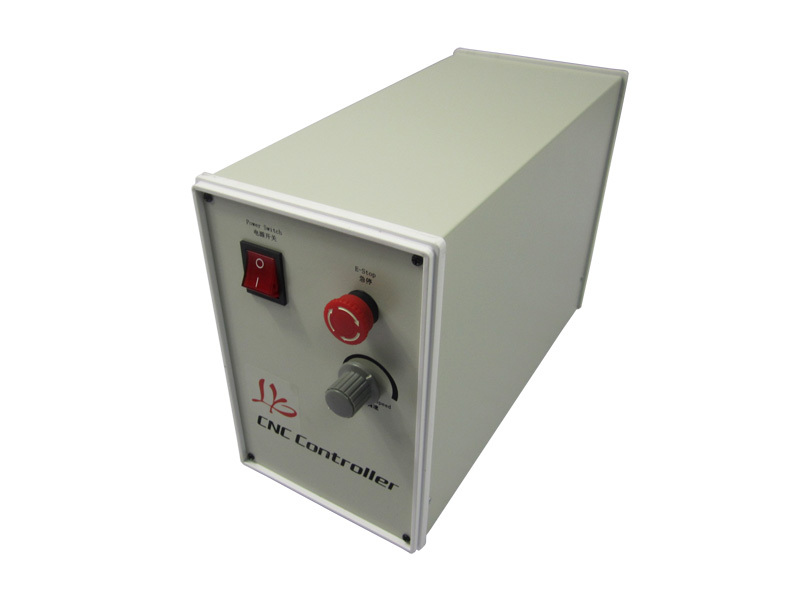

1× Control box

1× Power cable

1× control line

1× Parallel port cable 25pin

1× Tool package (include tools 5 pcs, wrench 2pcs, clamp 4pcs)

1× tool auto-checking instrument

1x water pump

1× Rotation axis

1× CD of manual and software MACH3 (if not get, may be lost in customs, please contact us)

LY3040Z-VFD1.5KW  2.jpgLY3040Z-VFD1.5KW  5.jpgLY3040Z-VFD1.5KW  6.jpg.JPG
