Artech Best Price Mini 6090 Wood Router Table For Engraving Or Cutting On Wood Aluminum Stone For Hobby User

ر.س12,242.05

Clear
Qty:
Compare

Request quotation for: Artech Best Price Mini 6090 Wood Router Table For Engraving Or Cutting On Wood Aluminum Stone For Hobby User

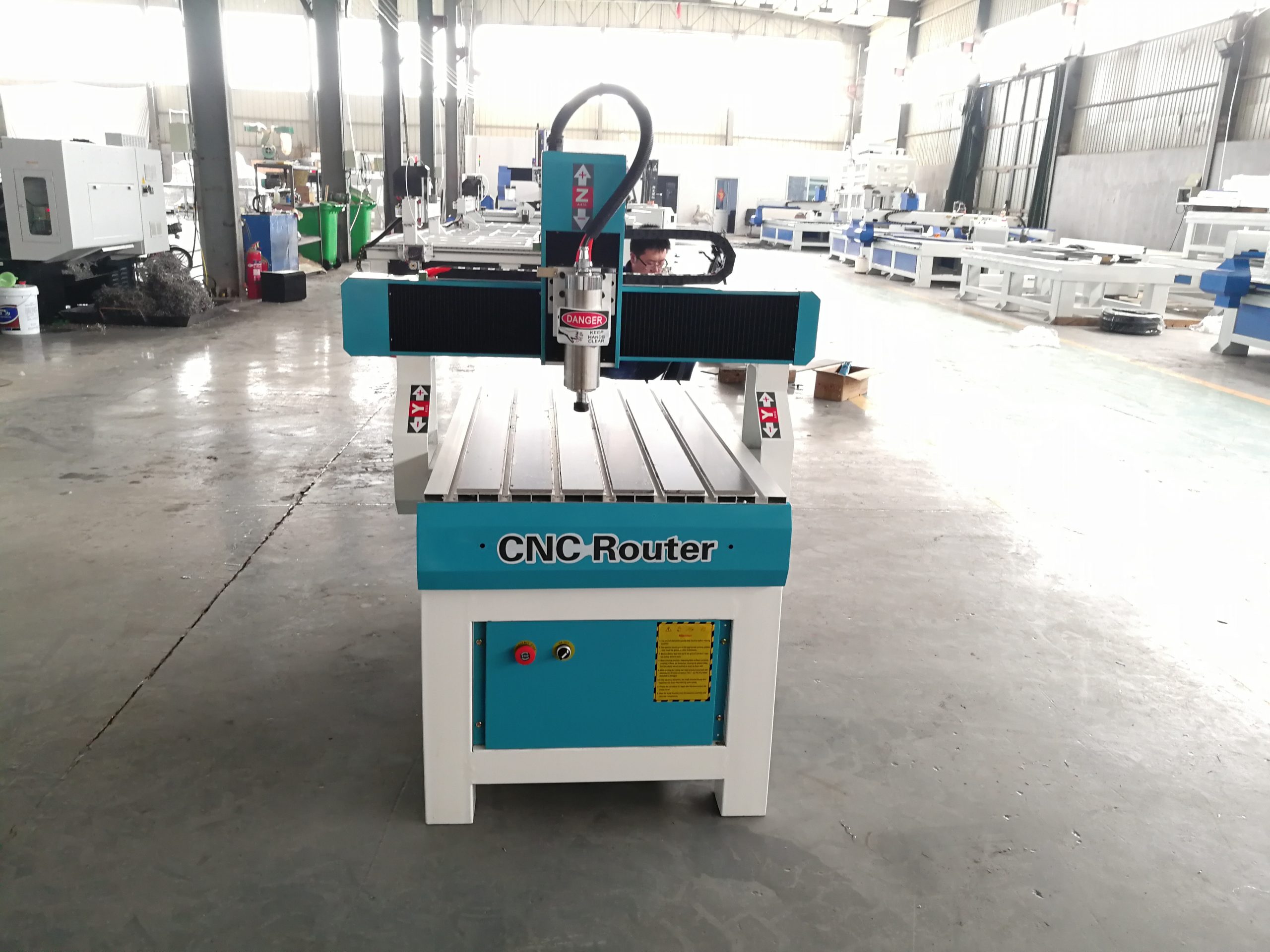

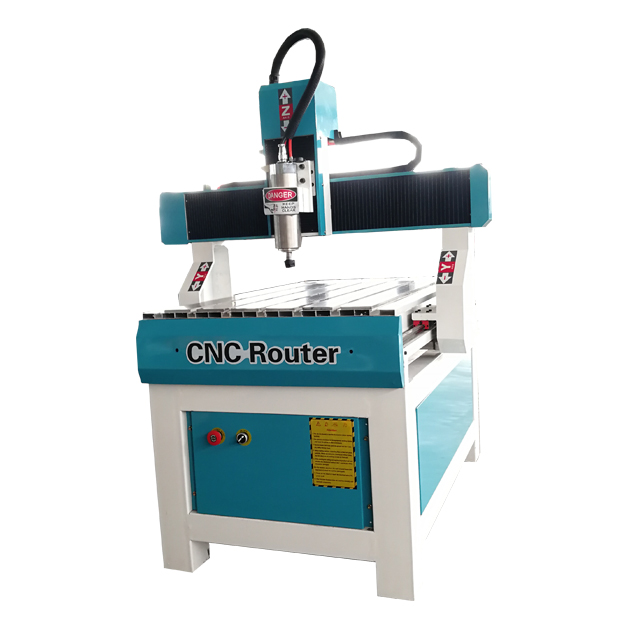

Artech Best Price Mini 6090 Wood Router Table For Engraving Or Cutting On Wood Aluminum Stone For Hobby UserAdvertisment 6090 cnc router wood engraving machine with stepper motor

Description

1.Whole machine is cast iron structure,the stability is excellent,not easy to be deformed.

2.Three axis adopted ball screw and linear orbit,stable working,high precision and long using life.

3.DSP control system with USB port,just need the handle to operate the machine,easy and convenient.

4.With T.slot working table,holding the materials with clamps,you can do variety of high precision works.

5.X,Y axis is dust proof,it makes sure the steady working performance of the machine for long term using.

Technical Parameter
Parameters Standard Specifications
X Y Z axis working area 600x900x200mm

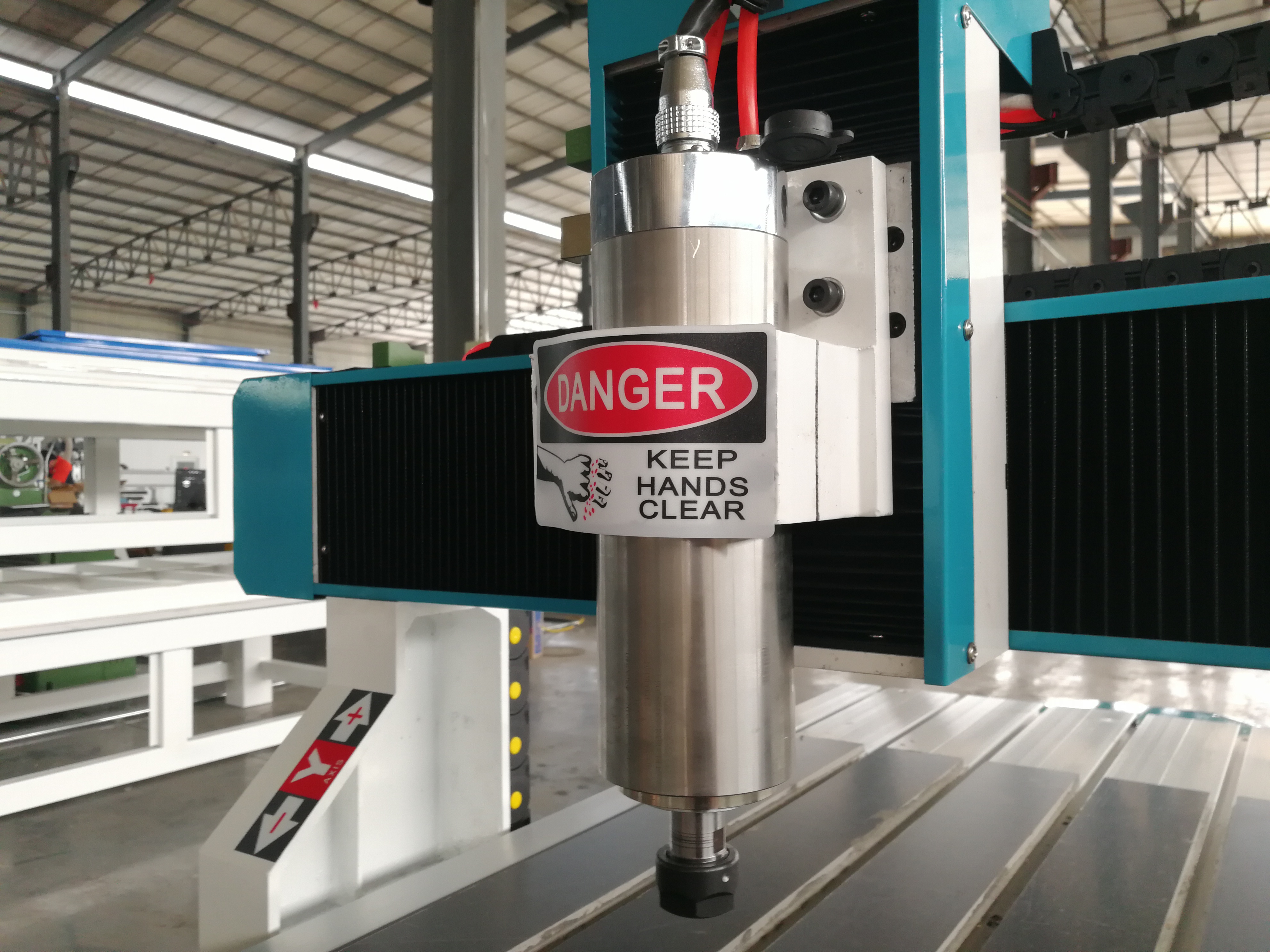

Spindle 2.2kw water cooling spindle
X Y Z traveling positioning accuracy +-0.01/2000mm
Table T.slot table
Vacuum pump air cooling 5.5kw pump
X Y Z rail and transmission Taiwan TBI ball screw and gear rack
Max.rapid travel rate 50000mm/min
Max.working speed 30000mm/min
Driver motors stepper motor and drivers or servo motor and drivers
Working voltage 220V/380V/50HZ
Command language G code
Control system DSP or NC studio/Syntec/Mach3
Software compatibility Option:Artcam,Ucancam,Type3
Running environment Temperature:0~45ºC
Relative humidity:30%~75%
Oil system handle
Frame structure cast iron
Application

1.Woodworking industry:wood crafts,picture frames cutting,handicraft carving wave plates,wooden door production and processing.

2.Advertising industry:advertising materials such as PVC,acrylic,double color plate.

3.Stone working industry:such as natural marble,granite,artificial stone,tombstones,milepost,ceramic tile,glass and other materials.

4.Metal industry:carving aluminum,copper,stainless steel and so on.

Advertisment 6090 cnc router wood engraving machine with stepper motor

Package and Delivery

Package Detail:1.Outside:Standard plywood package.

                         2.Inner package:Stretchy film and plastic film for humidity.

                         And we can package according to you requests

Delivery Detail:For standard machines,it will be 7-15 working days after payment;For non-standard machines and customized machines according to clients’ specific requirements,it will be 15-30 working days after payment.

Advertisment 6090 cnc router wood engraving machine with stepper motor

After Sale Service

1.Engineers available to service machinery overseas.

2.1 year guarantee for whole machine.

3.Technical support by phone,e-mail,whatsapp and skype.If you have any problems,we will within 12 hours to solve it.

4.You will be get free training advice towards our machine in our factory.

5.If you need and component of the machine,we will provide the best price for you.

6.Friendly English version manual and operation video CD disk.

Company Inormation

ARTECH CNC EQUIPMENT CO.,LTD is comprehensive in the production,design,manufacturing,trade and service of CNC machine,and provide high quality and good efficient CNC machines worldwide.With a strong staff team,gained success in woodworking engraving machine,advertising engraving machine,stone engraving machine,metal engraving machine,laser engraving and laser cutting industry equipment.The production facilities occupies China’s forefront in development and expansion.

Advertisment 6090 cnc router wood engraving machine with stepper motor

FAQ

Q1 For offer the most suitable machine,how should i do?

1).The exact material you want to engrave/cut? (such as wood, acrylic, cloth, fabric, leather, metal…. ? )

2). For the Spindle Power, may I know the cutting or engraving depth you want?

3). The working area you demand? (such as max dimension of material, width*length,1200*1200mm,1300*2500mm,2000*3000mm, etc…

4). Do you want to engrave on planar &flat surface or round &curved surface?

If yes,the machine shall be added optional items, such as rotary attachment. if you can provide some pictures of your products,that would be great! after your tell us these,we will send you more information about the machine and price.

Q2.If we donot know how to use the machine,can you teach us?Yes,we will ,if you come to China,we will offer you free training until you can use machine freely.And if  you are busy ,we will have the special engineer to your country,but you need to bear some fee, like tickets and hotel and meal.

Q3.How about your after-sales service?

we offer you 24 hours service phone,skype or MSN.

Q4.How about your guarantee period?  one year and during the time,if you have  any questions ,we will solve it for free.

Customers

Advertisment 6090 cnc router wood engraving machine with stepper motor



Model Number

ART-6090
