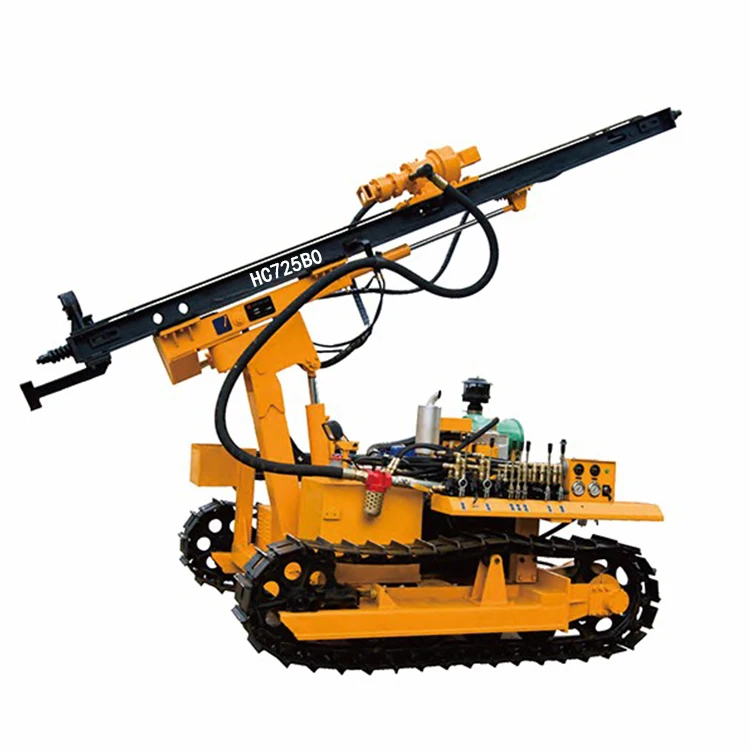

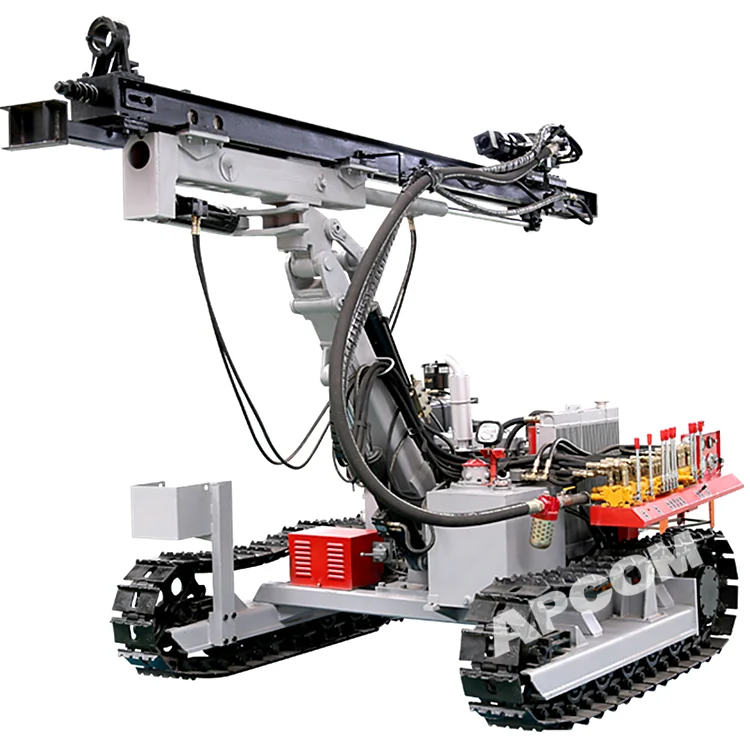

Model (DTH drilling rigs )
|
HC725B0
|
HC725B1
|
HC725B2
|
|||
|
Rock hardness
|
6~20
|
6~20
|
6~20
|
|||
|
Hole diameter (mm)
|
83~105
|
83~105
|
83~115
|
|||
|
Drill depth(m)
|
25
|
25
|
30
|
|||
|
Climb ability
|
25°
|
25°
|
30°
|
|||
|
Feeding mode
|
cylinder
|
cylinder
|
cylinder
|
|||
|
Feeding stroke (m)
|
2
|
2
|
2
|
|||
|
Max. Lifting force (kN)
|
12
|
12
|
15
|
|||
|
Rotating torque (N·m)
|
1900
|
1900
|
2000
|
|||
|
Rotating speed (r/min)
|
0~100
|
0~120
|
0~100
|
|||
|
Working pressure(Mpa)
|
0.6~1.6
|
0.5~1.4
|
0.7~1.6
|
|||
|
Air consumption(m3/min)
|
7~12
|
7~12
|
7~14
|
|||
|
Power of engine(KW)
|
40
|
40
|
40
|
|||
|
Drill boom-oscillation angle
|
Left32° Right17°
|
Left92°- Right12°
|
Left92° Right12°
|
|||
|
Walking speed（km/h）
|
2
|
2
|
2
|
|||
|
Distance off ground(mm)
|
300
|
300
|
300
|
|||
|
Overall dimension(mm)
|
4250×1980×2260
|
4530×2100×2260
|
5400×2100×2250
|
|||
|
Whole weight（kg）
|
3000
|
3200
|
4100
|
|||
|
EXW Price(US $)
|
$9990
|
$10900
|
$12700
|
|||
|
Dust removal device
|
additional+US $3300
|
|||||
|
Remarks: HC725BO,HC725B1,HC725B2,
Diesel Air compressor must be added to the rig: HG550-13C (Recommend) To Click |
||||||
|

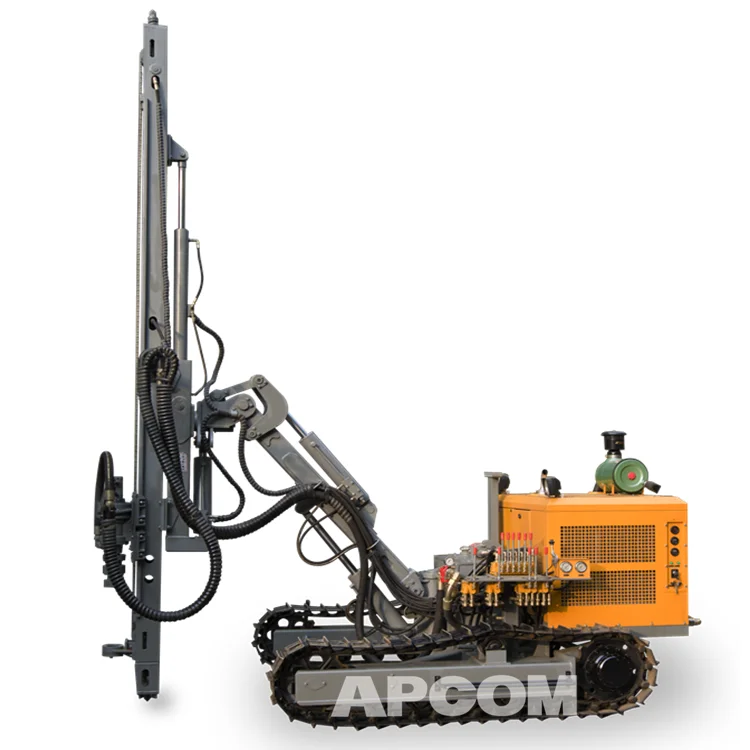

Cummins Engine Blasting Drilling Rig for Mine
|
||||||||||||||||
|
Model
Click on
|
Borehole
Diameter
|
Drill
depth
|
DTH
Hammer
|
Pipe
|
Cummins
Power
|
Cummins
Model
|
Air
Compresor
|
Automatic Rod Change
|
||||||||
|
Atlas Copco Top Impactor Mining Drilling Rig with Cummins Engine |
|
|
|
|
|
|
|
|
||||||||
|
Model
Click on
|
Hole
|
Depth
|
Drill pipe
|
Compresor
|
Cummins
Power
|
Impactor parameter
|
|
Note
|
||||||||

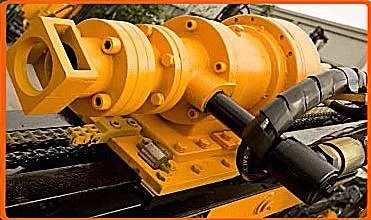

Structure of motor
DTH: The rotator is new designed,adopted planetary reducer and cycloid motor structure,reached large torque and very long working life.
Now! Has been a joint venture with Atlas Copco, you can choose Atlas Copco DTH.

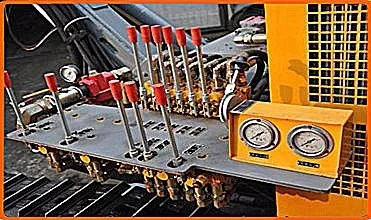

Operating table
The operating valve is duplex structure,hydraulic system,two speed for propeling and rotating,suitable for different working condition.

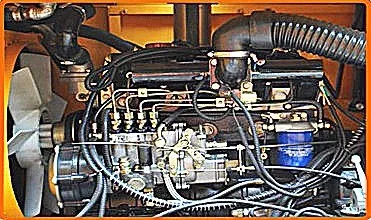

Diesel power system
In order to adapt to different working environment and customer requirements, the use of a variety of specifications of diesel engines and motors to meet the various requirements.
For example:
1.Commins,Deutz,Benz,Volvo.
2.YuCai,WeiCai…made in China.

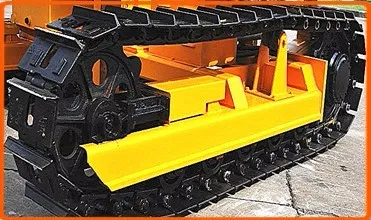

Walking system
Use the crawler with the hydraulic motor, climbing ability, low failure rate.
—————————————————————————
