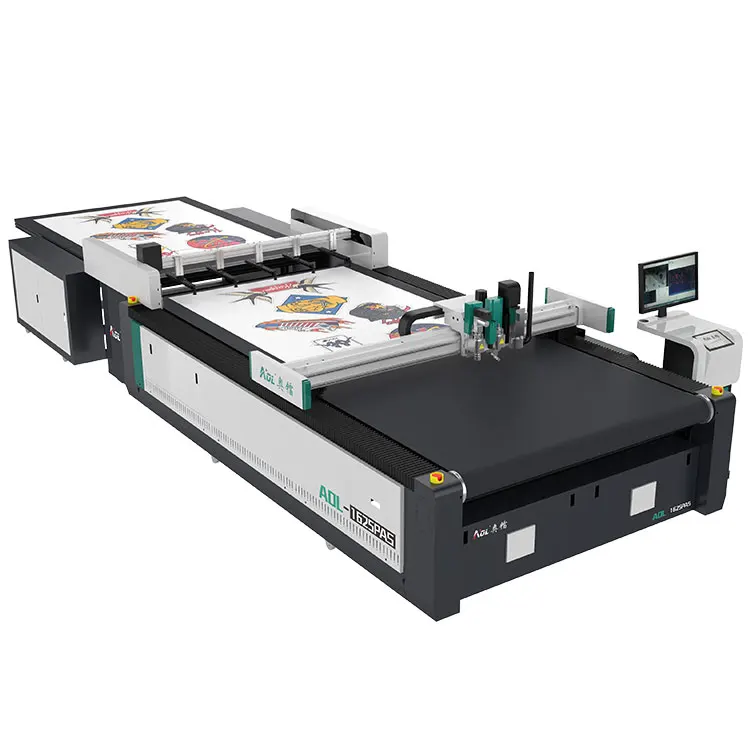

Name: AOL-1625 Cnc Flatbed High Speed Digital Cutting Machinery
SKU: 211801268019181
Availability: InStock

AOL-1625 Cnc Flatbed High Speed Digital Cutting Machinery

ر.س71,011.18

AOL-1625 cnc flatbed high speed digital cutting machinery

oscillating knife cutting machine advantage:

1. The platform detection device regulates the knife pressure automatically, enabling a level

platform and perfect cutting.

2. The high precision AOL CNC oscillating knife leather cutting machine can induce draft

separately and easily cuts small pieces.

3. The anti-collision and the builtin auto sensing devices ensure the security of cnc

oscillating knife leather cutting machine.

4. High efficiency can be realized without making a high-cost knife model.

5. The high precision AOL CNC oscillating knife leather cutting machine is designed for production

with small quantities and can save on costs while maintaining speed and accuracy.

oscillating knife cutting machine parameters:

Model	AOL 1625
Working area	2500*1600mm
Machine Size	345023001250
Rated power	11KW
Fixed mode	flat plate table(Optional:Auto feeding type table)

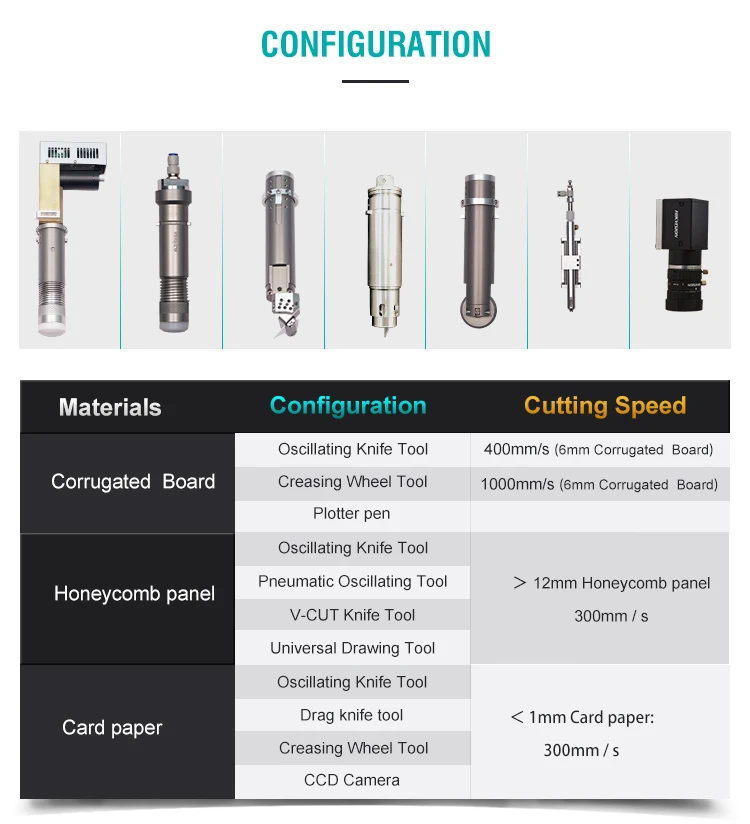

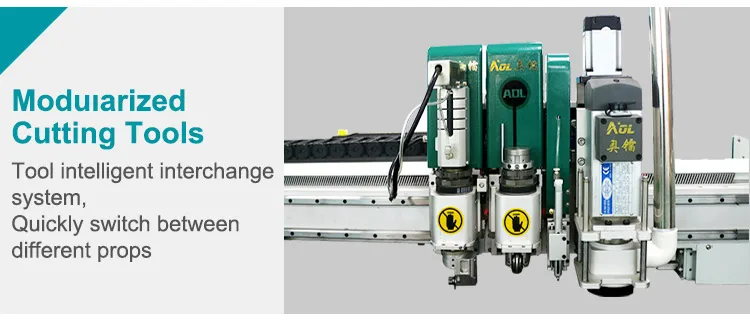

Multifunctional head	Swiss imported knife: with vibration full cutting, vibration half cutting and cursor location function.
Tool configuration	Multiple cutting knives

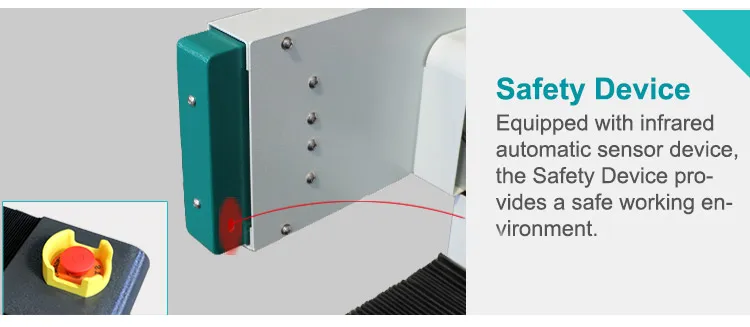

Safety device	Using infrared sensors, responsive, safe and reliable
translational velocity	800-1200mm/s
Cutting speed	200-800mm/s(according to different cutting materials)
Cutting thickness	≤22mm(according to different cutting materials)
Cutting materials	Paper cardboard, corrugated, carton,Leather, all kinds of clothing flexible material, Sponge composite leather, PVC, soft glass, Silicon, rubber
Repeated accuracy	≤0.1mm
Capacity	2GB
Transmission system	imported(Digital servo motor, linear guide, synchronous belt, ball screw)
Instruction system	HP-GL compatible format
Voltage	380V±10%
Other configuration	Japanese servo motor,Germany imported conveyor belt, vacuum table, auto feeding, Taiwan Hiwin rail, 7.5kw vacuum pump
