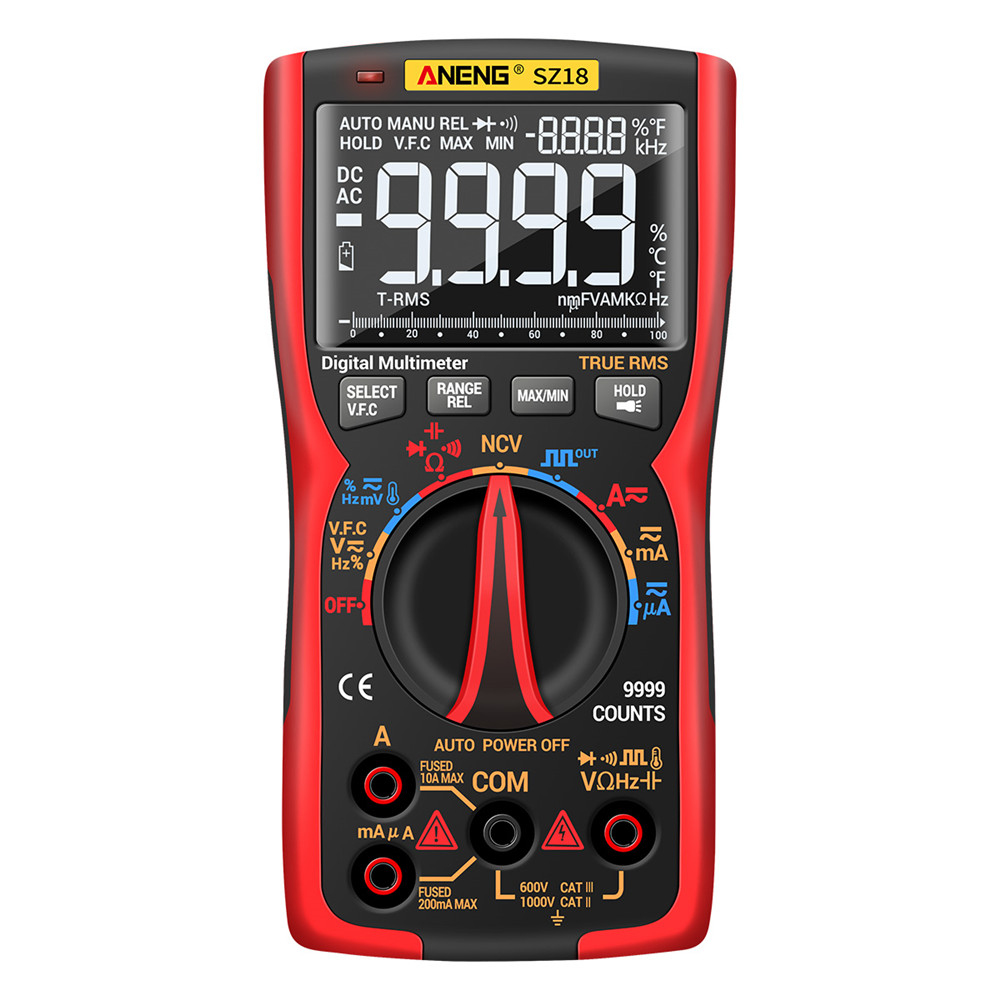

ANENG SZ18 Digital Multimeter 9999 Professional True RMS Analog Tester Multimetro DIY Transistor Capacitor NCV Testers Lcr Meter
Description

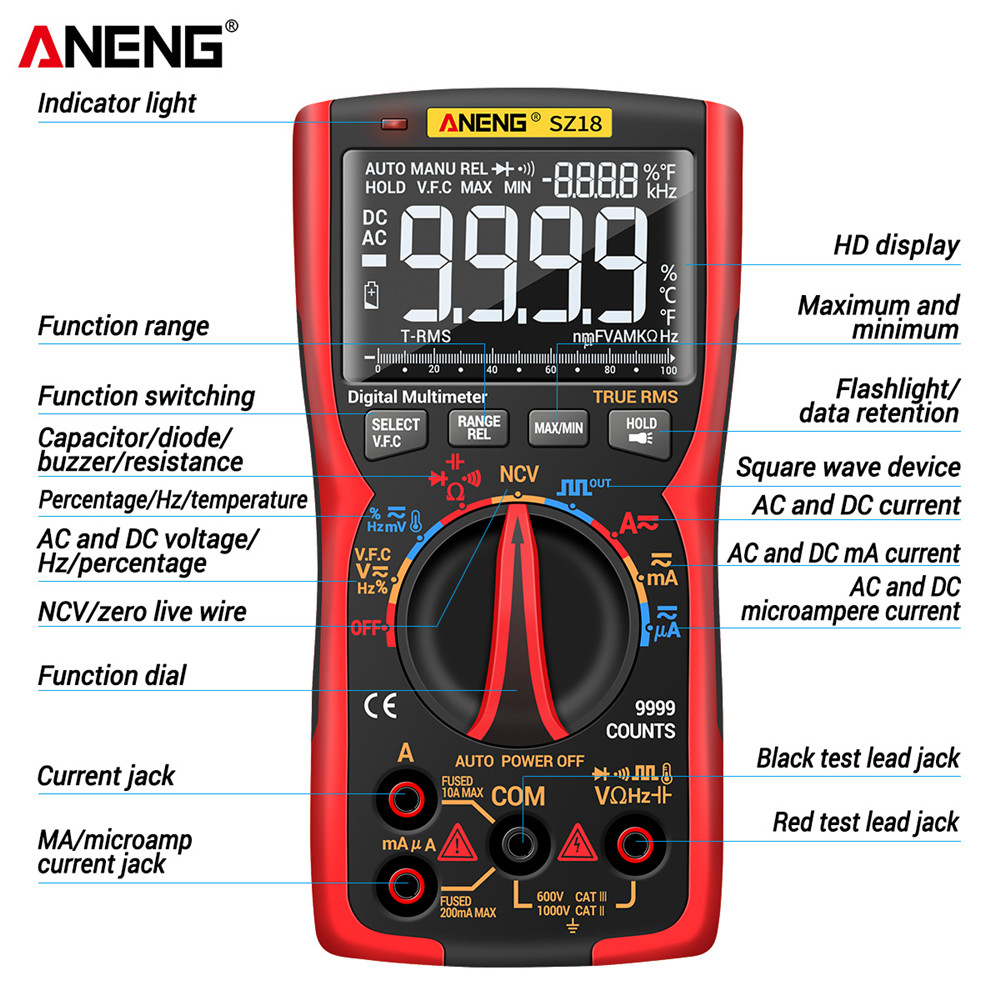

ANENG SZ18 is an automatic range digital multimeter with 9999 words with a true effective value. The instrument is full-key operation with triple display.
Measure AC voltage and DC voltage
Measure AC and DC current
Measuring resistance/temperature
Test continuity and diode
Measuring capacitance/NCV
Measuring frequency and duty cycle
Anti-interference AC voltage detection
Specification
Brand | ANENG | Model | SZ18 |
Display (LCD) | 9999 | Range | automatic / manual |
Material | ABS+TPE | Sampling rate | 3 times/sec |
True RMS | yes | Data retention | yes |
Screen backlight | yes | Low battery warning | yes |
Automatic shut-down | yes | type of battery | 3 * 1.5V AA battery (not included) |
Features | Range | Precision | AC frequency response |
DC Current | 9.999A/999.9mA | ±(1.0%+3) | – |
DC Current | 99.99mA/9.999mA/99.99μA/999.9μA | ±(0.8%+3) | – |
AC current | 9.999A/999.9mA |
±(1.2%+3)
|
40Hz~1kHz |
AC current | 99.99mA/9.999mA/99.99μA/999.9μA | ±(1.0%+3) | 40Hz~1kHz |
DC voltage | 999.9mV/9.999V/99.99V/999.9V/9.999mV/99.99mV/999.9mV | ±(0.5%+3) | – |
AC voltage | 999.9mV/9.999V/99.99V/750.0V/9.999mV/99.99mV/999.9mV | ±(1.0%+3) | 40Hz~1kHz |
Resistance | 99.99Ω | ±(1.0%+3) | – |
Resistance | 999.9Ω/9.999kΩ/99.99kΩ/999.9kΩ | ±(0.5%+3) | – |
Resistance | 9.999MΩ | ±(1.5%+3) | – |
Resistance | 99.99MΩ | ±(3.0%+5) | – |
Capacitance | 9.999nF | ±(5.0%+20) | – |
Capacitance | 99.99nF/999.9nF/9.999μF/99.99μF/999.9μF | ±(2.0%+5) | – |
Capacitance | 9.999mF | ±(5.0%+5) | – |
Frequency | 99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz/5.000MHz | ±(0.1%+2) | – |
Temperature | (-20~1000)℃ / (-4~1832)℉ | ±(2.5%+5) | – |
Duty cycle | 1%~99% | diode | yes |
On and off | yes | NCV | yes |
working environment | temperature | 0~40℃ | |
humidity | <75% |

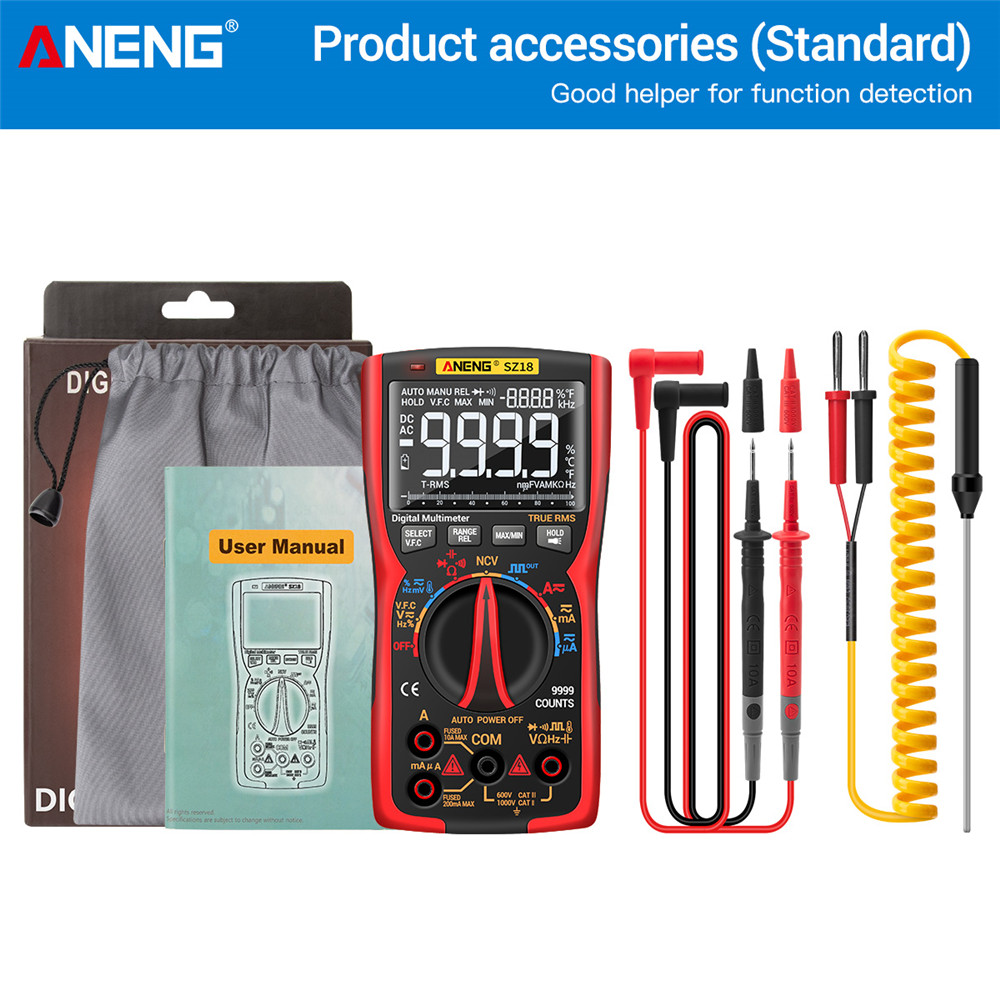

Package:
1 * ANENG SZ18 Digital Multimeter
2 * Test lead wire
1 * Thermocouple
1 * Manual
1 * Cloth bag
