a.Description:

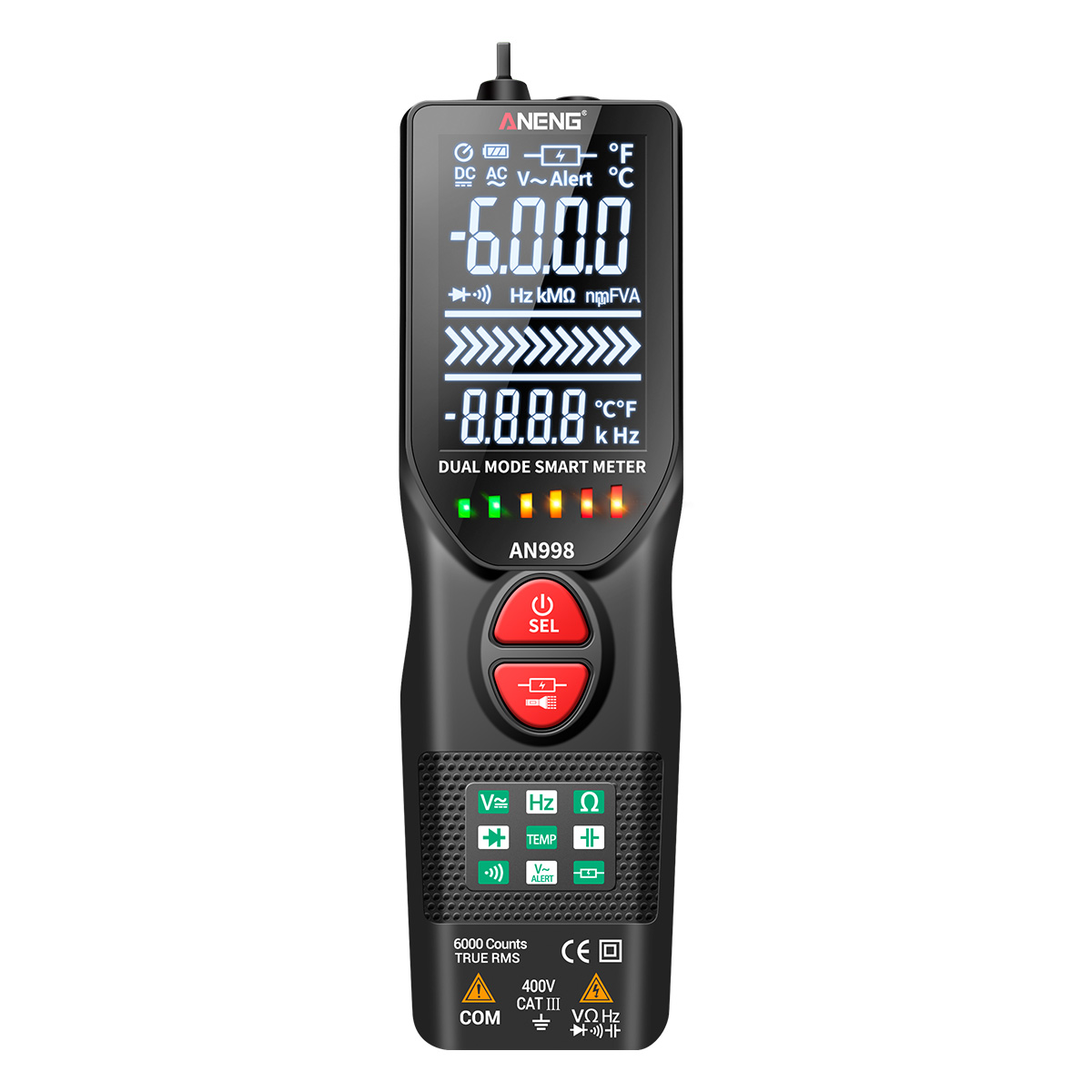

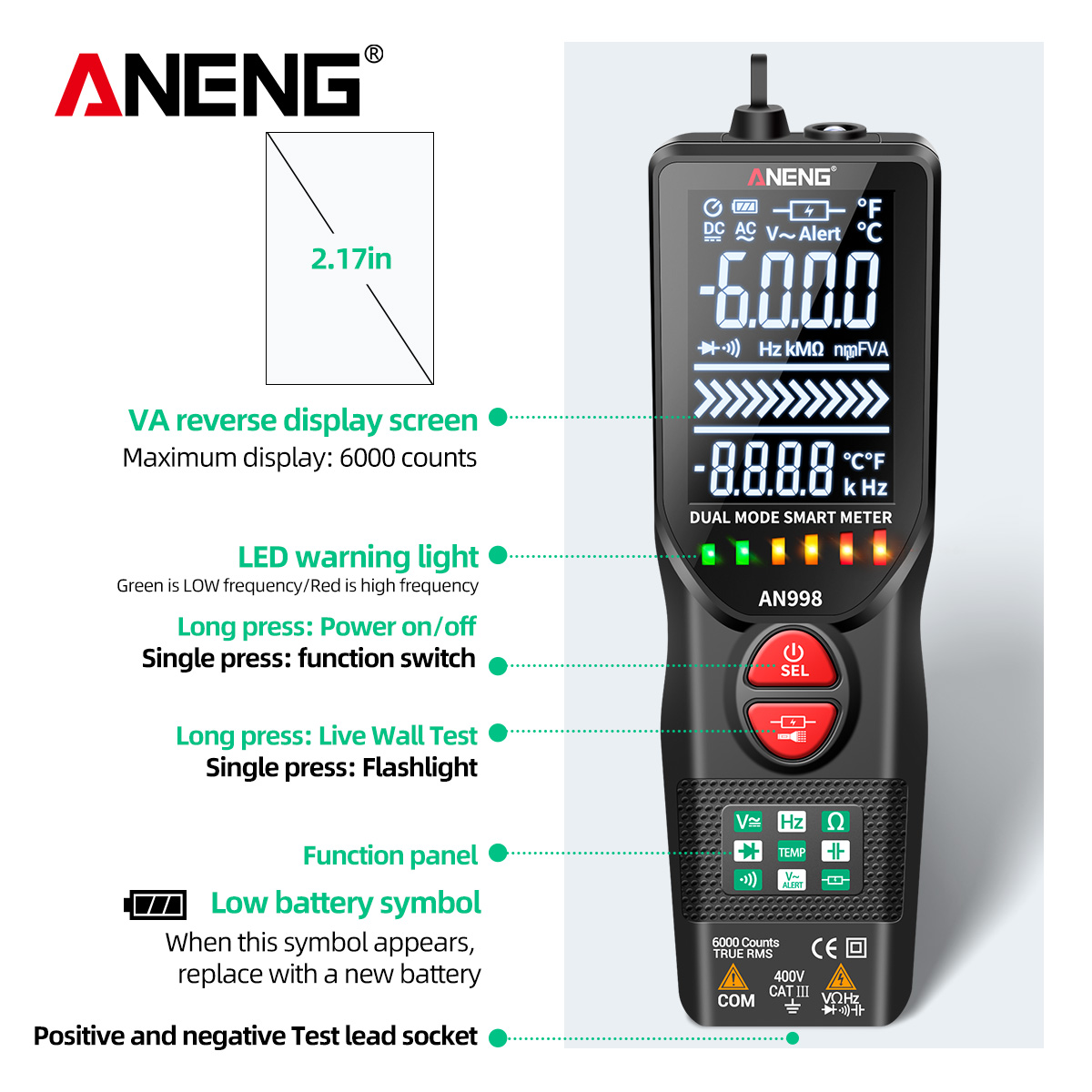

The meter is a portable,professional measuring instrument,with LCD digital display,and a backlight.Users can read the data easily.One-handed operation of the range switch facilitates measurement,with overload protection and low battery indication.Whether for the professionals,factories,schools,hobbyists and families,it is an ideal multifunction instrument.

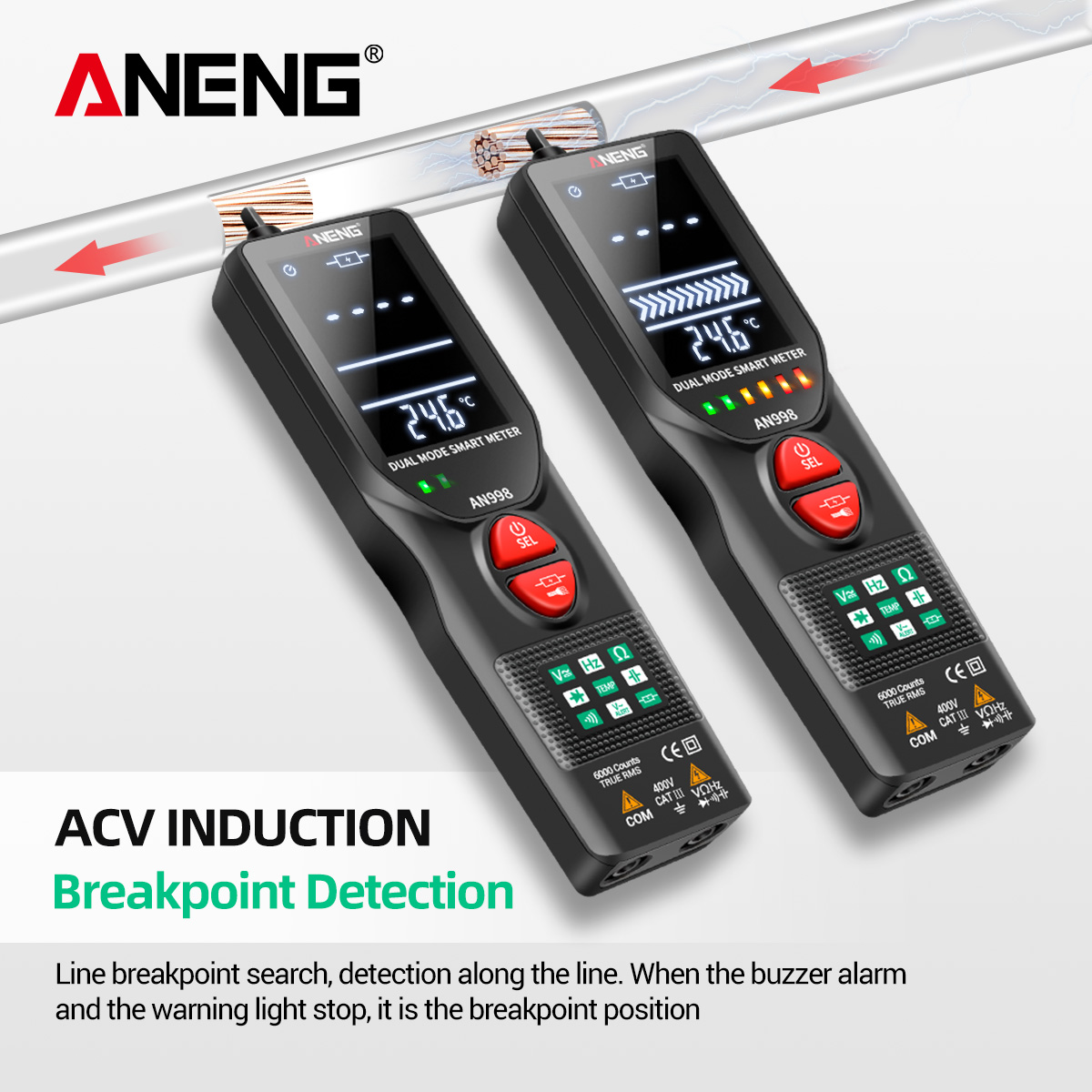

-The meter is for the AC DC Voltage,sine wave true RMS,duty cycle,resistance,capacitance,frequency ,measurement and firing line.diode test,temperature measurement.
-Meter is with automatic range function.
-Meter has a reading hold function.
-Meter with automatic shutdown function.
b.Technical Specification:
|
Function |
Range |
Accuracy |
|
DC Voltage |
6V |
+-(0.5% reading+5 digit) |
|
|
60V |
+-(0.5% reading+5 digit) |
|
|
400V |
+-(0.8% reading+5 digit) |
|
AC Voltage |
6V/60V |
+-(0.8% reading+3 digit) |
|
|
400V |
+-(1.0% reading+10 digit) |
|
Resistance |
600Ω/6kΩ/60kΩ/600kΩ |
+-(0.8% reading+3 digit) |
|
|
6MΩ/20MΩ |
+-(1.2% reading+3 digit) |
|
Capacity |
60nF/600nF/6uF/60uF/600uF/6mF |
+-(3.0% reading+5 digit) |
|
|
60mF |
+-(5.0% reading+5 digit) |
|
Frequency |
10Hz |
+-(0.8% reading+3 digit) |
|
|
100Hz |
+-(0.8% reading+3 digit) |
|
|
1kHz |
+-(0.8% reading+3 digit) |
|
Feature |
Diode Test |
Yes |
|
|
Circuit on-off Test |
Yes |
|
|
Live Wall Measurement |
Yes |
|
Temperature |
0℃-300℃ |
+-(1.0%+4d) |
|
|
301℃-1000℃ |
+-(1.9%+5d) |
|
|
32℉-600℉ |
+-(1.2%+6d) |
|
|
601℉-1832℉ |
+-(1.9%+6d) |
1*Multimeter
1*Test lead wire
1*Thermocouple
1*Manual
1*Storage bag
1*Packing box(According to the choice)
