Introduction:

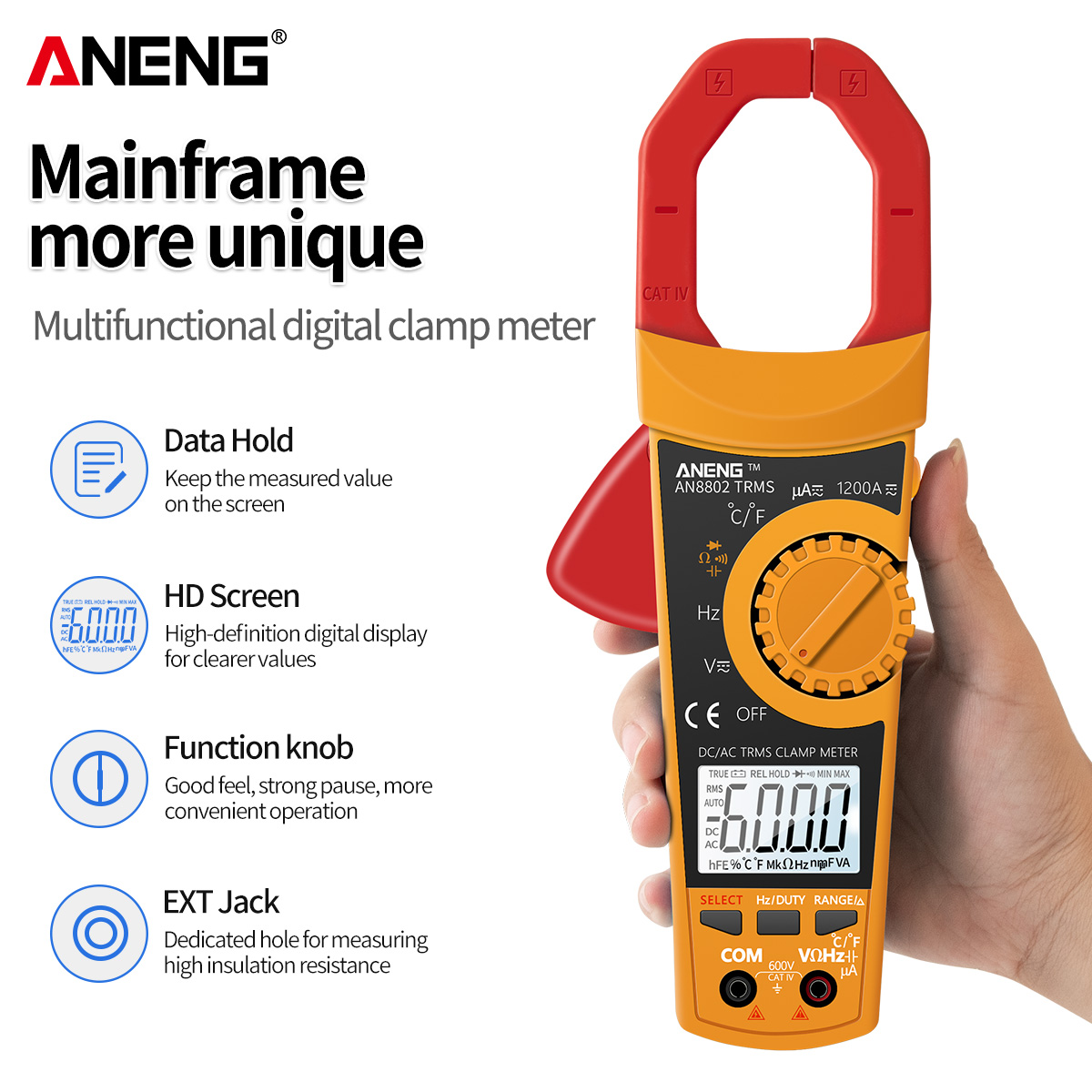

TheAN8801/AN8802 digital multimeter are the high reliability hand-held battery-operated clamp mete.They are using overload protection and 15s LCD backlight also involved.
TheAN8801/AN8802 that measures:ACA,DCA,ACV,Resistance,transistor and diode,continuity,temperature,frequency,ect.They are ideal tools for labs,factories and radio-technology;which can be ideal tool for laboratory,factory,radio amateurs and family using.
Specification:
1-1,Display:LCD display
1-2,Max.display:6000
1-3,Power:AN8801:1.5V AA Battery / AN8802:9V Battery
1-4,Low battery display:-+”displayed
Function |
AN8801 |
AN8802 |
Resolution |
DCV |
600mV~1000V |
600mV~1000V |
0.1mV~1V |
ACV |
600mV~750V |
600mV~750V |
0.1uA~1A |
DCA |
Cannot Measure |
0~1200A |
0.01A~1A |
ACA |
0~1000A |
0~1200A |
0.01A~1A |
DCA(uA) |
No |
600uA~6000uA |
0.1uA~0.001mA |
ACA(uA) |
600uA~6000uA |
600uA~6000uA |
0.1uA~0.001mA |
Resistance |
600Ω~60MΩ |
600Ω~60MΩ |
0.1Ω~10KΩ |
Capacitance |
6nF~600uF |
6nF~600uF |
0.1pF~10nF |
Frequency |
10Hz~1/20MHz |
10Hz~1/20MHz |
0.01Hz~1kHz |
Temperature |
(-20~1000)℃ |
(-20~1000)℃ |
1℃ |
|
(0~1832)℉ |
(0~1832)℉ |
1℉ |
Diode |
Yes |
Buzzer |
Yes |
Backlight Screen |
Yes |
Data Hold |
Yes |
Max Display |
6000 Counts |
True RMS |
Yes |
Auto-Power Off |
Yes |
Continuity Test |
Yes |
Color |
Yellow;Blue |
Material |
ABS |

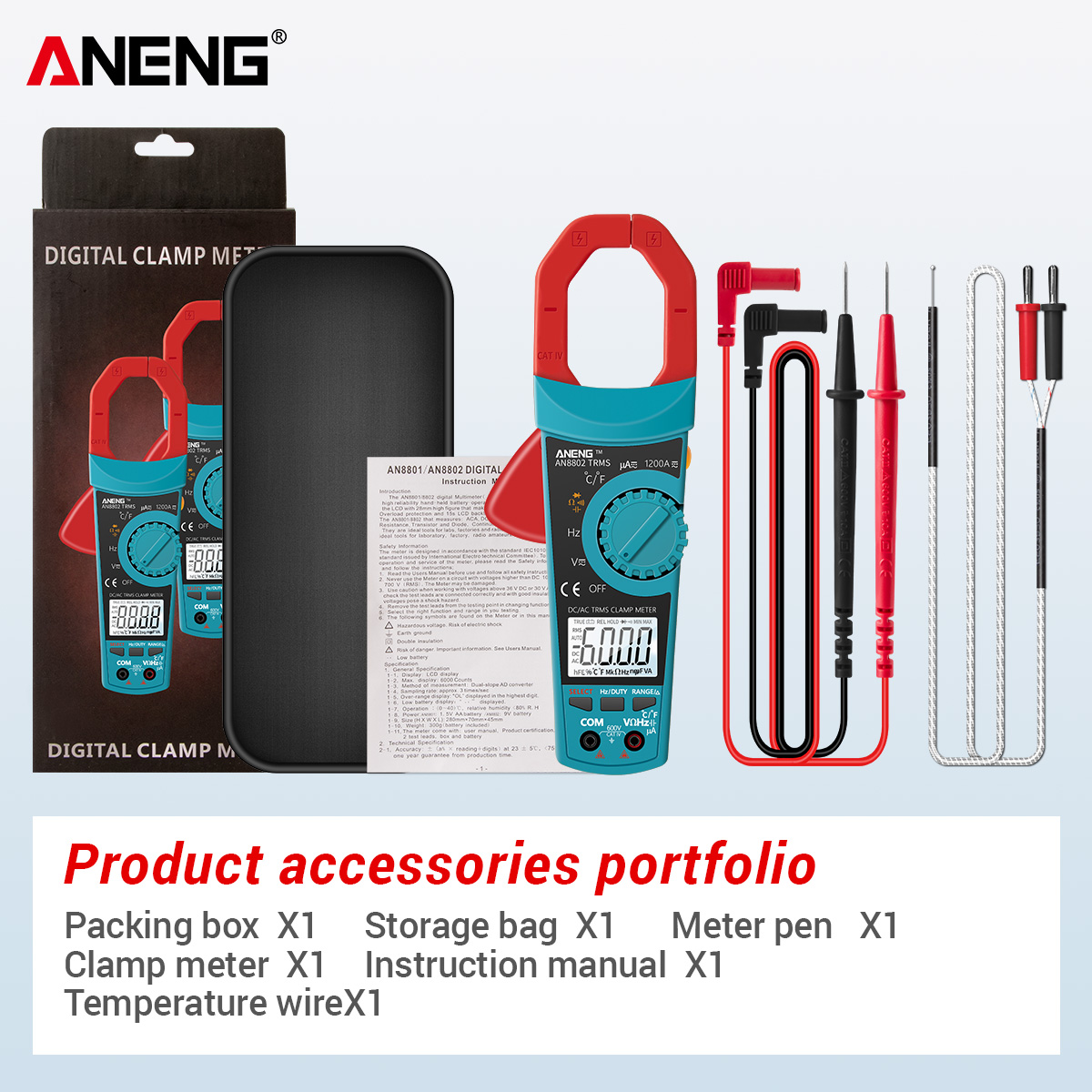

1 * AN8801/2 Clamp Meter
1 * Temperature Wire
1 * Meter Pen
1 * User Manual
1* Storage Bag
1 *OuterPacking Box(According to the choice)
