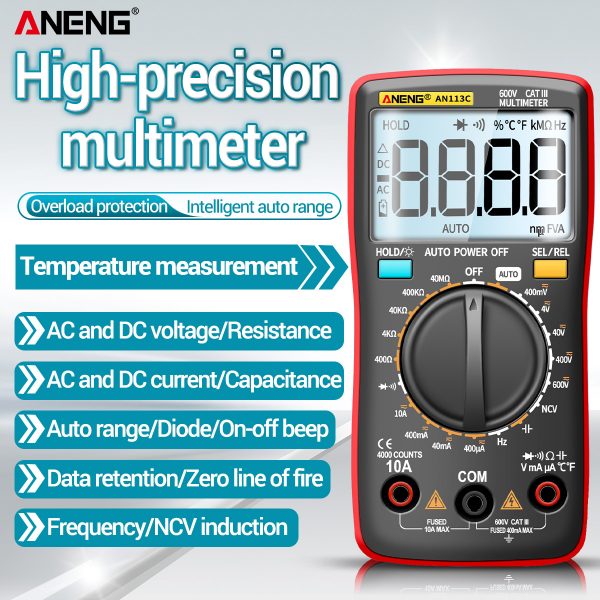

ANENG AN113C
4000 Counts Eletric Digital Professional Multimeter Auto AC/DC Votage tester Current Ohm Temp Ammeter Detector Tool
Note: AN113E does not have the function of temperature measurement.
General:
This instrument is a compact pocket-sized digital multimeter for measuring AC&DC voltage,DC Current,Resistance and Diode.Also provide Temperature,audible continuity test function or can be used as single generator.Full range overload protection and low battery indication are provided.They are the ideal instrument for use in fields,such as laboratory,workshop,DIYers,and the home applications.
Specification:
| Brand | ANENG | MODEL | AN113C |
| Display | 4000 counts | Ranging | Manual |
| Materal | ABS | Update Rate | 3 times/second |
| Ture RMS | yes | Date Hold | yes |
| Backlight | yes | Low Battery Alert | yes |
| Auto Power Off | yes | Battery Type | 2 * 1.5V AAA Battery |
| Function | Range | Accuracy |
| DC Voltage | 400mV/4V/40V/400V/600V | +-(0.5% of rdg+3D) |
| AC Voltage | 400mV/4V/40V/400V/600V | +-(1% of rdg+3D) |
| DC Current | 10A/40mA/400mA/400uA | +-(1.2% of rdg+3D) |
| AC Current | 10A/40mA/400mA/400uA | +-(1.5% of rdg+3D) |
| Resistance | 400Ω/4kΩ/40kΩ/400kΩ | +-(0.5% of rdg+3D) |
| 40MΩ | +-(1.5% of rdg+3D) | |
| Capacitance | 4nF/ | +-(5% of rdg+20D) |
| 40nF/400nF/4uF/40uF/400uF | +-(2% of rdg+5D) | |
| 4mF | +-(5% of rdg+5D) | |
|
Temperature
|
-30~1000℃(-22~1832℉) |

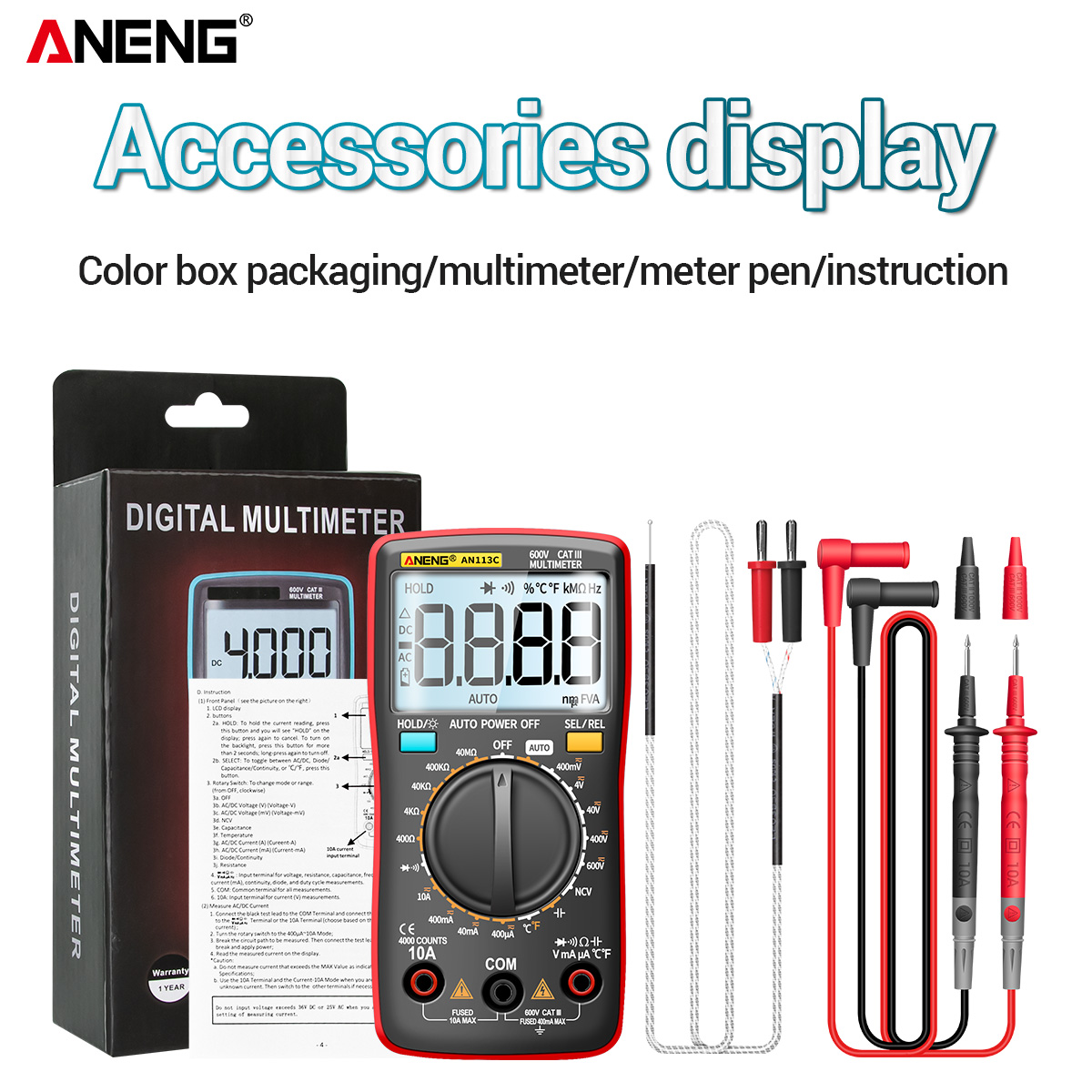

Package:
1*Multimeter
1*test leads
1*manual
1*outer packing box(by option)
