Specification
|

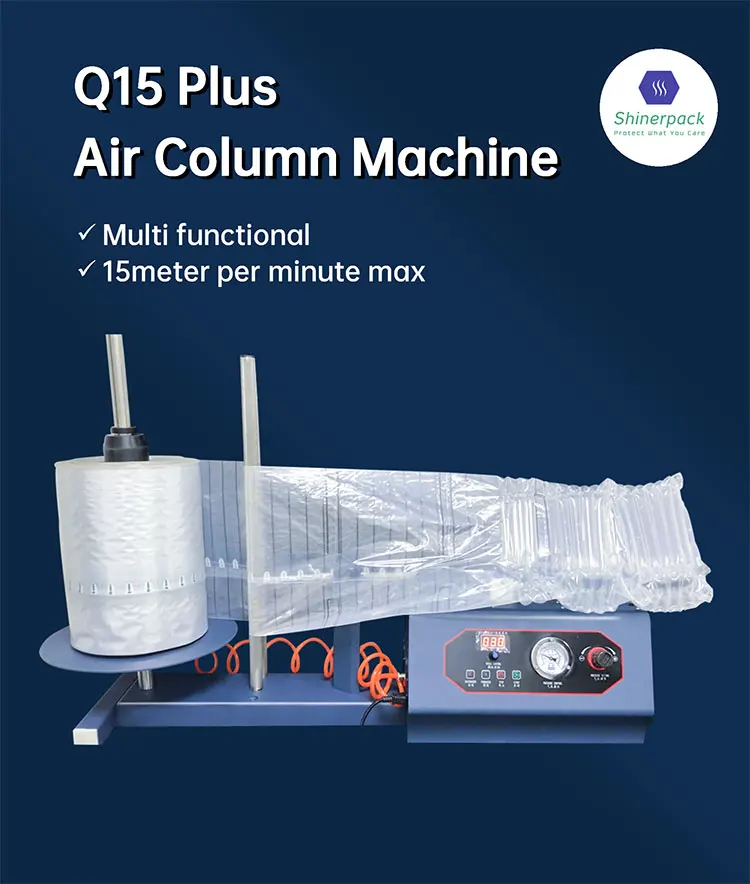

Air Column Making Machine
|
||||||
|
Capacity factor
|
320W
|
Size of machine
|
1070MM*330MM*710MM
|
|||
|
Input voltage
|
AC110-220V,50HZ/60HZ
|
Size of package
|
750MM*400MM*380MM
|
|||
|
Speed
|
0~15M/min
|
Net weight
|
27KG
|
|||
|
volume of air charging
|
0.6~0.8Mpa
|
Gross weight
|
30kg
|
|||
Product Description
1. If you are heavy users and want to inflate by machine, we recommend you to use air column machine working with air compressor to inflate.

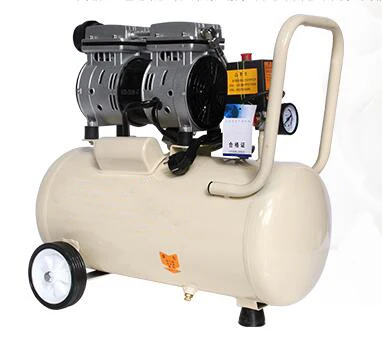

2. If you don’t want to buy machine and lower cost, a mini air compressor is also okay for you since air column machine is not a must. Air column machine is for automatically inflating and need air supply from air compressor.
Using air compressor only, you need to find the air inlet and inflate air into the bag by hand.
2. If you don’t want to buy machine and lower cost, a mini air compressor is also okay for you since air column machine is not a must. Air column machine is for automatically inflating and need air supply from air compressor.
Using air compressor only, you need to find the air inlet and inflate air into the bag by hand.
3. If you are light users or want to inflate the samples only, a hand pump is okay also since air column bag will lock air itself after inflated.
FAQ:
1. What the pipe size for connecting between air compressor and air column making machine?
8mm pipe is okay for our air column making machine.
2. What kinds of air compressor should be used for the machine?
30L is okay.

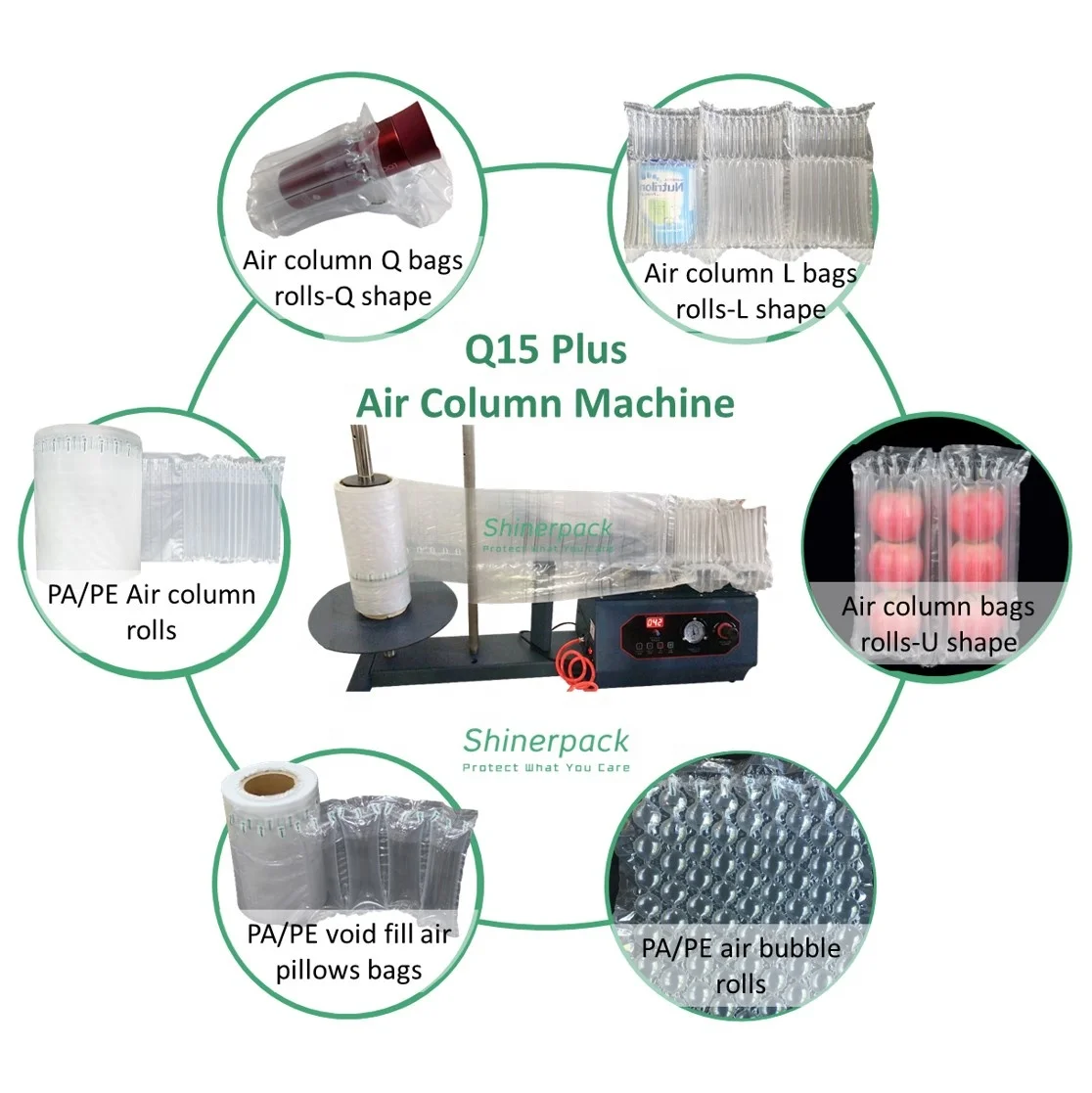

3. How many types of films can this machine inflate?
Including Q type, L type, U type air column bags in rolls and air column wrapping rolls.
Product Details
