AI-9 Signal Fire Multi-language Optical Fiber Fusion Splicer FTTH Fiber Splicing Machine With Optical Power Meter VFL Function

ر.س5,679.23

Clear
Qty:
Compare

Request quotation for: AI-9 Signal Fire Multi-language Optical Fiber Fusion Splicer FTTH Fiber Splicing Machine With Optical Power Meter VFL Function

Product Description

AI-9 Signal Fire Multi-language Optical Fiber Fusion Splicer FTTH Fiber Splicing Machine With Optical Power Meter VFL Function



AI-9 use the latest core alignment technology with auto focus and six motors, it is a new generation of fiber fusion splicer. It is fully qualified with trunk construction of medium and short distance, FTTH project, security monitoring and other fiber cable splicing projects. The machine uses industrial quad-core CPU, fast response, is currently one of the fastest fiber splicing machine in the market; with 5-inch 800X480 high-resolution screen, the operation is simple and intuitively; and up to 300 times focus magnifications, making it is very easy to observe the fiber with naked eyes. 5 seconds speed core alignment splicing, 15 seconds heating, the working efficiency increased by 50% compared to ordinary splicing machines. Under the conditions of rigorous testing, the performance is still outstanding; toolbox is small, exquisite, durable, and with unique bench design. The design of operating platform reflects the humanistic care; unique lighting design, it is convenient for night construction or repair. Screen brightness is adjustable and it is convenient for outdoor sunshine environment operation. The core parts are using imported brands, aviation metal body material with exquisite details. With the combination of advanced technology and design, the new generation of optical fiber fusion splicer will bring you a reliable and comfortable user experience.




Fiber alignment

     Core/cladding alignment / Manual alignment

Splicing time

     5S

Heating time

    15S

Heating mode

    Automatic heating (Preheating)

Focus mode

    Six motors Auto focus

Applicable Rbers

    SM(G.652&G.657),MM (G.651),DS(G.657),NZDS (G.655)

Splice Loss

    0.025dB (SM),0.0IdB (MM) 0.04dB (DS/NZDS)

Control technology

    Real-time control and calibration of fusion ARC

Return loss

    Better than 60DB

Fiber diameter

    Cladding Diameter: 80-150pm Coating Diameter: 100-1000pm

Fiber Cleave Length

    Coating less than 250pm: 8-16mm Coating less than 250-1000pm: 16mm

Built-in lighting

    easy for night operation

Tension Test

    Standard 2N

Fiber holders

    3 in ‘ fiber holder, SM, MM, bare fiber, pigtail, rubber-insulated, multi fiber cable

Magnification

    3001or XorY view, 150 for X or Y view

Screen

    5 inch TFT color display

Splicing Mode

    Normal / high precision splicing

Splicing record storage

    Synchronize to the phone, the server to cloud storage unlimited

Built-in battery

780C mA high-capacity lithium battery, charghg time < 3.5 hours, continuous splicing and heating about 260 times

Power supply

input AC 100-240V 50 / 60HZ, output DC 13.5V / 4A, the current power mode can be identified, real-time detection of battery power

Operating Conditions

Temoerature -15 ~ +50 °C, humidity: <95% RH (no condensation) Working altitude: 0 5000m. Resist max. wind speed: < 15m / s

Shrinkable tube

   60mn 40mm

Visual Fault Locator

   Power:15mw,2hzfiashing And Constantly Bright Mode

Optical Power Meter



   Wavelength:850nm1300nm,1310nm. 1490nm. 1550nm,1625nm

   Measuring Range:-70 ~ +6db Absolute Error:<0.3db(-50dbm ~ +3dbm Range)

Detailed Images

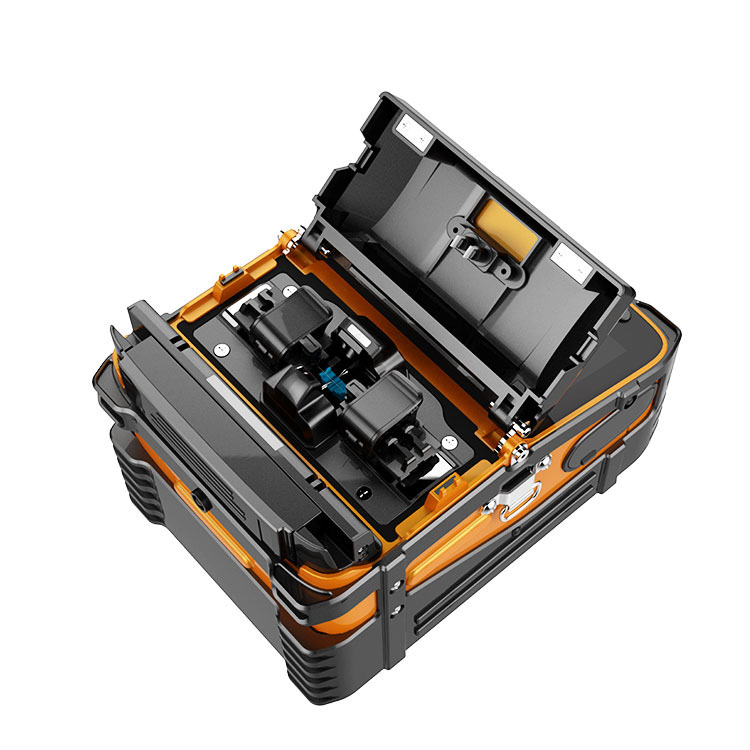

AI-9 Signal Fire Multi-language Optical Fiber Fusion Splicer FTTH Fiber Splicing Machine With Optical Power Meter VFL Function
