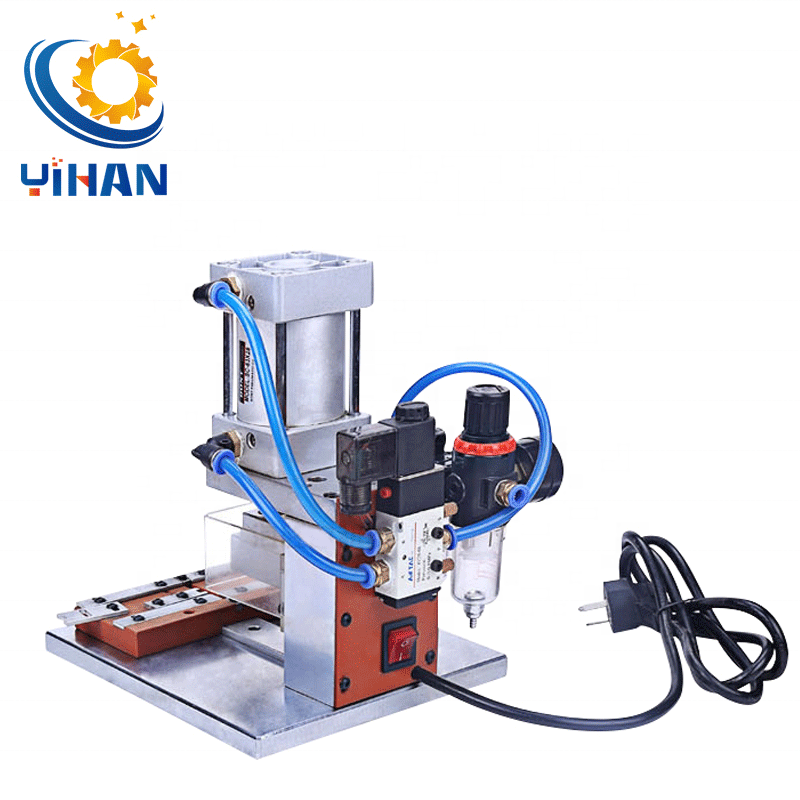

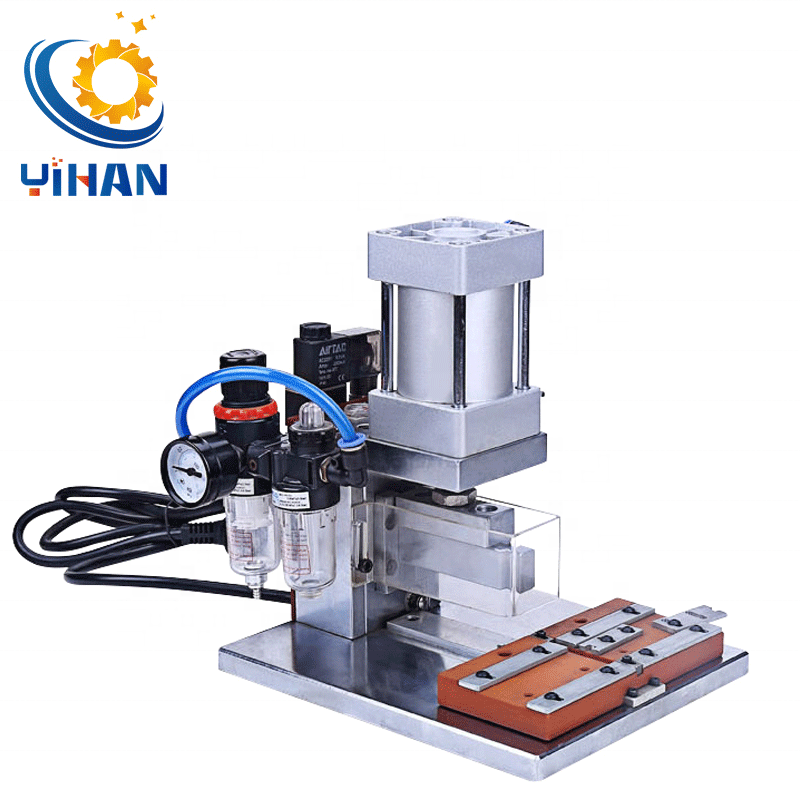

Adjustable IDC Flat Cable Connector Crimping machine 2P to 64P cable ribbon cable pneumatic crimping machine

ر.س2,821.89

Clear
Qty:
Compare

Request quotation for: Adjustable IDC Flat Cable Connector Crimping machine 2P to 64P cable ribbon cable pneumatic crimping machine

1_01.png1_02Features-1

• Low gas consumption, low failure rate and easy maintenance.
• YH-DC64 can be pressed 300 to 600 times per hour according to the product type
• Using 6-8kg air pressure, 220V power supply.
• The product is automatically punched after being pushed in, and the cylinder reset operation is simple and easy to learn after completion.
• Used with bakelite base, simple operation, wear resistance and high precision.
• The body is all made of steel, which is stable and durable, and the exterior is chrome-plated, which prettu and no rust.



Apply-for1



• YH-DC64 suitable for IDC Product crimping 1P-64P cables.
• Aiming at 1P-64P IDC cable pressing head machine instead of hand pressing pliers, the pressing efficiency is high quality and stable, the operation simple.



Specification1



Model
YH-30P
YH-64P
Crimping Range
2P-30P
2P-64P
Crimping Force
300kg
750kg
Size
250*200*330mm
250*200*330mm
Weight
  15KG   15KG
Air Pressure
0.5MPa-0.8MPa
0.5MPa-0.8MPa
Power
AC220/50Hz AC110/60Hz
AC220/50Hz AC110/60Hz
Customized Crimping Force
Accept
Accept

High quality full automatic wire wut strip twist and terminal crimping machine




_01.png_02.png_03.pngFAQ1

1. Why choose us?
We provide overall solutions for processing equipment. Our standard equipment is very complete, all are in stock and can be shipped quickly. We have our own equipment factory, which can lightly customize equipment according to customer requirements, such as ordering different appearances and brands for agents, and non-standard equipment according to customer requirements.



2. Should I worry about the quality?
Before delivery, we do test the machine working condition for you.
Take a video of the normal operation of the machine to you, and then confirm the delivery



3.How can I know your machine is designed for my product?
You tell us the specific parameters of your product, or you can send us samples of your product and we test it on machine.
Video for you to make samples



4. How to operate the equipment?
My friend, don’t worry about it, we have made vedio for you, it will show you how to do it step by step. Contact our engineers at any time when you don’t understand, support video and telephone communication



5.When the machine can’t work well,What should I do?
The Engineer is online for 24-hours, they can check the problems and then give you solution way very soon. Please rest assured that manual will be offered along with machine,ensuring you can operate the machine easily.
