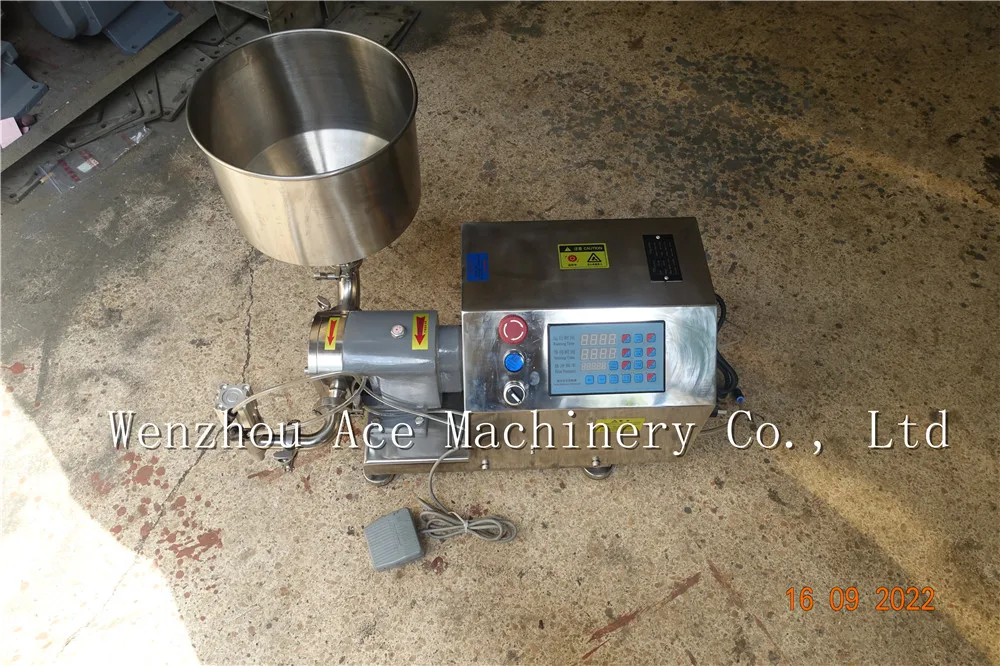

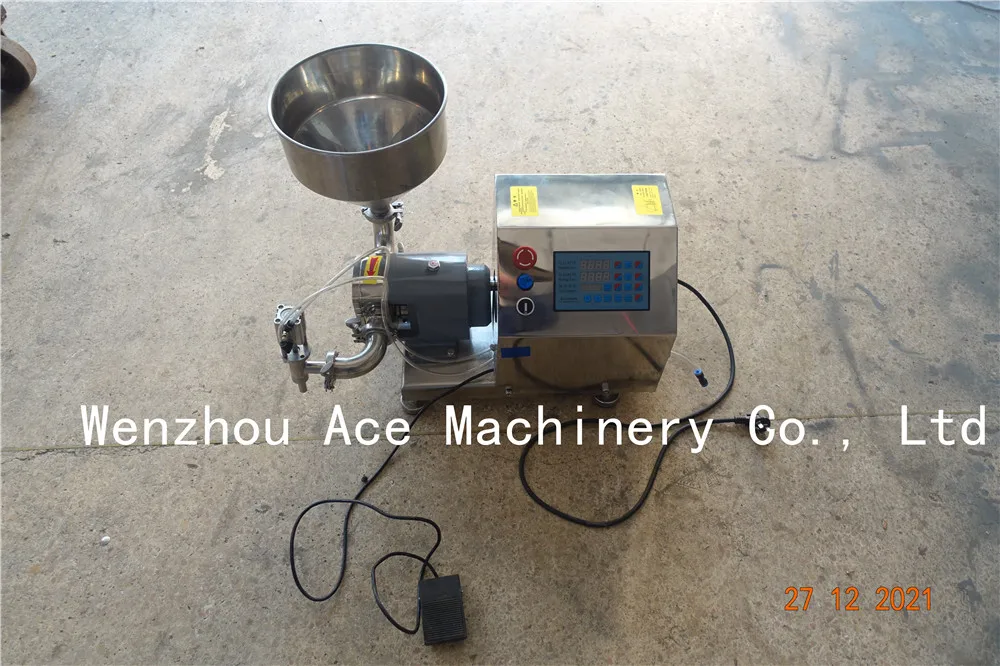

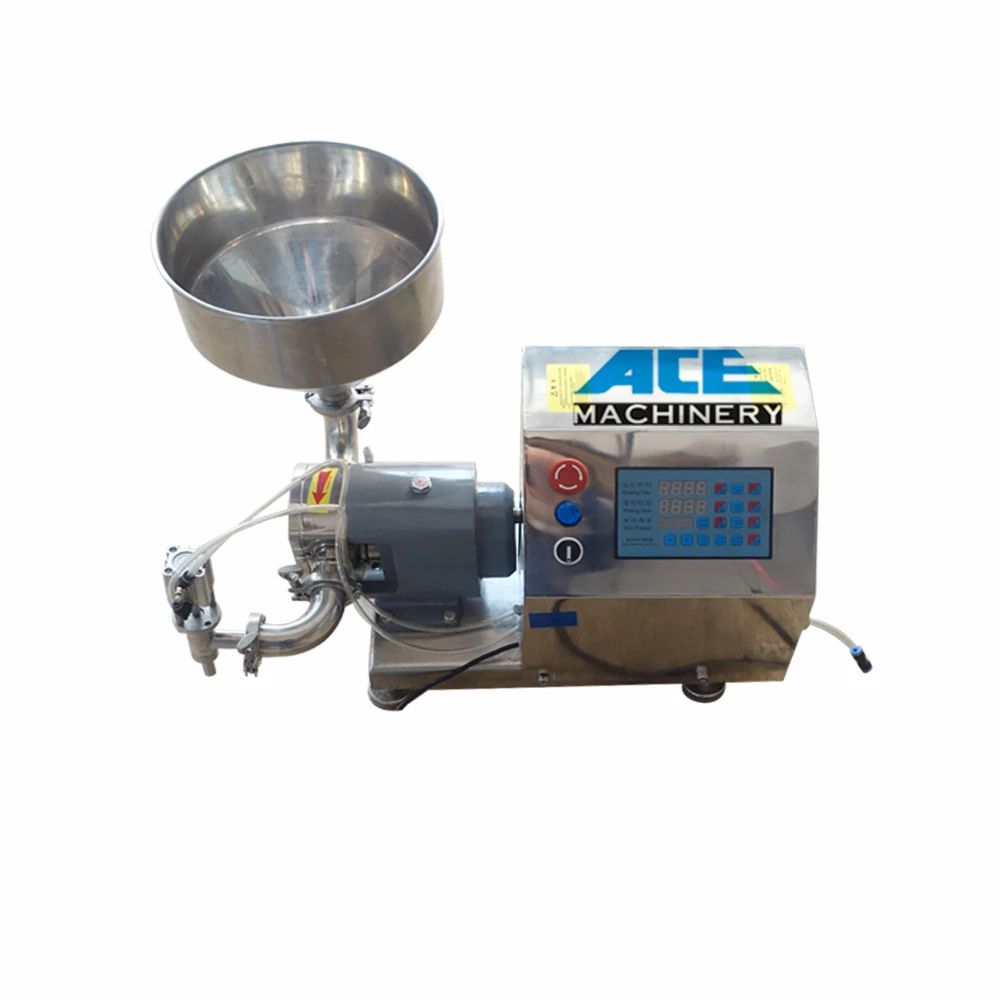

Ace High Viscosity Semi Automatic Rotor Pump Filling Machine Dressing Oil Cosmetic Cream Filler Lobe Pump Filling Machine
22 Years Of Experience. Reasonable Price And Best Service, CE Certificated Products.15-30 day fast delivery. Please contact us for the offer.
Video
Products Description
Equipment Description
The main function of semi-automatic filling machine is filling, less with other functions, especially suitable for seasoning with granules and large concentration of chili sauce, bean sauce, peanut butter, sesame sauce, jam, and other substances of the thick sauce filling. The advantages of the equipment can be accurately measured by the two performance indexes of filling speed and measurement accuracy.semi-automatic high efficiency filling machine is undoubtedly the ideal equipment in the filling machine
Features: 1. Equipped with rotor pump, the machine is small and powerful in function. 2. Large filling range, filling range from 5ml to 30L. 3. The machine is made of 304 stainless steel, which is food grade. 4. Servo motor drives rotor pump, high filling accuracy. 5. PLC and touch screen control panel, easily adjust various filling parameters. This series of filling machines have reasonable structure, compact models, reliable performance, accurate quantification, and convenient operation. The contact parts are made of 304L stainless steel, which meets the requirements of GMP certification. The filling head adopts anti-drip and lifting filling device
|
Model
|
ACE-GZJ-A1
|
|
Filling range
|
5ml-30L
|
|
Rate of flow
|
250ml/s
|
|
Filling Accuracy
|
±0.5%
|
|
Air Pressure
|
0.4-0.6MPa
|
|
Required Air Compressor
|
≥1.5KW 65L
|
Reference Rotating Speed
|
Material
|
Rotating Speed
|
Material
|
Rotating Speed
|
Material
|
Rotating Speed
|
|
Noodle pulp
|
4-6
|
Peanut butter
|
2-8
|
Bean Paste
|
5-10
|
|
Industrial butter
|
3-4
|
Chili sauce
|
5-10
|
Jam
|
10-15
|
|
Juice
|
10-20
|
Chocolate
|
10-15
|
laundry detergent
|
10-20
|
|
Cooking oil
|
10-20
|
Milk
|
10-20
|
Toothpaste
|
10-15
|
|
Cream
|
10-18
|
Salad dressing
|
5-10
|
Hand Cream
|
10-20
|
|
Cheese
|
5-10
|
Honey
|
5-10
|
Resin
|
2-6
|
|
Tomato Paste
|
10-20
|
hotpot condiment
|
5-10
|
white emulsion
|
2-6
|
Application:
Servo filling machine is used for shampoo, detergent, toothpaste, glycerin, pigments, additives, adhesives, chemical fibers: polyester fiber, man-made fiber, polypropylene fiber. Coating: paint, ink, resin, chocolate, syrup, cream, mayonnaise, jam Cosmetics: creams and lotions, hair sprays, essential oils.
Details Images

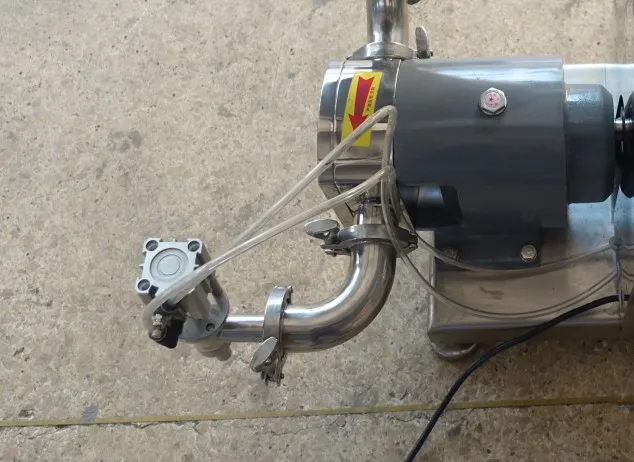

Rotor pump
Rotary pump filling has the advantages of small size, fast filling speed, and wide adjustable range of filling volume. Note: Idling will damage the rotor pump

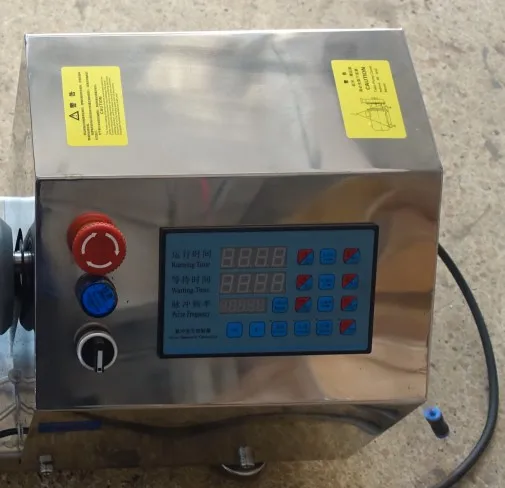

PLC control panel
PLC and touch screen control panel, easily adjust various filling parameters.

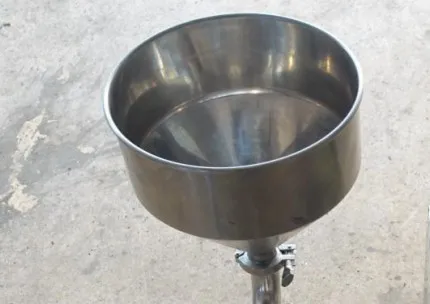

Hopper
The hopper is made of 304 stainless steel, food grade
If the material has low viscosity, it can also be connected to the pipeline
If the material has low viscosity, it can also be connected to the pipeline
Filling nozzle
Filling nozzle with anti-drip function
Made of 304 stainless steel, food grade
Made of 304 stainless steel, food grade
