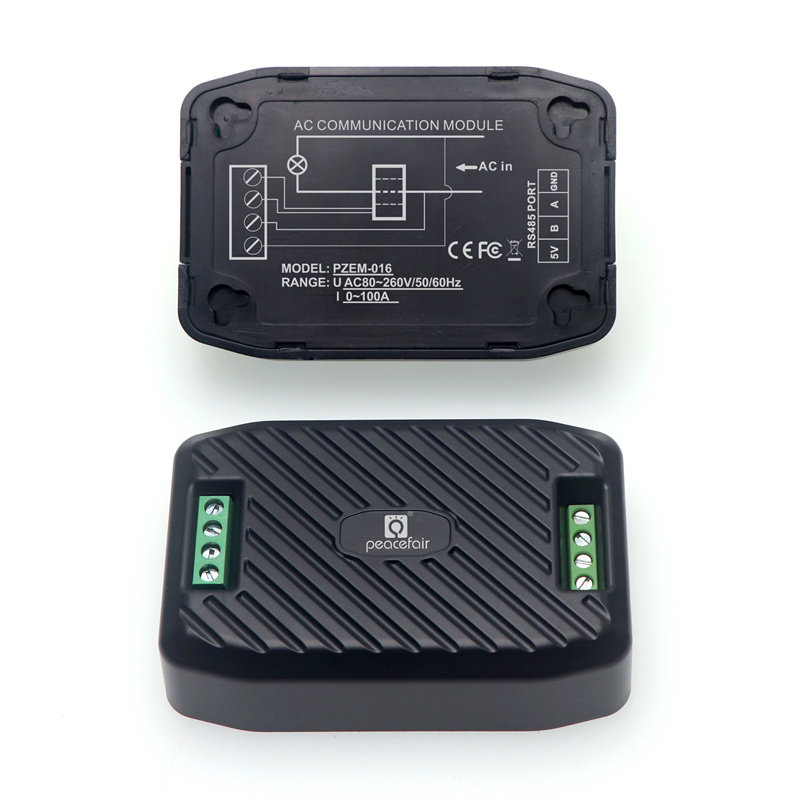

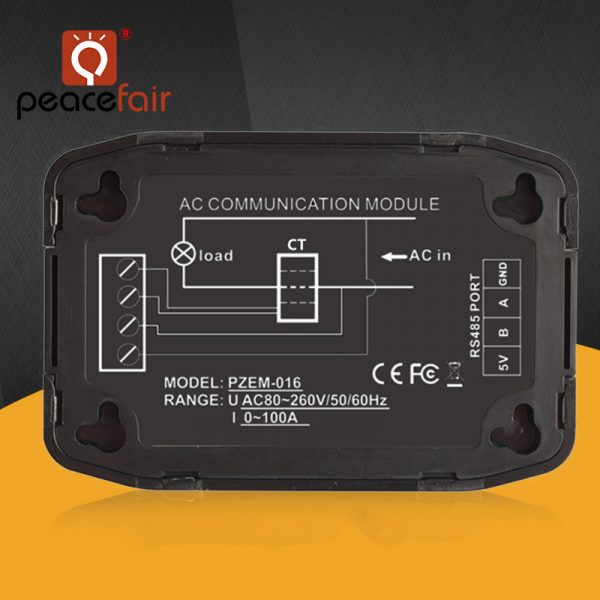

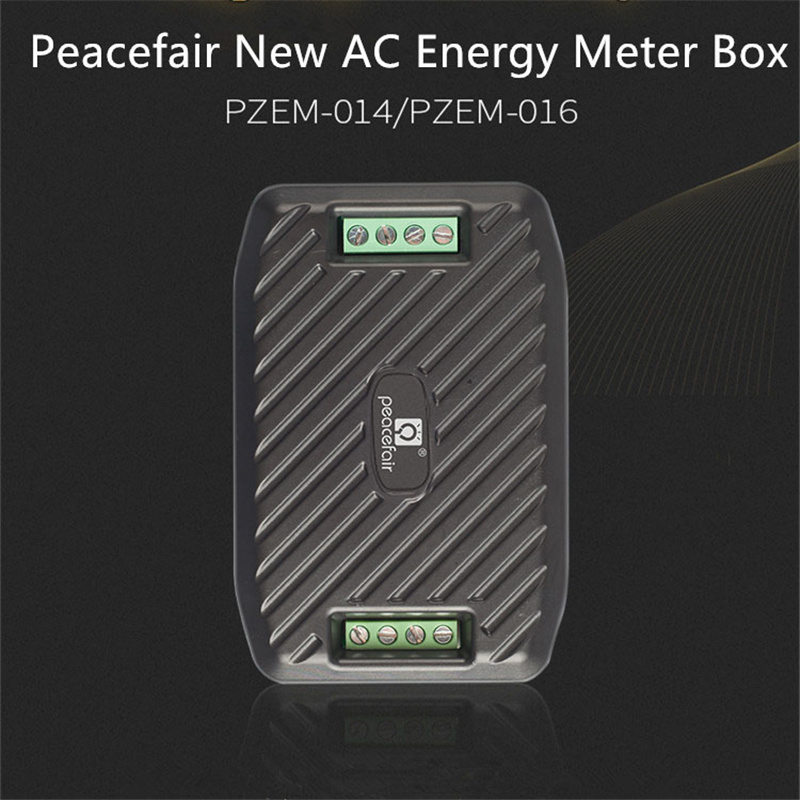

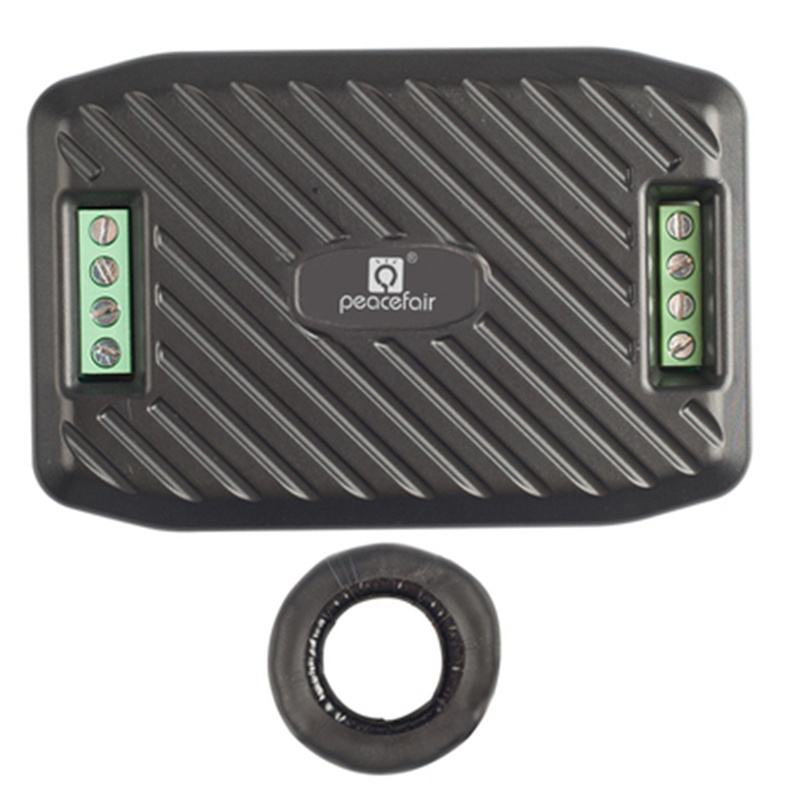

AC Current Volt Watt Frequency RS485 Power Energy Meter CT Coil Single Phase RS485 Serial Peacefair Factory Price PZEM-016 6in1
Product Type
|
PZEM-016
|
Current Range
|
0-100A
|
Voltage Range
|
AC 80-260V
|
Active Power
|
0-23KW
|
Energy Range
|
0-9999Kwh
|
Power Factor
|
0.00~1.00
|
Frequency
|
45Hz~65Hz
|
Weight
|
119g
|
Voltage
* Measuring range:80~260V
* Resolution: 0.1V
Current
Current
* Measuring range: 0~10A(PZEM-014); 0~100A(PZEM-016)
* Resolution: 0.001A
Active power
* Resolution: 0.001A
Active power
* Measuring range: 0~3kW(PZEM-014); 0~23kW(PZEM-016)
* Resolution: 0.1W
Power factor
* Resolution: 0.1W
Power factor
* Measuring range: 00~1.00
* Resolution: 0.01
Frequency
* Resolution: 0.01
Frequency
* Measuring range: 45Hz~65Hz
* Resolution: 0.1Hz
Active energy
* Resolution: 0.1Hz
Active energy
* Measuring range: 0~99kWh
* Resolution: 1Wh
* Reset energy: use software to reset.
* Resolution: 1Wh
* Reset energy: use software to reset.
Direction for use
This module is mainly used for measuring AC voltage, current, active power, frequency, power factor and active energy, the module is without display function, the data is read through the RS485 interface.
* Power supply
1. AC voltage provides two isolated outputs after through the switching power supply, one way is 3.3V provides to the measurement system, the other way is 5V provides to 485 communication circuits and external circuits.
485 communication interface power is(+5 V),current output capability is 100mA
2. Working temperature
-20’C ~ +60’C。
1. AC voltage provides two isolated outputs after through the switching power supply, one way is 3.3V provides to the measurement system, the other way is 5V provides to 485 communication circuits and external circuits.
485 communication interface power is(+5 V),current output capability is 100mA
2. Working temperature
-20’C ~ +60’C。
The English Software interface
Note
1. We only provide the software connect with PC, it is standalone version, not support Multimachine communication,if you want to use more than one module at the same time, you should set the address of each module in advance, then use the address to distinguish the termianl box when read or set the data
2. Physical layer use UART to RS485 communication interface
Baud rate is 9600, 8 data bits, 1 stop bit, no parity
2. Physical layer use UART to RS485 communication interface
Baud rate is 9600, 8 data bits, 1 stop bit, no parity
