Specifications For Floor Scrubber
|
||
Suction Vacuum
|
1720mmH2O
|
|
Brush speed
|
200RPM
|
|
Charge
|
DC24V/20A
|
|
Working Capacity
|
3360m2/h-5000m2/h
|
|
Rated power
|
1600W
|
|
Maximum solution capacity
|
2.6L/ min
|
|
Traction motor
|
400W
|
|
Duration of woking
|
3-5h
|
|
Scrubbing width
|
56CM
|
|
Squeegee width
|
92CM
|
|
Vacuum motor
|
550W
|
|
Minimum radius
|
110cm
|
|
Brush motor
|
550W
|
|
Operating voltage
|
DC24V
|
|
Maximum gradient
|
10%
|
|
Solution water tank capacity
|
70L
|
|
Recovery water tank capacity
|
83L
|
|
Driving speed
|
0-4.5KM/H
|
|
Brush pressure
|
>25kg.f
|
|
Noise level
|
<70dB
|
|
Net weight
|
157KG
|
|
Machine size
|
156*81*128CM
|


2018 Compact ride on floor scrubber dryers
1:Large opening to the recovery tank allows easy cleaning and maintance for floor scrubber
2:Four-joint-rod construction to make sure the reliable lifting system for brush and squeegee
3:Adjustable scrubbing squeegee pressure ensure a perfect cleaning application from daily scrubbing to restoration
4:With unique rubber edge on the brush cover to prevent water throwing out from the brush plaste
5:Automatic and manual operation mode are both optional,single function can be avaialbled by step under the manual operation mode
6:High maneuverability allows cleaning in congested areas for floor scrubber
7:User friendly,waterproof one touch control panel and easy to operate for floor scrubber
8:Adopt big recovery tank lid for easy cleaning of the tank,prevent the growth of bacterial
9:Adopt light touch button panel,sensitive and durabale for floor scrubber
10:Large tank capacity,reduces the times of water changing and achieves a better efficiency for floor scrubber
11:Four-bar linkage design to control the up and down of the brush and squeegee which keep the system stable and reliable

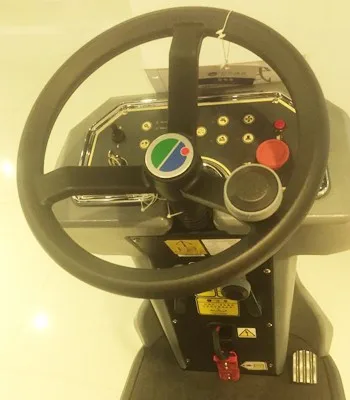

Operate Handle for ride on floor scrubber
With rubber handle,can be easily operate and feel comfortable .

Intelligent Control Panel for floor scrubber
Adopt light touch button panel,sensitive and durable .Own manual and Automatic mode two type and single function can be avaiable by step under the manual operation mode

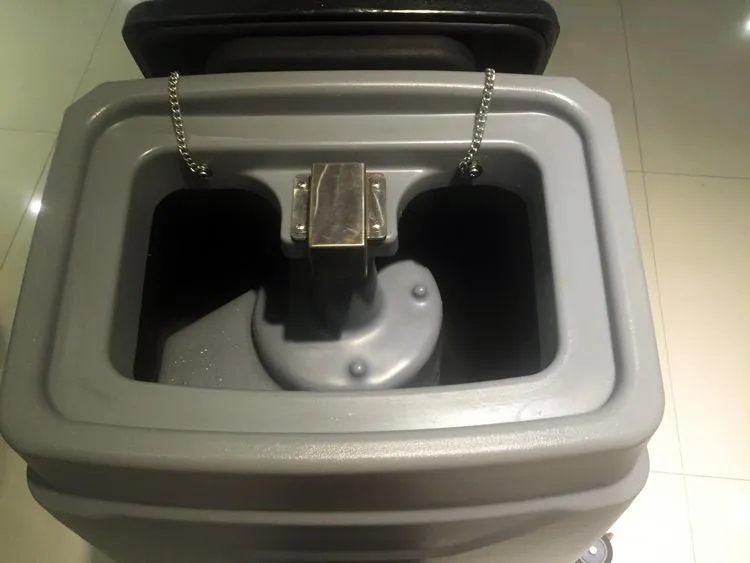

Dirty water tank for floor scrubber
Large operate dirty water tank,reduce the times of water changing and achieves a better efficiency

Clean water tank hose for floor scrubber
Clean water hose can clearly show the capacity for the clean water left in the tank. And add water according to the capacity and square of the ground.

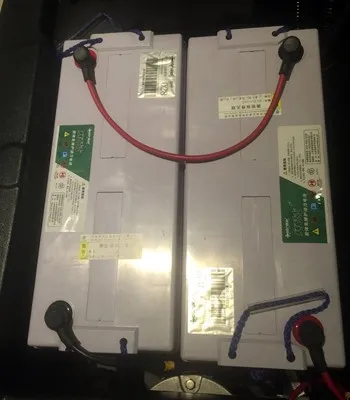

Battery for floor scrubber
TWO PCS 12V /20A battery can ensure the machine continue work about 5-6H with 3000-5000m2/h cleaning efficiency

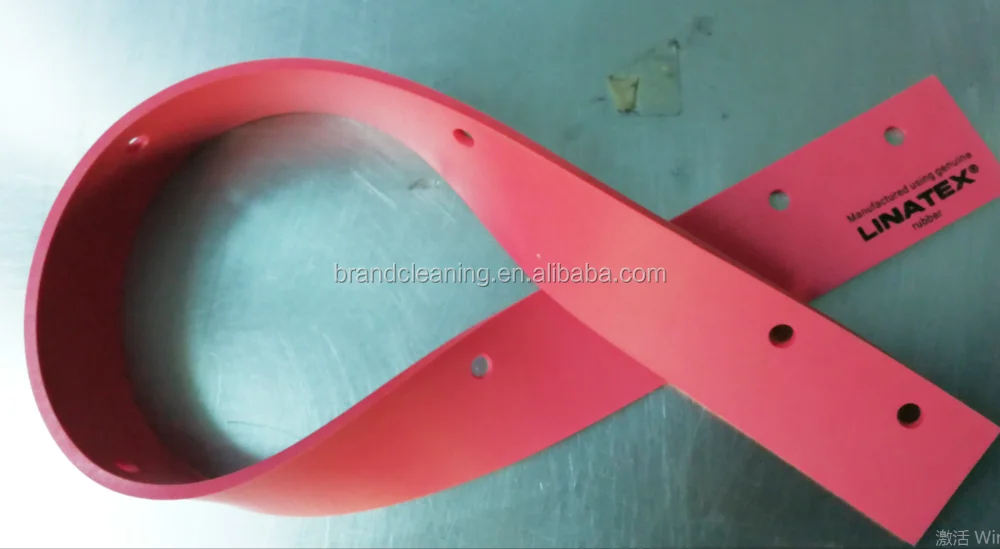

LInatex squeegee rubber for floor scrubber
Two piece rubber squeegee rubber with linatex brand.Durbale and non-wear resistance and can be used in four side.
