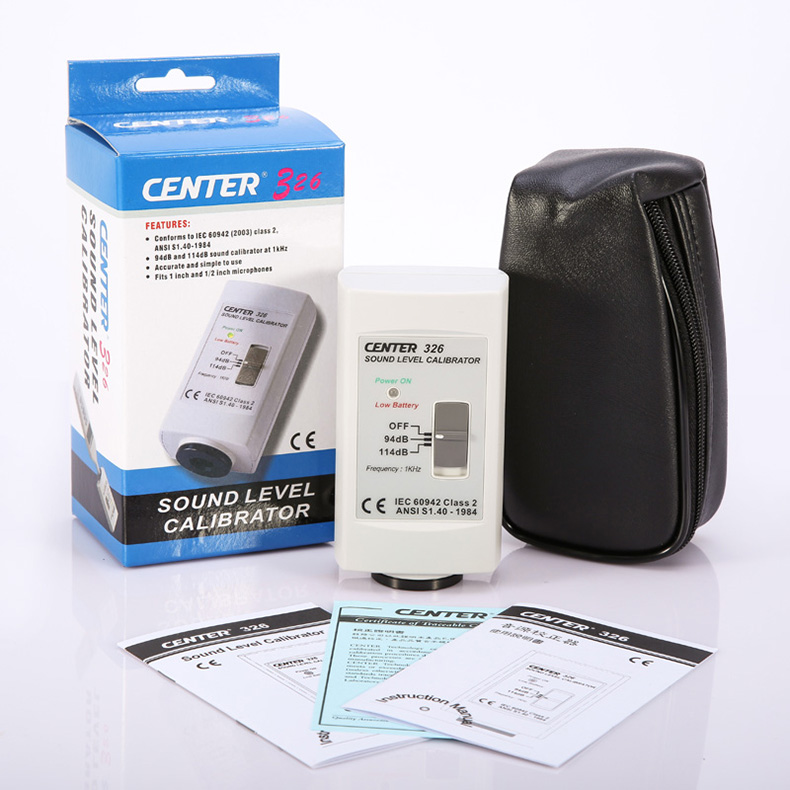

94dB and 114dB Operating temperature 0 – 50C Calibration for Sound Level Meter CENTER-326 Sound Level Calibration
|
Features:
94dB and 114dB Sound Calibration at 1KHz
Accurate and Simple to use
Fits 1″, 1/2″ diameter microphone
|
|
Output Sound Pressure Levels
|
114dB and 94dB re 20 uPa under refrence conditions.
|
|
Output Frequency
|
1000Hz +/- 2%
|
|
Reference Conditions
|
TEMPERATURE –>23 o C(73 o F)
ATMOSPHERIC PRESSURE –>103hpa (760mm of Hg) RELATIVE HUMIDITY –>65% |
|
Accuracy of Sound Pressure Level
|
Under stated reference environment conditions +/- 0.5dB
|
|
Power
|

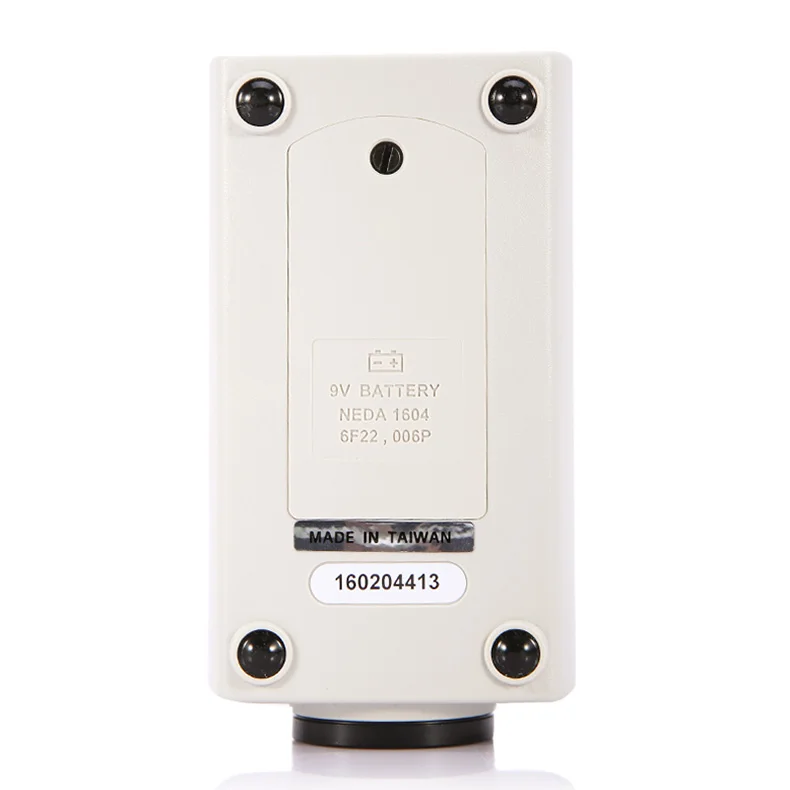

One 9V battery 006P or IEC 6F22 or NEDA 1604.
|
|
Battery Test
|
Internal circuitry checks condition of battery continuously.
Calibrator will operate at all if battery voltage falls below acceptable range. |
|
Battery life
|
About 50 hours
|
|
Dimensions
|
113(L) x 63(W) x 44(H)mm
|
|
Weight
|
approx. 170g (include batteries)
|
|
Operating temperature
|
0 – 50 (32 – 122 )
|
|
Operating humidity
|
0 – 90%RH
|
|
Accessories
|
9V battery(not included package) Carrying case, Instruction manual. 1/2″ Microphone Adaptor
|
