90W 18V White Mono ETFE Adhensive Semi Flexible Solar Panel For Energy Storage Devices Yachts RVs Parks Campervan
Specification
Model | Power | Vmp | Voc | Imp | Isc | Size(mm) | Weight(kg) |
JXY-E20M | 20W | 18V | 22V | 1.11A | 1.17A | 400*340*2.8 | 0.5 |
JXY-E30M | 30W | 18V | 22V | 1.66A | 1.75A | 560*340*2.8 | 0.65 |
JXY-E40M | 40W | 12V | 14.4V | 3.33A | 3.50A | 1350*165*2.8 | 0.75 |
JXY-E45M | 45W | 18V | 22V | 2.50A | 2.62A | 785*340*2.8 | 0.95 |
JXY-E60M | 60W | 18V | 22V | 3.33A | 3.51A | 690*510*2.8 | 1.25 |
JXY-E90M | 90W | 18V | 22V | 5.00A | 5.25A | 1000*510*2.8 | 1.77 |
JXY-E100M | 100W | 18V | 22V | 5.55A | 5.83A | 1170*510*2.8 | 1.95 |
JXY-E120M | 120W | 18V | 22V | 6.66A | 6.99A | 1020*670*2.8 | 2.2 |
JXY-E180M | 180W | 18V | 22V | 10.0A | 10.5A | 1470*670*2.8 | 3.3 |
Q: Are you a factory or a foreign trader?
A: Definitely a factory, support OEM, ODM, you can send me a video request anytime I work and I will show you our factory, If you need us to customize products for you, please contact our staff.
Q: The shipping cost displayed on the platform when purchasing goods is too high
A: An important factor of shipping cost is the volume of goods. We can flexibly reduce the packaging volume to reduce the shipping, while the platform cannot. Therefore, if you think the shipping cost is unreasonable, please contact me, and I will check the optimal shipping cost for you and place an order for you.
Q: Will it be troublesome for the customer to ask the staff to place the order?
A: No trouble at all, If your needs are clear, the whole process can be completed in about 8 minutes.
Q: What information do I need to provide when asking staff to draft an order?
A: The informations you need to provide are: the model of the items you are interested in or the links to the items, the quantity, the name of the contact person, the phone number, the address and the postcode.
Q: What is the process for staff to place an order?
A:

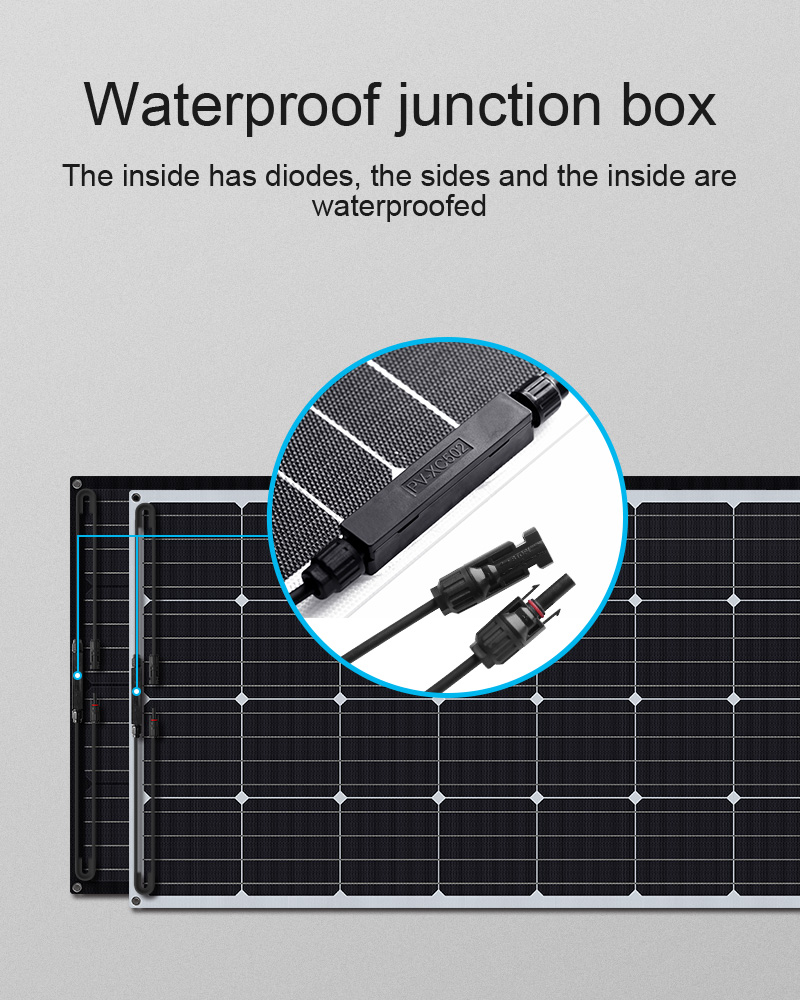

Q: Can the junction box be installed on the back of the flexible solar panel?
A: Yes.
Q: Is it possible to replace the regular MC4 plug with another plug?
A: Yes, we support custom.
Q: Is it possible to replace the regular ETFE surface with PET?
A: Yes, we usually use ETFE as the surface of solar panels because of its salt spray corrosion resistance compared to PET. But PET is $0.035 per watt cheaper than ETFE.
Q. Can I come visit your showroom and factory?
A:1) Welcome to visit our office and shop directly before establishing long-term business relationship.
2) We’d very like to help you book the hotel and pick you up from the airport, or the railway station. Please inform us if you have any scheduling in China.
Q: If I plan to buy your product after a few days, how can I easily find your store again?
A: If you can’t remember the name of the store accurately, the next time you want to visit the store, it may take some time to find it.
My Suggestion to you is that if you are interested in our products, you can click ‘Follow’ button in the middle of our product pages on the mobile terminal. Or visit our homepage on the PC terminal, click ‘Favorite Supplier’ at the top.
They look like these:
APP: ————–>
PC:
