Diesel hydraulic small portable water well drilling rig/water well drilling machine
Products Description
Portable Water Well Drilling Rig
This Water well drilling machine is especially suitable for geothermal drilling, farm irrigation , house yard, gardens and water well drilling, drilling diameter is consist of 40-200mm, and drilling depth is 80m to 100m. It also can be used in small building piling, like farmhouse or factory, the drilling diameter can reach 500mm and depth can be more than 100 meter.
Specification
|
Model
|
YGS320
|
|
Engine
|
Diesel
|
|
Power
|
25HP
|
|
Drilling Depth
|
120M
|
|
Drilling Diameter
|
50mm~350mm
|
|
Type
|
Rotary Drilling Rig
|
|
Mud Mump Power
|
3.5Hp
|
|
Drilling Rod Diameter
|
51mm
|
|
Drilling Rod Legth
|
1500mm
|
|
Rod Change Method
|
Full Automatic Screw Thread
|
|
Usage
|
Water Well
|
|
Dimension(L*W*H)
|
2.75*0.95*1.6m
|
|
Weight
|
900KG
|
Application
Portable Water Well Drilling Machine
1. This small drilling machine occupies a small area ( 1square meters), a height of 2 meters stand, the job can be installed in less than ten minutes.can be used at indoor and outdoor site. 2. The well pipe is fully enclosed, shallow layer has no leakage, can ensure the health and safety of drinking water. 3. Research and Develop by ourself,it breaks difficult problem that easy to drill and hard to disassemble. 4. All the lifting, loading and unloading drill pipe is mechanized, time-saving, labor-saving and easy to operate.

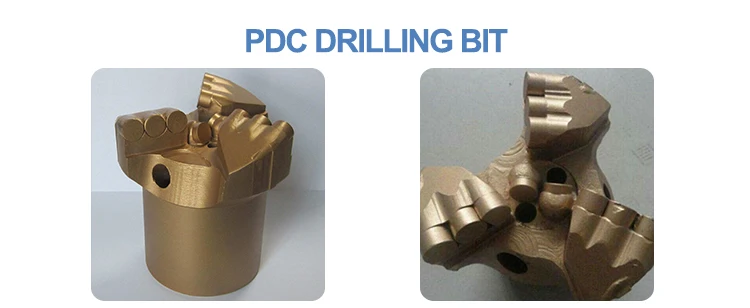

5. Light weight, energy saving. Low tower design,can drill indoor. 6. Patented product, unique design and simple drilling structure. 7. Easy to transport and can learn how to handle the machine in short time. 8. Can install PDC bit drill rock layer . 9. Assure easily operation and long life service life, free maintainance.

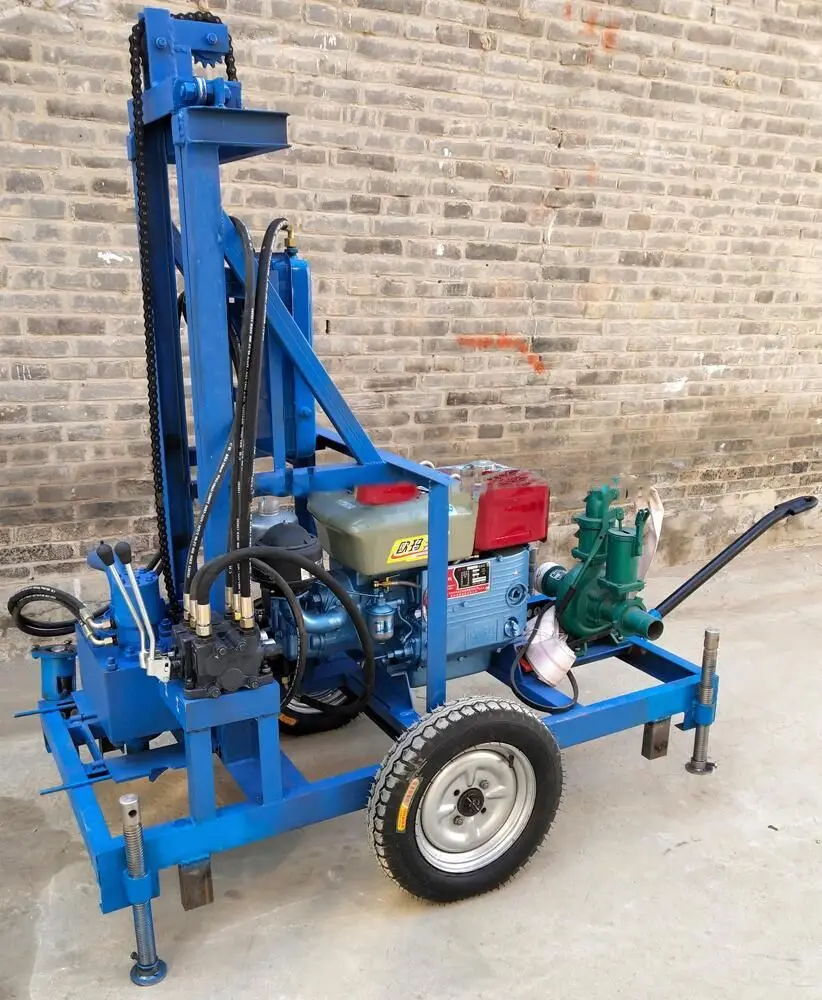

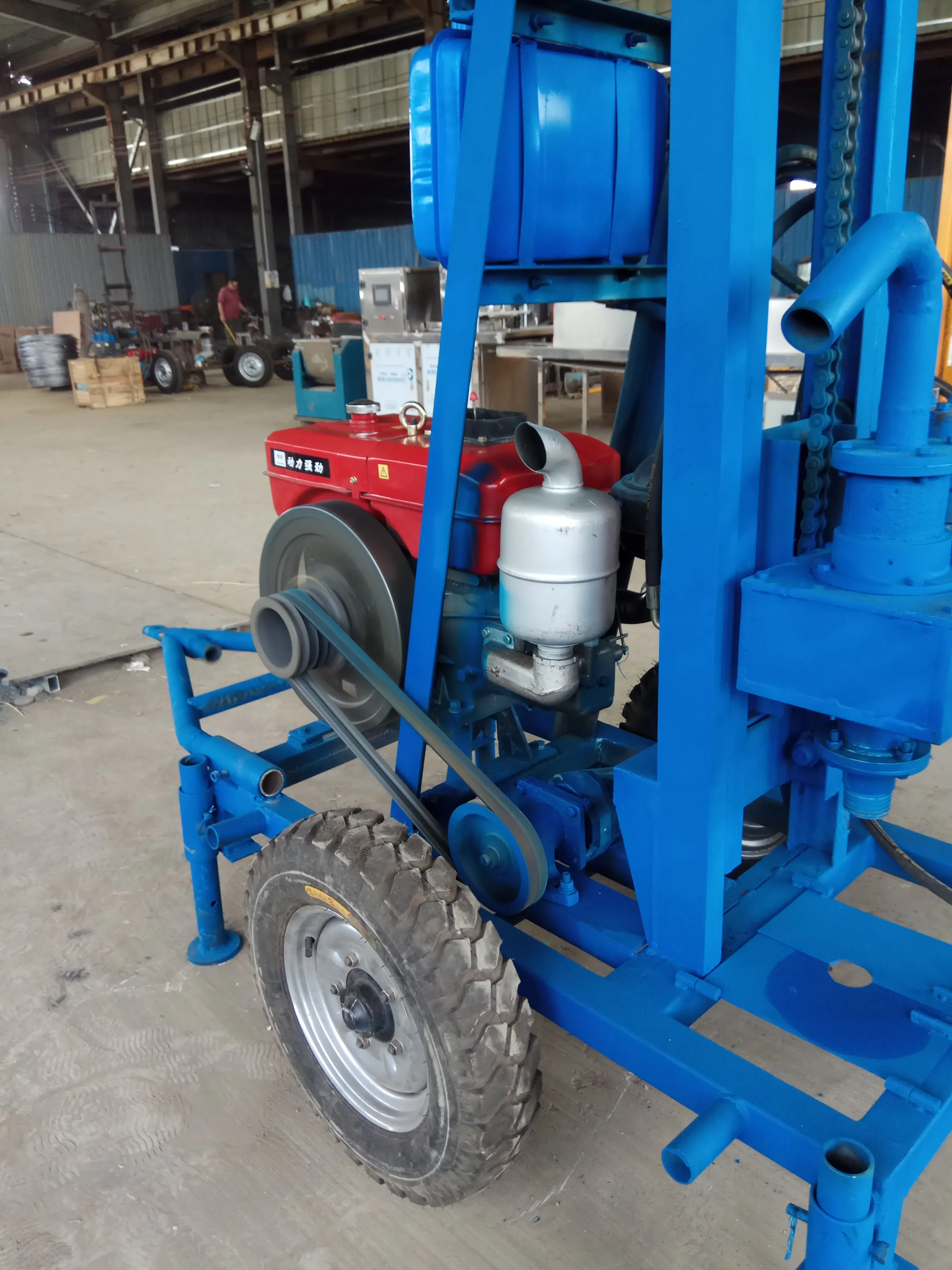

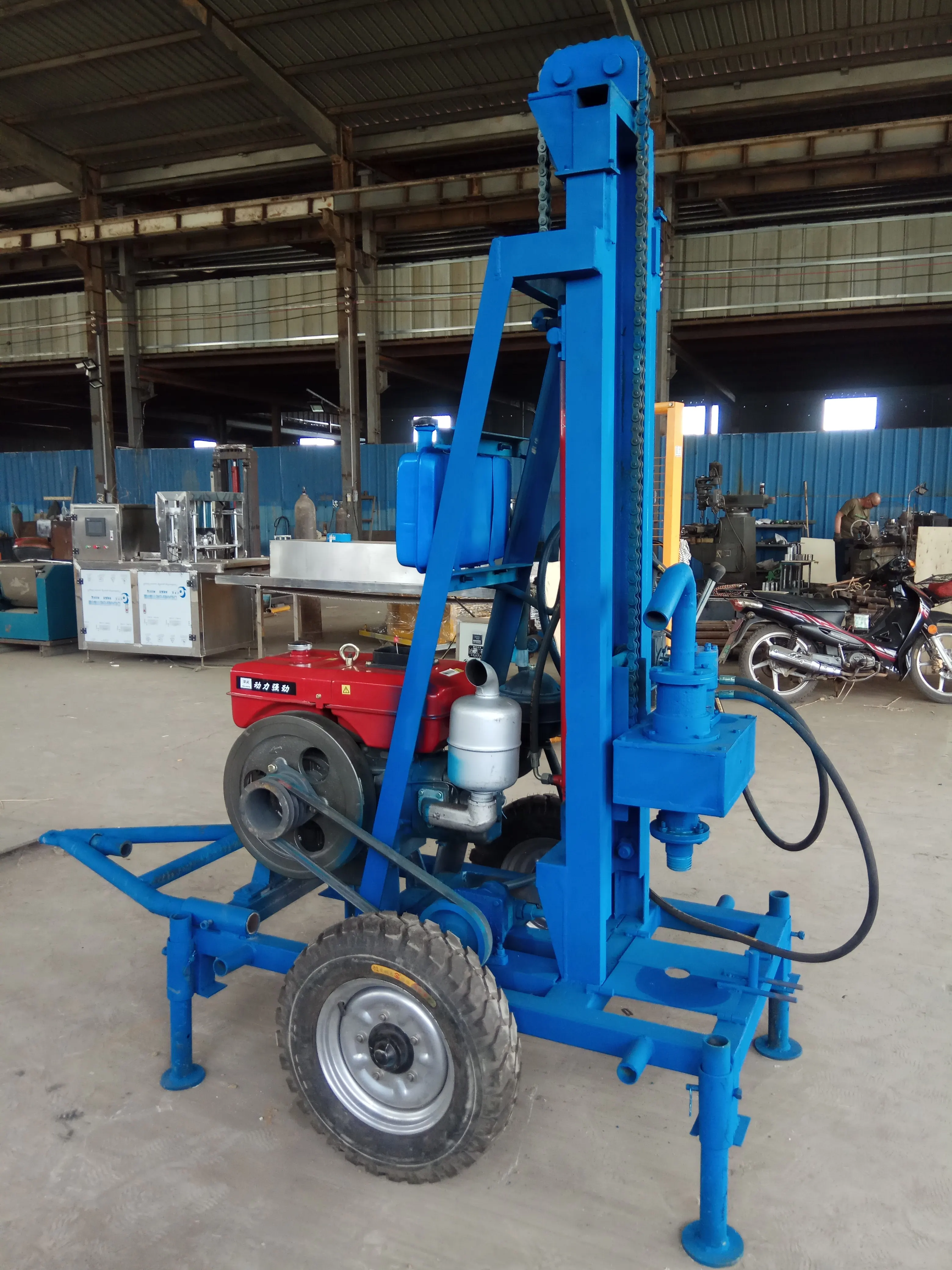

Detailed Images
