Model:
|

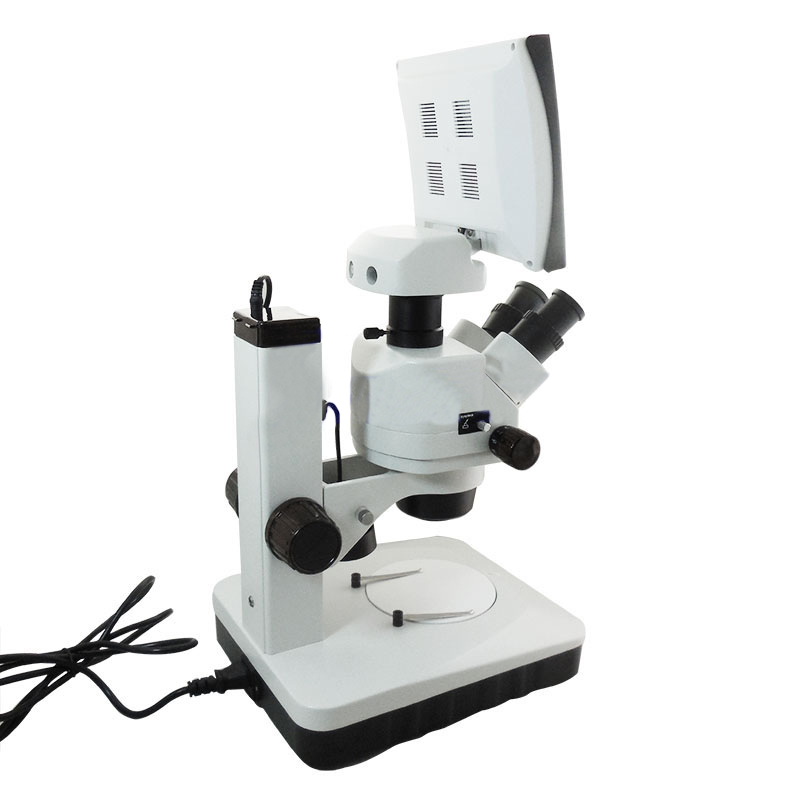

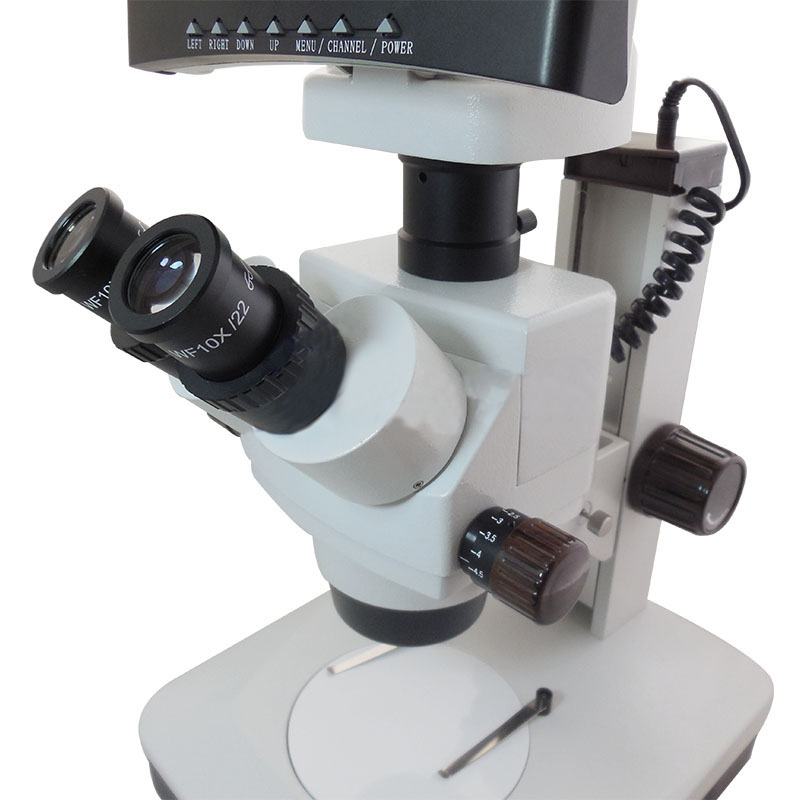

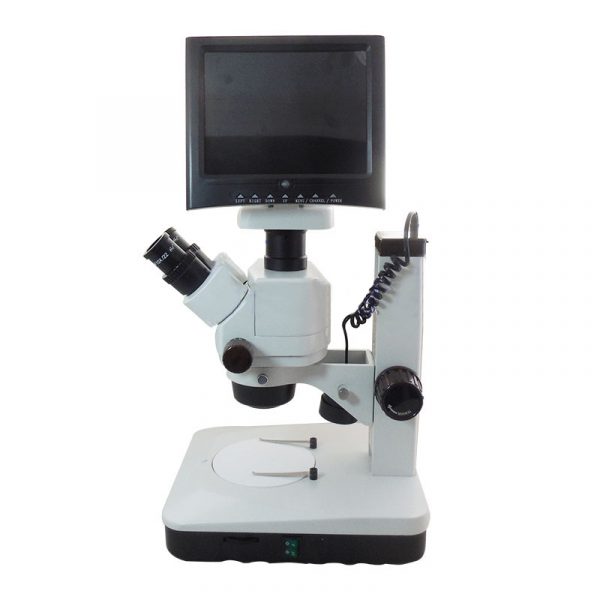

TXS102BT-LCD
|
|
Objective system:
|
0.7X-4.5X.(Optional:0.2X,2X auxiliary objective)
|
|
Eyepiece system:
|
Wide Field Plan-Scope Eyepiece:WF10X/22mm(Optional :WF15X ,WF20X).
|
|
Working distance:
|
100mm.
|
|
Magnification:
|
7X-45X.
|
|
Observation head:
|
Articulated Free Triocular Head,Interpupillary Distance:55-75mm,45° Inclined.360° Rotation.
|
|
Illumination:
|
Top/Bottom Light:3.5v 1w LED light.brightness can be adjusted independently.
|
|
Stage:
|
Ø125mm Frosted Glass Stage Plate,Base size: 290X245X60 mm , With elastic pressure clip. Vertical arm type, vertical arm height:
280mm.the movement distance of the bracket on the vertical bar is 130mm. |
|
Focus system:
|
Gear and rack focusing, focusing torque to adjust the hand wheel, and the focusing range is 85mm.
|
|
Net weight/set:
|
6kg.
|
|
Package:
|
1sets/Carton 42*31*50mm, Cross Weight/Carton:8kg.
|
|
Device Dimension:
|
1/3″
|
|
Horizontal Resolution:
|
700TVline
|
|
Pixels:
|
976(H)*582(V)
|
|
Display Dimension:
|
800*600
|
|
Color:
|
16,777,216 colors
|
|
Highest Mode:
|
1024*768@75Hz
|
|
Color System:
|
PAL/NTSC4.43/NTSC3.58/SECAM
|
Q: How long is your delivery time?
A: Generally it can be shipped out within 7 days after your payment; for customized products or big quantity order, it usually
takes 1 month, you can contact us before place the order.
A: Generally it can be shipped out within 7 days after your payment; for customized products or big quantity order, it usually
takes 1 month, you can contact us before place the order.
Q: Can we get samples before place the order?
A: Yes of course, we can send samples to you before you place the bulk order.
Q: Can we get your samples for free?
A: Yes, you can. Our samples are free for customers who confirm order. But the freight is on buyer’s account.
Q: How about your MOQ?
A: Different kind of products will be different MOQ, for some glass bottle, small orders are acceptable.
Q: Do you accept OEM/ODM?
A: Yes, we accept it. Whether print your logo on our products or customize all welcomed.
Q: What payment terms do you accept?
A: Our payment terms: T/T, Western Union, PayPal, Trade Assurance etc. For order below $1000, 100% in advance; for order over
$1000, 30% in advance, the balance before shipment.
