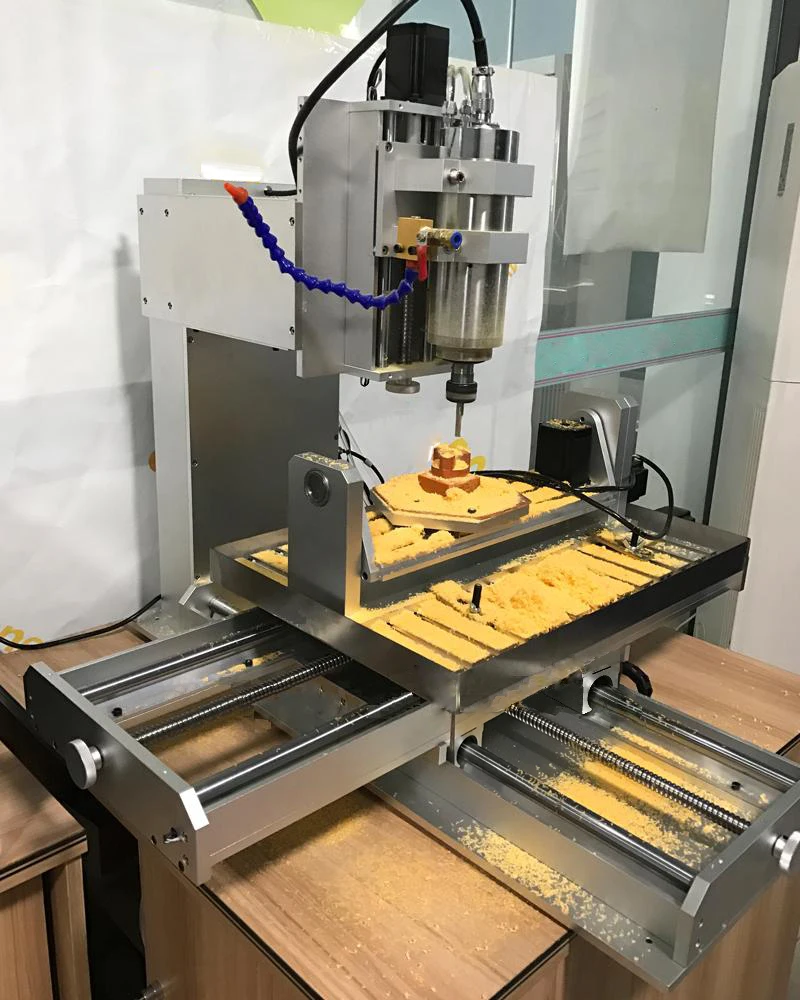

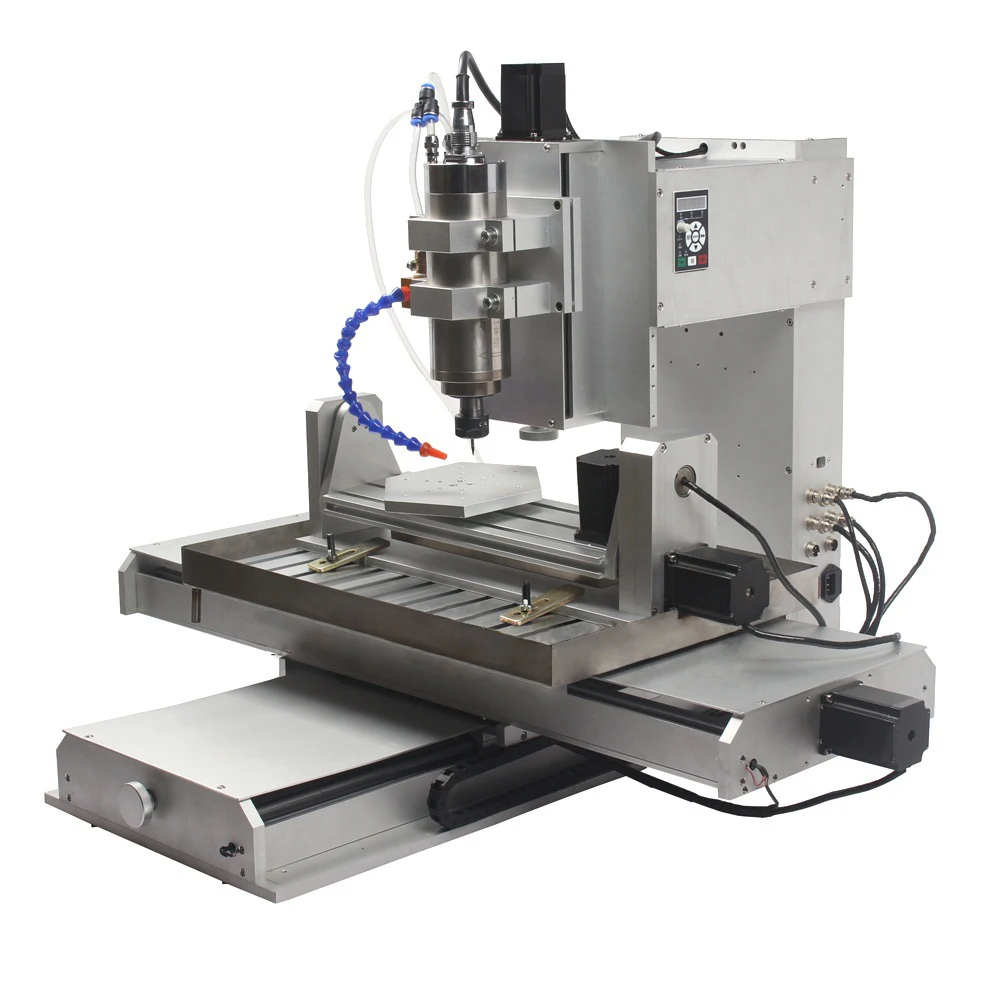

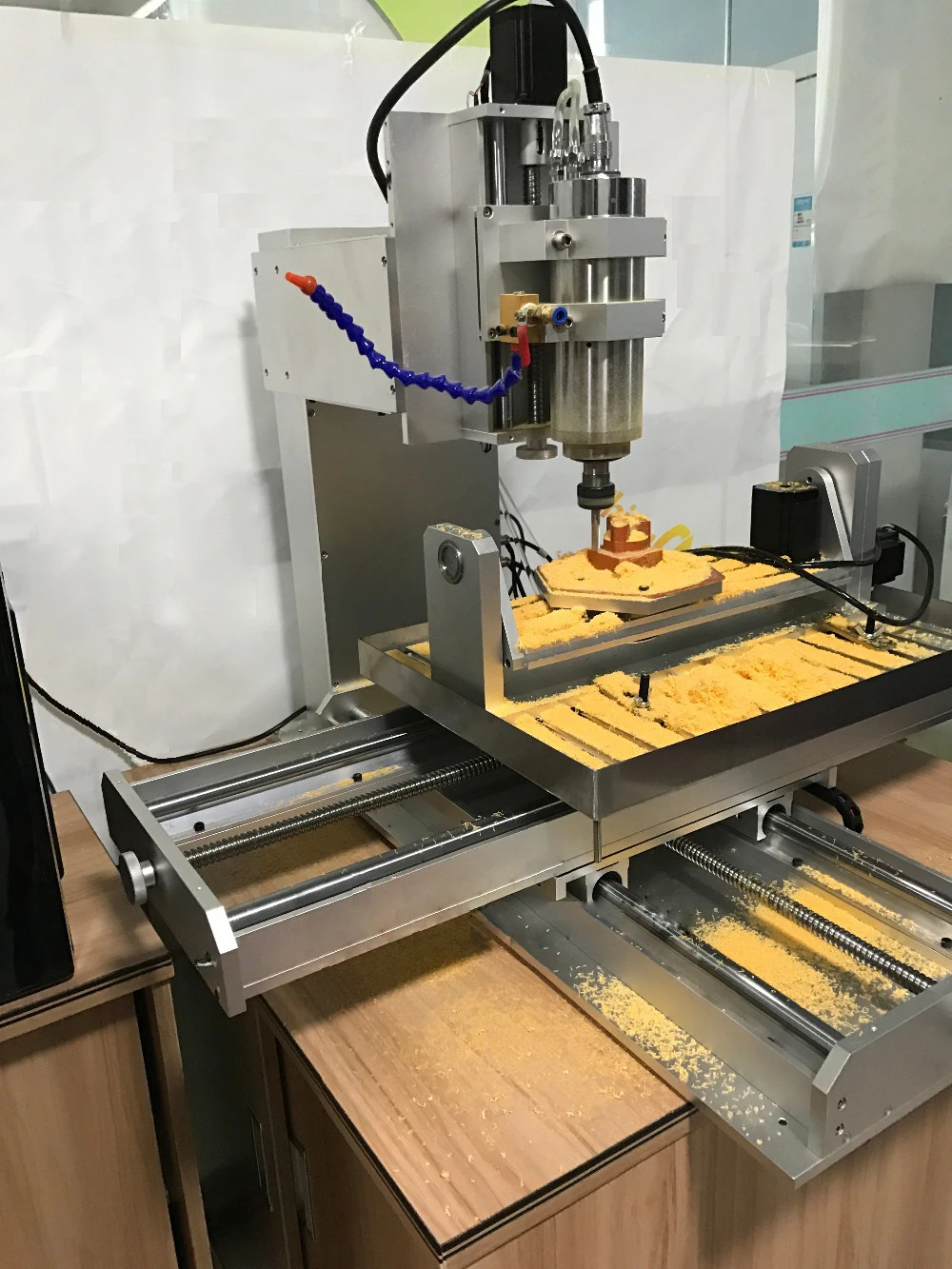

6040 5 axis CNC Router Engraving Milling Wood Aluminum Copper Metal Machine
The HY-6040 engraving machine supports wood, acrylic, metal, stone and stainless steel engraving USB interface, can connect computer through USB cable, spindle support 1500/2200w, can engrave material which hardness below 45.can work with 3 axis/4 axis/5 axis; support Mach 3 software.
Easy operating because:
It can work with 3 axis / 4 axis / 5 axis, just as you like !
Independent high-speed micro computer intelligent controller.

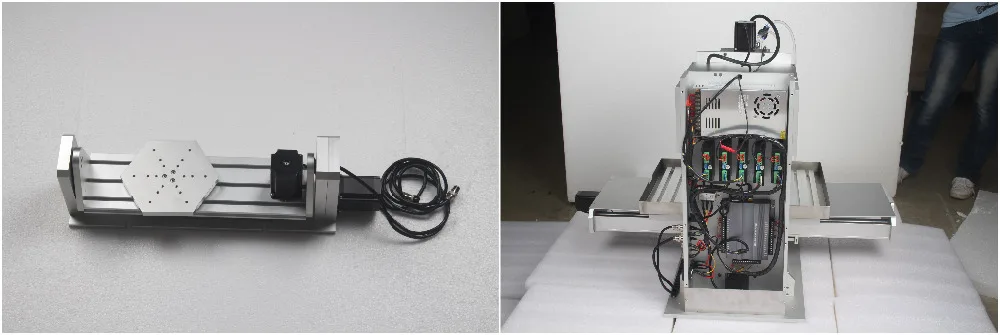

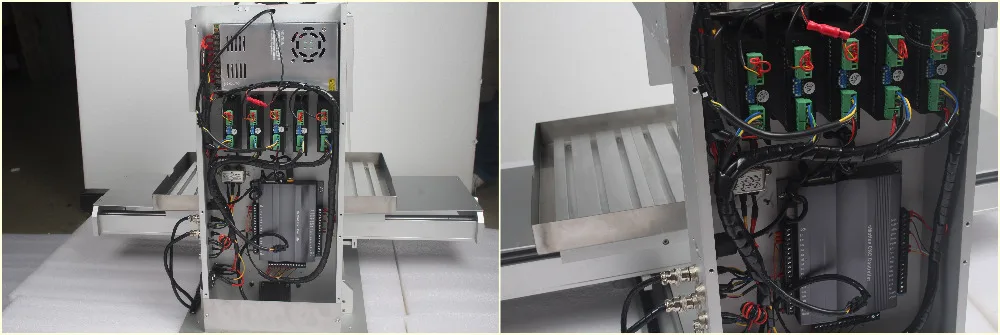

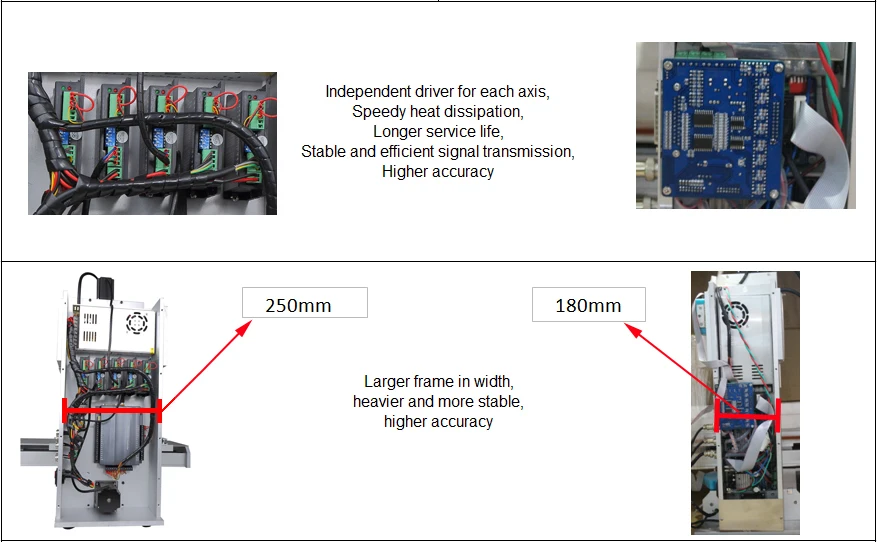

Independent drivers for each axis.

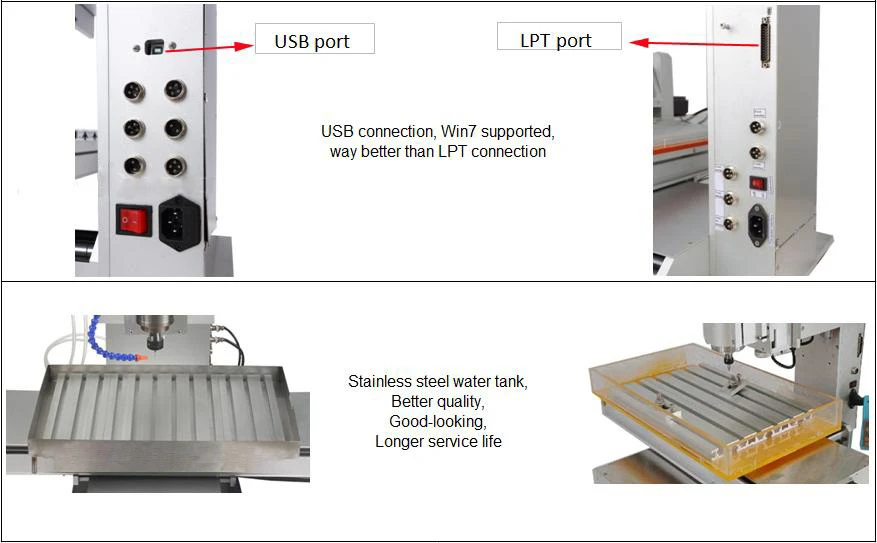

Mach 3 software USB connection

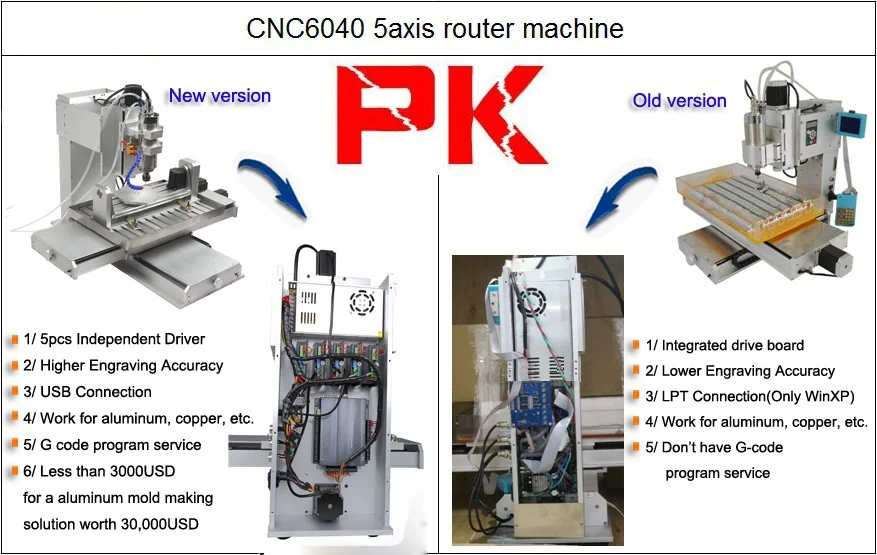

Upgraded with more stable structure than old type
Built in frequencey converter and without controller box.
Higher precision because:
Cross slippery platform design rather than gantry design.
Aluminum base sheet is heavy which can make sure less vibration when work.
With auto-checking function.
1500/2200w water-cooled spindle.
Ball screw
Stainless Steel sink for bits cooling
You can buy this machine from us without any worry because:
CE approved.
Video support.
English manual available.
Mach 3 software send with the machine as a CD.
Can engrave material which hardness below 45.
From reliable & trustable profesional China CNC Router manufacturer

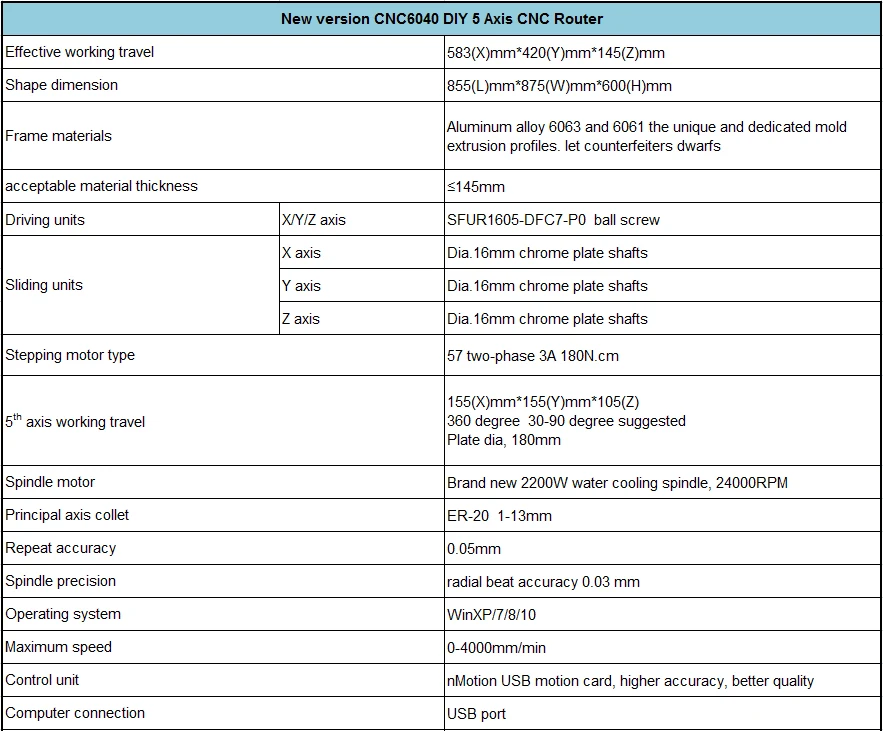

| Effective working travel | 583(X)mm*420(Y)mm145(Z)mm | |
| Shape dimension | 855(L)mm*875(W)mm*600(H)mm | |
| Frame materials | Aluminum alloy 6063 and 6061 the unique and dedicated mold extrusion profiles.let counterfeiters dwarfs | |
| acceptable material thickness | ≤145mm | |
| Driving units | X/Y//Z axis | SFUR1605-DFC7-P0 ball screw |
| Sliding units | X axis | Dia. 16mm chrome plate shafts |
| Y axis | Dia. 16mm chrome plate shafts | |
| Y axis | Dia. 16mm chrome plate shafts | |
| Stepping motor type | 57 two-phase 3A 180N.cm | |

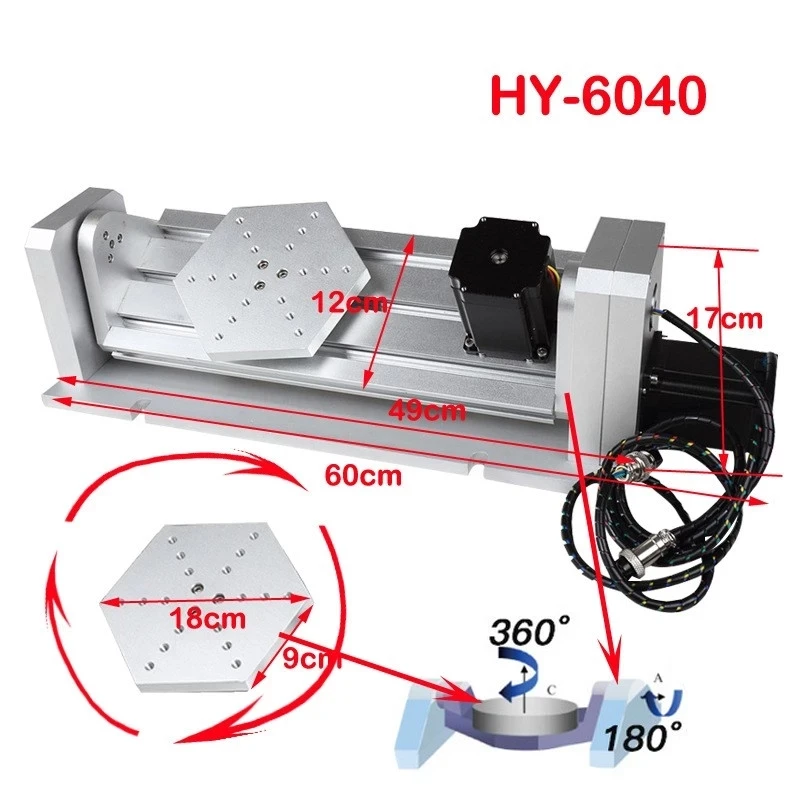

| 5th axis working travel |
155m*155mm*105(Z)
360 degree 30-90 degree suggested Plate dia,180mm |
|
| Spindle motor | Brand new 2200W water cooling spindle, 24000RPM | |
| Principal axis collet | ER-20 1-13mm | |
| Repeat accuracy | 0.05mm | |
| Spindle precision | radial beat accuracy 0.03 mm | |
| Operating system | Winxp/7/8/10 | |
| Maximum speed | 0-4000mm/min | |
| Control unit | nMotion USB motion card, higher accuracy, better quality | |
| Computer connection | USB port | |
Note:
We are different from other sellers who have no idea what real 5 axis machine is.
How to do Zero X, and zero Y of A axis of CNC 5 axis by edge finder?
How to Calibrate the Levelness of A axis of CNC 5 axis machine?
How to Calibrate the A axis and B axis of CNC 5 axis machine?
