Product Description
|
Payload
|
3 kg
|
||
|
Reach
|
950 mm
|
||
|
Structure
|
Articulated
|
||
|
Number of axes
|
6
|
||
|
Repeatability
|
±0.05 mm
|
||
|

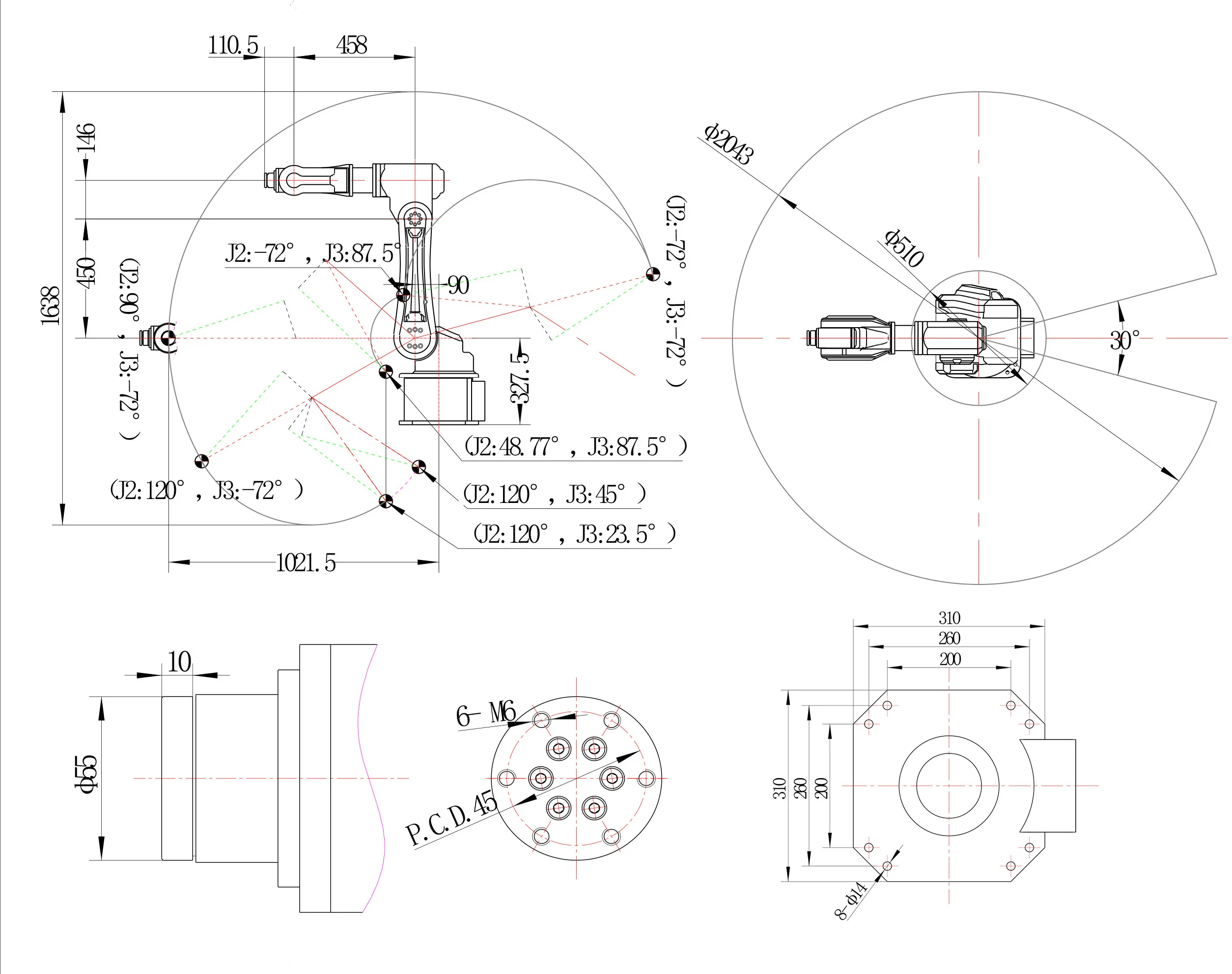

Max. motion range
|
Axis 1
|
±165°
|
|
|
Axis 2
|
+120°/-72°
|
||
|
Axis 3
|
+87.5°/-72°
|
||
|
Axis 4
|
±360°
|
||
|
Axis 5
|
±115°
|
||
|
Axis 6
|
±450°
|
||
|
Max. speed
|
Axis 1
|
148°/sec
|
|
|
Axis 2
|
148°/sec
|
||
|
Axis 3
|
222°/sec
|
||
|
Axis 4
|
222°/sec
|
||
|
Axis 5
|
222°/sec
|
||
|
Axis 6
|
360°/sec
|
||
|
Body Weight
|
≈72 kg
|
||
|
Mounting type
|
Ground, bracket, ceiling
|
||
|
Ambient temperature
|
-20 ℃~80 °C
|
||
Main Applications

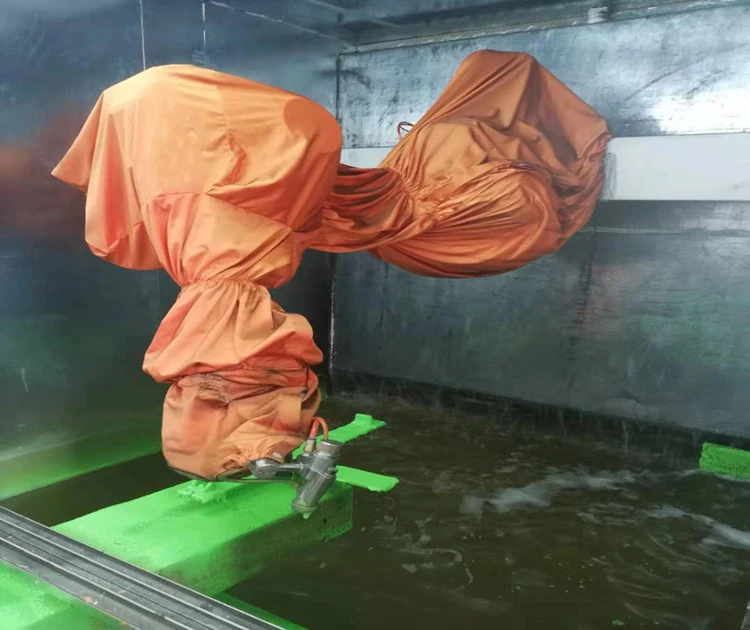

Materials handling, parts transfer, electric welding, machine management, palletizing, packaging, testing, deburring, grinding, gluing, assembly &painting
Applicable Cases

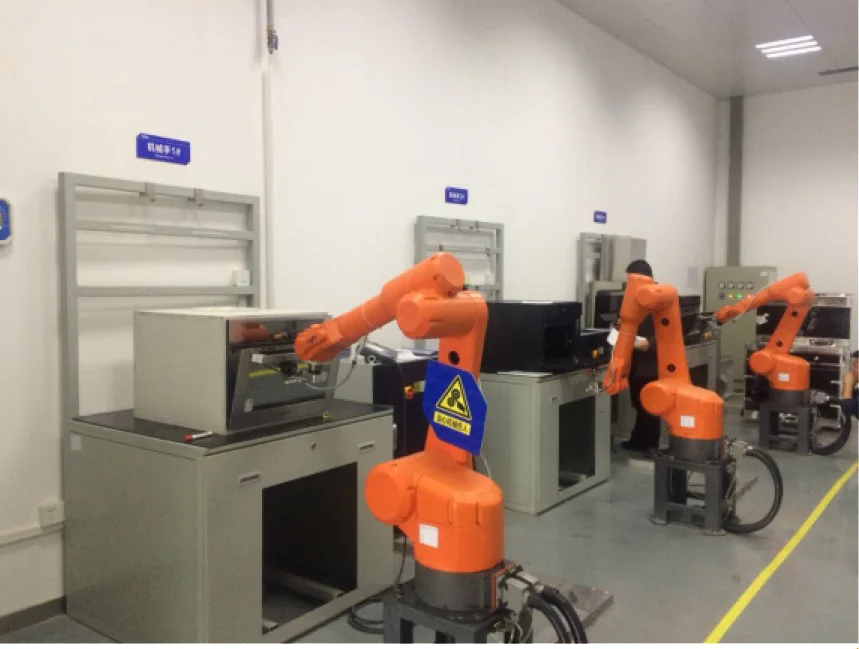

Lab aging test 950-A-6 is a small robot featuring short work cycle, reliable operation and high cost performance. Previous industrial applications prove its outstanding performance, high added value, quick return on investment and significant increase of productivity. The figure shows a customer’s field application. This robot is used in the customer’s aging test lab.
Detailed Images
Servo Motor
High-precision control, good high-speed performance and strong anti-overload capability

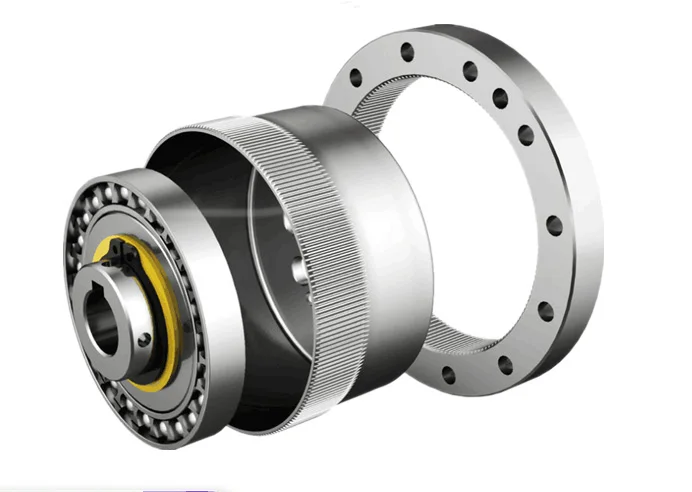

Harmonic Reducer
High-precision technology, high load capacity, fast transmission speed, stable operation

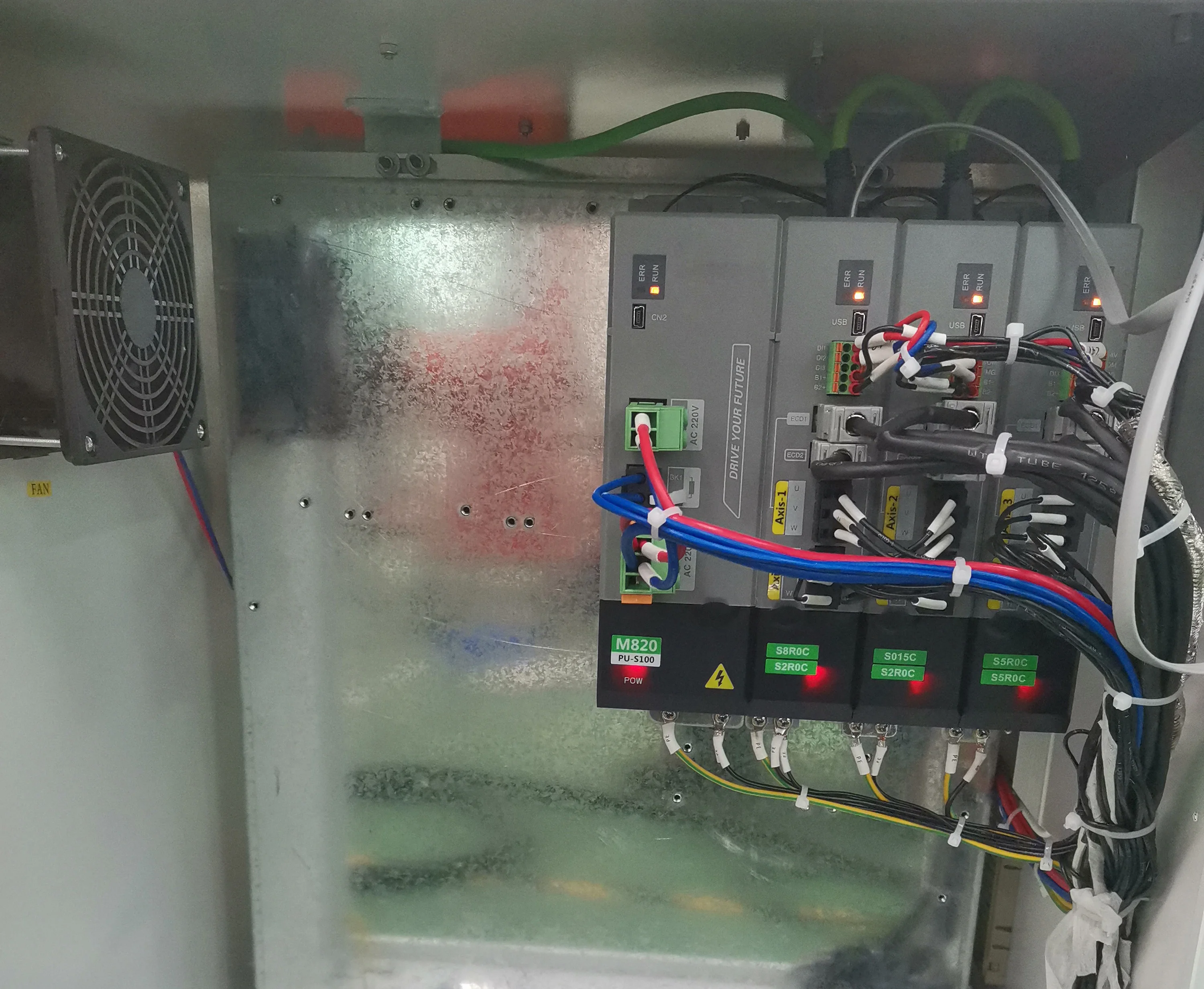

Servo Motor Driver
Control the servo motor by three methods: position, speed and torque

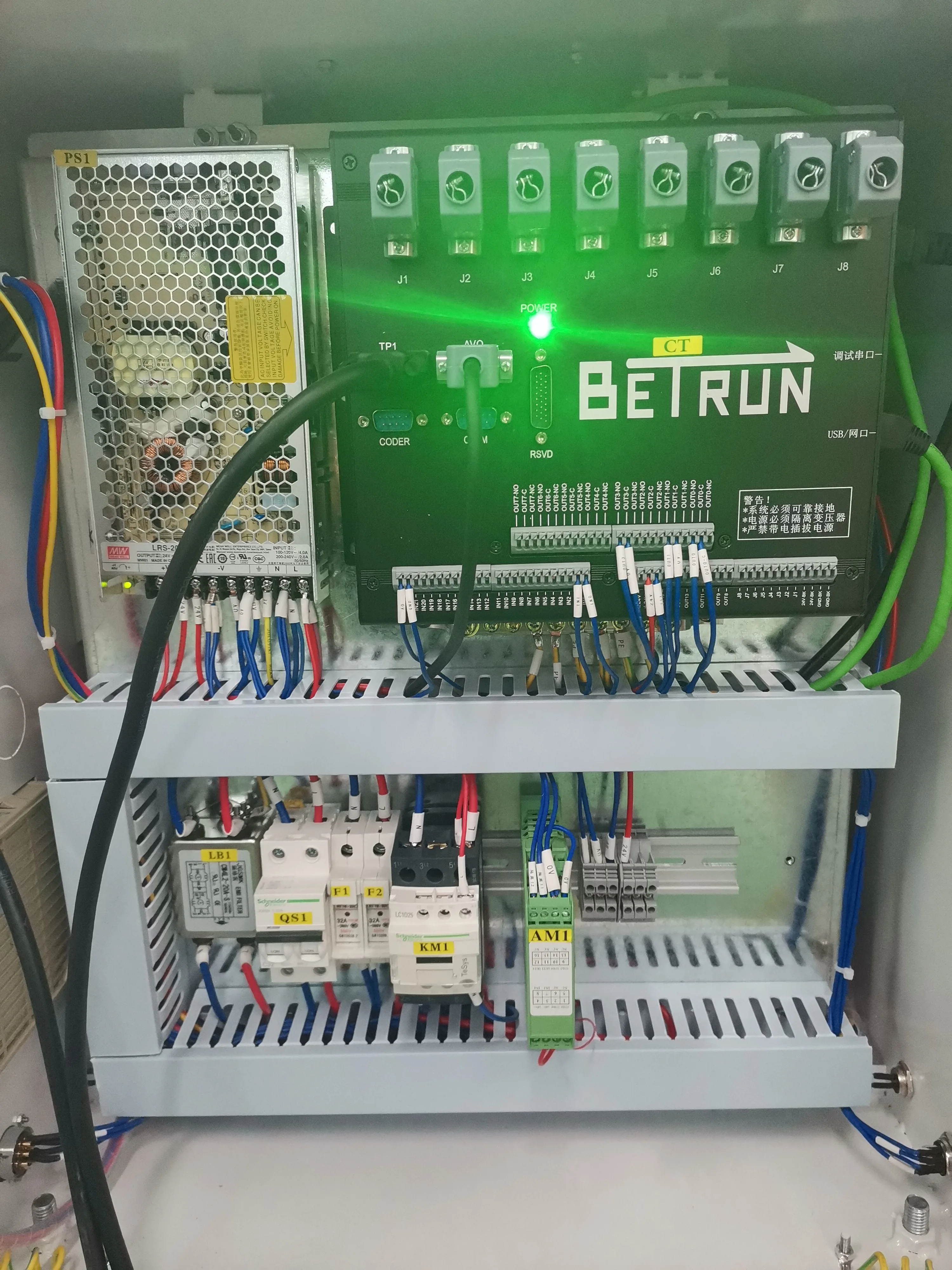

Controller Board
Including various interfaces such as IO module, safety module, A / V analog module

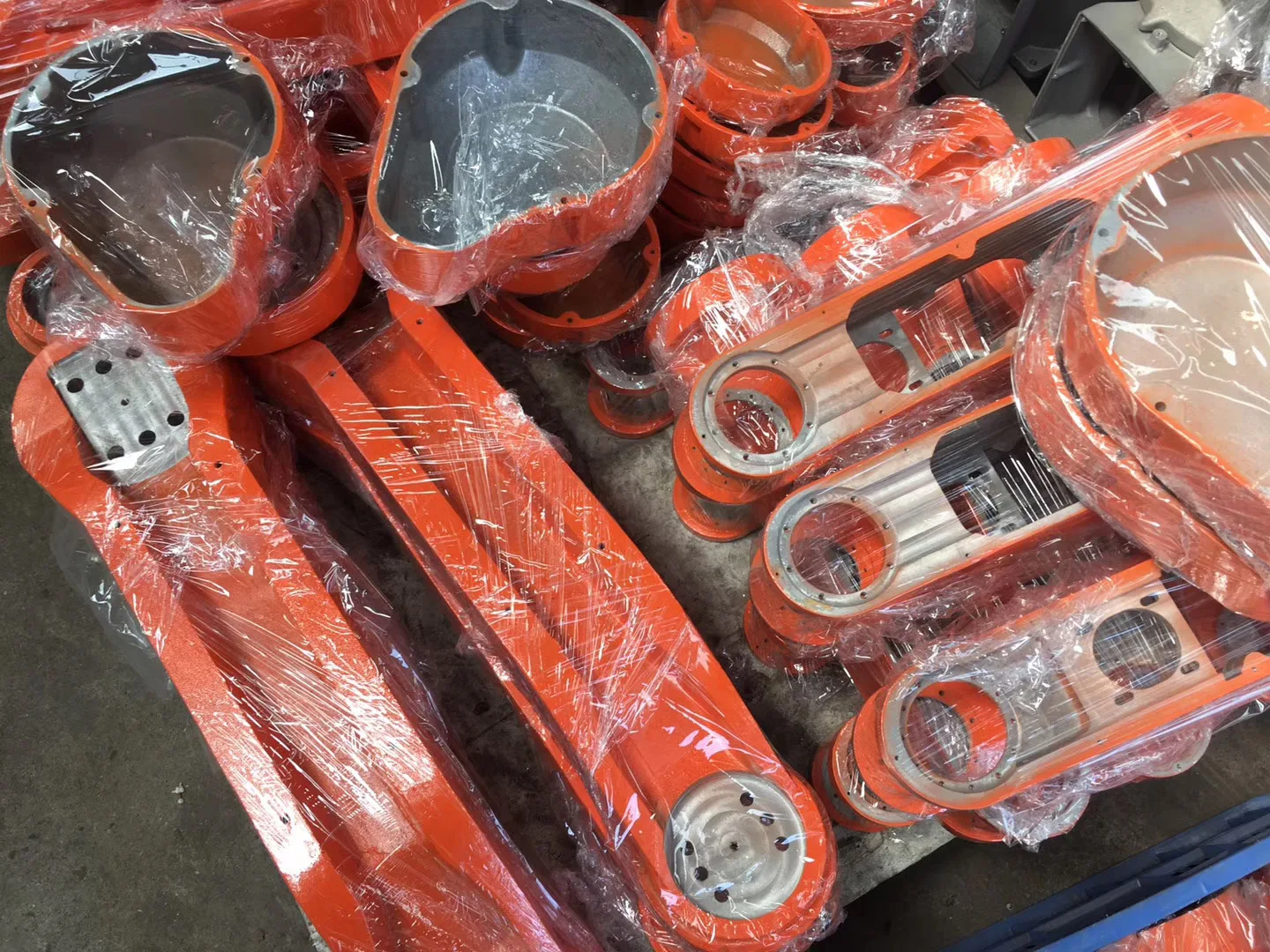

Aluminum Shell
Independent design, exquisite appearance, CNC machining and casting

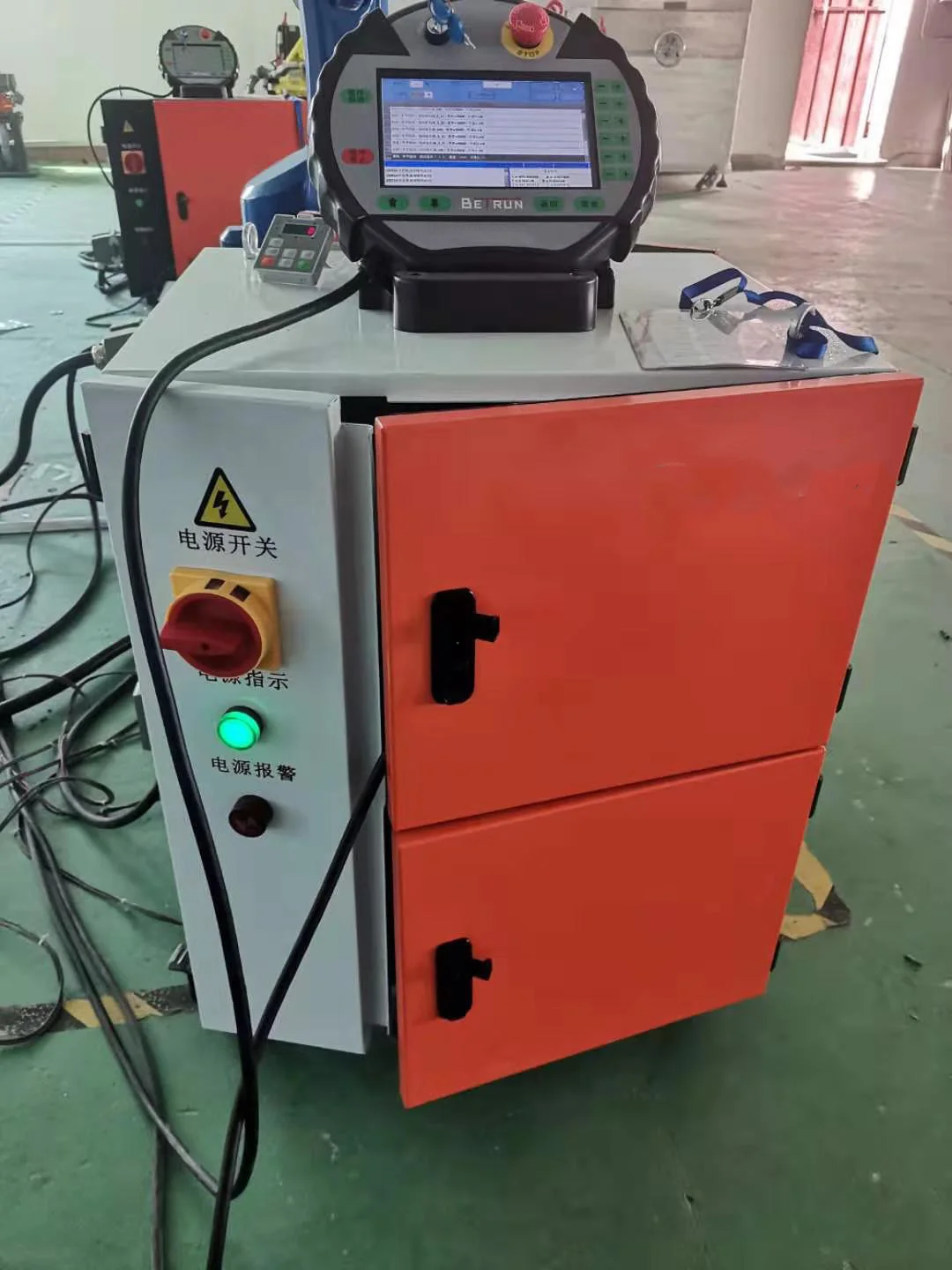

Features of Robot Control System
●Structural optimization algorithm suitable for the body control of various types of structure.
●Modular setting of functions
suitable for diverse applications.
●8-axis control realizes the control of external axes (traveling axes and positioner).
●Suitable for multiple increments; absolute servo.
●Suitable for multiple increments; absolute servo.
●Open structure for synchronization of international technology and extension
of functions.
of functions.
●Software PLC functions facilitate logic control.
●Process functions make programming easy. ●Improved computer bus
connection ensures reliability and practicability.
connection ensures reliability and practicability.
●Safety module ensures safe production of the robots.
●Industrial standards &reliable stability.
●Support change in Chinese, English, Russian, Vietnamese and Korean.
