Product Description
|
Payload
|
50 kg
|
||
|
Reach
|
1000 mm
|
||
|
Structure
|
Articulated
|
||
|
Number of axes
|
6
|
||
|
Repeatability
|
±0.08 mm
|
||
|
Max. motion range
|
Axis 1
|
±165°
|
|
|
Axis 2
|
+128°/-63°
|
||
|
Axis 3
|
+60°/-75°
|
||
|
Axis 4
|
±130°
|
||
|
Axis 5
|
+80°/-220°
|
||
|
Axis 6
|
±360°
|
||
|
Max. speed
|
Axis 1
|
145°/sec
|
|
|
Axis 2
|
145°/sec
|
||
|
Axis 3
|
145°/sec
|
||
|
Axis 4
|
222°/sec
|
||
|
Axis 5
|
148°/sec
|
||
|
Axis 6
|
222°/sec
|
||
|
Body Weight
|
≈180 kg
|
||
|
Mounting type
|
Ground, bracket, ceiling
|
||
|
Ambient temperature
|
-20 ℃~80 °C
|
||

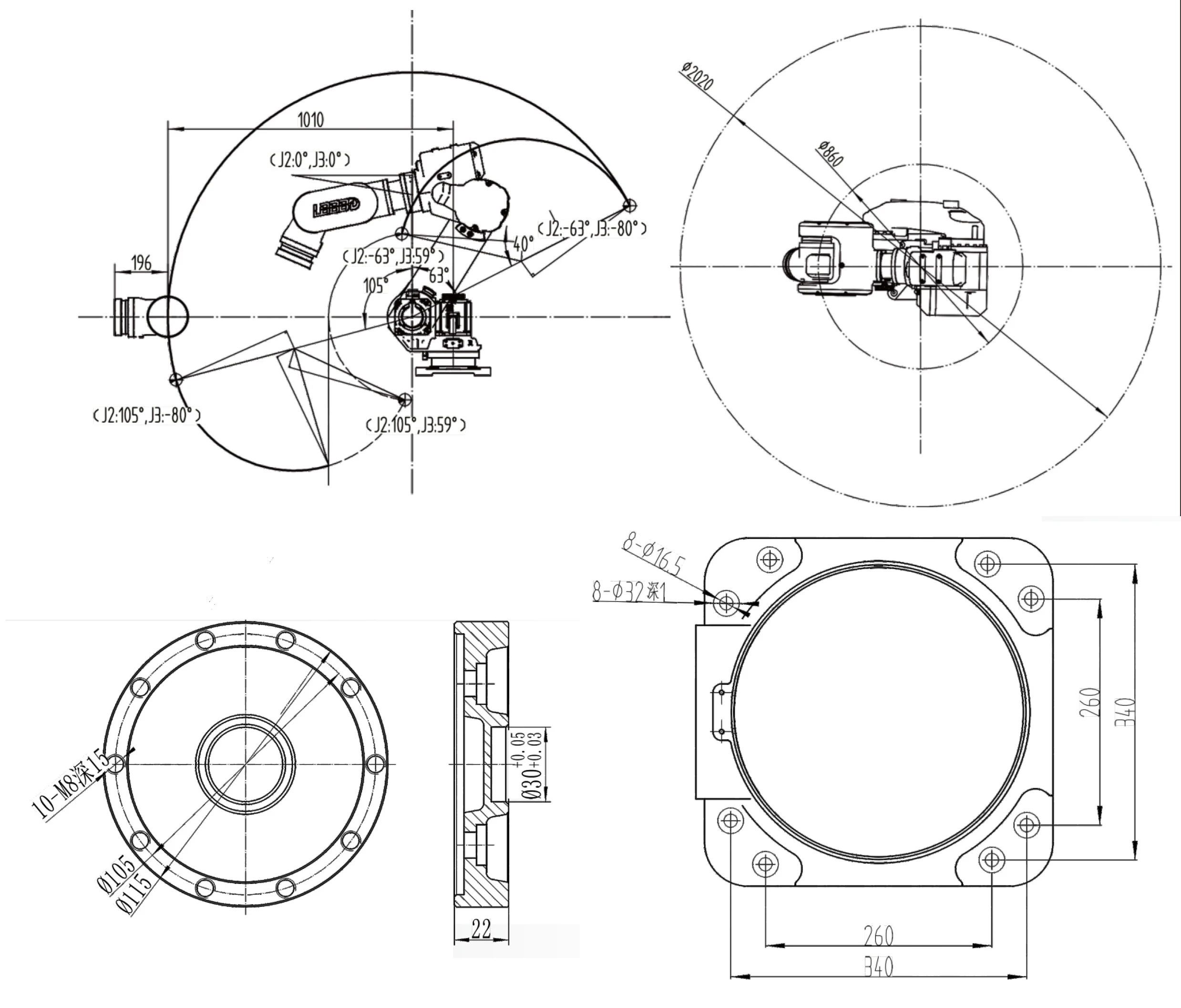

Workspace

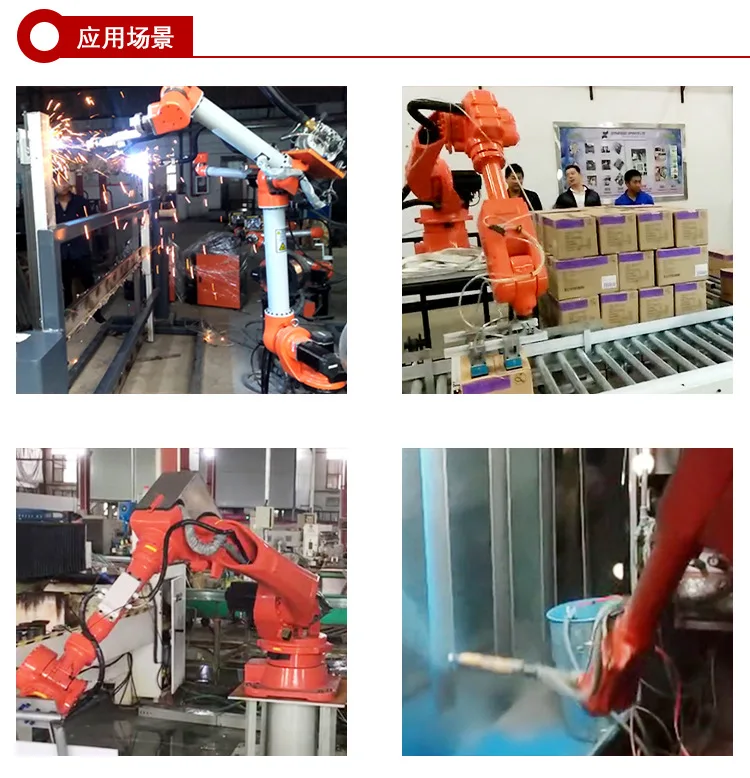

Main Applications
Grinding, polishing &deburring
Applicable Cases
Irregular workpiece punching &deburring

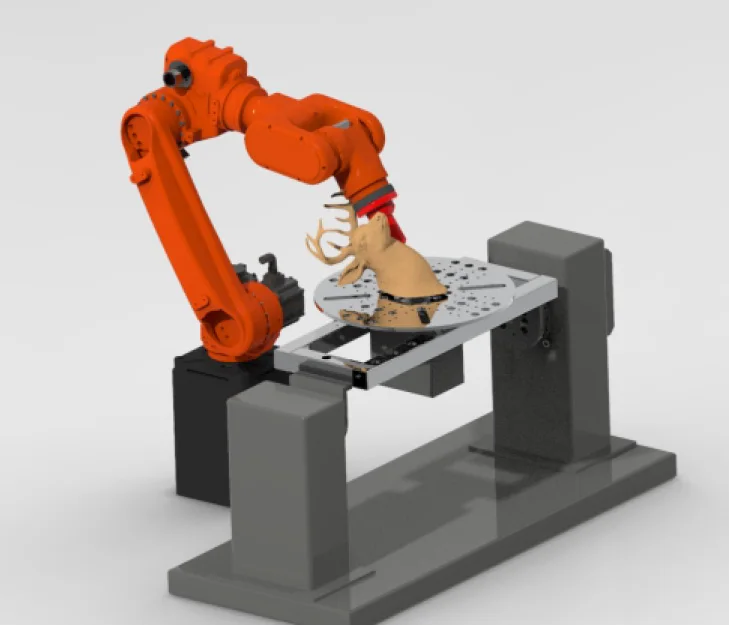

LM1000, a 50 kg robot has a high reach. The figure on the right shows a customer’s use of the robot for spherical grinding. The robot has a built-in grinding process pack to facilitate the completion of customer’s grinding tasks
Detailed Images
Harmonic reducer
Control the servo motor by three methods: position, speed and torque
Servo Motor
High-precision control, good high-speed performance and strong anti-overload capability
Servo Motor Driver
Control the servo motor by three methods: position, speed and torque
Controller board
Including various interfaces such as IO module, safety module, A / V analog module
Aluminum Alloy Shell
Independent design, exquisite appearance, CNC machining and casting
Features of Robot Control System
●Structural optimization algorithm suitable for the body control of various types of structure.
●Modular setting of functions
suitable for diverse applications.
●8-axis control realizes the control of external axes (traveling axes and positioner).
●Suitable for multiple increments; absolute servo.
●Suitable for multiple increments; absolute servo.
●Open structure for synchronization of international technology and extension
of functions.
of functions.
●Software PLC functions facilitate logic control.
●Process functions make programming easy. ●Improved computer bus
connection ensures reliability and practicability.
connection ensures reliability and practicability.
●Safety module ensures safe production of the robots.
●Support change in Chinese, English, Russian, Vietnamese and Korean.
