Products Description

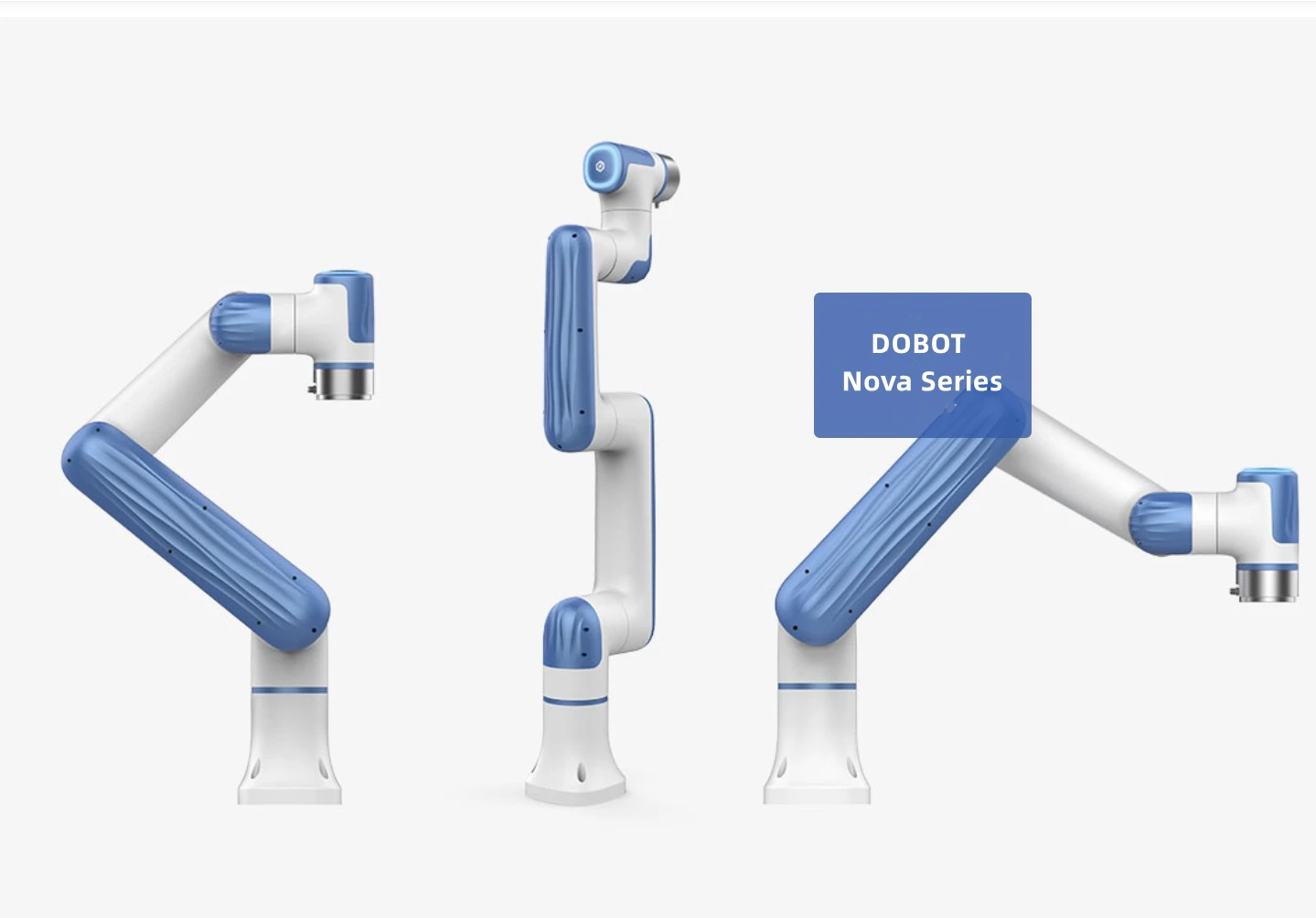

DOBOT Nova Series Collaborative Robots
The DOBOT Nova Series comes with 2 kg and 5 kg maximum payload options. Nova cobots are ultralight and easy to use. Multiple
built-in safety features ensure versatility across various commercial applications, including beverage, restaurants, physiotherapy
and more. Customizable outer shell colors allow for coherent styling in stores.
built-in safety features ensure versatility across various commercial applications, including beverage, restaurants, physiotherapy
and more. Customizable outer shell colors allow for coherent styling in stores.
|

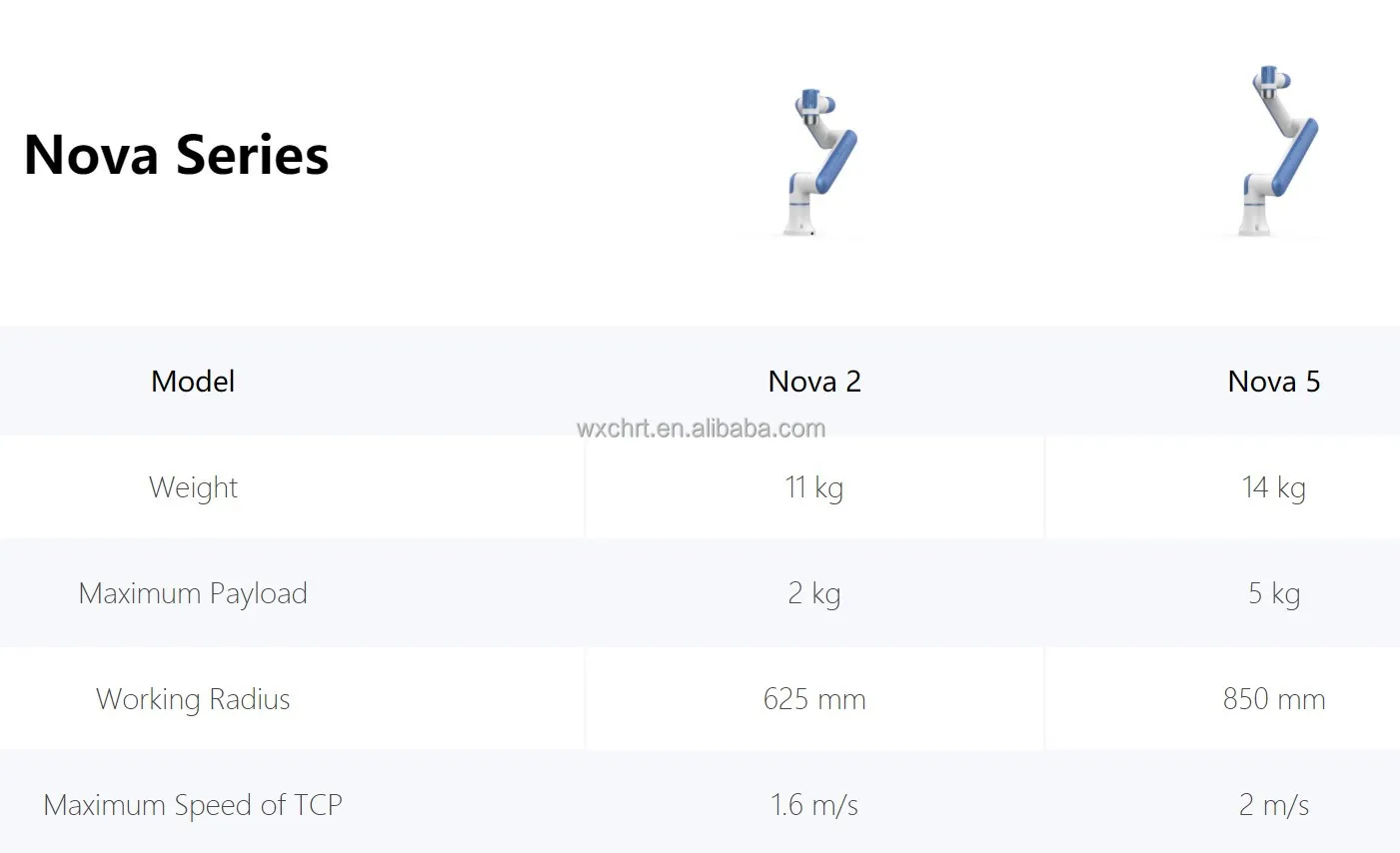

Model
|
Nova 2
|
Nova 5
|
||
|
Weight
|
11 kg (24.3 lbs)
|
14 kg (30.9 lbs)
|
||
|
Rated payload
|
|
2 kg (4.4 lbs)
|
5 kg (11 lbs)
|
|
|
Working radius
|
|
625 mm (24.6 in)
|
850 mm (33.5 in)
|
|
|
Maxinum speed of TCP
|
|
1.6 m/s (63 in/s)
|
2 m/s (78.7 in/s)
|
|
|
Repeatability
|
|
±0.05 mm
|
±0.05 mm
|
|
|
Max. motion range
|
J1
|
± 360°
|
± 360°
|
|
|
|
J2
|
± 180°
|
± 180°
|
|
|
|
J3
|
± 156°
|
± 160°
|
|
|
|
J4
|
± 360°
|
± 360°
|
|
|
|
J5
|
± 360°
|
± 360°
|
|
|
|
J6
|
± 360°
|
± 360°
|
|
|
Max. speed
|
J1/J2/J3
|
135 ° /s
|
100 ° /s
|
|
|
J4/J5/J6
|
135 ° /s
|
100 ° /s
|
||
|
I/O |
DI/DO
|
8 pin
|
8 pin
|
|
|
RS485
|
Support
|
Support
|
||
|
IP level
|
IP54
|
IP54
|
||
|
Noise
|
65 dB(A)
|
65 dB(A)
|
||
|
Ambient temperature
|
0~50 ℃
|
0~50 ℃
|
||
|
Mounting type
|
Ground, bracket, ceiling
|
Ground, bracket, ceiling
|
||

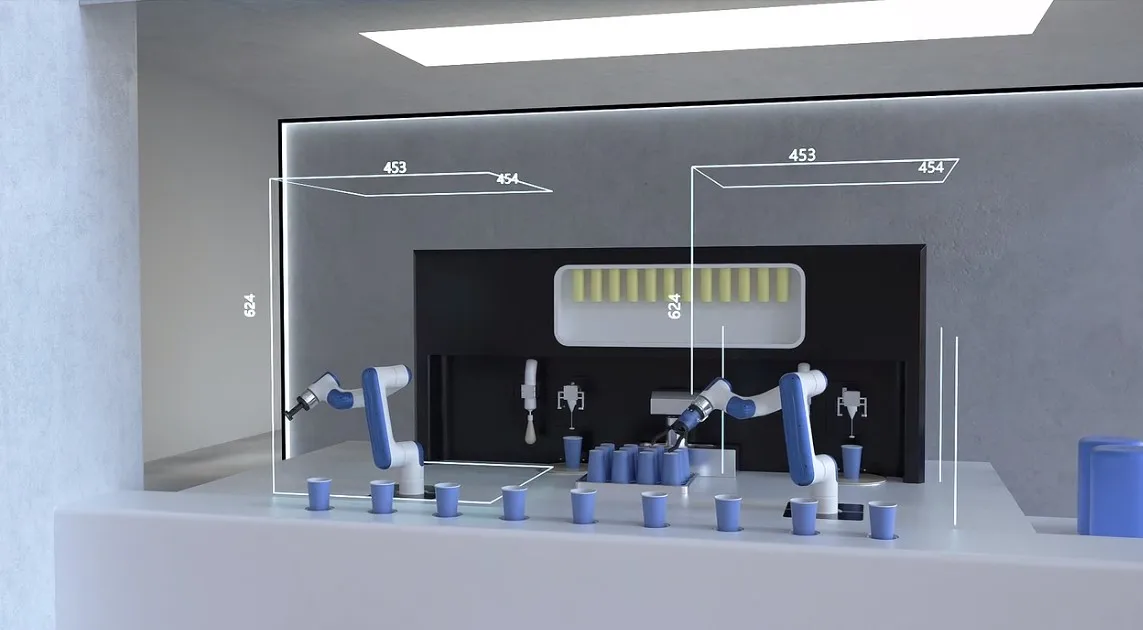

Highly Portable. Requires Only 1 m² of Space

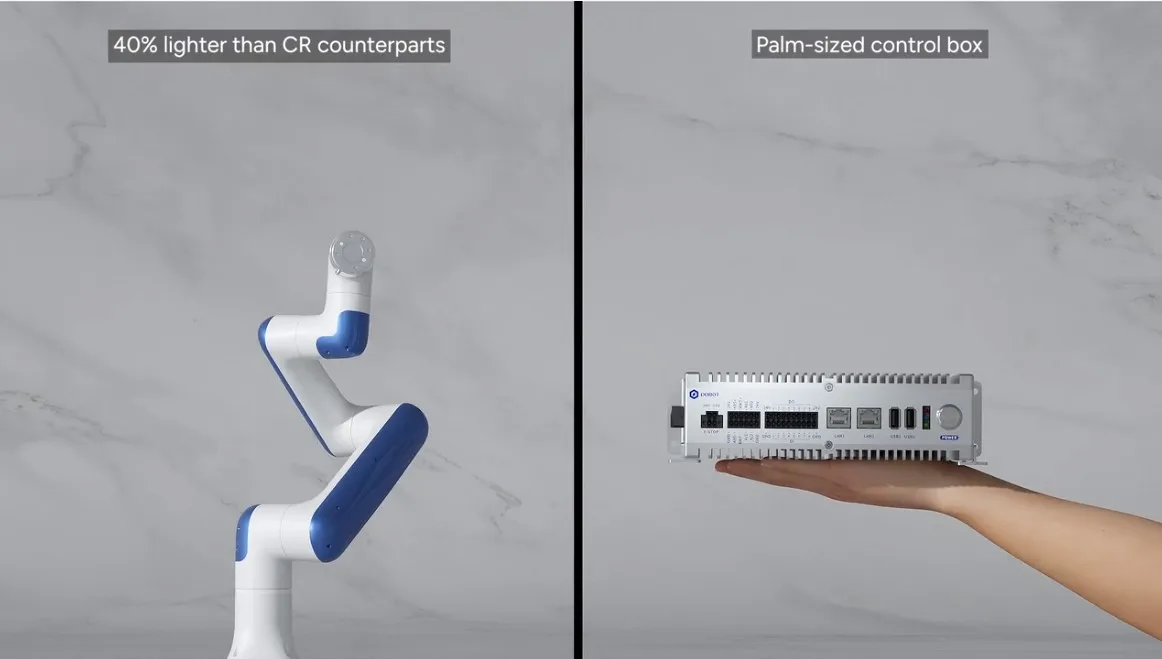

The Nova Series has maximum reach of 625-850 mm. They are 33%-44% lighter and 20% smaller than CR counterparts. Palm-sized control box makes rapid deployment possible without the need to alter store layout.

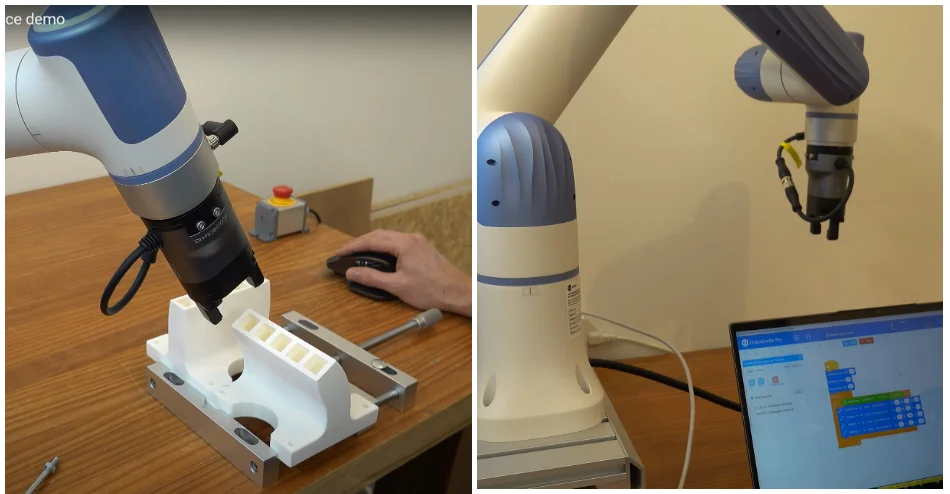

Easy to Use. No Experience Required

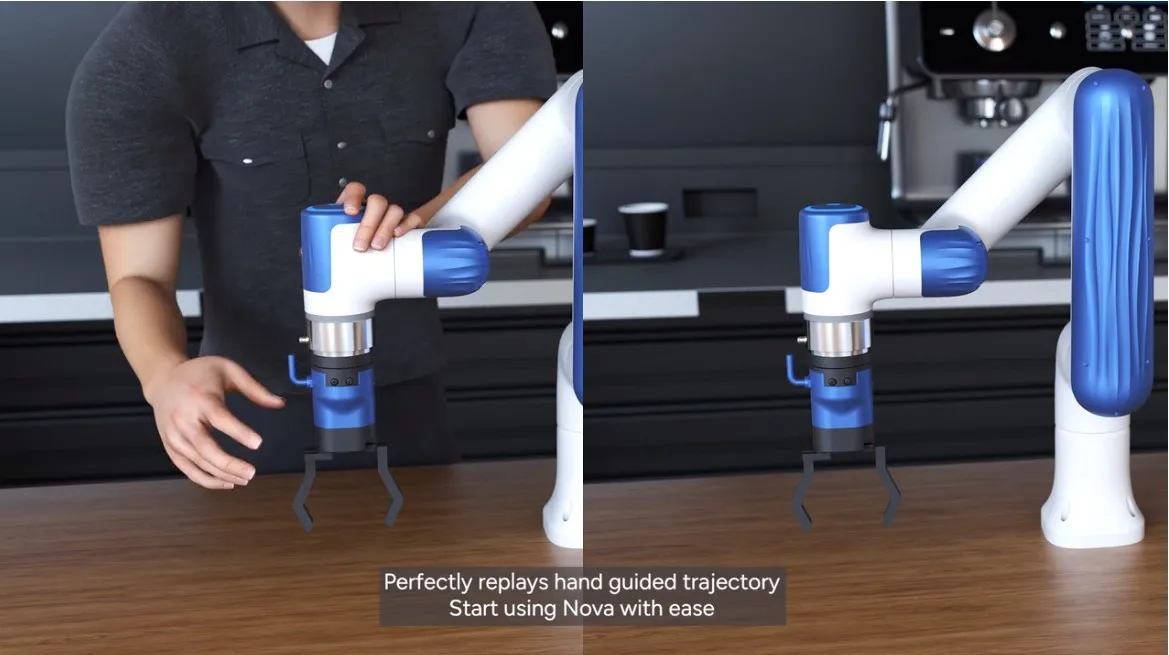

Industry leading programming methods such as replaying user guided trajectory and graphical user interface require no coding knowledge. Users in the retail and hospitality industries can easily incorporate Nova cobots into standardized workflow upon completion of training course. Effortlessly monitor cobot activities and manage software upgrades over the cloud.

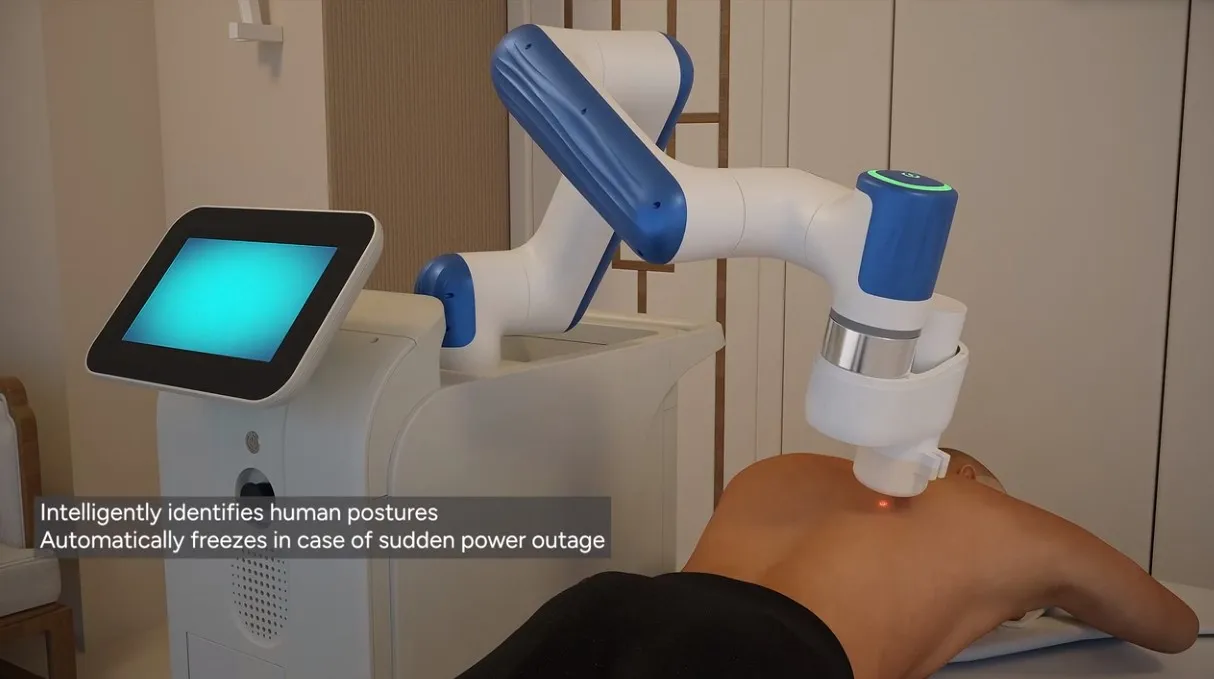

Safety Enhanced. Protection Ensured
Nova cobots are equipped with intelligent sensors with 5 adjustable protection levels. Operation stops in 0.01 second upon
collision detection to secure the safety of people. Additional safety features such as human motion sensing and posture freeze
upon power shutoff offer much desired human-robot collaboration in the commercial sector.
collision detection to secure the safety of people. Additional safety features such as human motion sensing and posture freeze
upon power shutoff offer much desired human-robot collaboration in the commercial sector.
