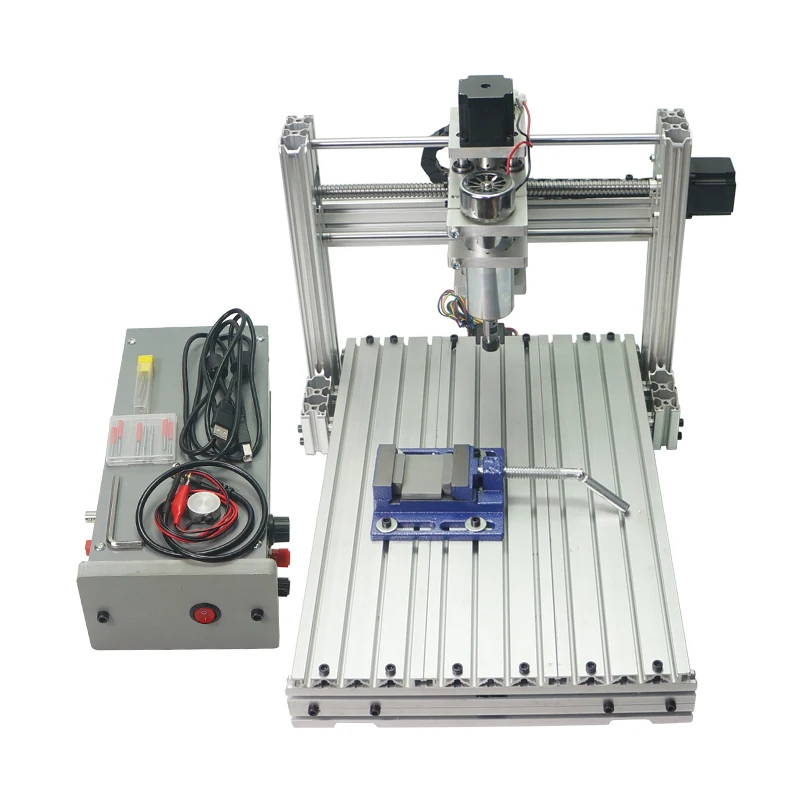

5Axis CNC Machine Router 3040 Wood Carving Metal Milling Machine Desktop CNC 4Axis 3Axis Machinery
ر.س2,659.84 – ر.س4,308.43
5Axis CNC Machine Router 3040 Wood Carving Metal Milling Machine Desktop CNC 4Axis 3Axis Machinery
Introduction
This is a very good era,in the past we only can see the CNC machine equipment in factory, but now, the CNC equipment has been into our lives;
Whether you are a small or medium enterprises managers, project engineers, CNC enthusiast or artists, related students, there are something on this machine will attract you;
It can help you processing a lot of parts, whether you are modeling or home decoration or creative DIY.
It can help you intuitively to learn CNC knowledge. And testing learning outcomes in real time.
Warranty
More Precise Stepping Motor
Simple operation and installation
1 year machine part and 6 months electrical parts,stepping motor,spindle Free Warranty
Model and Technical Parameters
|
MODEL |
3040 metal |
|||
|
Attribute |
3axis |
4axis |
5axis |
|
|
Axis |
3axis |
4axis |
5axis |
|
|
Interface |
USB Port |
USB Port |
USB Port |
|
|
Spindle Motor: |
400W |
400W |
400W |
|
|
Weigh |
35 |
35 |
35 |
|
|
Max. working stroke |
XYZ=290*390*95mm |
|||
|
Acceptable material thickness |
≤120mm |
|||
|
Rail type |
X Y 1605 ball screw, Z 1204 ball screw, 12 mm optical axis |
|||
|
Spindle motor |
400W DC spindle , 0-9000r/min |
|||
|
Collet type |
ER11,1/8″(3.175mm) Collet |
|||
|
Stepper motor and drive |
||||
|
Repeat positioning Accuracy |
0.02mm |
|||
|
Communication interface |
USB Port |
|||
|
System requirements |
Win-XP / Win 7 Win 8 Win10 |
|||
|
Software Co patability |
Mach3/Emc2/Kcam, (Type3,Wentai, ArtCAM, coppercam) |
|||
|
Command code |
G code/.nc/.ncc/.tab/.txt |
|||
|
Machine weight |
35kg |
|||
|
Rotation Axis (4th Axis)
Rotation Axis (5th Axis)
|
Center height: H = 51mm Maximum turning diameter: ≤ 81mm Deceleration ratio: 4:1 Stepper motor: 57HS56 Weight: 4.0KG
The fourth axis gear ratio: 4: 1 (57 two phase 3A stepper motor 1.2N) The fifth axis reduction ratio: 5: 1 (57 two phase 3A stepper motor 1.2N) Four jaw chuck 60MM The clamping: Positive direction:40mm; In the opposite direction:70mm Fourth axis Center height: 55MM The fifth axis higher than the 4th axis 44 mm Bottom fixed hole distance: 150mm x 85mm |
|||
