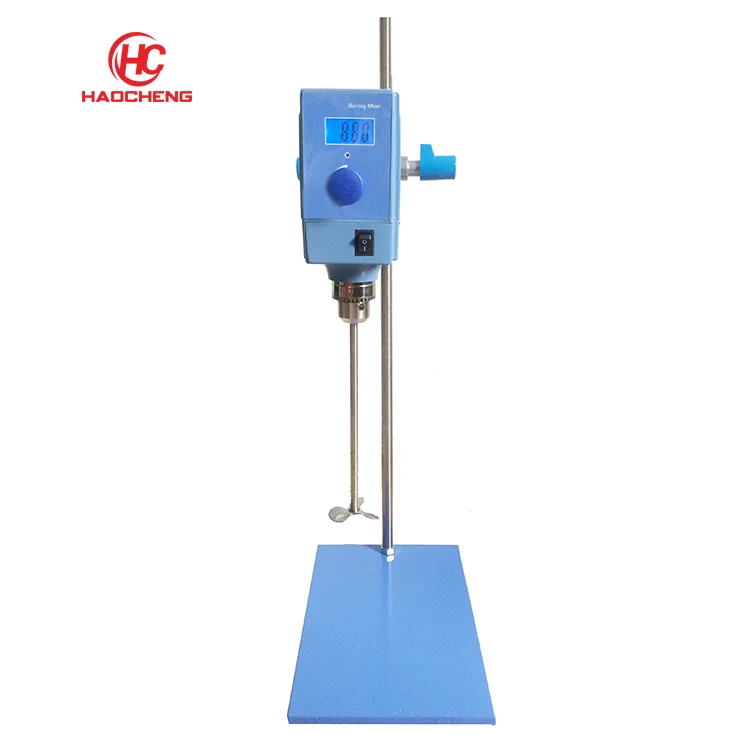

50L Digital Display Mixing Equipment Laboratory Overhead Stirrer
Introduction
HM-C series is an experimental equipment for liquid mixing and agitation.It’s suitable to mix kinds of liquids,
such as shampoo, shower gel,honey,paint,cosmetic. It’s widely used in chemical synthesis, physical and chemical analysis, petrochemical, cosmetics, health care, food, biotechnology and other field.
Feature
- Brushless DC motor drive,MCU closed loop control,constant and stable rotational speed,rotary encoder operation
- Penetration type stirring shaft,low noise, high reliability and long continuous working.
- Digital LCD display rotation speed,60-1500RPM
- 220/110V Optional
Specification
|
Model |
HM-40C |
HM-100C |
HM-150C |
HM-250C |
|
Motor Power |
50W |
100W |
150W |
250W |
|
Motor Type |
Brushless DC Motor |
|||
|
Motor Torque |
200m N.M |
450m N.M |
600m N.M |
1 N.M |
|
Voltage |
220V/110 Optional |
|||
|
Stirring Volume (Water) |
20L |
50L |
80L |
150L |
|
Stir Speed Range |
60- 1500 RPM |
|||
|
Speed Control System |
Closed Loop MCU Control,Rotary Encoder Operation |
|||
|
Digital display |
LCD |
|||
|
Stir Rod Length |
300mm(Standard) |
|||
|
Stir Rod Material |
SS 304 |
|||
|
Holder Length |
700mm |
|||
|
Chuck Clamping Range |
Ø1.5-13 |
Ø1.5-13 |
Ø1.5-13 |
Ø1.5-13 |
|
Dimension (CM) |
69x 39x 20 |
|||
|
Gross weight (KG ) |
11 |
11.5 |
12 |
12 |
Product details
Optional stir rod
